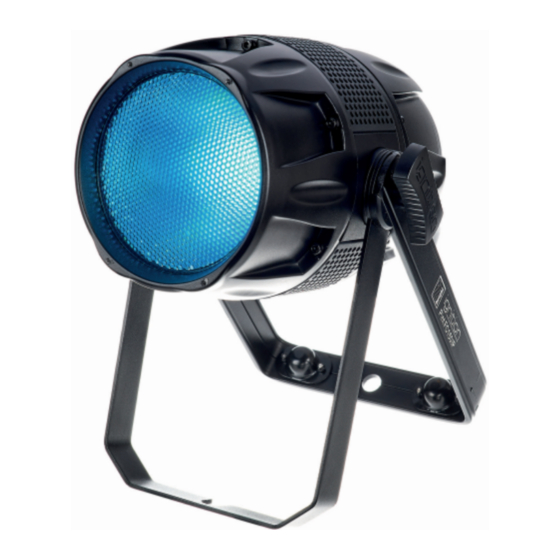

2bright Pint FC150 IP
LED spotlight

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ignition 2bright Pint FC150 IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for thomann Ignition 2bright Pint FC150 IP

Summary of Contents for thomann Ignition 2bright Pint FC150 IP

  • Page 1 2bright Pint FC150 IP LED spotlight...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 14.09.2020, ID: 481586...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................6 1.1 Further information........................... 7 1.2 Notational conventions........................8 1.3 Symbols and signal words....................... 9 Safety instructions..........................12 Features............................... 17 Installation..............................19 Starting up..............................23 Connections and controls........................25 Operating..............................28 7.1 Starting the device........................... 28 7.2 Operating on the unit........................
  • Page 4 Table of contents 7.6 Functions in 4-channel DMX mode................... 55 7.7 Functions in 6-channel DMX mode................... 55 7.8 Functions in 8-channel DMX mode................... 57 7.9 Functions in 11-channel DMX mode..................59 Technical specifications........................65 Plug and connection assignment....................68 Troubleshooting............................69 Cleaning...............................
  • Page 5 2bright Pint FC150 IP LED spotlight...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. 2bright Pint FC150 IP...

  • Page 7: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 8: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...

  • Page 9: Symbols And Signal Words

    General information Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 10 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 11 General information Warning signs Type of danger Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. 2bright Pint FC150 IP LED spotlight...

  • Page 12: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 13 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 14 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 15 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING! Risk of burns The surface of the device can become very hot during operation. Do not touch the device with bare hands during operation, and after switching off wait for at least 15 minutes.
  • Page 16 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 17: Features

    Features Features The device is suitable for demanding outdoor use as well as for TV and theatre. Special features of the device: 1 × 4in1 RGBW COB LED (150 watt) Control via DMX (6 modes), RDM and via buttons and display on the unit Selectable colour macros and colour change programmes Selectable dimmer curves and dimmer speeds Adjustable LED repetition rates from 900 to 10.000 Hz...
  • Page 18 Features The specified protection class does not make a statement about the weather resistance of the equipment (resistance to changing ambient conditions as well as against the effects of sun‐ light and UV rays). The seals and screw connections of the equipment must be checked regularly to ensure a fault-free operation.

  • Page 19: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 20 Installation NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must not exceed the limits stated in the chapter Tech‐ nical Specifications of the User Manual. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 21 NOTICE! Possible damage due to moisture Moisture entering into open connectors (plugs and couplers) of DMX or power cords can cause short circuits. Close unused connectors with end caps intended for this purpose (www.thomann.de). 2bright Pint FC150 IP LED spotlight...
  • Page 22 Installation Mounting options You can install the unit in hanging or standing position. When in use, the device must always be attached to a solid surface or an approved truss. Use the openings of the bracket provided for mounting. Always work from a stable platform whenever installing, moving or servicing the unit. In doing so, the area underneath the unit must be cordoned off.

  • Page 23: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. 2bright Pint FC150 IP LED spotlight...
  • Page 24 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.

  • Page 25: Connections And Controls

    Connections and controls Connections and controls 2bright Pint FC150 IP LED spotlight...
  • Page 26 Connections and controls 1 Locking screws for the brackets. 2 [DMX IN] DMX input, designed as 3-pin XLR panel plug (IP65) 3 Display and keypad [MENU] Activates the main menu, toggles between the menu levels or closes a submenu. [DOWN] Decreases the displayed value by one.
  • Page 27 Connections and controls 5 [DMX OUT] DMX output, designed as 3-pin XLR panel socket (IP65) 6 Pressure compensation element 7 [POWER OUT] Lockable chassis socket (Power Twist TR1 IP65) for the power supply of another device 8 [POWER IN] Lockable chassis socket (Power Twist TR1 IP65) for the power supply of the device 2bright Pint FC150 IP LED spotlight...

  • Page 28: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. The LED lights. The device is imme‐ diately operational. 7.2 Operating on the unit Navigating in the menu Press [MENU] to activate the main menu. Press again [MENU] or [UP] or [DOWN] to call up further menu items.
  • Page 29 Operating All set values are retained even when you switch the device off and disconnect it from the mains. 2bright Pint FC150 IP LED spotlight...
  • Page 30 Operating Setting the DMX address Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘DMX Address’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired DMX address between ‘001’ and ‘512’ . Press [ENTER] to accept the selection. This setting is only relevant when the device is controlled via DMX.
  • Page 31 Operating Mode Display Highest possible DMX address 8-channel ‘8CH’ 11-channel ‘11CH’ Setting the DMX mode Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘DMX Mode’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired DMX mode (1, 2, 4, 6, 8, or 11 channels). Depending on the selected mode, the display shows ‘1CH’...
  • Page 32 Operating Selecting and configuring a pre‐ In this operating mode you select one of the preprogrammed automatic shows and configure programmed automatic show the speed and the dimmer intensity of the selected show. konfigurieren Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm with [ENTER].
  • Page 33 Operating Setting colour macro Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Color Macro’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select one of the 46 colour macros (display shows ‘Color1’ … ‘Color46’...
  • Page 34 Operating Colour macro Colour mixture Colour macro Colour mixture R/G/B/W R/G/B/W 255/210/0/0 255/0/220/0 255/255/0/0 255/0/170/0 200/255/0/0 255/0/95/0 160/255/0/0 255/0/70/0 110/255/0/0 0/0/40/0 70/255/0/0 255/0/20/0 0/255/0/0 255/0/7/0 0/255/10/0 0/0/0/255 0/255/25/0 255/0/0/255 0/255/45/0 125/0/0/255 0/255/70/0 0/255/0/255 0/255/120/0 0/120/0/255 2bright Pint FC150 IP LED spotlight...
  • Page 35 Operating Colour macro Colour mixture Colour macro Colour mixture R/G/B/W R/G/B/W 0/255/255/0 0/0/255/255 0/180/255/0 0/0/100/255 0/70/255/0 0/0/50/255 0/0/255/0 198/145/15/0 20/0/255/0 198/145/17/255 Press [UP] or [DOWN] to select the desired value for the intensity of the colour macro (display shows ‘006’ … ‘255’ ). Press [ENTER] to accept the selection.
  • Page 36 Operating Setting constant colour Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Stand Alone’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Manual’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select an effect or a colour that you can to adjust individually. Confirm with [ENTER].
  • Page 37 Operating Menu level 3 Menu level 4 Function ‘CTC’ ‘OFF’ No function ‘3000K…7500K’ Colour temperature of 3000 K to 7500 K Press [ENTER] to accept the selection. Rotating the Display Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER].
  • Page 38 Operating Setting display illumination Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Display Backlight’ . Confirm with [ENTER]. Use [UP] or [DOWN] to choose between ‘On’ (display permanently on) and ‘Off’ (display turns off after a few seconds in case of inactivity).
  • Page 39 Operating Setting the behaviour on DMX control failure Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘DMX Fail’ . Confirm with [ENTER]. Use [UP] or [DOWN] to choose between ‘Hold’...
  • Page 40 Operating Setting the dimmer curve Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Dimmer Curve’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired dimmer curve. The following sub menus are available: Menu level 3 Function...
  • Page 41 Operating Menu level 3 Function ‘Archite’ without fade time: Rise time 1380 ms, fall time 1730 ms Fade time 1 s: Rise time 2040 ms, fall time 2120 ms ‘Theatre’ without fade time: Rise time 1580 ms, fall time 1940 ms Fade time 1 s: Rise time 2230 ms, fall time 2280 ms ‘Stage2’...
  • Page 42 Operating Setting the dimmer speed The dimmer speed can only be set for the ‘Stage2’ dimmer curve. Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Dimmer Speed’ . Confirm with [ENTER].
  • Page 43 Operating Enabling keylock Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Auto Lock’ . Confirm with [ENTER]. Use [UP] or [DOWN] to choose between ‘On’ (keylock on) and ‘Off’ (keylock off). Press [ENTER] to accept the selection.
  • Page 44 Operating Setting fan mode Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Fan Mode’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired fan mode. The following sub menus are available: Menu level 3 Function...
  • Page 45 Operating LED repetition rate (PWM) Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘PWM Rate’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the value for the LED repetition rate. The following table shows the available options.
  • Page 46 Operating Menu level 3 Function ‘2500Hz’ PWM 2.5 kHz ‘4000Hz’ PWM 4 kHz ‘5000Hz’ PWM 5 kHz ‘6000Hz’ PWM 6 kHz ‘10000Hz’ PWM 10 kHz Press [ENTER] to accept the selection. 2bright Pint FC150 IP LED spotlight...
  • Page 47 Operating Resetting the device to factory defaults Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Service’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Reset’ . Confirm with [ENTER]. ð...
  • Page 48 Operating Calibrating colours Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘Settings’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘Calibration’ . Confirm with [ENTER]. ð You are prompted to enter a password. Enter the password 50.
  • Page 49 Operating Firmware version display Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘Firmware’ . ð The current firmware version is displayed. LED operating hours display Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’...
  • Page 50 Operating Device operating hours display Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘Operation Hours’ . ð The operation hours of the device are displayed. Show device temperature Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’...
  • Page 51 Operating RDM function This device has an RDM function and supports the DMX512 standard. Any device with RDM can be recognized by the built-in UID code. Press [MENU] and then [UP] or [DOWN] repeatedly until the display shows ‘System Info’ . Confirm with [ENTER].
  • Page 52 Operating Parameter ID Recognition Sent Command Received command Command IDENTIFY_DEVICE SUPPORTED_PARAMETERS SENSOR_DEFINITION SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION RESET_DEVICE FACTORY_DEFAULTS 2bright Pint FC150 IP LED spotlight...

  • Page 53: Menu Overview

    Operating 7.3 Menu overview 2bright Pint FC150 IP LED spotlight...

  • Page 54: Functions In 1-Channel Dmx Mode

    Operating 7.4 Functions in 1-channel DMX mode Channel Value Function Blinder mode 7.5 Functions in 2-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) Colour macros 000…007 No function 008…255 Colour macros 1…46 2bright Pint FC150 IP LED spotlight...

  • Page 55: Functions In 4-Channel Dmx Mode

    Operating 7.6 Functions in 4-channel DMX mode Channel Value Function 000…255 Intensity red (0 %…100 %) 000…255 Intensity green (0 %…100 %) 000…255 Intensity blue (0 %…100 %) 000…255 Intensity white (0 %…100 %) 7.7 Functions in 6-channel DMX mode Channel Value Function...
  • Page 56 Operating Channel Value Function 000…255 Intensity blue (0 %…100 %) 000…255 Intensity white (0 %…100 %) Stroboscope 000…010 LED on 011…020 LED off 021…030 Singly strobe pulse 031…090 Strobe effect, increasing speed 091…100 LED on 101…170 Strobe pulses (short burst with pause) 171…180 LED on 181…240...

  • Page 57: Functions In 8-Channel Dmx Mode

    Operating 7.8 Functions in 8-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) 000…255 Fine adjustment dimmer (0 %…100 %) 000…255 Intensity red (0 %…100 %) 000…255 Intensity green (0 %…100 %) 000…255 Intensity blue (0 %…100 %) 000…255 Intensity white (0 %…100 %) Stroboscope...
  • Page 58 Operating Channel Value Function 091…100 LED on 101…170 Strobe pulses (short burst with pause) 171…180 LED on 181…240 Random strobe effect, increasing speed 241…255 LED on Blinder mode 2bright Pint FC150 IP LED spotlight...

  • Page 59: Functions In 11-Channel Dmx Mode

    Operating 7.9 Functions in 11-channel DMX mode Channel Value Function 000…255 Dimmer intensity from dark (0) to bright (255) 000…255 Fine adjustment dimmer (0 %…100 %) 000…255 Intensity red (0 %…100 %) 000…255 Intensity green (0 %…100 %) 000…255 Intensity blue (0 %…100 %) 000…255 Intensity white (0 %…100 %) Stroboscope...
  • Page 60 Operating Channel Value Function 091…100 LED on 101…170 Strobe pulses (short burst with pause) 171…180 LED on 181…240 Random strobe effect, increasing speed 241…255 LED on Blinder mode Colour macros 000…007 No function 008…255 Colour macros 1…46 Dimmer curves 000…010 Default setting of the device 011…020 Dimmer curve ‘Linear’...
  • Page 61 Operating Channel Value Function 041…060 Dimmer curve ‘TV’ 061…080 Dimmer curve ‘Architectural’ 081…100 Dimmer curve ‘Theatre’ 101…120 Dimmer curve ‘Stage2’ Delay 0.1 s Delay 0.2 s Delay 0.3 s Delay 0.4 s Delay 0.5 s Delay 0.6 s Delay 0.7 s Delay 0.8 s Delay 0.9 s 2bright Pint FC150 IP...
  • Page 62 Operating Channel Value Function Delay 1.0 s Delay 1.5 s Delay 2.0 s Delay 3.0 s Delay 4.0 s Delay 5.0 s Delay 6.0 s Delay 7.0 s Delay 8.0 s Delay 9.0 s Delay 10 s 141…255 Default setting of the device LED repetition rate 2bright Pint FC150 IP LED spotlight...
  • Page 63 Operating Channel Value Function 000…010 No function 011…020 900 Hz 021…030 1000 Hz 031…040 1100 Hz 041…050 1200 Hz 051…060 1300 Hz 061…070 1400 Hz 071…080 1500 Hz 081…090 2500 Hz 091…100 4000 Hz 101…110 5000 Hz 111…120 6000 Hz 121…130 10,000 Hz 2bright Pint FC150 IP...
  • Page 64 Operating Channel Value Function 131…140 Default setting of the device Fan mode 141…150 Fan mode ‘Silent’ 151…160 Fan mode ‘Smart’ 161…170 Fan mode ‘Max’ 171…180 Default setting of the device 181…255 No function 2bright Pint FC150 IP LED spotlight...

  • Page 65: Technical Specifications

    Technical specifications Technical specifications Item no. Light source 1 × 4in1 RBGW COB LED, 150 W Optical properties Beam angle 50° Colour temperature 7500 K Repetition rate 900 Hz…10 kHz Control Buttons and display Number of DMX channels 1, 2, 4, 6, 8, 11 Input connections Voltage supply Lockable input socket Power Twist TR1...
  • Page 66 Technical specifications Item no. Output connections Voltage supply Lockable output socket Power Twist TR1 IP65 DMX control XLR panel socket (IP65), 3-pin Power consumption 135 W Operating supply voltage 100 – 240 V 50/60 Hz Protection class IP65 Mounting options hanging, standing Dimensions (W ×...
  • Page 67 Technical specifications Further information Item no. Construction Outdoor housing, cannon Number of LEDs Colour mixture RBGW LED type x-in-1 Floor housing Fanless Remote control Not possible Wireless DMX Housing colour black 2bright Pint FC150 IP LED spotlight...

  • Page 68: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 69: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 70 DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. 2bright Pint FC150 IP LED spotlight...

  • Page 71: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 72: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 73 Notes 2bright Pint FC150 IP LED spotlight...
