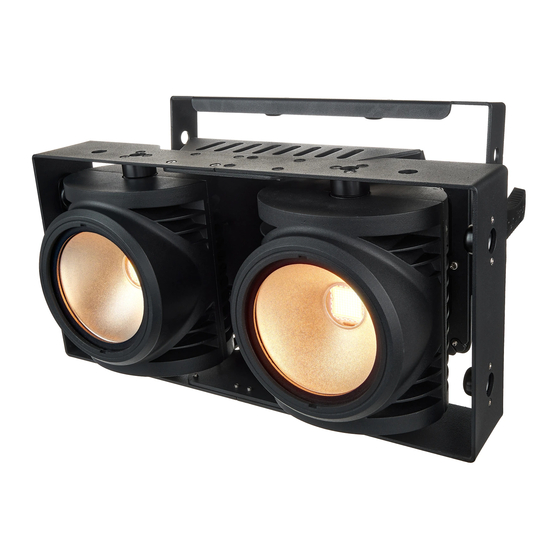

thomann ignition 2bright Blind FC LED IP User Manual

Blinder
Hide thumbs Also See for ignition 2bright Blind FC LED IP:
Table of Contents

Advertisement

Quick Links

Download this manual
2bright Blind FC LED IP
Blinder

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ignition 2bright Blind FC LED IP and is the answer not in the manual?

Questions and answers

Related Manuals for thomann ignition 2bright Blind FC LED IP

Summary of Contents for thomann ignition 2bright Blind FC LED IP

  • Page 1 2bright Blind FC LED IP Blinder...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 25.07.2022, ID: 547282...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 13 Installation..............................15 Starting up..............................18 Connections and controls........................20 Operating..............................22 7.1 Starting the device........................... 22 7.2 Operating on the unit........................
  • Page 4 Table of contents 7.10 Functions in 10-channel DMX mode..................40 7.11 Functions in 12-channel DMX mode..................42 Technical specifications........................44 Plug and connection assignment....................46 Cleaning............................... 47 Protecting the environment......................48 2bright Blind FC LED IP Blinder...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. 2bright Blind FC LED IP...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Symbols And Signal Words

    General information Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . Instructions The individual steps of an instruction are numbered consecutively.
  • Page 8 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 9 General information Warning signs Type of danger Warning – danger zone. 2bright Blind FC LED IP Blinder...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 11 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug.
  • Page 12 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 13: Features

    Features Features The LED-Blinder imitates the dimming and response behaviour and the typical afterglow of a conventional blinder. Special features of the device: 2 × RGBWW LED, 100 W each Colour temperature warm white: 3000 K large beam angle with even light spread Luminaire can be horizontally angled LEDs individually controllable flicker-free for use in TV and film...
  • Page 14 Features Information about protection Equipment with protection class IP65 are dust-tight and completely protected against contact class IP65 (first code number). They are also protected against splash water from any angle (second code digit). That is why this equipment can also be used outdoors. Event technology equipment is generally only designed for temporary use however (event lighting) and not for permanent use outdoors.

  • Page 15: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 16 NOTICE! Possible damage due to moisture Moisture entering into open connectors (plugs and couplers) of DMX or power cords can cause short circuits. Close unused connectors with end caps intended for this purpose (www.thomann.de). 2bright Blind FC LED IP Blinder...
  • Page 17 Installation Mounting options You can install the unit in hanging or standing position. When in use, the device must always be attached to a solid surface or an approved truss. Use the openings provided on the two- piece bracket for attaching. Always work from a stable platform whenever installing, moving or servicing the unit.

  • Page 18: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 19 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.

  • Page 20: Connections And Controls

    Connections and controls Connections and controls & ö ö 2bright Blind FC LED IP Blinder...
  • Page 21 Connections and controls 1 Locking screws for the mounting bracket 2 [DMX OUT] | DMX output, designed as a 3-pin XLR panel socket (IP65) 3 [DMX IN] | DMX input, designed as a 3-pin XLR panel plug (IP65) 4 Mounting bracket 5 Display and function buttons.

  • Page 22: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. 7.2 Operating on the unit Navigating in the menu Press [MENU] repeatedly to bring up the desired menu. Confirm the selection with [ENTER]. Press [UP] or [DOWN] to change the respectively displayed value. Press [ENTER] to apply the displayed value.
  • Page 23 Operating Setting the DMX address Press [MENU] repeatedly until the display shows ‘ADDR’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired DMX address between ‘001’ and ‘512’ . Press [ENTER] to accept the selection. This setting is only relevant when the device is controlled via DMX. Make sure that this number matches the configuration of your DMX controller.
  • Page 24 Operating Setting the DMX mode Press [MENU] repeatedly until the display shows ‘CHMD’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired DMX mode (1, 3, 4, 6, 8, 10 or 12 channels). Depending on the selected mode, the display shows ‘1CH’ , ‘3CH’ , ‘4CH1’ , ‘4CH2’ , ‘6CH’ , ‘8CH’...
  • Page 25 Operating Setting colour macro Press [MENU] repeatedly until the display shows ‘COLO’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select one of the 46 colour macros (display shows ‘CO1’ … ‘CO46’ ) or turn off the colour (display shows ‘Color Off’ ). Confirm with [ENTER]. Press [UP] or [DOWN] to select the desired value for the intensity of the colour macro (display shows ‘006’...
  • Page 26 Operating Setting constant colour Press [MENU] repeatedly until the display shows ‘MANL’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select an effect or a colour that you can to adjust individually. Press [ENTER] to activate a desired sub menu. To set the intensity of the dimmer, the frequency of the strobe effect or the colour inten‐...
  • Page 27 Operating Setting colour temperature and dimmer for white Press [MENU] repeatedly until the display shows ‘TUAN’ . Confirm with [ENTER]. Press [UP] or [DOWN] to select the desired submenu or the desired value. The following sub menus are available: Menu level 2 Menu level 3 Description ‘DIM’...
  • Page 28 Operating Rotating the Display In this menu, you can specify whether the display should be shown normally or rotated by 180°. Press [MENU] repeatedly until the display shows ‘SET’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘DREV’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select between ‘On’...
  • Page 29 Operating Behaviour on DMX control In this menu, you can specify the behaviour of the device when the DMX signal is interrupted. failure Press [MENU] repeatedly until the display shows ‘SET’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘DFAL’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select between ‘Hold’...
  • Page 30 Operating Setting the dimmer curve Press [MENU] repeatedly until the display shows ‘SET’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘DCUR’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired dimmer curve (display shows ‘LINR’ , ‘EXPO’ , ‘LOGA’...
  • Page 31 Operating Setting the response behaviour of the dimmer Press [MENU] repeatedly until the display shows ‘SET’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘DRES’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select the desired response behaviour of the dimmer (display shows ‘LED’...
  • Page 32 Operating Enabling keylock Press [MENU] repeatedly until the display shows ‘SET’ . Confirm with [ENTER]. Press [UP] or [DOWN] repeatedly until the display shows ‘LOCK’ . Confirm with [ENTER]. Use [UP] or [DOWN] to select either ‘On’ (keylock on) and Off (keylock ‘Off’ ). Press [ENTER] to accept the selection.
  • Page 33 Operating Firmware version display Press [MENU] repeatedly until the display shows ‘INFO’ . Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘VERS’ . Confirm with [ENTER]. ð The current firmware version is displayed. Operating hours display Press [MENU] repeatedly until the display shows ‘INFO’ . Confirm with [ENTER]. Press [UP] or [DOWN] until the display shows ‘HORS’...

  • Page 34: Menu Overview

    Operating 7.3 Menu overview ADDR CHMD AUTO COLO MANL PR01 Dimmer 000...255 PR02 CO01 006...255 Strobe 0...30 4CH1 PR03 CO02 006...255 000...255 000...255 4CH2 Green 000...255 Speed PR17 CO46 006...255 Blue 000...255 000...255 White 000...255 10CH 12CH TUAN SLAV INFO 000...255 DREV VERS...

  • Page 35: Functions In 1-Channel Dmx Mode

    Operating 7.4 Functions in 1-channel DMX mode Channel Value Function 0…255 Blinder mode (0 % to 100 %) 7.5 Functions in 3-channel DMX mode Channel Value Function 000…255 Master dimmer (0 % to 100 %) 000…255 Blinder mode (0 % to 100 %) Colour macros 000…007 No function...

  • Page 36: Functions In 4-Channel Dmx Mode 1

    Operating 7.6 Functions in 4-channel DMX mode 1 Channel Value Function 000…255 Master dimmer (0 % to 100 %) 000…255 Blinder mode (0 % to 100 %) Colour macros LED 1 000…007 No function 008…255 Colour 1 to colour 46 Colour macros LED 2 000…007 No function...

  • Page 37: Functions In 4-Channel Dmx Mode 2

    Operating 7.7 Functions in 4-channel DMX mode 2 Channel Value Function 000…255 Intensity red (0 %…100 %) 000…255 Intensity green (0 %…100 %) 000…255 Intensity blue (0 %…100 %) 000…255 Intensity white (0 %…100 %) 2bright Blind FC LED IP Blinder...

  • Page 38: Functions In 6-Channel Dmx Mode

    Operating 7.8 Functions in 6-channel DMX mode Channel Value Function 000…255 Master dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Random impulses, increasing speed 034 … 056 Randomly increasing brightness, increasing speed 057 …...

  • Page 39: Functions In 8-Channel Dmx Mode

    Operating Channel Value Function 000…255 Intensity blue (0 %…100 %) 000…255 Intensity white (0 %…100 %) 7.9 Functions in 8-channel DMX mode Channel Value Function 000…255 Intensity red (0 %…100 %), LED 1 000…255 Intensity green (0 %…100 %), LED 1 000…255 Intensity blue (0 %…100 %), LED 1 000…255...

  • Page 40: Functions In 10-Channel Dmx Mode

    Operating 7.10 Functions in 10-channel DMX mode Channel Value Function 000…255 Master dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Random impulses, increasing speed 034 … 056 Randomly increasing brightness, increasing speed 057 …...
  • Page 41 Operating Channel Value Function 000…255 Intensity white (0 %…100 %), LED 1 000…255 Intensity red (0 %…100 %), LED 2 000…255 Intensity green (0 %…100 %), LED 2 000…255 Intensity blue (0 %…100 %), LED 2 000…255 Intensity white (0 %…100 %), LED 2 2bright Blind FC LED IP Blinder...

  • Page 42: Functions In 12-Channel Dmx Mode

    Operating 7.11 Functions in 12-channel DMX mode Channel Value Function 000…255 Master dimmer (0 % to 100 %) Strobe 000 … 005 LEDs on 006 … 010 LEDs off (blackout) 011 … 033 Random impulses, increasing speed 034 … 056 Randomly increasing brightness, increasing speed 057 …...
  • Page 43 Operating Channel Value Function 000…255 Intensity white (0 %…100 %), LED 1 000…255 Intensity red (0 %…100 %), LED 2 000…255 Intensity green (0 %…100 %), LED 2 000…255 Intensity blue (0 %…100 %), LED 2 000…255 Intensity white (0 %…100 %), LED 2 Dimmer response 000 …...

  • Page 44: Technical Specifications

    Technical specifications Technical specifications Light source 2 × RGBWW LED, 100 W each Properties of the Colour rendering index CRI >90 Light source Optical properties Beam angle 90° Control DMX, buttons and display on the unit Number of DMX channels 1, 3, 4-1, 4-2, 6, 8, 10, 12 400 mm 260 mm...
  • Page 45 Technical specifications Dimensions (W × H × D) 400 mm × 230 mm × 260 mm Weight 9 kg Ambient conditions Temperature range 0 °C…40 °C relative humidity 20 %…80 % (non-condensing) Further information Construction 2-fold Illuminant included DMX controllable 2bright Blind FC LED IP Blinder...

  • Page 46: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 47: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 48: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 49 Notes 2bright Blind FC LED IP Blinder...
  • Page 50 Notes 2bright Blind FC LED IP Blinder...
  • Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
