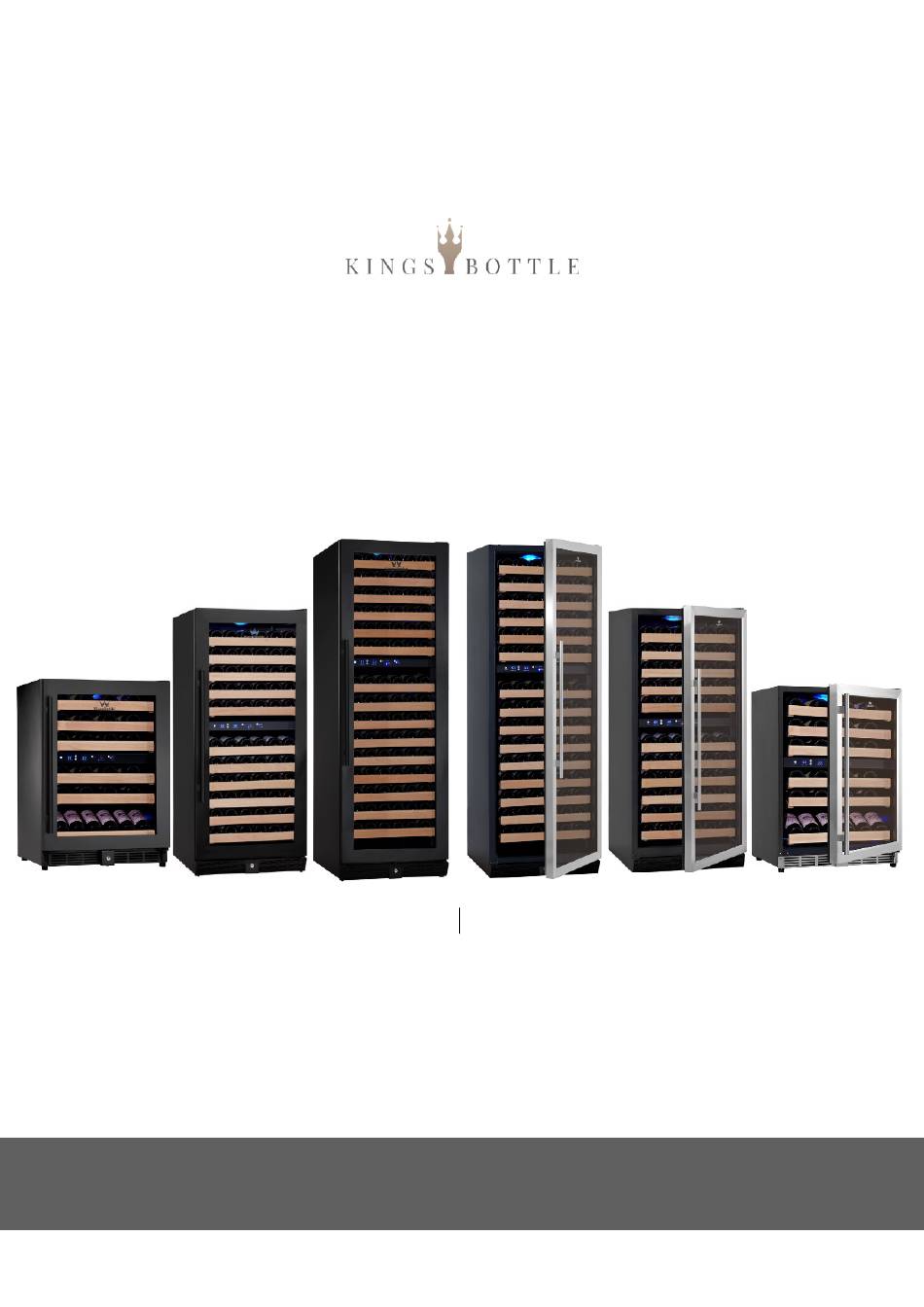

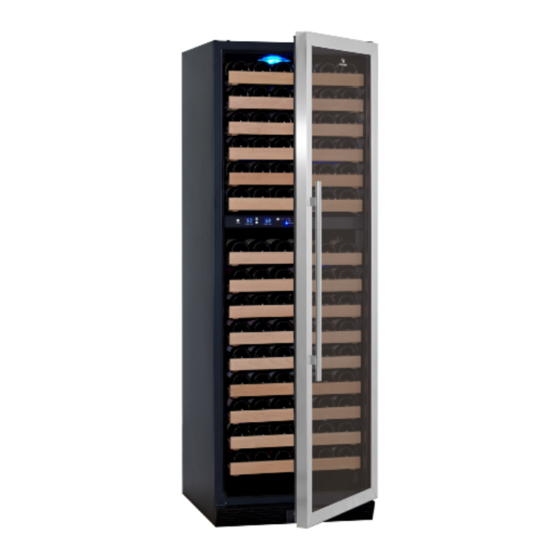

KBU50DX-FG
KBU100DX-FG
BORDERLESS BLACK GLASS DOOR SERIES
• Every time the unit is powered ON, there will be a 6-minute delay for the compressor to start.
• For optimal use of this product, the temperature of the LOWER cooling zone should be set to at least 5°F
(2°C) above the temperature of the UPPER cooling zone.
COMPRESSOR WINE REFRIGERATORS
USER MANUAL
DUAL ZONE WINE REFRIGERATORS
KBU170DX-FG
( Note: The model number in Australia is KB instead of KBU)
PLEASE NOTE:
www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
KBU170DX-SS
KBU100DX-SS
GLASS DOOR WITH STAINLESS TRIM SERIES
KBU50DX-SS
Advertisement
Related Manuals for KingsBottle KBU50DX-FG
Summary of Contents for KingsBottle KBU50DX-FG
- Page 1 • Every time the unit is powered ON, there will be a 6-minute delay for the compressor to start. • For optimal use of this product, the temperature of the LOWER cooling zone should be set to at least 5°F (2°C) above the temperature of the UPPER cooling zone. COMPRESSOR WINE REFRIGERATORS www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 2 TABLE OF CONTENTS Congratulations Chapter Contents Page Congratulations and thank you for choosing our KingsBottle wine Part I Important Safety & Pre-Use Instructions coolers. We are sure you will find your new appliance a pleasure to use. Before installing and operating Part II Diagram &...
- Page 3 8g of refrigerant. The amount of refrigerant charged in the disposing of this appliance. appliance can be found on the rating plate on the appliance. www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia) in the built-in structure, clear of obstruction. accelerate the defrosting process, other than those...
- Page 4 4 PCB Control Board Display and Control Panel YOUR WINE COOLER ALSO INCLUDES THE FOLLOWING: • Instruction manual • Two keys • Top and bottom hinges , also screws for changing the door hinge COMPRESSOR WINE REFRIGERATORS www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 5 25mm the unit. These extra spaces enable units to be placed in the position efficiently, accommodate the door when opened, KBU-170 23.54” 26.97” 71.69” 0.98” and without the power cords being damaged. 598mm 685mm 1821mm 25mm www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 6 . You may now need to fine tune the installation by COMPRESSOR WINE REFRIGERATORS repeating steps 2, 3 and 4. . Wipe off any dust that has accumulated during shippi www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia) and clean following the directions on page 17.
- Page 7 CAUTION: These instructions are not intended to be a substitute for proper supervision. The manufacturer assumes no liability for improper installation or excessive loads placed on screws, brackets, or straps. Straps should be periodically adjusted, tested and replaced. www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 8 5th shelves to display shelves. Note: This changes will reduce the total storage capacity. Total 167 Bottles remove the 2nd, 4th shelves change the 1st, 3rd, 5th standard shelves to display shelves Total 136 Bottles COMPRESSOR WINE REFRIGERATORS www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 9 2nd, 4th shelves to display shelves. Note: This changes will reduce the total storage capacity. Total 111 Bottles remove the 1st, 3rd shelves change the 2nd, 4th standard shelves to display shelves Total 89 Bottles www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 10 Warranty ..... 19 under the manufacturers warranty. This does not affect your statutory rights. COMPRESSOR WINE REFRIGERATORS ENVIRONMENTAL TIPS dispose of those materials through your local recycling www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia) depot or by placing them in appropriate collection containers.
- Page 11 Keep the refrigerator out of direct sunlight. Meanings of symbols used in this manual are shown below: www.kingsbottle.com (USA) ｜www.kingsbottle.com.au Don’t locate the refrigerator near stoves, fires or heaters. (Australia) When installed correctly, your refrigerator should:...
- Page 12 1. Adjust the brightness of the lamp according to the operating instructions. 4. The light does brightness. 2. Replace with new bulb; the lamp has its polarity. not work. The light itself is faulty. 3. Find a technician to repair. PCB circuit faulty. www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 13 The heating glass is OFF (heating glass door is only Turn on the heating glass available for specific models) The heating glass function fails (heating glass door is only Find a technician to repair, or replace with a new door. available for specific models) www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 14 1. Unplug the power for 5 hours, restart the refrigerator and check again. 20. Error code LL Low-temperature alarm 2. Check or replace the sensors and control board. 3. Check or replace the the electromagnetic valve (applicable to KBU28LR) www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 15 • Keep the cooler stocked; an empty cooler will run longer, believe it or not. accelerate the defrosting process, other than those recommended by the manufacturer. per 8g of refrigerant. The amount of refrigerant charged in the appliance can be found on the rating plate on the appliance. www.kingsbottle.com (USA) ｜www.kingsbottle.com.au (Australia)
- Page 16 Warranty is only honored for the unit which is used in the countries where the unit was initially purchased. And, if your product was purchased at any 3rd party retailer and not directly from KingsBottle, we do not offer an extended warranty policy. You MUST contact the retailer of purchase directly.
- Page 17 COMPRESSOR WINE REFRIGERATORS...
- Page 18 MANUEL DE L’UTILISATEUR KBU-50 / 100 / 170DX REFROIDISSEURS À VIN À DOUBLE ZONE KBU50DX-FG KBU100DX-FG KBU170DX-FG KBU170DX-SS KBU100DX-SS KBU50DX-SS MODÈLES À PORTE VITRÉE NOIR SANS BORDURE MODÈLES À PORTE VITRÉE AVEC BORDURE EN ACIER INOXYDABLE VEUILLEZ NOTER • À chaque fois que l’unité est ALLUMÉE, il y aura un délai de 6 minutes avant que le compresseur démarre.
-
Page 19: Table Of Contents
Partie I Consignes importantes de sécurité avant l’utlisation Félicitations et merci d’avoir choisi Partie II Diagramme et description du réfrigérateur nos refroidisseurs à vin KingsBottle. Nous sommes convaincus que vous trouverez votre nouvel Partie III Consignes d’installation électroménager agréable à utiliser. - Page 20 The ambient room temperature should be above 10°C. blowing gases. Avoid safety hazards by carefully 8g of refrigerant. The amount of refrigerant charged in the www.kingsbottle.com disposing of this appliance. Stand your refrigerator in a dry place – avoid areas appliance can be found on the rating plate on the appliance.
-
Page 21: Diagramme Et Description Du Réfrigérateur
8. Panneau d’affichage et de contrôle AUSSI INCLUS DANS VOTRE REFROIDISSEUR À VIN : • Manuel d’instruction • Deux clefs • Charnières d’en haut et d’en bas, ainsi que les vis pour le changement de charnières REFROIDISSEURS À VIN AVEC COMPRESSEUR www.kingsbottle.com... -
Page 22: Consignes D'installation
Ces espaces supplémentaires permettent de bien placer les 598mm 685mm 1408mm 25mm unités, d’ouvrir la porte sans problème et d’empêcher KBU-170 23.54” 26.97” 71.69” 0.98” l’usure des cordons d’alimentation. 598mm 685mm 1821mm 25mm www.kingsbottle.com... - Page 23 (three hours for a freezer) before you put any food in it. This will confirm that it is operating correctly REFROIDISSEURS À VIN AVEC COMPRESSEUR and make the conditions appropriate for food storage. www.kingsbottle.com Congratulations! You have successfully installed your refrigerator/freezer.
- Page 24 ATTENTION : Ce produit n’est pas conçu pour remplacer une supervision adéquate. Le fabricant n’assume aucune responsabilité dans le cas d’une installation fautive ou un poids excessif exercé sur les vis, les supports ou les sangles. Les sangles devraient être ajustées, testées et remplacées périodiquement. www.kingsbottle.com...
-
Page 25: Partie Iv Configuration Et Stockage
1re, 3e et 5e tablettes en présentoir. Note : Ces changements réduisent la capacité de stockage totale. Retirez les 2e et 4e tablettes ez les 1re, 3e et 5e tablettes en présentoir REFROIDISSEURS À VIN AVEC COMPRESSEUR www.kingsbottle.com... - Page 26 2e et 4e tablettes en présentoir. Note : Ces changements réduisent la capacité de stockage totale. Retirez les 1re et 3e tablettes Changez les 2e et 4e tablettes en présentoir www.kingsbottle.com...
- Page 27 Warranty ..... 19 under the manufacturers warranty. This does not affect your statutory rights. REFROIDISSEURS À VIN AVEC COMPRESSEUR ENVIRONMENTAL TIPS dispose of those materials through your local recycling www.kingsbottle.com depot or by placing them in appropriate collection containers.
- Page 28 Keep the refrigerator out of direct sunlight. Meanings of symbols used in this manual are shown below: Don’t locate the refrigerator near stoves, fires or heaters. www.kingsbottle.com When installed correctly, your refrigerator should: – Have adequate space at the back and sides...
- Page 29 Aucun Quand la temp. est plus basse que 32°F (0oC) ou plus haute que 69°F (20oC), un C’est normal, aucune intervention nécessaire. Code signal sonore se fera entendre et l’utilisateur devra y porter attention. REFROIDISSEURS À VIN AVEC COMPRESSEUR www.kingsbottle.com...
-
Page 30: Partie Vi Guide De Dépannage
La porte est ouverte trop souvent Réduisez la fréquence et la durée de temps où la porte est ouverte la porte en verre www.kingsbottle.com Utilisez un sèche-cheveux à basse temp. pour sceller correctement le Le joint de la porte ne se ferme pas correctement... -
Page 31: Partie Vii Entretien
• Gardez le refroidisseur plein, un refroidisseur vide refroidira plus lentement, croyez-le ou non. per 8g of refrigerant. The amount of refrigerant charged in the appliance can be found on the rating plate on the appliance. www.kingsbottle.com... -
Page 32: Données Techniques
KingsBottle peut demander au consommateur de contacter une entreprise de réfrigération locale pour l’entretien du réfrigérateur. Tous les frais de main d’œuvre et de matériaux sont couverts pour 2 ans à partir de la preuve d’achat. Si KingsBottle juge que l’unité est irréparable, KingsBottle considèrera la valeur originale de votre commande en vue d’un remplacement (Toute unité...
