3. Installation and Setup
• To switch the SOUND HUB COMPACT from
standby mode to operational mode, press the
remote control Standby button, or any of the
source select buttons. The LED indicators on the
SOUND HUB COMPACT top panel will illuminate
according to the volume level. When changing
source a single LED will illuminate according to
the chosen input. The top panel indicators are

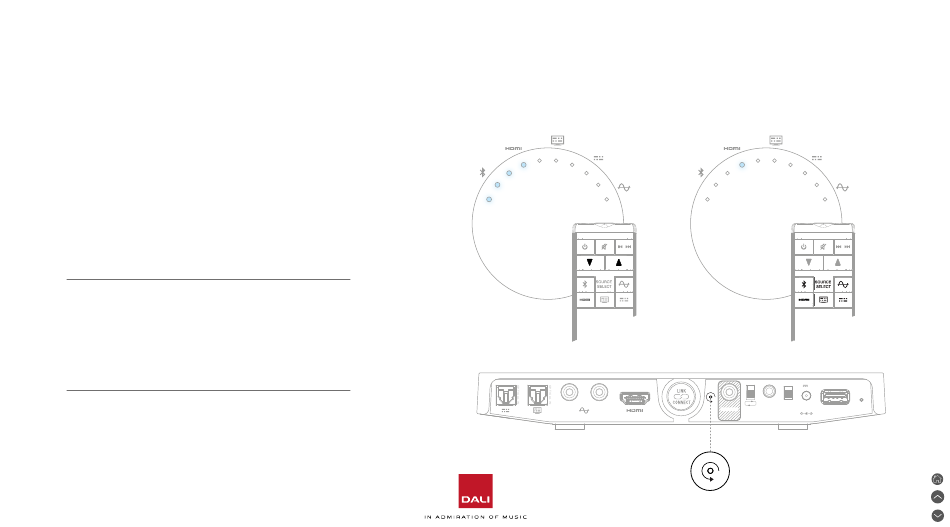

illustrated in Diagram 6.
NOTE:
If your SOUND HUB COMPACT has been
previously used it may need to be reset. To reset
your SOUND HUB COMPACT use an appropriate
tool to press and hold the rear panel RESET
pinhole button for 1 second. The location of the
reset button is illustrated in Diagram 7.
10
DIAGRAM 6
DIAGRAM 7
L R
RCA IN
Print color: MOTIP 51077 Print color: MOTIP 51077
5.8 GHz OFF
9V 1.3A
AUTO ON
RESET SUB OUT BAND IR AUTO POWER USB POWER/
SOURCE SERVICE
SELECT
Print color: MOTIP 51077 Print color: MOTIP 51077 Print color: MOTIP 51077 Print color: MOTIP 51077 Print color: MOTIP 51077 Print color: MOTIP 51077
Reset button
