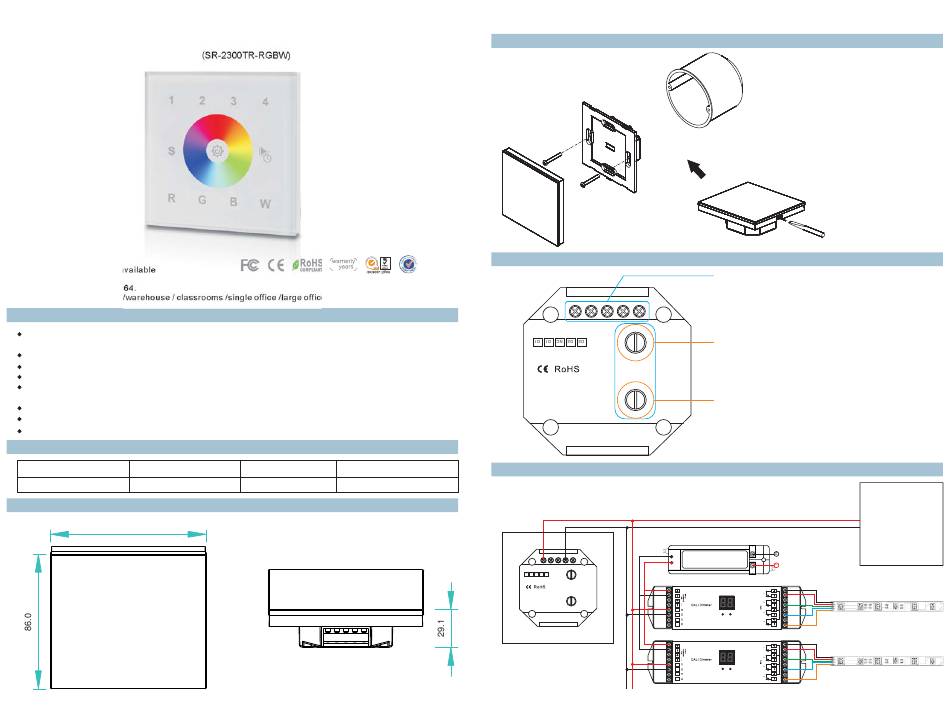

DALI Touch Dimmer Switch
A.White & black plate are available
B.DALI bus powered
C.Start address from 00 to 64.
D. Perfect for industry hall /warehouse / classrooms /single office /large office /meeting room / corridor
Feature
Comply to DALI standard protocol IEC 62386-102,IEC 62386-207 and in compliance with DALI products from
other international incorporation.
Touch interface operation design, easy to use.
With bus detective function, one channel DALI bus can install multiple dimmer switchs.
External power supply.
Enable to select different single light zone by encoding switch.
Up to 4 light zones for switchand dimming control.Each zone can be 4 DALI addresses.
Can save 2 or 3 scenes.
Suitable for RGB & RGBW LED.
Built-in 10 color sequences
Parameter
Part No.
Operation Voltage
SR-2300TR-RGBW
12-24VDC
Product Size
86.0
SR-2300TR-RGBW)
5
Output
Dimensions
DALI Signal
86x86x29.1
Installation
Brief introduction of buttons
0 1
9
8
2
(x1)
7
3
6
4
5
0 1
9
8
2
(x10)
7
3
6
4
5
Wiring diagram
DALI bus
0 1
9
8
2
(x1)
7
3
6
4
5
0 1
9
8
2
(x10)
7
3
6
4
5
For DALI Dimmable led Drivers and dali master
1x(1~9)
10x(1~9)
DALI Master/
DALI Master software
via computer
Power Supply
110V-230VAC
12-36VDC
SR-2303B
SR-2303B
Advertisement
Related Manuals for Dali SR-2300TR-RGBW
Summary of Contents for Dali SR-2300TR-RGBW
- Page 1 C.Start address from 00 to 64. D. Perfect for industry hall /warehouse / classrooms /single office /large office /meeting room / corridor Feature Comply to DALI standard protocol IEC 62386-102,IEC 62386-207 and in compliance with DALI products from (x1) 1x(1~9) other international incorporation.
- Page 2 Long press:to dim brightness of any zone Operation Set starting number for DALI switch Set the starting number “X” on SR-2300TR-RGBW(with 64 dali address) Z1 control X,X+1,X+2,X+3 dali address , Z2 control X+4,X+5,X+6,X+7 dali adrees , Z3 control X+8,X+9,X+10,X+11 DALi address , Z4 control X+12,X+13,X+14,X+15 DALi Address Safety &...
