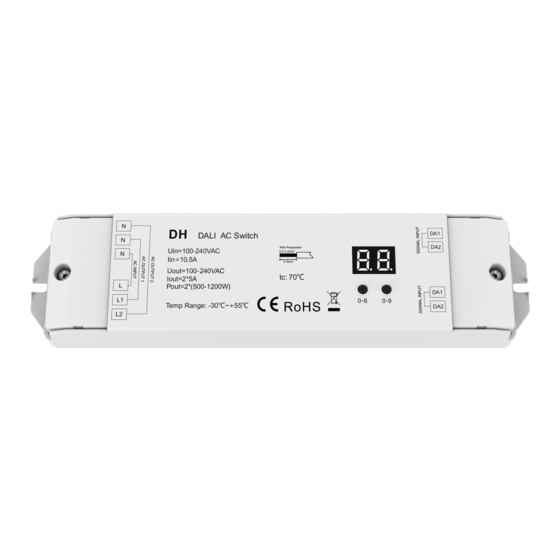

Dali DH User Manual

DALI AC Switch
Model No.: DH
2 DALI address/2 Channel AC output/Numeric display

Features

● DALI control power on/off to cater for unwanted dimming lighting system, two DALI address, two channel output,
AC input and AC output.
● In accordance with DALI standard protocol IEC 62386-102, IEC 62386-208 and in compliance with DALI products
from other international incorporation.
● DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
● The switching thresholds of the relay can be set on the DALI bus
● Zero cross switching function, 2 independently output channels AC switch.
● To switch two LED lamps, traditional incandescent and halogen lights.

Technical Parameters

Input and Output

Input voltage
AC100-240V
Output voltage
AC100-240V
Output current
2CH, 5A Max
Output power
2*(500-1200)W

Environment

O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature ( Max. ) O
T c: +70 C
IP rating
IP20
User Manual Ver 1.0.0
LVD

Warranty

5 years
Warranty
Weight
weight 123g
Gross weight
140g

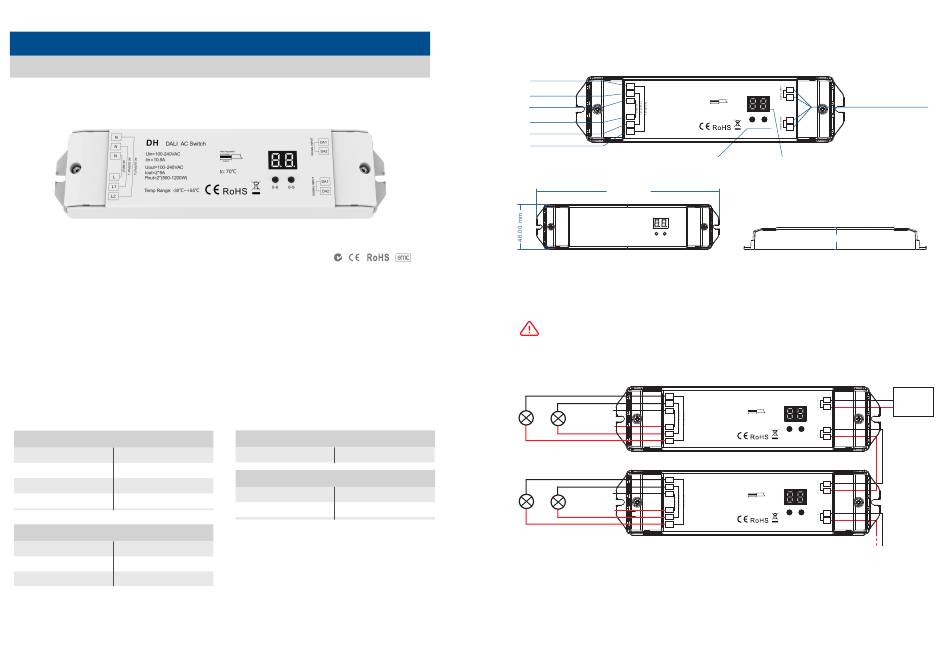

Mechanical Structures and Installations

AC N
N
AC N DH
DALI AC Switch
N
Uin=100-240VAC
AC N
N
Iin=10.5A
Uout=100-240VAC
Iout=2*5A
AC L Input
L
Pout=2*(500-1200W)
L1
Temp Range: -30℃~+55℃
AC L Output 1
L2
AC L Output 2
187.00 mm

Wiring Diagram

Caution:
Please carefully ensure all wire connections and polarities are correct and secure before applying power ,
otherwise this controller will be damaged.
N
DH
N
N Uin=100-240VAC
N
Iin=10.5A
AC 100-240V
Uout=100-240VAC
Iout=2*5A
L
L Pout=2*(500-1200W)
LED light
L1
Temp Range: -30℃~+55℃
L2
N
DH
N
N Uin=100-240VAC
N
Iin=10.5A
AC 100-240V
Uout=100-240VAC
Iout=2*5A
L
L Pout=2*(500-1200W)
LED light
L1
Temp Range: -30℃~+55℃
L2
Note:
If output connect with capacitive or inductive load, the maximum output current only up to 5A.
If output connect with resistive load, the maximum output current may up to 8A.
DH DALI AC Switch
Two groups of DALI signal input
Da1 DALI bus no need distinguish
Wire Preparation Da2 plus-minus polarity
0.5-2.0mm²
4-5mm
tc: 70℃
Da1
0-6 0-9
Da2
Digital display
Setting key
22.00 mm
Da1
DALI AC Switch
Da2
Wire Preparation
0.5-2.0mm²
4-5mm
tc: 70℃
Da1
0-6 0-9
Da2
DALI AC Switch Da1
Da2
Wire Preparation
0.5-2.0mm²
4-5mm
tc: 70℃
Da1
0-6 0-9
Da2
DALI
Master
