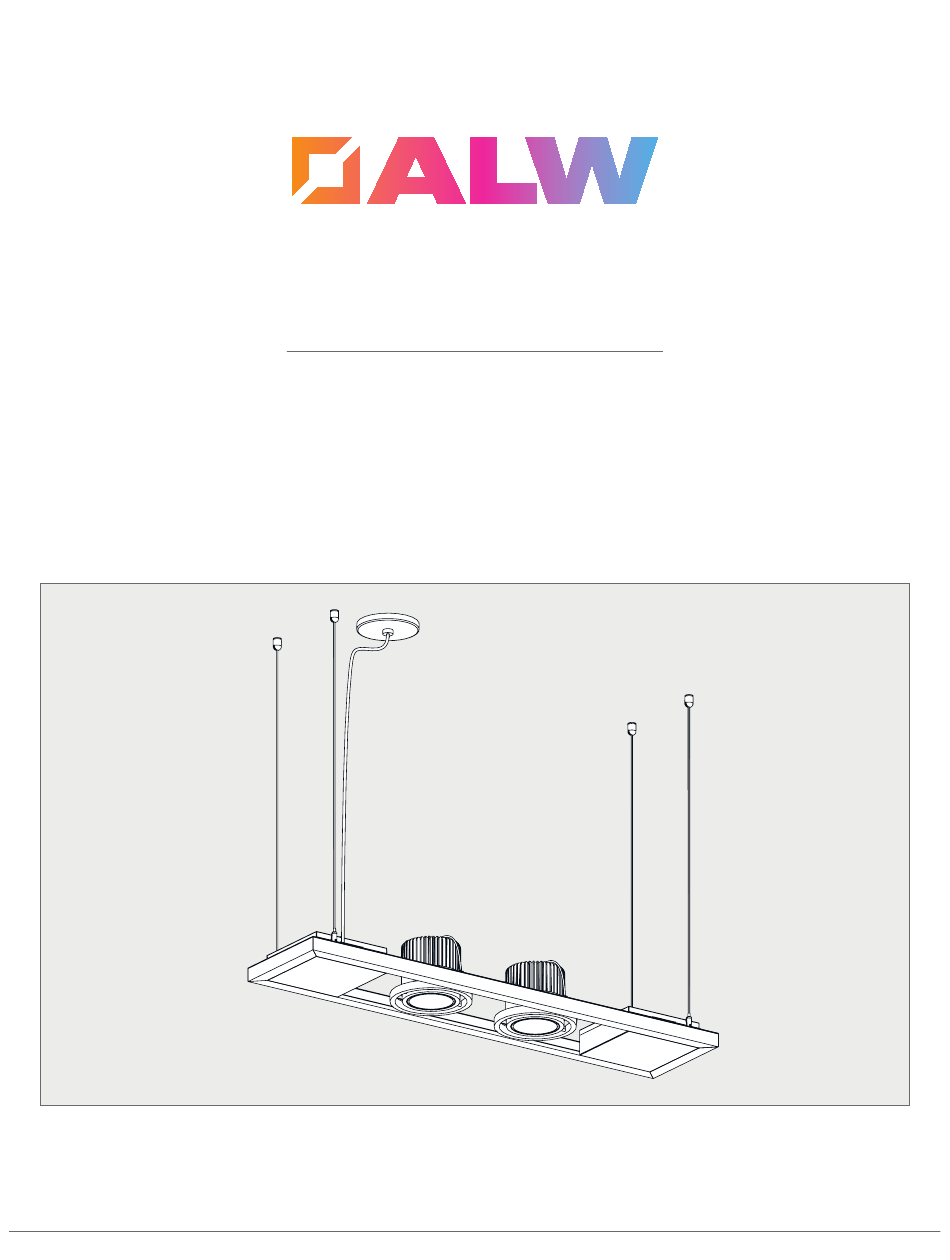

- Page 1 ILLUMINATE THE SOUL INSTALLATION INSTRUCTIONS LIGHTPLANE 9 LP9 | Suspended | LED 1035 22nd Avenue, Unit 1 Oakland, CA 94606 510.489.2530 TalkToUs@alwusa.com alwusa.com...
- Page 2 Safety & Warnings! 1. Read all instructions. 2. Install in accordance with national and local electrical code regulations. 3. This product is intended to be installed and serviced by a qualified, licensed electrician. 4. Turn off electrical power before installing or servicing fixture in any way. 5.
-
Page 3: Table Of Contents
Table of Contents Luminaire Overview Diagrams Components Parts (by others) Tools Required Quick Specs Installation Prepare Ceiling Standard Suspension Connecting Multiple Sections Troubleshooting Wiring Diagrams LP9 Suspended Installation Guide 3 of 11 102-000026 - IG090320-A.0... -
Page 4: Luminaire Overview
Luminaire Overview To Building Power J-Box 4x4 Ceiling Fitting / Suspension Bullet Canopy Power Cord Suspension Cables Cable Gripper Fixture Body STANDARD SUSPENSION COMPONENTS Suspension Cable Canopy Assembly Suspension Bullet Ceiling Fitting Quick Specs Parts (by others) Tools Required Input Voltage / Frequency: Junction Box 4x4(Optional) Drill See product label... -
Page 5: Installation
Installation: Prepare Ceiling Installation: Standard Suspension See Final/Record Drawings for Mounting Locations Install Ceiling Fitting - Framing See final/record drawings for mounting locations. Install Ceiling Fittings may be installed directly into framing with framing or strut channels with consideration for alignment appropriate hardware. - Page 6 Installation: Standard Suspension (Cont.) Route Suspension Cable and Attach to Ceiling Raise Fixture to Suspension Cables Route Suspension Cable through Suspension Bullet. Ball Raise fixture to Suspension Cables, and attach fixture by end should sit in Suspension Bullet. Screw Suspension Bullet inserting Suspension Cable through Cable Grippers.
-
Page 7: Connecting Multiple Sections
Installation: Standard Suspension Installation: Connecting Multiple (Cont.) Sections DO NOT PINCH OR PUT EXCESSIVE TENSION ON WIRES while installing canopy. Mount Canopy Bracket to J-Box & Secure Canopy Remove Cover Mount Canopy Bracket to J-Box using appropriate Carefully remove metal cover to expose joiner sections. mounting hardware, then secure Canopy over J-Box with CAUTION: Do not pinch wire connections. - Page 8 Installation: Connecting Multiple Sections (Cont.) SHOCK HAZARD! May result in serious injury or death. Turn power OFF at circuit breaker prior to installation or servicing. Tighten Joiner Screws Connect Wiring Between Sections Tighten joiner screws, as shown, using a 5/64” Hex Key. Connect wiring quick-connects between sections.
-
Page 9: Troubleshooting
Troubleshooting Only a certified electrician can service and troubleshoot product field issues. Always turn main power off before servicing fixture. Full Fixture does not illuminate • Ensure all wire connections are made. • Ensure fixture is wired correctly and power is on. •... -
Page 10: Wiring Diagrams
Wiring Diagrams Canopy/Power Feed Traditional On/Off Black Line Voltage (Hot) White Line Voltage (Neutral) AC 50/60Hz Green Ground Canopy/Power Feed 0-10V Dimming Black Line Voltage (Hot) White Line Voltage (Neutral) AC 50/60Hz Green Ground Blue DIM- 0-10VDC (Dim-) DIM+ 0-10VDC (Dim+) Canopy/Power Feed Black Line Voltage (Hot) - Page 11 Wiring Diagrams (Cont.) Canopy/Power Feed DALI Black Line Voltage (Hot) White Line Voltage (Neutral) AC 50/60Hz Green Ground Blue Dali - DALI - Dali + DALI + Canopy/Power Feed Lutron LDE Black Line Voltage (Hot) White Line Voltage (Neutral) AC 50/60Hz Green Ground Blue...
