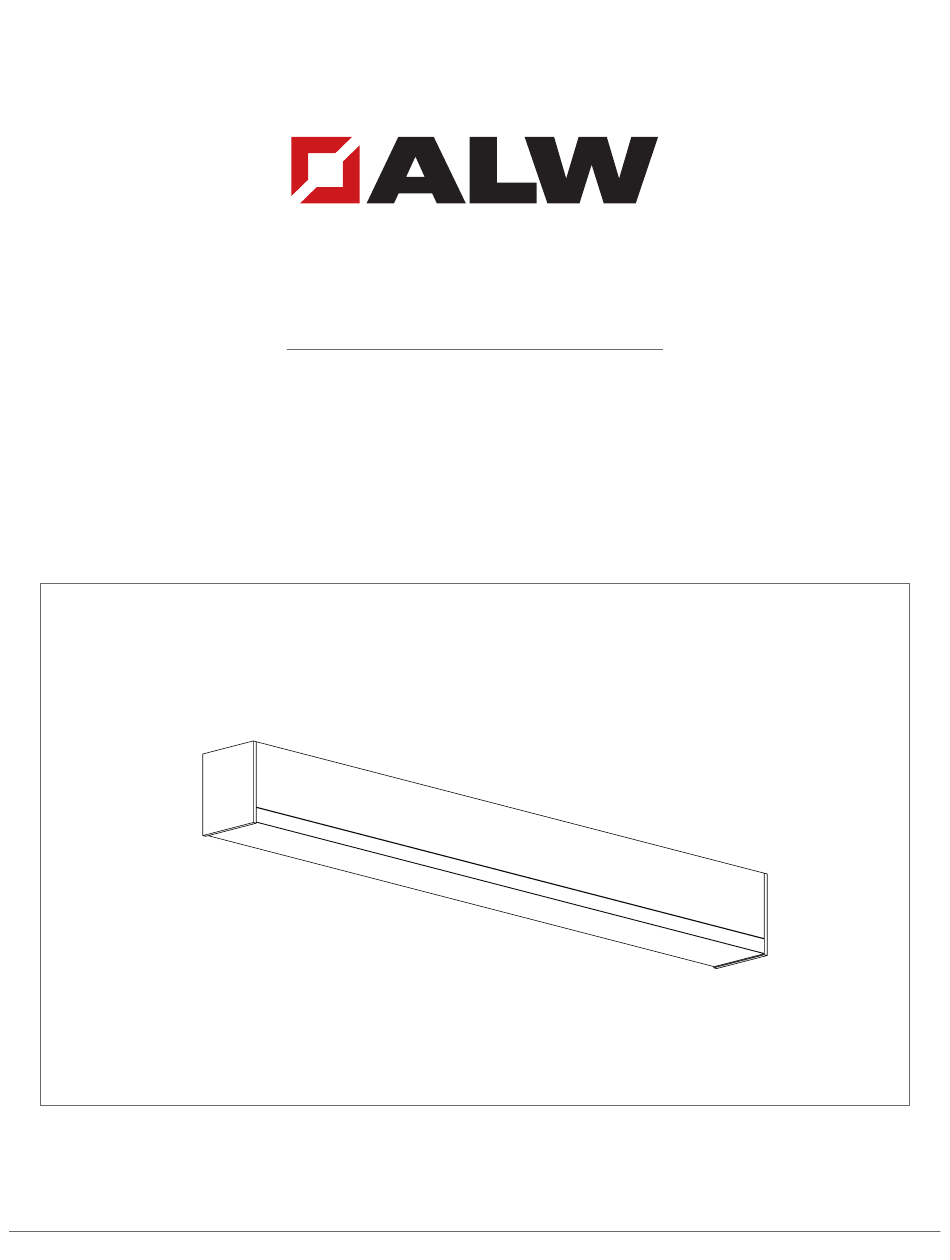

- Page 1 INSTALLATION INSTRUCTIONS LIGHTPLANE 2 LP2SMB/W | Surface and Wall Mount | LED 1035 22nd Avenue, Unit 1 Oakland, CA 94606 510.489.2530 TalkToUs@alwusa.com alwusa.com...
- Page 2 Safety & Warnings! 1. Read all instructions. 2. Install in accordance with national and local electrical code regulations. 3. This product is intended to be installed and serviced by a qualified, licensed electrician. 4. Turn off electrical power before installing or servicing fixture in any way. 5.
-
Page 3: Table Of Contents
Table of Contents Luminaire Overview Diagrams Components Parts (by others) Tools Required Quick Specs Installation Prepare Ceiling SMB - Surface/Back Mount Wall Mount Connecting Multiple Sections Troubleshooting Wiring Diagrams LP2 Surface/Wall Installation Guide 3 of 12 102-000027 - IG121818-A.0... -
Page 4: Luminaire Overview
LUMINAIRE OVERVIEW To Building Power (High Voltage) Blocking/Framing J-Box (Optional) Wall Mount Plate (Optional) Fixture Body (w/ Integrated LED Driver) Heatsink/Reflector Lens OPTIONAL HARDWARE COMPONENTS Mounting Bracket Quick Specs Parts (by others) Tools Required Input Voltage / Frequency: Junction Box (Optional) Drill See product label #2 phillips bit... -
Page 5: Installation
Installation: Prepare Ceiling Installation: SMB - Surface/Back Mount See Final/Record Drawings for Mounting Locations Remove Lens See final/record drawings for mounting locations. Install Carefully remove lens using suction cup or similar. framing with consideration for alignment of wiring and mounting locations. ELECTRICAL WIRING: MUST Install Canopy J-Box/Wiring... - Page 6 Installation: SMB - Surface/Back Mount (Cont.) SHOCK HAZARD! May result in serious injury or death. Turn power OFF at circuit breaker prior to installation or servicing. Raise Fixture to Ceiling & Connect Wiring Optional: Remove Surface Mount Hardware Raise entire fixture to ceiling, and connect wiring inside Remove optional surface mount hardware if not using.
-
Page 7: Wall Mount
Installation: SMB - Surface/Back Installation: Wall Mount Mount (Cont.) WALL Re-install Heatsink/Reflector Screws Prepare Ceiling Re-install heatsink/reflector screws to attach back to Follow steps 1-2 to prepare ceiling. (Install framing, J-Box, housing. if using, and wiring to J-Box or fixture). ELECTRICAL WIRING: 120V MUST... - Page 8 Installation: Wall Mount (Cont.) SHOCK HAZARD! May result in serious injury or death. Turn power OFF at circuit breaker prior to installation or servicing. DO NOT PINCH OR PUT EXCESSIVE TENSION ON WIRES while joining sections or reattaching heatsink. Remove Heatsink/Reflector Remove heatsink/reflector and hang over side of fixture.
- Page 9 Installation: Wall Mount (Cont.) Re-install Heatsink/Reflector Ensure Lens Sits Properly Between Lens Clips CAUTION: Re-install each heatsink/reflector section. Ensure the lens is properly installed between the Lens not pinch wires while reattaching! Clips. Turn Power On Re-install Heatsink/Reflector Screws Re-install heatsink/reflector screws to attach back to Turn breaker ON and ensure that fixture operates as housing.
-
Page 10: Connecting Multiple Sections
Installation: Connecting Multiple Sections Align and Join Sections Together Tighten Set Screws on Outer Corner Loosen set screws and slide out joiner bracket halfway Tighten set screws to secure outer corner bracket to to allow for joining. Join sections together, as shown, joined section using a 1/8”... -
Page 11: Troubleshooting
Troubleshooting Only a certified electrician can service and troubleshoot product field issues. Always turn main power off before servicing fixture. Full Fixture does not illuminate • Ensure all wire connections are made. • Ensure fixture is wired correctly and power is on. •... -
Page 12: Wiring Diagrams
Wiring Diagrams Traditional On/Off Black Line Voltage (Hot) White Line Voltage (Neutral) AC 50/60Hz Green Ground 0-10V Dimming Black Line Voltage (Hot) White Line Voltage (Neutral) AC 50/60Hz Green Ground Grey 0-10VDC (Dim-) DIM- Purple DIM+ 0-10VDC (Dim+) Black Line Voltage (Hot) White Line Voltage (Neutral) AC 50/60Hz...
