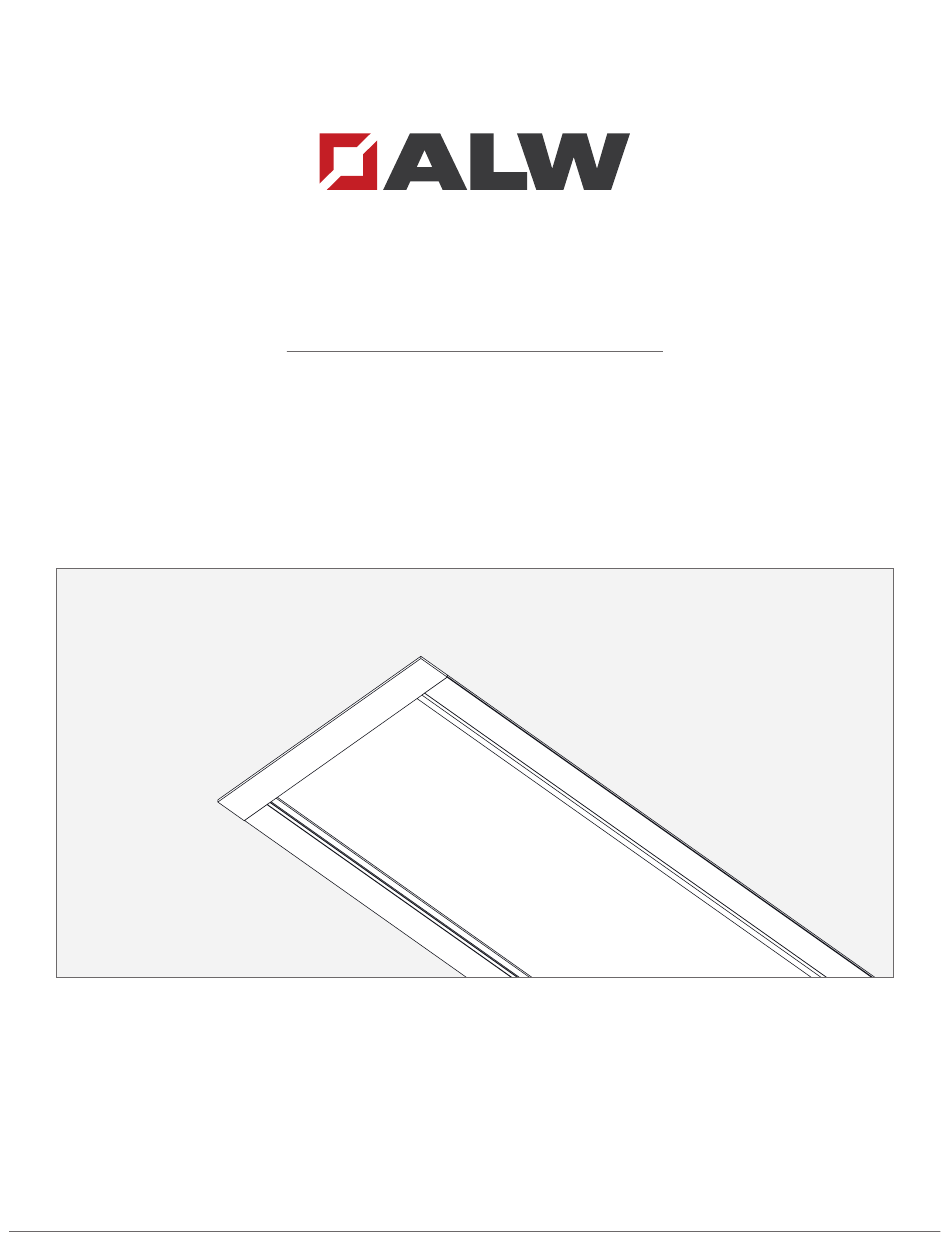

- Page 1 INSTALLATION INSTRUCTIONS SUPERPLANE 4 Trim 1035 22nd Avenue, Unit 1 Oakland, CA 94606 510.489.2530 TalkToUs@alwusa.com alwusa.com...
- Page 2 SP4R - Safety & Warnings! 1. Read all instructions. 2. Install in accordance with national and local electrical code regulations. 3. This product is intended to be installed and serviced by a qualified, licensed electrician. 4. Do not install in wet locations. For dry and damp use only. 5.
-
Page 3: Table Of Contents
Table of Contents Luminaire Overview Diagram Included Parts Parts (by others) Tools Required Quick Specs Installation Mounting to Structure Installing Emitter Joining Straight Sections Joining Mitered Corners Inside Corners Outside Corners ControllRoll Lens Wiring Diagrams Traditional On/Off 0-10V Dimming DALI Lutron LDE Troubleshooting SP4R Trim Installation Guide... -
Page 4: Luminaire Overview
Luminaire Overview Diagram ⁄ " flush: ⁄ ⁄ ⁄ " flush: ⁄ " regress: ⁄ ⁄ ⁄ " regress: ⁄ ⁄ ⁄ " Opening in drywall ⁄ " Included Parts SP4R Fixture ControlRoll Lens Diffuser Shim (miters) Joiner kit (lengths > 8ft) Parts (by others) Tools Required Quick Specs... -
Page 5: Installation
Installation: Mounting to Structure ⁄ " flush: ⁄ " regress: ⁄ " Note: End cap not shown for clarity. Install support rod and drywall Raise fixture into ceiling Raise fixture into cutout and ensure correct opening Install ⁄ ”-20 threaded support rod 3 ⁄... -
Page 6: Installing Emitter
Installation: Installing Emitter Connect emitter wiring Secure end emitter Connect wiring quick connects between fixture and emitter assembly. If joining straight sections, continue with steps 8-10. If joining miter sections, continue with steps 11-14. If installing single-section fixtures, go to step 15. Install end emitter Re-install emitter by snapping emitter arms to main extru- sion. -
Page 7: Joining Straight Sections
Installation: Joining Straight Sections SHOCK HAZARD! May result in serious injury or death. Turn power OFF at circuit breaker prior to installation or servicing. DO NOT PINCH OR PUT EXCESSIVE TENSION ON WIRES while joining sections or reattaching end caps. Connect internal brackets Connect internal brackets with included screws. -
Page 8: Joining Mitered Corners
Installation: Joining Mitered Corners SHOCK HAZARD! May result in serious injury or death. Turn power OFF at circuit breaker prior to installation or servicing. DO NOT PINCH OR PUT EXCESSIVE TENSION ON WIRES while joining sections or reattaching end caps. Connect brackets Screw connector brackets on top and sides with provid- ed 8-32 screws avoiding any gaps between fixtures. -
Page 9: Inside Corners
Installation: Inside Corner Installation: Outside Corner Inside corner Outside corner Install fixture sections, make connections, and install Install fixture sections, make connections, and install lenses. lenses. Inside corner Outside corner Inside corner Outside corner SP4R Trim Installation Guide 9 of 12 102-000022 - IG011619-A.0... -
Page 10: Lens
Installation: ControlRoll Lens Press lens into lens channel Bring lens to fixture With first edge of lens in lens channel, press other side Raise ControlRoll lens to fixture. For longer fixture lengths, two people may be needed. Always wear protective of lens up toward opposite channel. -
Page 11: Wiring Diagrams
Wiring Diagrams Traditional On/Off Black Line Voltage White Line Voltage Neutral Green Ground Ground AC 50/60Hz 0-10V Dimming Black Line Voltage White Line Voltage Neutral Green Ground Ground AC 50/60Hz Grey DIM- 0-10V DC Dimming - Purple DIM+ 0-10V DC Dimming + Black Line Voltage... -
Page 12: Troubleshooting
Troubleshooting Only a certified electrician can service and troubleshoot product field issues. Always turn main power off before servicing fixture. Full Fixture does not illuminate • Ensure fixture is wired correctly and power is on. • Check that circuit breaker is on and not off or tripped. •...
