How do I replace the BIOS SPI ROM from my motherboard?
Question
2020/5/1
Release date
All model
Product
□
FAQ type
Answer:

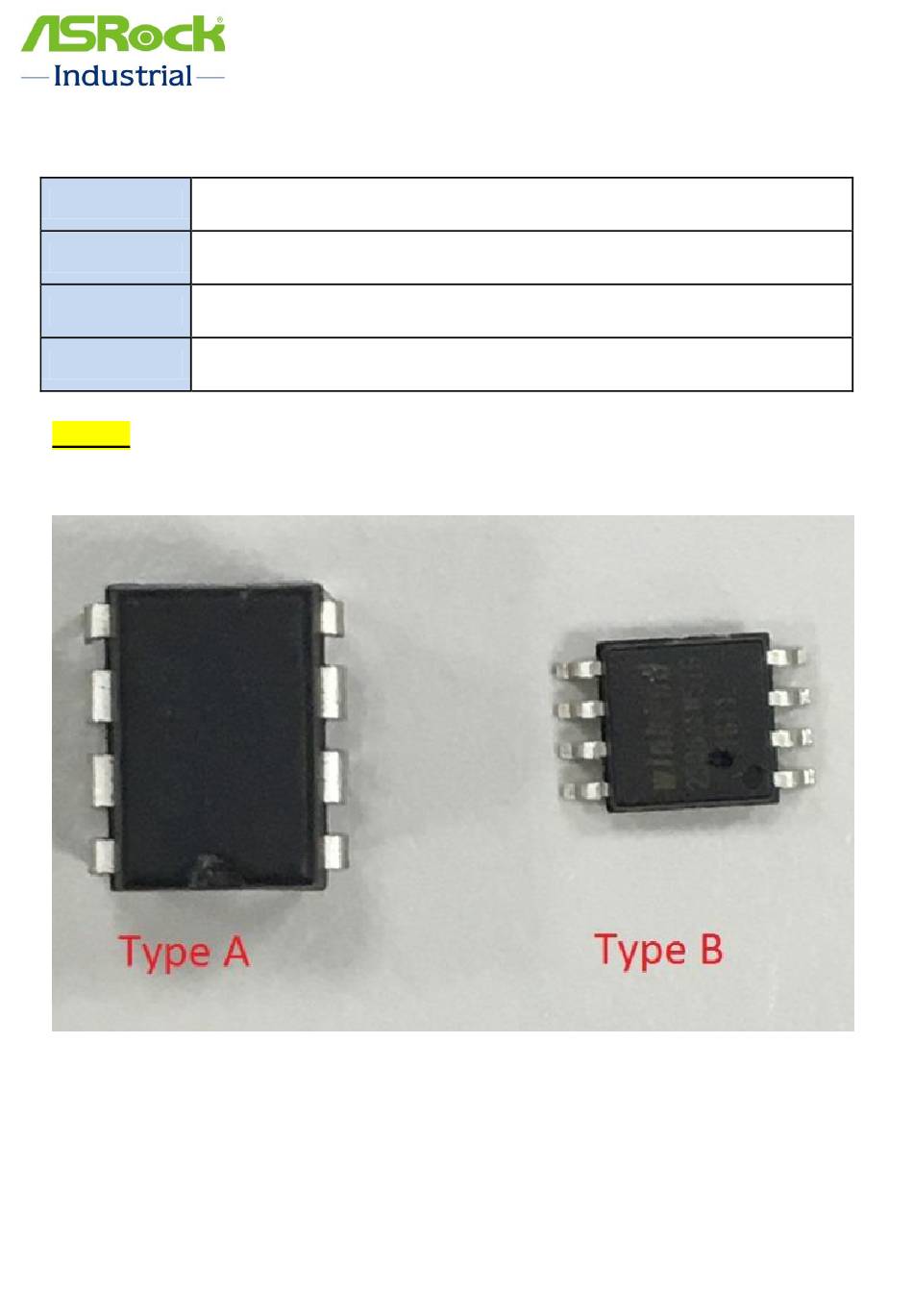

There are two types of BIOS ROM chip.
ASRockind Technical Reference - Q&A
Specification
OS & Driver
□
Application
BIOS/FW
□
□
NO.20050106
Others
■
Advertisement

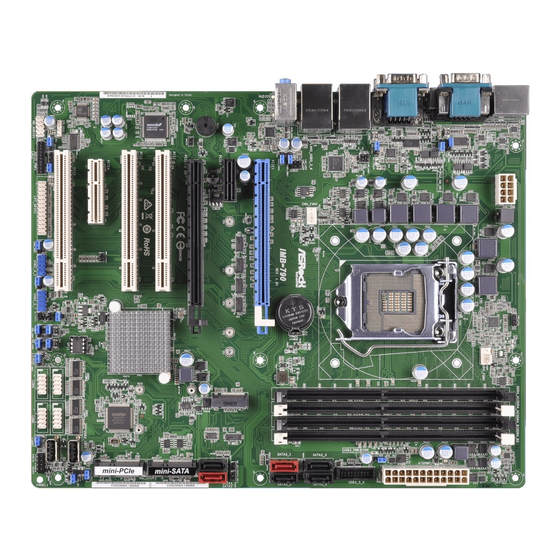

Related Manuals for ASROCK IMB-790
Summary of Contents for ASROCK IMB-790
- Page 1 NO.20050106 ASRockind Technical Reference - Q&A How do I replace the BIOS SPI ROM from my motherboard? Question 2020/5/1 Release date All model Product Specification OS & Driver Application BIOS/FW Others □ □ □ □ ■ FAQ type Answer: There are two types of BIOS ROM chip.
- Page 2 NO.20050106 Please check the location of BIOS ROM socket (as the logo below) on M/B in the Jumpers and Headers Setting Guide firstly, take example for IMB-790. http://download.asrock.com/IPC/Manual/Jumper/IMB-790.pdf...
- Page 3 NO.20050106 <Type A ROM chip> Please follow the steps below to replace BIOS ROM. 1. Please find the BIOS ROM chip on the M/B and then remove it. 2. Please refer to the following picture and check the notch on BIOS ROM chip and ROM socket. 3.
- Page 4 NO.20050106 4. The replacement of Type A ROM chip is completed. <Type B ROM chip> Please follow the steps below to replace BIOS ROM. 1. Please open the ROM socket and then remove the BIOS ROM chip. 2. Please install the new chip on ROM socket. Note: There’s a triangle on the ROM socket and there’s a dot on the ROM chip.
- Page 5 NO.20050106 3. Please close the ROM socket and the replacement is finished.
