ASROCK IMB-792 Jumpers And Headers Setting Manual

*15G06M065000AK*
P/ N: 15G06M065000AK V1.0

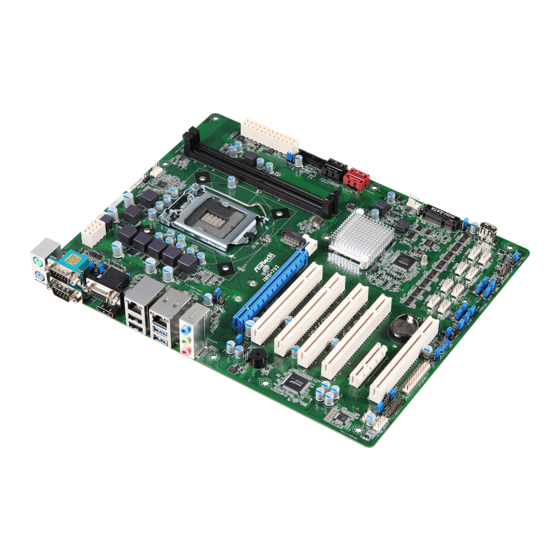

IMB-792
The terms HDMI™ and HDMI High-Definition
Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
1 : ATX 12V Power Connector
2 : CPU FAN Connector (+12V)
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
3 : M.2 Key-M Socket
4 : 24-pin ATX Power Input Connector
5 : USB3_PWR3 (For USB3_1_2)
1-2 : +5V
2-3 : +5VSB
6 : USB 3.0 Header
Vbus
IntA_PA_SSRX-
(USB3_1_2)
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
1

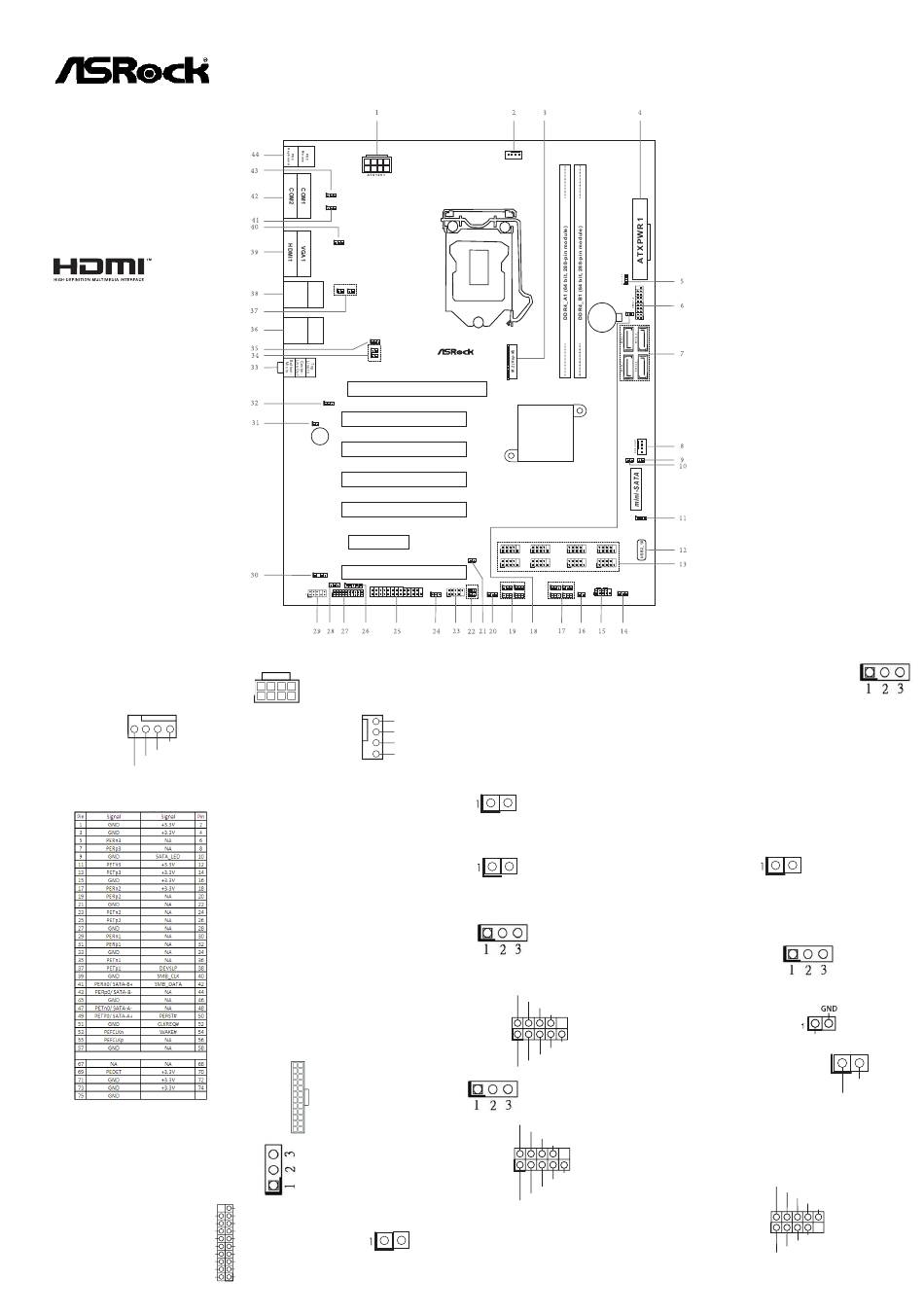

Jumpers and Headers Setting Guide
PWR_COM1
1
PS2_PWR1
1
PWR_COM2
1
LAN_LED1 LAN_LED2
USB 2.0
1 1
Top:
T: USB7
LAN1
B: USB8
USB 3.0
Top:
T: USB3
LAN2
B: USB4
USB_PWR2
1
LAN_LED3
1
1
LAN_LED4
PCIE1
USB3_PWR2
1
PCI1
BUZZ2
1
BUZZ1
PCI2
PCI3
PCI4
PCIE4
PCI5
SPDIF1
1
JGPIO_SET1
JGPIO_PWR1
1 1 LPT_GPIO1
HD_AUDIO1
1
1
LPC1
7 : SATA3 Connectors (SATA3_1 ~ SATA3_4)
8 5
8 : Chassis FAN Connector (+12V)
4 1
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
9 : MSATA Select (MSATA_SEL1)
Short : Mini-SATA
Open : SATA3_2
10 : M2 Select (M2_SEL1)
Short : M.2
Open : SATA3_1
11 : USB2_PWR3 (For USB2_10)
1-2 : +5V
2-3 : +5VSB
12 : Vertical Type A USB 2.0 Port (USB2_10)
13 : COM Port Headers
(COM3~10) (RS232)
14 : ATX/AT Mode Jumper
12 24
(PWR_JP1)
1-2 : AT Mode
2-3 : ATX Mode
1 13
15 : System Panel Header
16 : Clear CMOS Header
(CLRMOS2)
Open : Normal
Vbus Vbus
Short : Auto Clear CMOS (Power Off)
IntA_PB_SSRX-
IntA_PB_SSRX+
GND
IntA_PB_SSTX-
IntA_PB_SSTX+
GND
IntA_PB_D-
IntA_PB_D+
Dummy
CPU_FAN1
CMOS
Battery
Industrial
IMB-792
1 1 1 1
COM8
COM4 COM6
1
PWR_LOSS1
1 1 1 1
COM3 COM5 COM7
PWR_COM4 PWR_COM6 PWR_COM7 PWR_COM9
PANEL1
USB2_5_6 CI2 PLED PWRBTN
1 1 1 1
USB2_PWR1
1 CLRMOS1 CLRMOS2
PWR_COM3 PWR_COM5 PWR_COM8 PWR_COM10
1 1 1 1 1
1 1 1 1 1
HDLED RESET
CI1
RRXD1
DDTR#1
DDSR#1
CCTS#1
1
COM PWR
RRTS#1
GND
TTXD1
DDCD#1
PLED+
PLED-
PWRBTN#
GND
1
GND
RESET#
GND
HDLED-
HDLED+
1
PWR_BAT1
1
1
M2_SEL1 MSATA_SEL1
1 1
USB2_PWR3
1
COM10
COM9
PWR_JP1
1
COM Port Pin9 PWR Setting Jumpers
17 : PWR_COM7 (For COM Port7)
PWR_COM8 (For COM Port8)
PWR_COM9 (For COM Port9)
PWR_COM10 (For COM Port10)
19 : PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
PWR_COM5 (For COM Port5)
PWR_COM6 (For COM Port6)
1-2 : +5V
2-3 : +12V
18 : PWR_BAT1
Open : Normal
Short : Charge Battery
20 : Clear CMOS Header (CLRMOS1)
1-2 : Normal
2-3 : Clear CMOS
21 : PWR LOSS Header (PWR_LOSS1)
Short : Power Loss
Close : no Power Loss
22 : Chassis Intrusion Headers
CI1 :
Short : Active Case Open
Open : Normal
CI2 :
Short : Normal
Open : Active Case Open
23 : USB 2.0 Header
USB_PWR
(USB2_5_6)
1
USB_PWR
+5VSB_ATX
1
GND
Signal
P-
P+
GND
DUMMY
GND
P+
P-
