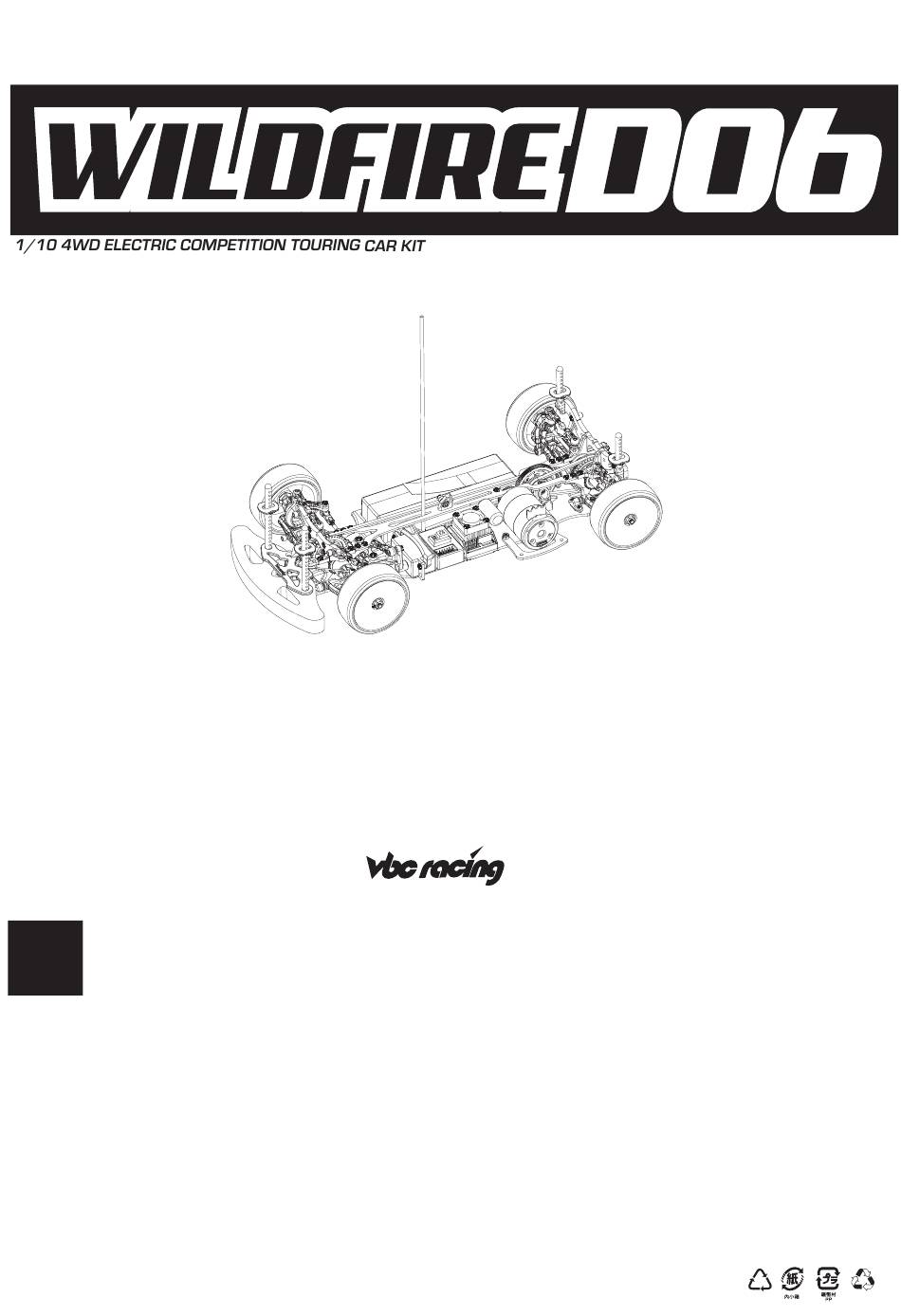

VBC Racing WILDFIRE D06 Instruction Manual

1/10 4wd electric competition touring car kit
Hide thumbs

Advertisement

Quick Links

Download this manual
COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
E
Thank you for purchasing VBC Racing product.
Things that we should remind you.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality full carbon fiber
chassis and high grade 7075 material which will give you a
competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: support@vbc-racing.com or
visit our web site www.vbcracing.com
INSTRUCTIONS MANUAL
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the WILDFIRE D06 and is the answer not in the manual?

Questions and answers

Related Manuals for VBC Racing WILDFIRE D06

Summary of Contents for VBC Racing WILDFIRE D06

  • Page 1 Thank you for purchasing VBC Racing product. Things that we should remind you. This VBC Racing kit is a high performance, racing grade car kit intended for experienced racers. The kit compose of VBC formulated composite materials, top quality full carbon fiber chassis and high grade 7075 material which will give you a competitive edge over the others.
  • Page 2 *Not included in this kit A-02-VBC-3006 WildFireD06 Standard Graphite Chassis Sand the below graphite edges with #600 sand paper and apply CA glue to the edges. A-02-VBC-3007 WildFireD06 Graphite Front Shock Tower A-02-VBC-3008 WildFireD06 Graphite Rear Shock Tower © VBC Racing WILDFIRE D06...
  • Page 3 15x0.3 Shim B-02-VBC-0077 x 2 Outdrive Sealer O-Ring 15x0.3 Shim M2x10 Shaft Pin B-02-VBC-0020 x 2 10x15 Ball Bearing Diff Outdrive Diff Shaft Sealer O-Ring B-03-VBC-0006 x 2 Rear Gear Diff Right Side Assembly Cross Section © VBC Racing WILDFIRE D06...
  • Page 4 Seal Gasket B-03-VBC-0004 x 1 Place Seal Gasket to the left side diff assembly before putting the right side diff together Seal Gasket Diff Gear Shaft A-03-VBC-0020 x 1 Right Side Diff Assembly Belt Tension Adjuster Ring © VBC Racing WILDFIRE D06...
  • Page 5 Motor Mount Support B-02-VBC-3018 x 1 M3x6 Flathead Center Suspension Mount x 2 B-02-VBC-0062 Center Suspension Mount Shim(1mm) x 2 A-01-VBC-0038 M3x6 Flathead M3x6 Flathead M3x6 Flathead M3x6 Flathead M3x6 Flathead C-02-SC-F0306 x 14 M3x6 Flathead © VBC Racing WILDFIRE D06...
  • Page 6 C10 Suspension Mount D-05-VBC-0066 C15 Suspension Mount D-05-VBC-0068 M3x6 Flathead M3x6 Flathead 1mm Center Suspension Arm Shim x 2 M3x6 Flathead A-01-VBC-0038 Note the direction on front M3x6 Flathead C-02-SC-F0306 x 8 lower bulkhead FR & FL © VBC Racing WILDFIRE D06...
  • Page 7 Turnbuckle Cup A-03-VBC-0039 x 6 Make 2 steering link tie-rods, follow the connector cups directions as the above diagram. The connector cups edge to edge shall be 28.20mm. Please use a caliper to measure the exact measurement © VBC Racing WILDFIRE D06...
  • Page 8 Install the steering unit onto the main chassis with two M3x6 Flathead Screws. Then attach the left and right tie rods to the steering unit. Make sure the front belt is between the two Steering Assembly Poles. WildFireD06 Front Belt B-03-VBC-3001 x 1 © VBC Racing WILDFIRE D06...
  • Page 9 M3x4 Round Head Screw C-02-SC-R0304 x 3 M3x6 Set Screw M3x6 Set Screw x 2 M5x11 E-Clip C-02-SC-SS-0306 M2x12 Shaft Pin B-02-VBC-0020 x 2 Panaracer 64P Spur Gear 116T B-03-VBC-3004 x 1 M5x11 E-Clip B-02-VBC-0085 x 2 © VBC Racing WILDFIRE D06...
  • Page 10 T2 7075 Spacer B-02-VBC-0019-20 x 2 Rear Upper Bulkhead Assembly Ball Connector Ball Connector (5mm Lenght) (5mm Lenght) Thead Lock Thead Lock 2mm Spacer 2mm Spacer Upper Bulkhead RL Upper Bulkhead RR WildFire Rear Belt B-03-VBC-3002 x 1 © VBC Racing WILDFIRE D06...
  • Page 11 M3x8 Roundhead C-02-SC-R0308 x 4 M2x10 Roundhead C-02-SC-R2.0x10 x 2 M2x10 Roundhead Tighten screw to lock the Belt Tension Adjuster Ring position Neutral Loosen Tighten Tighten or loosen the belt tension by adjusting the Belt Tension Adjuster Ring dial © VBC Racing WILDFIRE D06...
  • Page 12 Front Spool Outdrive A-03-VBC-0055 x 2 10x15 Ball Bearing Diff Holder Belt Tension Adjuster Ring A-03-VBC-0047x 2 10x15 Ball Bearing C-02-BB-1510-P x 2 Spool Drive Cup M3x12 Flathead C-02-SC-F0312 x 2 M3x12 Flathead M3x6 Roundhead C-02-SC-R0306 x 3 © VBC Racing WILDFIRE D06...
  • Page 13 M3x8 Roundhead C-02-SC-R0307 x 4 M2x10 Roundhead C-02-SC-R2.0x10 x 2 Tighten screw to lock the Belt Tension Adjuster Ring position Neutral Loosen Tighten M2x10 Roundhead Tighten or loosen the belt tension by adjusting the Belt Tension Adjuster Ring dial © VBC Racing WILDFIRE D06...

  • Page 14: Rear Suspension Arm Assembly

    M3x6 Flat Head Screw C-02-SC-F0306 x 2 Narrow Wide Rear Suspension Mount Chart : X-C15, Y-C15 Narrow X-C10, Y-C10 E30 Suspension Mount X-C05, Y-C05 Y-C05, X-C05 Y-C10, X-C10 Wide Y-C15, X-C15 M3x6 Flat Head 1mm Suspension Shim M3x6 Flat Head © VBC Racing WILDFIRE D06...
  • Page 15 0 Offset Hex Wheel Hub B-02-VBC-0051 x 2 M2x10 Shaft Pin Ball Connetor (7.5mm Lenght) B-02-VBC-3022 x 2 M1.6x4 Screw 0 Offset Hex Wheel Hub Do not over tighten the M1.6x4 screw to prevent stripping T2 7075 Spacer B-02-VBC-0019-20 x 2 © VBC Racing WILDFIRE D06...
  • Page 16 Make sure the turnbuckle caps move freely after snapped to the ball connector 3x5x0.5mm Shim M3x23 Upright Pin M3x4 Set Screw 3x5x0.5mm Shim Tighten the set screw. Screw should be flat to the arm bottom and do not over tighten. M3x4 Set Screw M3x23 Upright Pin © VBC Racing WILDFIRE D06...
  • Page 17 Suspension Arm Spacer T2 M3x10 Set Screw Suspension Arm Spacer T1 Grease Arm Pin Pivot Ball Suspension Arm Spacer T2 Suspension Arm Spacer T1 Grease Ball Connector Arm Pin Pivot Ball M3x10 Set Screw © VBC Racing WILDFIRE D06...
  • Page 18 Wide Front Suspension Mount Chart : X-C15, Y-C15 -0.5 -1.0 -1.5 -2.0 -2.5 Narrow X-C10, Y-C10 -0.5 -1.0 -1.5 -2.0 X-C05, Y-C05 -0.5 -1.0 -1.5 -0.5 -1.0 Y-C05, X-C05 -0.5 Y-C10, X-C10 Wide Y-C15, X-C15 © VBC Racing WILDFIRE D06...
  • Page 19 M1.6x4 Screw 5x10x4mm Ball Bearing 0 Offset Hex Wheel Hub B-02-VBC-0051 x 2 0 Offset Hex Wheel Hub Ball Connetor (5mm Lenght) B-02-VBC-0021 x 2 Do not over tighten the M1.6x4 screw to prevent stripping © VBC Racing WILDFIRE D06...
  • Page 20 Turnbuckle Cup S M3x12 Set Screw C-02-SC-SS-0312 x 2 M3x4 Set Screw 3x23 Upright Pin M3x4 Set Screw C-02-SC-SS-0304 x 2 Grease M3x9 Round Head Screw C-02-SC-R0309 x 2 3x23 Upright Pin M3x4 Set Screw © VBC Racing WILDFIRE D06...
  • Page 21 Stabilizer Connector Tighten the set screw 4mm from the edge of the stabilizer M3x3mm Set Screw M3x3mm Set Screw Front Stabilizer 1.3 Stabilizer Stopper Optional : Front Stabilizer 1.4 White B-02-VBC-0074-14 Front Stabilizer 1.2 Green B-02-VBC-0074-12 © VBC Racing WILDFIRE D06...
  • Page 22 Set Screw M2.5x6mm Flat Head M3x3mm Stabilizer Mount (Rear) Set Screw MAKE FOUR TIE RODS M2.5x6mm Flat Head Note The Rear Stabilizer Mount Left And Right Direction 1.5mm Note the double ring face to ball connector © VBC Racing WILDFIRE D06...
  • Page 23 Sealer O-Ring (Shock Height Adjuster) B-03-VBC-0128 x 4 Note the double ring face to ball connector Shaft Sealer O-Ring B-03-VBC-0012 x 4 Make sure the shock shaft can move up and down freely M2 E-Clip B-02-VBC-0129 x 8 © VBC Racing WILDFIRE D06...
  • Page 24 Note the double ring face to ball connector TBB Shock Spring (White - Hard) B-02-VBC-0137 Green Orange White Color B-02-VBC-00136 B-02-VBC-00134 B-02-VBC-00135 B-02-VBC-0137 Rate lb/in 13.30 14.40 16.20 17.10 Rate gf/mm 273.2 301.8 Coils 6.50 6.25 6.00 5.75 © VBC Racing WILDFIRE D06...
  • Page 25 A-02-VBC-3007 x 1 Ball Connector B-02-VBC-0045 x 2 Ball Connector M3x8 Round Head Screw C-02-SC-R0308 x 2 Basic Setup Shock Position M3x8 Flat Head Screw C-02-SC-F0308 x 4 M3x8 Flat Head TBB Shock Spring Orange © VBC Racing WILDFIRE D06...
  • Page 26 M3x8 Round Head Ball Connector Ball Connector B-02-VBC-0045 x 2 M3x8 Round Head Screw C-02-SC-SS-0308 x 2 Ball Connector M3x8 Flat Head Screw C-02-SC-F0308 x 4 Basic Setup Shock Position M3x8 Round Head TBB Shock Spring Red © VBC Racing WILDFIRE D06...

  • Page 27: Install Motor

    Pinion set screw not included All-new motor mount can incorporate a wider range of gear ratios from 21.5 up to modified classes Please make sure there is enough clearance for the gears to run smoothly © VBC Racing WILDFIRE D06...
  • Page 28 M3x8mm Round Head Servo Horn Type A (Airtronics/KO) A-03-VBC-0054 x 1 M3x8mm Round Head Screw C-02-SC-R0308 x 5 M3x6 Flathead C-02-SC-F0306 x 3 Ball Connector B-02-VBC-0045 x 1 Servo Washer (not included) x 3 M3x6 Flathead © VBC Racing WILDFIRE D06...
  • Page 29 STEP33-35 BAG MARKED Install Front Bumper and Body Posts 4mm Flanged Wheel Nut B-02-VBC-0086 x 4 4mm Flanged Wheel Nut 4mm Flanged Wheel Nut WHEELS AND TIRES NOT INCLUDED We Recommend Panaracer Products. © VBC Racing WILDFIRE D06...
  • Page 30 Body Height Adjuster Support Body Height Adjuster Support M2x12 Shaft Pin B-02-VBC-0022 x 2 Body Clip B-02-VBC-0076 x 2 M2x12 Shaft Pin Body Height Adjuster Support A-03-VBC-0015 x 2 M2x12 Shaft Pin Front Body Post A-03-VBC-0013 x 2 © VBC Racing WILDFIRE D06...
  • Page 31 Body Height Adjuster Support A-03-VBC-0015 x 2 Rear Body Post M2x12 Shaft Pin Rear Body Post M3x10mm Round Head M2x12 Shaft Pin M3x10mm Round Head INSTALL ESC, RECEIVER AND ANTENNA TUBE (these items are not included in this kit) © VBC Racing WILDFIRE D06...
  • Page 32 Plastic Battery Mount Plastic Battery Mount A-03-VBC-3025 x 1 M3x6mm Flat Head M3x6mm Flat Head M3x6 Flathead C-02-SC-F0306 x 2 Install 7.4V Lipo On Chassis And Fix By Battery Tape (These Items Are Not Included) © VBC Racing WILDFIRE D06...
  • Page 33 C05 Center Suspension Mount D-05-VBC-0065 C10 Center Suspension Mount D-05-VBC-0061 C15 Center Suspension Mount D-05-VBC-0068 Narrow Wide REAR SECTION SUSPENSION CENTER MOUNT X-C15, Y-C15 Narrow X-C10, Y-C10 X-C05, Y-C05 Y-C05, X-C05 Y-C10, X-C10 Wide Y-C15, X-C15 REAR © VBC Racing WILDFIRE D06...

  • Page 34: Parts List

    Axle Inner Joint for Two-Piece Drive A-03-VBC-0020 Diff Gear Shaft A-03-VBC-0072 Axle Lock Spring for Two-Piece Joint Drive Axle B-03-VBC-0004 Seal Gasket D-05-VBC-0055 VBC Racing Two-Piece Joint Drive Axle Set A-03-VBC-0073 M1.7x8 Shaft Pin B-03-VBC-0006 Diff Shaft Sealer O-Ring B-02-VBC-3035 M2x12 Shaft Pin D-05-VBC-0014...
  • Page 35 COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT Instruction Book P-0004.1 VBC Racing WildFire D06 Touring Car Kit D-05-VBC-0081...
