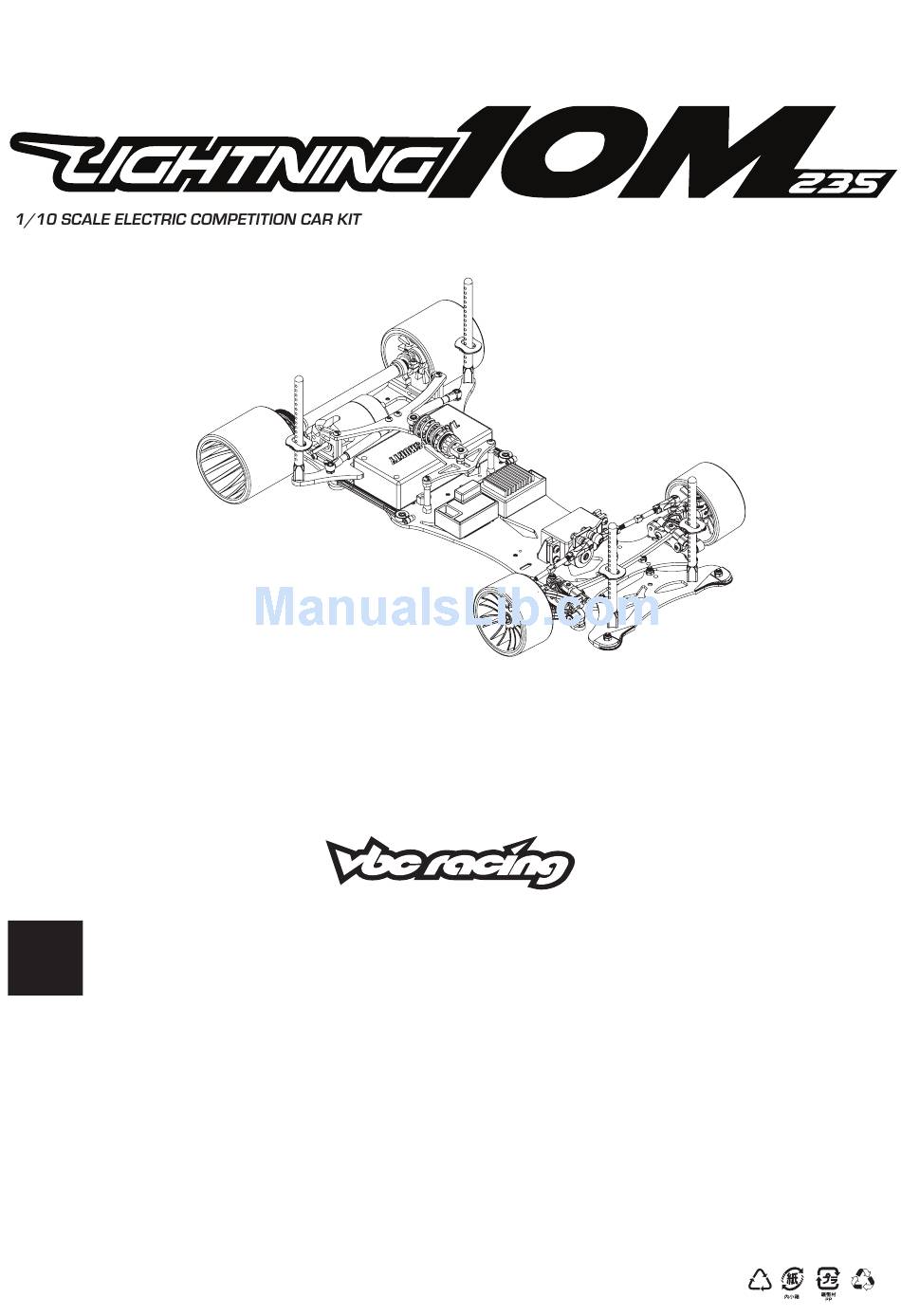

VBC Racing Lightning 10M 235 Instruction Manual

1/10 scale electric competition car kit
Hide thumbs

Advertisement

Quick Links

Download this manual
COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
E
Thank you for purchasing VBC Racing product.
Things that we should remind you.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality full carbon fiber
chassis and high grade 7075 material which will give you a
competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: support@vbc-racing.com or
visit our web site www.vbcracing.com
INSTRUCTIONS MANUAL
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lightning 10M 235 and is the answer not in the manual?

Questions and answers

Related Manuals for VBC Racing Lightning 10M 235

Summary of Contents for VBC Racing Lightning 10M 235

  • Page 1 Thank you for purchasing VBC Racing product. Things that we should remind you. This VBC Racing kit is a high performance, racing grade car kit intended for experienced racers. The kit compose of VBC formulated composite materials, top quality full carbon fiber chassis and high grade 7075 material which will give you a competitive edge over the others.
  • Page 2 *Not included in this kit A-01-P51395 Lightning10M 2.5mm Graphite Main Chassis A-01-P51398 Lightning10M Rear Tweak Plate A-01-P51396 Lightning10M 235 Graphite Lower Pod Plate Sand the below graphite edges with #600 sand paper and apply CA glue to the edges. © VBC Racing LIGHTNING10M235...
  • Page 3 Pivot ball shoulder should be facing downwards Pivot Brace Cover D-05-VBC-0101 x 1 M2x6 Cap Head C-02-SC-R2.0x6 x 2 Pivot Brace Pivot Balls A-03-VBC-1027 x 5 M3x6 Flathead C-02-SC-F0306 x 5 Pivot Balls Pivot Balls M3x6 Flathead © VBC Racing LIGHTNING10M235...
  • Page 4 M3 Locknut Make sure direction M3 Locknut C-02-SC-NN03 x 2 Note the direction screw in from the larger hole side M3x10 Flathead C-02-SC-F0310 x 2 M3x10 Flathead M3x10 Flathead Rear Bulkhead Assembly Part1 M3x6 Flathead M3x6 Flathead © VBC Racing LIGHTNING10M235...
  • Page 5 Aluminium Side Spring Retainer B-02-VBC-5074 x 2 M3x8 Set Screw M3x6 Roundhead Side Spring (Medium/Gold) A-03-VBC-1047 x 2 Aluminium Side Spring Retainer M3x8 Set Screw C-02-SC-SS-0308 x 2 Side Spring M3x8 Set Screw M3x6 Roundhead Aluminium Side Spring Retainer Side Spring © VBC Racing LIGHTNING10M235...
  • Page 6 STEP2-5 STEP2-5 BAG MARKED Lightning 10M235 Graphite Rear Shock Mount A-01-P51397 x 1 © VBC Racing LIGHTNING10M235...
  • Page 7 STEP2-5 BAG MARKED M3x6 Roundhead M3x6 Roundhead C-02-SC-R0306 x 2 M3x6 Roundhead © VBC Racing LIGHTNING10M235...
  • Page 8 M3.3x0.4 Kingpin Shim x 7 Front Spring (Medium/Gold) C-02-VBC-5042 x 2 M2x8 Caphead C-02-SC-R2.0x8 x 2 M2x8 Caphead Note : Tighten the screw slowly to adjust the pivot ball movement M3x3 Set Screw C-02-SC-SS-0303 x 2 M3x3 Set Screw © VBC Racing LIGHTNING10M235...
  • Page 9 Caster Adjustments M3x2mm Set Screw 1.2mm Spacer 1.80 Caster Spacer, 0.8mm Caster Spacer, 0.8mm Spacer 1.2mm 3.25 M3x2mm Set Screw 2mm Upper Hinge Pin M2x4 Roundhead Screw No Spacer 6.15 2mm Upper Hinge Pin M2x4 Roundhead Screw © VBC Racing LIGHTNING10M235...
  • Page 10 Thrust Cone B-02-VBC-5081 x 1 Ride Height 3.0mm Spacer A-01-P51399 x 4 Bevelled Washer C-02-VBC-5076 x 3 Lightning 12M Rear Hub Axle Housing B-02-P50666 x 2 M4 Nylon Nuts A-02-VBC-5075 x1 Lightning10M235 Carbon Cross Tube A01P51401 x 1 © VBC Racing LIGHTNING10M235...
  • Page 11 Servo Saver Set M3 Locknut C-02-SC-NN03 x 2 3 Difference Servo Adaptor Make sure the screw is For Sanwa/KO [A) /Futaba [F] /JR/Hitec [H] correct for your servo Ball Connector 4.7x17mm Servo Saver Set B-03-VBC-5017 x1 © VBC Racing LIGHTNING10M235...
  • Page 12 Option :Low CG Brass Weight 23.5gm C-02-G50222 M3x6 Roundhead Firebolt Center Battery Stopper A-03-VBC-6074 x 1 LightningF Upper Deck Support Mount B-02-VBC-5096 x 2 LightningF Upper Deck Support Mount M3x6 Flathead Lightning 10M Graphite Front Shock Mount Plate A-01-P51400 x 1 © VBC Racing LIGHTNING10M235...

  • Page 13: Shock Assembly

    STEP9 BAG MARKED Shock Assembly © VBC Racing LIGHTNING10...

  • Page 14: Front Bumper Assembly

    M3 Locknut C-02-SC-NN03 x 2 M2x12 Shaft Pin B-02-VBC-0022 x 2 M3x8mm Flat Head M3x10mm Flat Head M3x8mm Flat Head M3x10mm Flat Head Body Height Adjuster Support A-03-VBC-0015 x 2 Front Body Post A-03-VBC-0013 x 2 © VBC Racing LIGHTNING10M235...
  • Page 15 Front Body Post M2x12 Shaft Pin B-02-VBC-0022 x 2 Body Height Adjuster Support M2x12 Shaft Pin Body Height Adjuster Support A-03-VBC-0015 x 2 Front Body Post A-03-VBC-0013 x 2 M3x8 Roundhead C-02-SC-R0308 x 2 M3x8 Roundhead © VBC Racing LIGHTNING10M235...
  • Page 16 Bearing 1/8x5/16, Flanged Bearing 1/8x5/16, Flanged M3.3x0.4 Kingpin Shim C-02-VBC-5069 x 2 M3 Locknut 4-40x5/16” Cap Head Screw x 8 Bearing 1/8x5/16, Flanged C-02-BB-1856F x 4 Install Motor And Electronics M3x8 Roundhead C-02-SC-R0308 x 2 M3x8 Roundhead © VBC Racing LIGHTNING10M235...

  • Page 17: Install Electronics

    STEP12 BAG MARKED Install Electronics Install ESC And Receiver [Items Are Not Included] Double Side Tape © VBC Racing LIGHTNING10M235...
  • Page 18 COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT Instruction Book P-01-P51438 VBC Racing Lightning10M235 1/10 Pan Car Kit D-05-VBC-CK28...

  • Page 19: Parts List

    Parts List Order Number Package Descriptions Parts Number Parts Descriptions Quantity in a pkg A-01-P51395 Lightning10M Graphite Main Chassis A-01-P51395 Lightning10M Graphite Main Chassis A-03-VBC-5007 Pivot Brace (bottom) D-05-VBC-0101 Pivot Brace A-03-VBC-5008 Pivot Brace (cover) A-03-VBC-5009 Pod Link Set A-03-VBC-5009 Pod Link A-03-VBC-1027 Pivot Balls...
  • Page 20 Parts List B-02-VBC-5057 Aluminum Upper Arm Mount B-02-VBC-5057 Lightning12 Aluminum Upper Arm Mount B-02-P50233 Lightning10 ALU7075 Steering Knuckle D-05-VBC-0156 Steering Knuckles for Lightning10 C-02-P50259 M2.5x0.5 Shim B-02-VBC-5060 Lightning Front Axles B-02-VBC-5060 Lightning Front Axle B-02-VBC-5065 Alum Front Bulkhead L B-02-VBC-5065 Lightning12 Alum Front Bulkhead, Left B-02-VBC-5066 Alum Front Bulkhead R...
