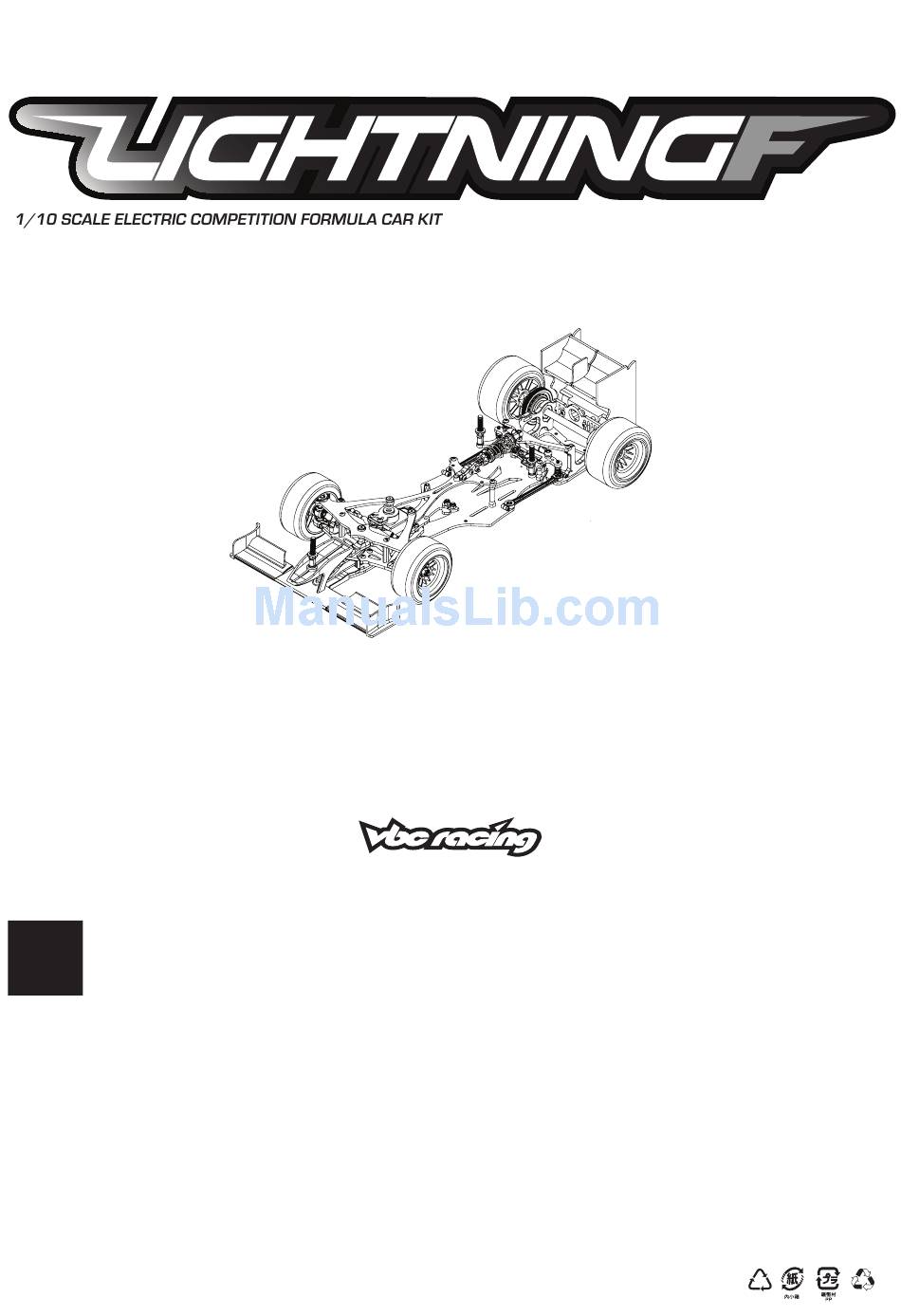

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
E
Thank you for purchasing VBC Racing product.
Things that we should remind you.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality full carbon fiber
chassis and high grade 7075 material which will give you a
competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: support@vbc-racing.com or
visit our web site www.vbcracing.com
INSTRUCTIONS MANUAL
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the LightningF and is the answer not in the manual?

Questions and answers

Related Manuals for VBC Racing LightningF

Summary of Contents for VBC Racing LightningF

  • Page 1 Thank you for purchasing VBC Racing product. Things that we should remind you. This VBC Racing kit is a high performance, racing grade car kit intended for experienced racers. The kit compose of VBC formulated composite materials, top quality full carbon fiber chassis and high grade 7075 material which will give you a competitive edge over the others.
  • Page 2 M3 Lock Nut M3 Lock Nut M3 Locknut C-02-SC-NN03 x 2 Pivot Balls M3x10 Flathead C-02-SC-F0310 x 2 M3x10 Flathead M3x10 Flathead M3x6 Flathead M3x6 Flathead Pivot Balls Pivot Balls M3x6 Flathead LightningF Lower Pod Plate M3x6 Flathead © VBC Racing LIGHTNINGF...
  • Page 3 Note the direction screw in from the larger hole side M3x6 Flathead Rear Bulkhead Assembly Part1 LightningF Al7075 Motor Mount B-02-VBC-5128 LightningF Al7075 Motor Mount B-02-VBC-5128 LightningF Al7075 Left Bulkhead B-02-VBC-5129 LightningF Al7075 Left Bulkhead B-02-VBC-5129 M3x6 Flathead C-02-SC-F0306 x 4...
  • Page 4 M3x6 Roundhead C-02-SC-R0306 x 6 M3x6 Roundhead Rear Wing Mount B-02-VBC-5132 x 2 M3x6 Roundhead Rear Wing Mount B-02-VBC-5132 LightningF Rear Motor Mount Brace A-01-VBC-5130 x 1 Rear Wing Mount B-02-VBC-5132 LightningF Rear Motor Mount Brace A-01-VBC-5130 M3x6 Roundhead M3x6 Roundhead...
  • Page 5 Side Spring (Soft/Silver) A-03-VBC-1047 x 2 approx 1.7mm M3x6 Roundhead Side Spring (Soft/Silver) M3x8 Set Screw C-02-SC-SS-0308 x 2 Aluminum Side Spring Retainer Side Spring (Soft/Silver) M3x6 Roundhead M3x6 Roundhead LightningF Rear Chassis Brace A-01-VBC-5116 x 1 © VBC Racing LIGHTNINGF...
  • Page 6 Lightning Damper Tube Shaft B-02-VBC-5018 x 1 Lightning Damper Tube Shaft Set Lightning Damper Tube B-02-VBC-5019 x 1 M3x6 Roundhead Turnbuckle Cup (Short) Turnnuckle Cup (Short) A-03-VBC-5021 x 2 M3x6 Roundhead LightningF Upper Pod Plate A-01-VBC-5127 x 1 © VBC Racing LIGHTNINGF...
  • Page 7 Lightning12 Axle Height Adjuster Thrust Washer B-02-VBC-5125 x 1 Ball Bearing Flanged 3/8”x1/4” Lightning12 Axle Height Adjuster High D-05-VBC-0114 Aluminum Diff Hub B-02-VBC-5123 x 1 Hardened Differential Cap B-02-VBC-5124 x 1 M2x14 Shaft Pin A-03-VBC-1049 x 1 © VBC Racing LIGHTNINGF...
  • Page 8 STEP6-7 BAG MARKED Ball Differential Assembly Aluminum Wheel Hub, Left B-02-VBC-5122 x 1 M2.5x6mm Cap Head Screw C-02-SC-R2506 x 2 M2.5x8mm Cap Head Screw Aluminum Wheel Hub, Left M2.5x6mm Cap Head Screw © VBC Racing LIGHTNINGF...
  • Page 9 Front Lower Arm Pivot Ball Mount (Left) M3x8 Flat Head Steering Limiter A-03-VBC-1062 x 2 LightningF Front Graphite Lower Arm, L LightningF Front Upper Arm Mount A-01-VBC-5103 x 2 Steering Limiter Front Lower Arm Pivot Ball Front Lower Arm Pivot Ball A-03-VBC-1022 x 2...
  • Page 10 Ride Height 1.5mm Adjustment Spacer x 2 D-05-VBC-1018 Ride Height 1.5mm Adjustment Spacer M3x8 Roundhead C-02-SC-R0308 x 4 LightningF Kingpin C-02-VBC-5111 x 2 Same procedure as on right side 3x6x0.5mm Spacer B-02-VBC-5093 x 2 Front Springs (Soft) C-02-VBC-5041 x 2...
  • Page 11 Noted low profile servo is required LightningF Upper Deck Support Mount Installing Servo Mount M3x10 Roundhead LightningF Upper Deck Support Mount A-01-VBC-5106 x 2 Cut away sleeve using a cutter M3x6 Flathead M3 Steel Spacer M3x6 Flathead C-02-SC-F0306 x 2...
  • Page 12 M2x6 Round Head C-02-SC-R-0206 x 4 M2x6 Round Head Camber adjust by plastic pivot ball holder in difference direction Camber Adjuster, Type B B-02-VBC-5104 x 2 - 1 Deg - 1.5 Deg - 2 Deg - 2.5 Deg © VBC Racing LIGHTNINGF...
  • Page 13 Battery Mount and Upper Deck Assembly M3x6 Roundhead LightningF Upper Deck A-01-VBC-5098 Front Upper Deck Caster Mount LightningF Shock Mount Plate A-01-VBC-5097 x 1 M3x6 Flathead Lightning Alum Shock Mount Brace A-01-VBC-5003 x 1 M3x6 Roundhead C-02-SC-R0306 x 4 M3x6 Flathead C-02-SC-F0306 x 4...
  • Page 14 Front Upper Deck Caster Mount Direction Front Upper Deck Caster Mount Direction Marking facing upwards on both mounts Marking facing downwards on both mounts LightningF Front Upper Arm Mount A-01-VBC-5103 LightningF Front Upper Arm Mount A-01-VBC-5103 © VBC Racing LIGHTNINGF...
  • Page 15 TBX Shock O-ring Guard A-02-VBC-5029 TBX Spring Retainer A-02-VBC-5032 x 1 Lightning12 TBX Sping [Gold/Medium] TBX Shock Thru Cap A-02-VBC-5031 x 1 C-02-VBC-5034 OPTIONAL LIGHTNING12 TBX SPRINGS : C-02-VBC-5039 (Med. Soft/Silver) C-02-VBC-5040 (Med. Hard/Black) M1.0x7.5 O-ring C-02-VBC-5036 x 2 © VBC Racing LIGHTNINGF...
  • Page 16 STEP16-17 BAG MARKED Installing TBX Shock to Chassis M3x6 Roundhead C-02-SC-R0306 x 2 © VBC Racing LIGHTNINGF...
  • Page 17 5x10 Ball Bearing C-02-BB-1005-B x 4 5x10 Ball Bearing 5x10 Ball Bearing Wheel Spacer B-02-VBC-0019-575 x 2 M4 Aluminum Lock Nut *Tires, wheels and tire inserts are not included in this kit M4 Aluminum Lock Nut A-03-VBC-1024 x 2 © VBC Racing LIGHTNINGF...

  • Page 18: Install Electronics

    Install ESC And Receiver Not included in this kit M3x6 Spacer M3x8 Roundhead M3x8 Roundhead C-02-SC-R0308 x 2 M3x6 Spacer B-02-VBC-5093 x 2 *Car body shell not included. This car fits all available F103/F104 compatible car bodies © VBC Racing LIGHTNINGF...

  • Page 19: Install Battery

    Fiber Tape Slots Install the battery mount on backward positon when using the shorty lipo battery Fiber Tape (not included) Install the battery mount on forward position when using the standard size lipo battery Fiber Tape (not included) © VBC Racing LIGHTNINGF...
  • Page 20 COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT Instruction Book P-0006.0 VBC Racing LightningF Car Kit D-05-VBC-CK04...
