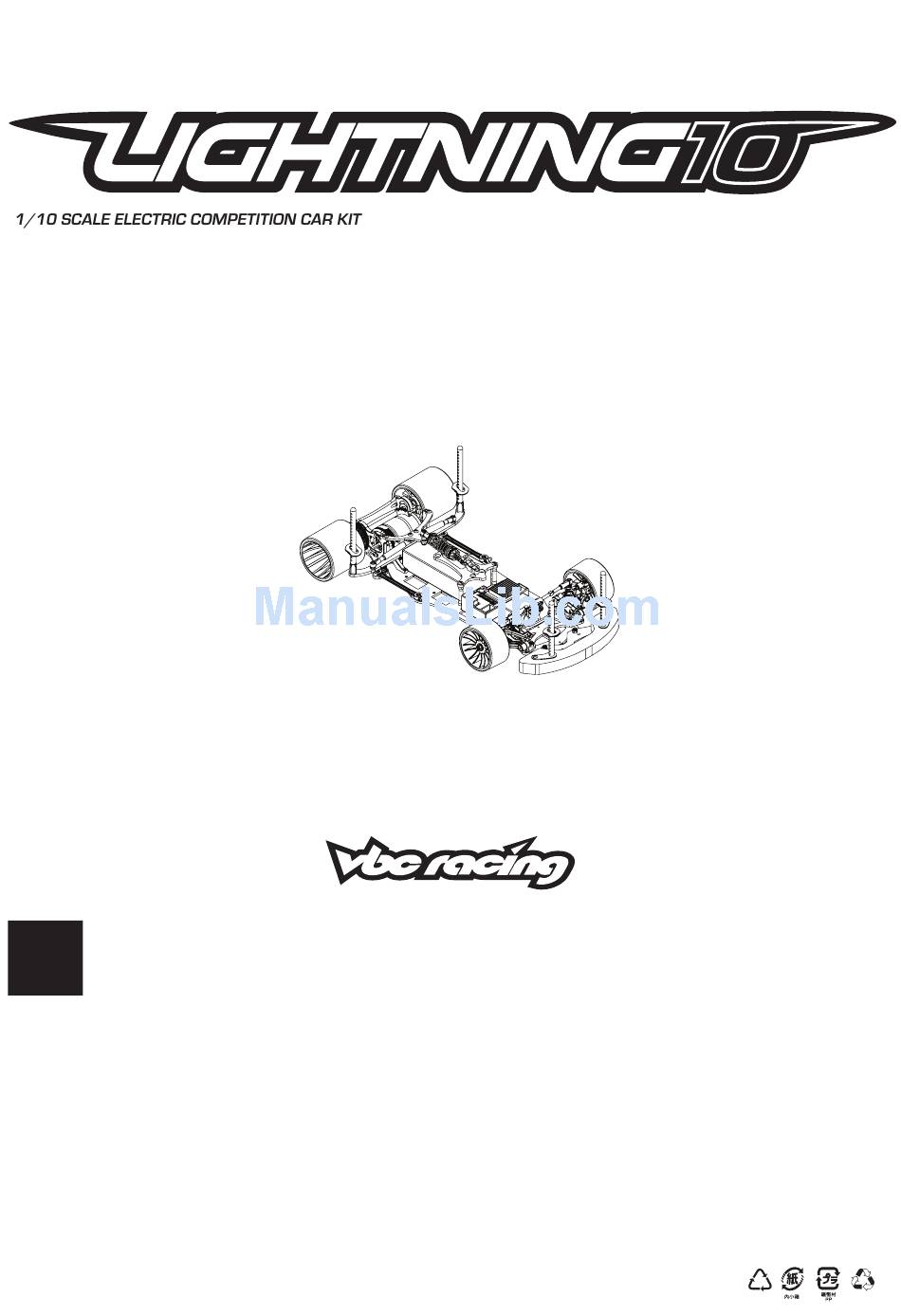

COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
E
Thank you for purchasing VBC Racing product.
Things that we should remind you.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality full carbon fiber
chassis and high grade 7075 material which will give you a
competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: support@vbc-racing.com or
visit our web site www.vbcracing.com
INSTRUCTIONS MANUAL
5
Advertisement
Related Manuals for VBC Racing Lightning10
Summary of Contents for VBC Racing Lightning10
- Page 1 Thank you for purchasing VBC Racing product. Things that we should remind you. This VBC Racing kit is a high performance, racing grade car kit intended for experienced racers. The kit compose of VBC formulated composite materials, top quality full carbon fiber chassis and high grade 7075 material which will give you a competitive edge over the others.
- Page 2 Sand the chassis edges with #600 sand paper(not included) and apply CA glue(not included) to the edges of the chassis. *Not included in this kit A-01-P50205 Lightning10 2.5mm Graphite Main Chassis A-01-P50210 Lightning10 Rear Tweak Plate A-01-VBC-5083 Lightning12 Graphite Lower Pod Plate Sand the below graphite edges with #600 sand paper and apply CA glue to the edges.
- Page 3 Pivot Brace Cover D-05-VBC-0101 x 1 Pivot Balls M2x6 Cap Head C-02-SC-R2.0x6 x 2 Pivot Balls A-03-VBC-1027 x 5 Pivot Balls M3x6 Flathead C-02-SC-F0306 x 5 M3x6 Flathead M3x6 Flathead Pivot Balls Pivot Balls M3x6 Flathead M3x6 Flathead © VBC Racing LIGHTNING10...
- Page 4 LightningF Al7075 Left Bulkhead Rear Bulkhead Assembly Part1 LightningF Al7075 Motor Mount B-02-VBC-5128 x 1 LightningF Al7075 Motor Mount M3x6 Flathead LightningF Al7075 Left Bulkhead B-02-VBC-5129 x 1 M3x6 Flathead M3x6 Flathead M3x6 Flathead C-02-SC-F0306 x 4 M3x6 Flathead © VBC Racing LIGHTNING10...
- Page 5 STEP2-5 BAG MARKED Rear Bulkhead Assembly Part2 Lightning10 Graphite Rear Pod Strut A-01-P50206 x 1 M3x6 Roundhead C-02-SC-R0306 x 4 M3x6 Roundhead Lightning10 Graphite Rear Pod Strut A-01-P50206 x 1 M3x6 Roundhead Lightning Rear Tweak Plate Standoff Chassis Brace Assembly...
- Page 6 Aluminum Side Spring Retainer B-02-VBC-5074 x 2 Side Spring (Soft/Silver) Side Spring (Medium/Gold) Side Spring (Hard/Black) (A-03-VBC-1047) Aluminum Side Spring Retainer M3x6 Roundhead Side Spring (Medium/Gold) A-03-VBC-1047 x 2 Side Spring (Medium/Gold) M3x8 Set Screw C-02-SC-SS-0308 x 2 M3x6 Roundhead M3x6 Roundhead © VBC Racing LIGHTNING10...
- Page 7 Ball Connector 4.7x17mm 2mm Spacer M3x6 Roundhead 2mm Spacer 1mm Spacer Lightning10 Graphite Rear Shock Mount Plate Ball Connector 4.7x17mm A-02-VBC-5092 x 1 4.7mm Ball Nuts B-02-VBC-5020 x 2 T2 7075 Spacer B-02-VBC-0019-20 x 2 4.7mm Ball Nuts T1 7075 Spacer B-02-VBC-0019-10 x 1...
- Page 8 M2.5 x 6 x 0.5 Spacer C02P50259 x 2 M3x15mm Turnbuckle, Black Lightning Front Axle M2.5x4 Roundhead C-02-SC-R2504 x 4 Lightning10 ALU7075 Steering Knuckle Ball Connector 4.7x12mm A-02-VBC-5015 x 2 M2.5 x 6 x 0.5 Spacer Lightning12 Front Upper Arm M2.5x4 Roundhead...
- Page 9 Caster Spacer, 1.2mm D-05-VBC-0110 x 2 1.5mm OPTIONAL HEIGHT ADJUST SPACER SET : 0.5mm/1.0mm Height Adjuster Spacer (D-05-VBC-0108) M3x2mm Set Screw C-02-SC-SS-0302 x 2 Lightning10 Front Hinge Brace A-01-G50229 x 1 M3x8 Roundhead M3x8 Roundhead C-02-SC-R0308 x 4 Caster Spacer, 1.2mm Caster Spacer, M3x8 Roundhead 0.8mm...
- Page 10 STEP7 BAG MARKED Lightning10 Carbon Rear Axle B-02-P50231 Ball Differential Assembly Bevelled Washers Note : The Direction Of Washers Differential Seal O-ring Ball Bearing Flanged 3/8”x1/4” Differental Drive Ring Ball Bearing 3/8”x1/4” Differental Drive Ring Differential Seal O-ring B-02-VBC-5082 x 2 1/8”...
- Page 11 BAG MARKED M2.5x8 Cap Head Ball Differential Assembly M2.5x8 Cap Head Screw C-02-SC-R2508 x 2 M2.5x8 Cap Head Lightning10 Left Rear Wheel Hub B-02-P50213 x 1 Turnbuckle Cup (Long) 50mm Turnbuckle Servo And Top Plate Assembly Turnbuckle Cup (Long) Optional : Tie Rod Wrench Set D-05-VBC-0048 Turnbuckle Cup (Long) A-03-VBC-5016 x 4 <<...
- Page 12 Aluminum Shock Mount Brace A-01-VBC-5003 x 1 Shock Mount Plate A-01-VBC-5004 x 1 LightningF Upper Deck Support Mount LightningF Upper Deck Support Mount B-02-VBC-5096 x 2 Lightning10 Graphite Front Shock Mount Plate A-01-P50208 x 1 M3x6 Flathead © VBC Racing LIGHTNING10...
- Page 13 A-02-VBC-5032 x 1 TBX Shock Thru Cap A-02-VBC-5031 x 1 Lightning12 TBX Sping [Gold/Medium] C-02-VBC-5034 OPTIONAL LIGHTNING12 TBX SPRINGS : M1.0x7.5 O-ring C-02-VBC-5036 x 1 C-02-VBC-5039 (Med. Soft/Silver) C-02-VBC-5040 (Med. Hard/Black) 5mm Pivot Ball A-03-VBC-1027 x 1 © VBC Racing LIGHTNING10...
- Page 14 M3x10mm Flat Head Screw C-02-SC-F0310 x 2 M2x12 Shaft Pin B-02-VBC-0022 x 2 Lightning10 Graphite Front Bumper M3x6mm Flat Head Body Height Adjuster Support A-03-VBC-0015 x 2 M3x10mm Flat Head M3x6mm Flat Head M3x10mm Flat Head Front Body Post A-03-VBC-0013 x 2 © VBC Racing LIGHTNING10...
- Page 15 Rear Body Post Assembly M2x12 Shaft Pin M2x12 Shaft Pin B-02-VBC-0022 x 2 Body Height Adjuster Support Body Height Adjuster Support A-03-VBC-0015 x 2 Front Body Post A-03-VBC-0013 x 2 M2x12 Shaft Pin M3x8 Roundhead C-02-SC-R0308 x 2 © VBC Racing LIGHTNING10...
- Page 16 M3 Locknut C-02-SC-NN03 x 2 M3 Locknut M3.3x0.4 Kingpin Shim C-02-VBC-5069 x 2 Bearing 1/8x5/16, Flanged 4-40x5/16” Cap Head Screw x 8 Install Motor And Electronics M3x6x0.5mm Spacer M3x8 Roundhead M3x8 Roundhead C-02-SC-R0308 x 2 M3x6x0.5mm Spacer B-02-VBC-5093 x 4 © VBC Racing LIGHTNING10...
- Page 17 STEP12 BAG MARKED 7.4V Lipo Battery [Item Is Not Included] Install Electronics And Battery Install ESC And Receiver [Items Are Not Included] Double Side Tape © VBC Racing LIGHTNING10...
- Page 20 COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT Instruction Book P-01-P50265 VBC Racing Lightning10 1/10 Pan Car Kit D-05-VBC-CK03...
