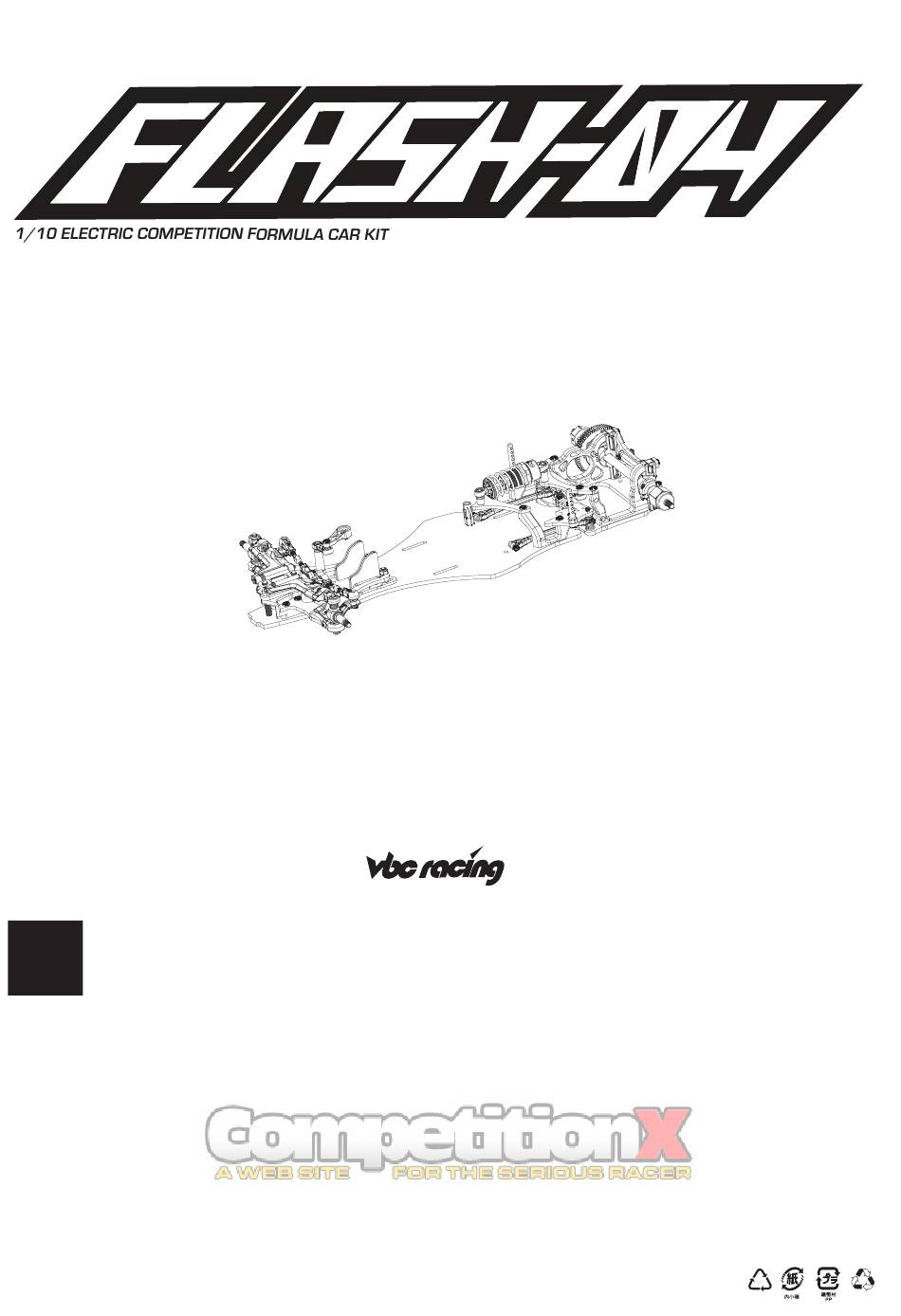

VBC Racing Flash-04 Instruction Manual

1:10 electric competition formula car kit
Hide thumbs

Advertisement

Quick Links

Download this manual
COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
E
Thank you for purchasing VBC Racing product.
Things that we should remind you.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality full carbon fiber
chassis and high grade 7075 material which will give you a
competitive edge over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: support@vbc-racing.com or
visit our web site www.vbcracing.com
INSTRUCTIONS MANUAL
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Flash-04 and is the answer not in the manual?

Questions and answers

Related Manuals for VBC Racing Flash-04

Summary of Contents for VBC Racing Flash-04

  • Page 1 Thank you for purchasing VBC Racing product. Things that we should remind you. This VBC Racing kit is a high performance, racing grade car kit intended for experienced racers. The kit compose of VBC formulated composite materials, top quality full carbon fiber chassis and high grade 7075 material which will give you a competitive edge over the others.
  • Page 2 *Not included in this kit A-03-VBC-1051 Flash04 Main Chassis (3.0MM) Sand the below graphite edges with #600 sand paper and apply CA glue to the edges. A-03-VBC-1057 Flash04 Front Lower arm (Left) A-03-VBC-1058 Flash04 Front Lower arm (Right) © VBC Racing FLASH04...
  • Page 3 Install the Linkage Center Pivot Bottom Support Mount A-03-VBC-1036 x 1 M2x6 Screw Center Pivot Top Clamp Plate A-03-VBC-1037 x 1 M2x6 Screw M2x6 Screw Side Linkage A-03-VBC-1032 x 2 M2x6 Screw C-02-SC-R2.0x6 x 4 M3x6 Flathead Screw © VBC Racing FLASH04...
  • Page 4 Rear Axle Height Adjustable Mount A-03-VBC-1030 x 2 Flash04 Rear Wing Plate 10x6mm Flanged Ball Bearing C-02-BB-1006-FB x 2 M3x12 Roundhead M3x12 Roundhead Screw C-02-SC-R-0312 x 4 M3x12 Roundhead 10x6mm Flanged Ball Bearing M3x12 Roundhead Rear Axle Height Adjustable Mount M3x12 Roundhead © VBC Racing FLASH04...
  • Page 5 Beveled Spring Washer A-03-VBC-1066 x 2 Right Wheel HubOuter Wheel Nut Shaft M2x14 Shaft Pin A-03-VBC-1049 x 1 Spur/Axle Fitting Ring A-03-VBC-1044 x 1 M3x3 Set Screw C-02-SC-SS-0303 x 1 M4 Aluminum Lock Nut A-03-VBC-1024 x 1 M2x14 Shaft Pin © VBC Racing FLASH04...
  • Page 6 M3x8 Roundhead Screw C-02-SC-R0308 x 2 M3x6 Roundhead Left Wheel Hub A-03-VBC-1020 x 1 M3x3 Set Screw C-02-SC-SS-0303 x 1 Motor not included Installing Motor and Pinion Gear M3x8 Roundhead M3x8 Roundhead Pinion Gear not included M3x3 Set Screw © VBC Racing FLASH04...
  • Page 7 Turnbuckle Cup A-03-VBC-0039 x 2 Steering Cone Washer Steering Travel Plate 5x8 Ball Bearing Ball Connector Turnbuckle Cup S A-03-VBC-0056 x 2 Steering Cone Washer Thead Lock M3x6 Set Screw Steering Arm Steering Arm 5x8 Ball Bearing 5x8 Ball Bearing © VBC Racing FLASH04...
  • Page 8 Make sure the bottom setscrew is recessed in the Steering Travel Plate. M3x4 Roundhead Screw C-02-SC-R0304 x 2 M2x10 Roundhead Screw C-02-SC-R0210 x 2 M2x6 Roundhead Screw C-02-SC-R0206 x 2 Flash04 Steering Limiter A-03-VBC-1062 x 2 © VBC Racing FLASH04...
  • Page 9 Servo Horn 'A' A-03-VBC-1041 x 1 Flash04 Adjustable Servo Plate Servo Horn 'F' A-03-VBC-1042 x 1 M2.6x6 M2.6x6 M2.6x6 Option2: Vertical Servo Layout for direct linkage M2.6x6 M3x8 Roundhead Screw C-02-SC-R0308 x 2 M2.6x6 Flathead Screw C-02-SC-R2606 x 8 © VBC Racing FLASH04...
  • Page 10 Front Upper Arm Pin Guide A-03-VBC-1074 x 4 Front Camber Link Turnbuckle Flash04 Upper Arm Outer Cup Arm Pin E-Clip Front Upper Arm Pin M2.5 Flash04 Front Arm Spacer T1 King Pin Upper Ball Arm Pin E-Clip © VBC Racing FLASH04...
  • Page 11 Steering Travel Plate. You may need these Servo Mount Supports for different types of servos. 12mm 12mm Servo Mount Support A-03-VBC-1068 8mm Servo Mount Support A-03-VBC-1069 6mm Servo Mount Support A-03-VBC-1070 © VBC Racing FLASH04...

  • Page 12: Steering Assembly

    M3x8 Roundhead Screw C-02-SC-R0308 x 2 Suspension Arm Spacer T2 Composite M3x3 Set Screw C-02-SC-SS-0303 x 2 M3 E-Clip Front Suspension Spring Flash04 King Pin M3 E-Clip M3x3 Set Screw Tighten left and right steering knuckle set screws © VBC Racing FLASH04...
  • Page 13 M3x6 Roundhead Screw C-02-SC-R0306 x 7 Flash04 Side Damper Outer Mount M3x8 Set Screw C-02-SC-R0308 x 2 M3x6 Roundhead M3x6 Roundhead Side Spring (Black) A-03-VBC-1047 x 2 M3x8 Set Screw Side Spring Adjuster Side Spring (Black) © VBC Racing FLASH04...
  • Page 14 Center Shock Height Pole (Rear) A-03-VBC-1014 x 1 Side Damper Tube A-03-VBC-1005 x 1 Side Damper Piston Rod A-03-VBC-1006 x 1 M3x8 Set Screw C-02-SC-SS-0308 x 3 M3x6 Roundhead Screw C-02-SC-R0306 x 3 M3x6 Flathead Screw C-02-SC-F0306 x 1 © VBC Racing FLASH04...
  • Page 15 M3x6 Roundhead Screw C-02-SC-R0306 x 2 Battery not included M3x6 Roundhead M3x6 Roundhead Remove the two 3x6 Roundhead screws to install the battery. Use fiber tape (not included) through the slots on chassis to secure the battery © VBC Racing FLASH04...
  • Page 16 Shock Shaft B-02-VBC-0043 x 1 Center Shock Spacer A-03-VBC-1072 x 1 Sealer O-Ring B-03-VBC-0002 x 1 Make sure the shock shaft can move up and down freely Shaft Sealer O-Ring B-03-VBC-0012 x 1 M3 E-Clip B-02-VBC-0044 x 2 © VBC Racing FLASH04...
  • Page 17 Shock Spring Red MED-SOFT B-02-VBC-0073-C x 1 Spring Bottom Support Note the double ring face to ball connector Shock Spring Red Optional VBC Racing Shock Springs: Shock Spring Green SOFT B-02-VBC-0073-D Shock Spring Red MED-SOFT B-02-VBC-0073-C Shock Spring Orange MED-HARD B-02-VBC-0073-A...
  • Page 18 STEP21-23 BAG MARKED Install the Center Shock Install the Antenna Mount Antenna Mount A-03-VBC-1043 x 1 M3x8 Flathead Screw C-02-SC-F0308 x 1 Antenna Mount M3x8 Flathead © VBC Racing FLASH04...

  • Page 19: Installing Wheels

    Front Wheels M4 Aluminum Lock Nut 5x10 Ball Bearing Wheel Spacer 5x10 Ball Bearing Wheel not included Wheel Spacer 5x10 Ball Bearing Wheel not included 5x10 Ball Bearing M4 Aluminum Lock Nut © VBC Racing FLASH04...
  • Page 20 Flash04 7075 Body Post A-03-VBC-1012 x 1 M3x12 Roundhead Screw C-02-SC-R-0312 x 2 M3x8 Roundhead Screw C-02-SC-R0308 x 1 M3x12 Roundhead M3x8 Flathead Screw C-02-SC-F0308 x 1 M3x12 Roundhead 7075 Body Post Front Wing not included M3x8 Roundhead M3x8 Flathead © VBC Racing FLASH04...
  • Page 21 COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT Instruction Book P-1001.0 VBC Racing Flash04 Formula Car Kit D-05-VBC-0075...

  • Page 22: Parts List

    Right Wheel HubOuter Wheel Nut Shaft A-03-VBC-1020 Left Wheel hub A-03-VBC-1059 Flash04 Servo Clamp Plate Right D-05-VBC-1001 Flash04 Servo Clamp Plate Set D-05-VBC-1011 Flash-04 Ball Diff Set. A-03-VBC-1077 Thrust Bearing Washer A-03-VBC-1060 Flash04 Servo Clamp Plate Left A-03-VBC-1044 Spur/Axle Fitting Ring A-03-VBC-1071...
