HAMPTON BAY FDS50285-ST-2 Use And Care Manual

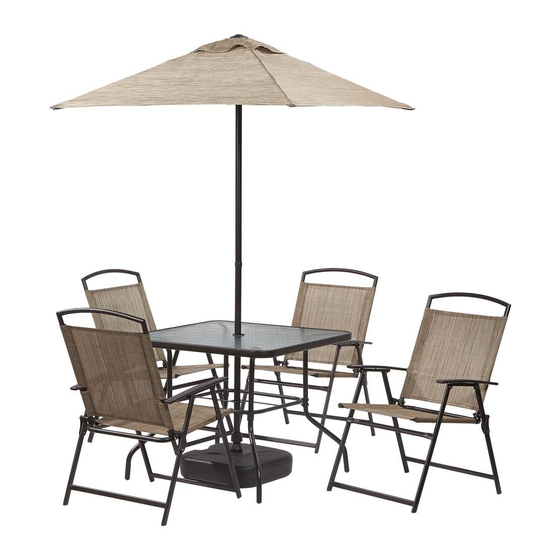

7pc folding dining set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Item
#140 849
FDS50285-ST-2

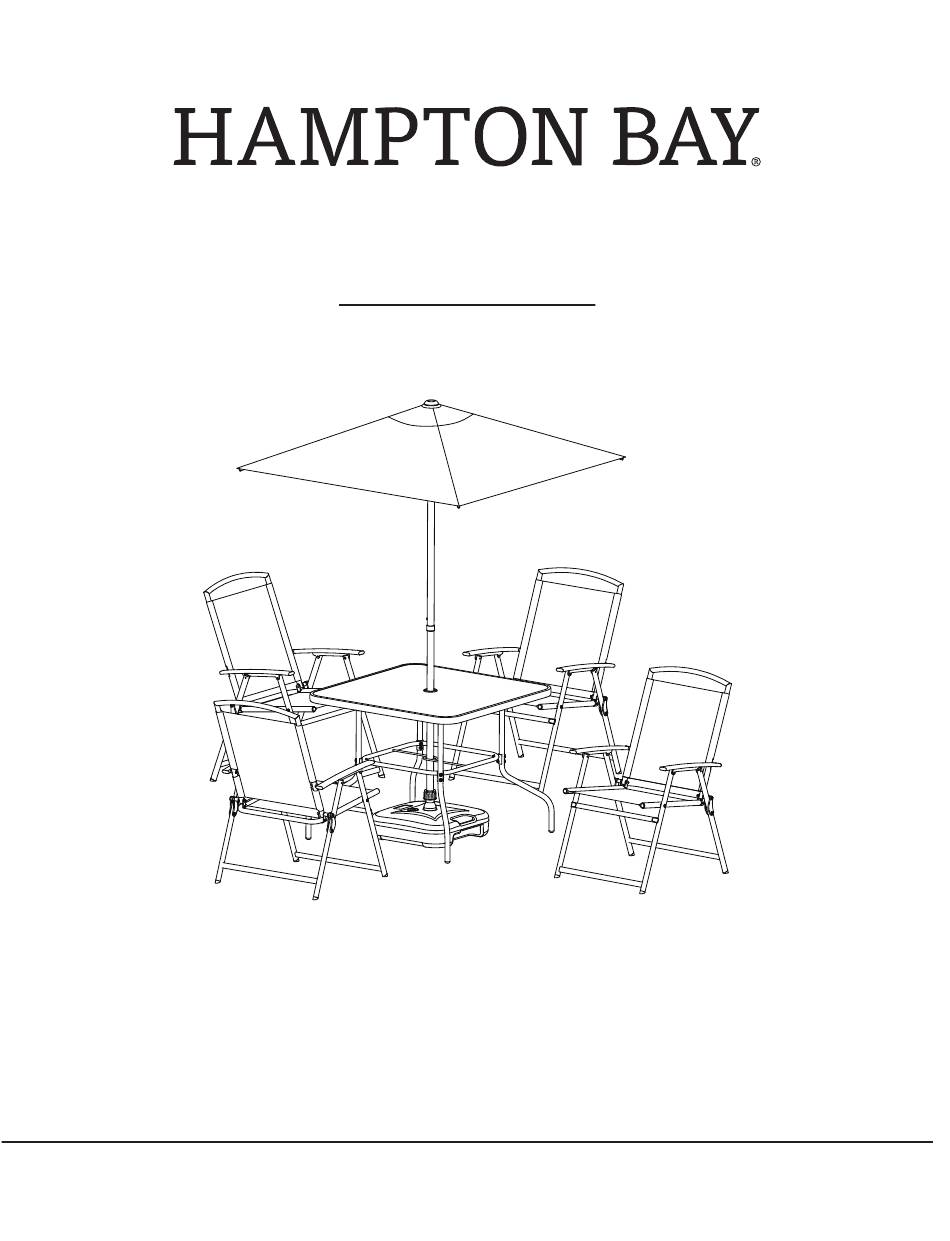

USE AND CARE GUIDE
7PC FOLDING DINING SET
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
01-800-00-46633
HOMEDEPOT.COM.MX
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually
create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading

Related Manuals for HAMPTON BAY FDS50285-ST-2

Summary of Contents for HAMPTON BAY FDS50285-ST-2

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents........2 Hardware Included .

  • Page 3: Warranty

    Warranty 1 YEAR FRAME AND FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for one year, and the fabric to have a one year limited warranty. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center.

  • Page 4: Hardware Included

    Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6X38 combination bolt M6x55 combination bolt Self-Tapping Screw M6 Nut M6 Washer Hex Wrench Wrench TABLE PACKAGE CONTENTS Part Description Quantity Table Top Leg Connector Table Leg...

  • Page 5: Umbrella Package Contents

    Pre-Assembly (continued) UMBRELLA PACKAGE CONTENTS Part Description Quantity Umbrella Shade Umbrella Pole UMBRELLA BASE PACKAGE CONTENTS Part Description Quantity Base Pole Cover HOMEDEPOT.COM.MX Please contact 01-800-00-46633 for further assistance.
  • Page 6 Table Assembly Connecting The Table Legs Place the table top (A) upside down on a soft surface. Attach the four table legs (C) to the table top (A). Attaching The Leg Connector To The Table Legs Attach the leg connector (B) to the table legs (C) using M6X38 combination bolts (AA), M6x55 combination bolts (BB), M6 washers (EE), and M6 nuts (DD).
  • Page 7 Table Assembly (continued) Securing The Table Legs Use the self-tapping screws (CC) to secure the table legs (C) as shown below. NOTE: Loosley tighten all the bolts using the screwdriver. Tighten All Bolts Once all bolts and screws are in place, fully tighten all bolts and screws. Turn the table right side up.

  • Page 8: Umbrella Assembly

    Umbrella Assembly Connecting The Umbrella To The Umbrella Pole Place the umbrella shade (D) over the umbrella pole (E). Match the tab on the pole (E) with the hole on the umbrella shade (D) and then attach the pole (E) into the umbrella shade (D) until the two pieces snap into place.

  • Page 9: Umbrella Base Assembly

    Umbrella Base Assembly Securing The Base Place the base at the desired location. Remove the cover (I) on the base by rotating counterclockwise. Pour about 40.3 pounds (18.3 kg) of water into the umbrella base (F). Tighten The Cover Fully tighten the cover (I) on the base by rotating clockwise. HOMEDEPOT.COM.MX Please contact 01-800-00-46633 for further assistance.
  • Page 10 Umbrella Base Assembly (continued) Attaching The Pole Into The Base Match the position of the pole (H) with the hole on the base (F). Then insert the pole (H) together with the cap (G) into the base (F). Securing The Pole Rotate the pole (H) 90 degrees clockwise to secure the pole (H).

  • Page 11: Umbrella Operation

    Umbrella Operation Opening The Umbrella Shake the umbrella fabric before opening the umbrella as shown in figure (1). Hold the hub on the umbrella shade (D) and move upwards until the shade locks into place as shown in figure (2). Closing The Umbrella To close the umbrella hold the hub on the umbrella shade (D) and move downwards.

  • Page 12: Umbrella Base Operation

    Umbrella Base Operation Inserting The Umbrella To The Base Insert the umbrella into the cap (G) and pole (H) as shown in figure (1). Tighten the cap (G) by rotating clockwise to secure the umbrella to the base (F) as shown in figue (2). Removing The Umbrella From The Base Fully loosen the cap (G) by rotating counterclockwise as shown in figure (1), and then take the umbrella out from the base as shown in figure (2).

  • Page 13: Care And Cleaning

    Umbrella Base Operation (continued) Moving The Base Remove the cover (I) by rotating counterclockwise to take the cap out as shown in figure (1). Pour out the water from the base (F) as shown in figure (2). Move the base (F) to the new desired location. Care Care and Cleaning For best results, clean the frame with a damp cloth and dry thoroughly.
  • Page 14 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 01-800-00-46633 HOMEDEPOT.COM.MX Retain this manual for future use. For certification use only Factory Table ID # FTS50114J IMPORTER: SERVICES HOME DEPOT S.
