ASSEMBLY , INSTALLATION AND OPERATING INSTRUCTIONS FOR R CLASS SERIES BUILT-IN BARBECUE MODELS: 1R, 2R, 3R, 4R, 5R, 6R. 1RS, 2RS, 3RS, 4RS, 5RS. 1RSS, 2RSS, 3RSS, 4RSS, 5RSS. RSS, V6, V8, V1O, V12, V8+1, V10+1. IMPORTANT – PLEASE READ ALL INSTRUCTIONS BEFORE YOU ASSEMBLE, INSTALL OR OPERATE THIS APPLIANCE.
IMPORTANT SAFETY INSTRUCTIONS • • Tucker R Class Barbecues are approved for Do not use or store flammable liquids in or near outdoor use only. this appliance. • • Remove all plastic protection film from stainless Always leak test /check hose connections after steel components before assembly.
BARBECUE ASSEMBLY INSTRUCTIONS TOOLS REQUIRED FOR ASSEMBLY • Remove the pallet and any plastic film protecting or covering any parts of the Barbecue before 10mm spanner assembly. • Cut away any packaging or cable ties that may Phillips head screwdriver be holding components in place.
Page 5

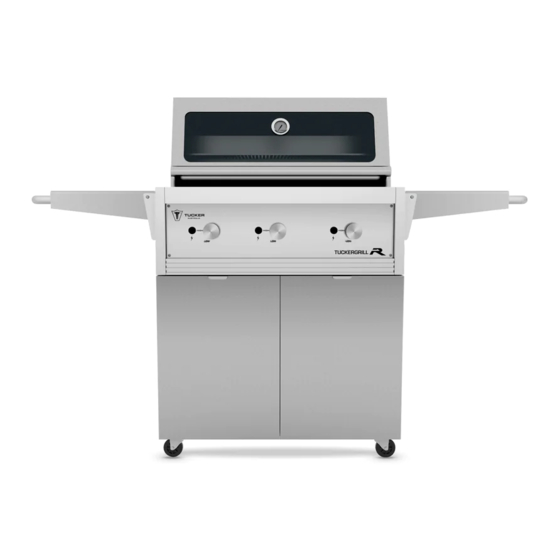

BARBECUE ASSEMBLY 1. The R Class BBQ can be installed into either an Insulation Jacket or optional Cabinetry Trolley. Please read relevant assembly installation instructions before use. 2. Roasting hoods or flat lids are also optional for the R Class BBQ please read separate roasting hood or flat lid instructions prior to BBQ assembly and installation.
INSTALLATION INSTRUCTIONS & WARNINGS INSTALLATION INSTRUCTIONS INSTALLATION WARNINGS READ THE IMPORTANT INFORMATION Do not use this appliance indoors or on marine craft. ON THE FRONT OF THE BARBECUE This appliance shall only be used in an above This barbecue is designed and approved for outdoor ground, open-air situation with natural ventilation, use only.
Page 7
DIAGRAMMATICAL REPRESENTATIONS FIGURE 4 OUTDOOR AREA –EXAMPLE 4 OF OUTDOOR AREAS The following figures are diagrammatical representations of outdoor areas. The areas used in the figures below are examples – the same principles apply to any other shaped area. FIGURE F1 – OUTDOOR AREA – EXAMPLE 1 Open side at least 25% 30% or more in total of total wall area...
SPECIFICATIONS BARBECUE GAS CONSUMPTION TUCKER R CLASS BARBECUES ARE MADE AND APPROVED TO AUSTRALIAN STANDARDS (In Mega Joules Per Hour) A.G.A. APPROVAL NO. AGA 8351-G For LP Gas connections, an approved 2.75 KPA No. of Burners. Natural Gas LPG: regulator and hose assembly connection to the appliance is fitted by the manufacturer.
DIMENSIONS R CLASS BBQ DIMENSIONS (Measurements in mm) Model V6 (3R) V8 (4R) V10 (5R) V12 (6R) V8+1 (4RSS) V10+1 (5RSS) 1015 1435 1275 1435 1080 1500 1340 1500 285mm 565mm 280mm 560mm 840mm 80mm 600mm The manifold is factory fitted at the front on the base on the right-hand side. Manifold diameter is 20mm The back is flush with the back of the BBQ when open.
Page 10
RSB WOK RSS WOK (In BBQ Body) 345mm 455mm 145mm 465mm 650mm 280mm R CLASS BBQ V6 (3R) V8 (4R) V10 (5R) V12 (6R) V8+1 (4RSS) V10+1 (5RSS) 765mm 925mm 1085mm 1505mm 1345mm 1505mm 680mm 280mm CLEARANCES TO COMBUSTIBLES ARE AS FOLLOWS Minimum Top Clearance Allow 800mm...
GAS INSTALLATION AND LEAK TEST PROCEDURE CONNECTION OF A GAS CYLINDER TO Turn off the gas supply and tighten or re-seal THE BARBECUE IS AS FOLLOWS the connection. Leak test the connections again The hose assembly connection to the appliance is fitted by the manufacturer.
Page 12
GAS INSTALLATION • Replace the PROPANE GAS hose and regulator with an approved Natural Gas Regulator and Hose. FOR PERMANENT CONNECTIONS to natural gas or a fixed propane supply, an authorised person, in • Turn the gas on and test for leaks, repair if accordance with these instructions, local gas fitting necessary.
OPERATING INSTRUCTIONS BARBECUE OPERATING INSTRUCTIONS Do not force the control knobs, they will turn easily, depress the knobs and turn them 1. Remove the lid or open the hood before lighting anti-clockwise. the BBQ. The gas controls can be adjusted from high to 2.
Page 14
LIGHTING INSTRUCTIONS FOR BBQS WITH NEW BBQ ‘BURNING IN’ PROCESS FLAME FAILURE VALVES FITTED. Open the Roasting Hood for this process. LIGHTING THE APPLIANCE 1. Brush a very light coating of cooking oil over the surface of the Cooking Grills and Solid Hot Plate. 1.
TROUBLESHOOTING TROUBLESHOOTING SOLUTIONS • Barbecue won’t light? Check all gas connections and that the gas bottle has gas. Ignition is not working? Check the leads are • connected properly and adjust the spark gap to make sure the gap is 4mm from the ports on the burner.
6. Do not attempt to dismantle control valves or the CONTACT YOUR NEAREST DEALER OR regulator. TUCKER AUSTRALIA PTY LTD. 7. Periodically remove the burners and scrub them with soapy water and a wire brush. Make sure the ports are clear from obstructions, unscrew...
SERVICE CALLS OF THE ABOVE NATURE ARE CHARGEABLE Gas type: CONDITIONS OF THIS WARRANTY 1. The appliance is delivered to TUCKER AUSTRALIA TUCKER AUSTRALIA PTY LTD. distributors service department or authorized 138 Silverwater Road service agent and freight charges both ways is to Silverwater NSW 2128 AUSTRALIA.
