Summary of Contents for Tucker GTR3

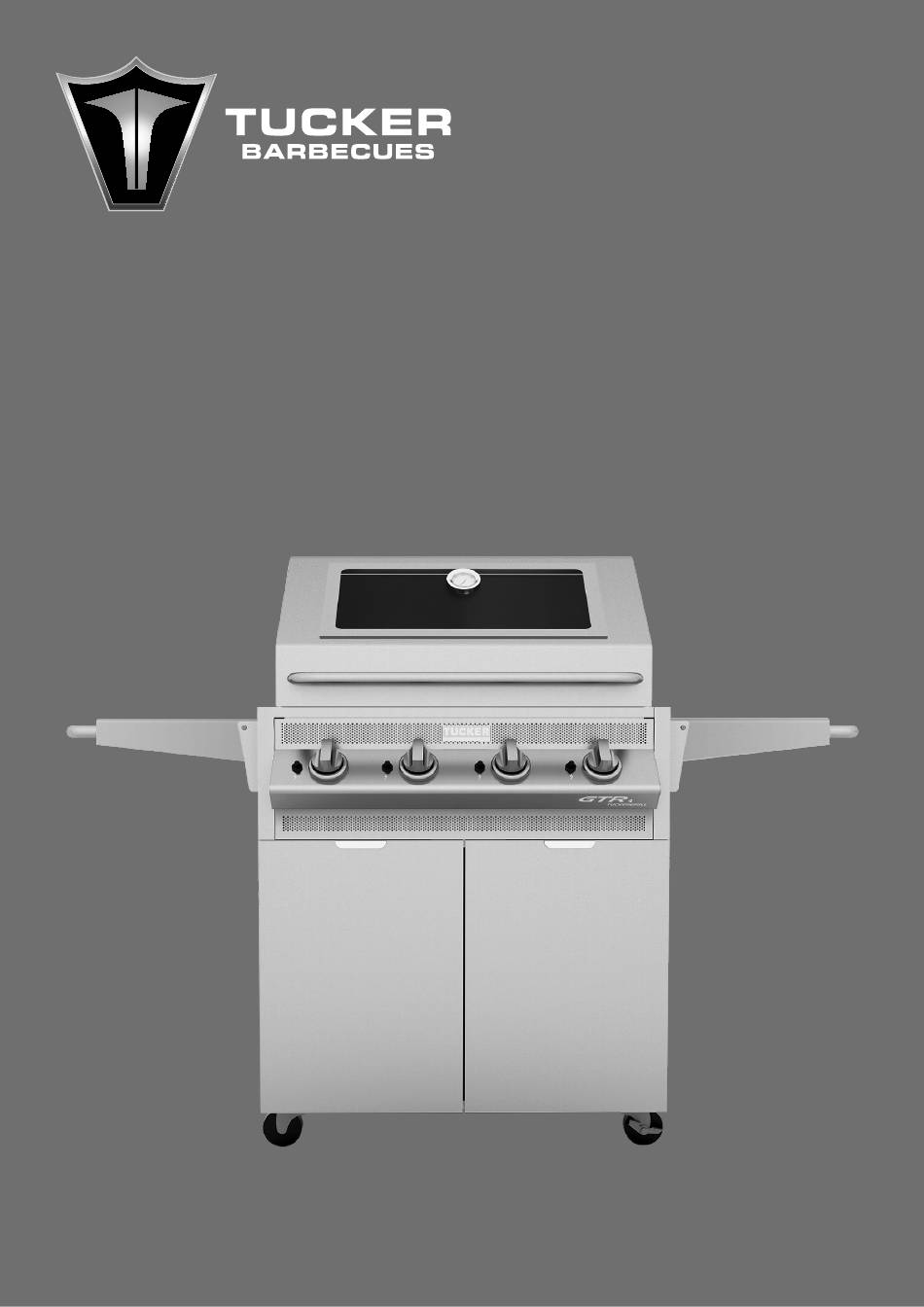

- Page 1 FOR GTR SERIES BARBECUES ON CABINET TROLLEYS MODELS: GTR3, GTR4, GTR5, GTR6. GTR3 SS, GTR4 SS, GTR5 SS, GTR6 SS. GTR3 S, GTR4 S, GTR5 S, GTR6 S. IMPORTANT – PLEASE READ ALL INSTRUCTIONS BEFORE YOU ASSEMBLE, INSTALL OR OPERATE THIS APPLIANCE.
-
Page 2: Table Of Contents
CONTENTS GENERAL WARNINGS BARBECUE ASSEMBLY INSTRUCTIONS INSTALLATION INSTRUCTIONS & WARNINGS SPECIFICATIONS DIMENSIONS GAS INSTALLATION AND LEAK TEST PROCEDURE OPERATING INSTRUCTIONS COOKING HINTS TROUBLESHOOTING SERVICE & MAINTENANCE WARRANTY... -
Page 3: General Warnings
IMPORTANT SAFETY INSTRUCTIONS • Tucker GTR Barbecues are approved for • Do not use or store flammable materials in or outdoor use only. near this appliance. • Remove all plastic protection film from • Always leak test /check hose connections stainless steel components before assembly. -
Page 4: Barbecue Assembly Instructions
BARBECUE ASSEMBLY INSTRUCTIONS Tools required for assembly – 17mm,10mm 1. If you have chosen a Roasting Hood you will need to unhinge and remove the Doors spanner and a Phillips head screwdriver. completely from either side of the Cabinet • Remove the pallet and any plastic film to allow the removal of the Roasting Hood. - Page 5 3. As you push in each catch on the back of 7. The Door Hinges are adjustable, they can be the Hinge, just lift the Door away from the adjusted in and out, sideways left and right Cabinet to remove it. as well as up and down, offering you the ability to fine tune the position of the Doors NOTE:...
- Page 6 10. If you have chosen the optional Side Shelves 12. Bolt the handles to the end of the side shelf. for the Cabinet Trolley you will need to first fit the two shelf brackets supplied with the shelves onto each side of the BBQ with the bolts provided.
- Page 7 NOTE: 14. Next, place the Flare Guards into position The Flare Guards are NOT to be placed inside the BBQ. under the Solid Cooking Plate as it will reduce the ability of the BBQ to heat the Solid Cooking NOTE: Plate.
- Page 8 20. Once the front tags are located into the BBQ, the tags on the rear of the Roasting Hood base will locate straight down into the corresponding slots on the back of the BBQ for secure attachment. 21. Now place the Rear Cooking Shelf into the rear of the Roasting Hood onto the support brackets.
- Page 9 The SS Wok has an optional Solid Hot Plate available as an accessory, if you have one it must be placed directly above the SS Wok Burner allowing an equal air gap either side of the Burner when it is in use. NOTE: A Solid Hot Plate cannot be used above the S Wok Burner.
-
Page 10: Installation Instructions & Warnings
The intended use of this barbecue is to be shall be and remain open and unrestricted. installed onto a Tucker GTR Cabinet Trolley. Be sensible about the location of your barbecue. - Page 11 DIAGRAMMATICAL REPRESENTATIONS OF FIGURE 4 OUTDOOR AREA –EXAMPLE 4 OUTDOOR AREAS The following figures are diagrammatical representations of outdoor areas. The areas used in the figures below are examples – the same principles apply to any other shaped area. FIGURE F1 – OUTDOOR AREA – EXAMPLE 1 Open side at least 30% or more in total 25% of total wall area...
-
Page 12: Specifications
Natural Gas LPG: The intended use of this barbecue is to be installed into a Tucker GTR Cabinet Trolley, Integrated Pedestal Trolley, Chef Stand or into a Tucker 12.5mj 15mj S Wok/ST Wok Zero Clearance Insulation Jacket. Alternatively, it may be set into brickwork. -
Page 13: Dimensions
(Measurements are in mm) Width with Width with Height with Height with Depth Model shelf open shelf closed Lid Open Lid Closed GTR SS 1205 1440 GTR3 1340 1440 GTR3SS 1760 1220 1440 GTR4 1500 1440 GTR4SS 1920 1380 1440... - Page 14 (F) (G) (H) Model shelf open shelf closed Hood Open Hood Closed GTR SS 1205 1370 1220 100 320 470 900 550 GTR3 1340 1370 1220 100 320 470 900 550 GTR3SS 1760 1220 1370 1220 100 320 470 900 550...
- Page 15 Above BBQ with out Roasting Hood 800mm Above BBQ from top of Roasting Hood 800mm If the BBQ is installed into a tucker GTR zero clearance cabinet trolley the clearances to combustibles are zero at the rear and either side of the BBQ body.
-
Page 16: Gas Installation And Leak Test Procedure
GAS INSTALLATION AND LEAK TEST PROCEDURE CONNECTION OF A GAS CYLINDER TO Turn off the gas supply and tighten or re-seal the connection. THE BARBECUE IS AS FOLLOWS Leak test the connections again The hose assembly connection to the appliance is fitted by the manufacturer. - Page 17 NOTE: Check that the hose is not kinked or under The installer must test the BBQ when the tension. installation is completed. Before leaving the installer must make sure the appliance operates Apart from the connection point the hose must correctly and is safe for the operator to use.
- Page 18 NOTE: PROPANE GAS TO NATURAL GAS you want to achieve the lowest flame height at “LOW” but you don’t want to CONVERSION PROCEDURE FOR adjust it too low as it could blow out on its AUTHORIZED INSTALLER own or due to a breeze. Disconnect the gas supply and remove the •...
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS GTR BARBECUE LIGHTING INSTRUCTIONS MANUAL LIGHTING INSTRUCTIONS. FOR BBQ AND WOK. To light the BBQ manually place a match into the manual lighting Match Holder located inside Before each use remove any accumulated the Cabinet Trolley, attached to the end of the grease and other cooking residue. -
Page 20: Cooking Hints
A basic wine, herb, 5. Check the gas supply is turned off. onion and garlic marinade is fine. 6. Cover the barbecue with a Tucker barbecue Fruit and vegetable accompaniments can be cover (optional extra recommended) when cooked alongside meat or grilled in a Wok on the barbecue is cooled down. -
Page 21: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING SOLUTIONS One of the burners won’t light? Check the • throat of the burner for a blockage, remove the air mixture cap and gauze on the throat • Barbecue won’t light? Check all gas of the burner and push a screwdriver up it to connections and that the gas bottle has gas. - Page 22 • Barbecue doesn’t seem to be as hot anymore? Check burner inlet and burner port holes for blockages or regulator pressure. Insects maybe in the burners. Check the injectors are not blocked on the control valves.
-
Page 23: Service & Maintenance
SERVICE & MAINTENANCE 1. Before each use remove any accumulated 9. It is recommended that the hose and grease and other cooking residue. Fat/ regulator be replaced every 5 years. grease fires are not covered by warranty. 10. If you cannot operate the barbecue 2. -
Page 24: Warranty
SERVICE CALLS OF THE ABOVE NATURE ARE CHARGEABLE CONDITIONS OF THIS WARRANTY Gas type: 1. The appliance is delivered to TUCKER AUSTRALIA distributors service department or authorized service agent and freight TUCKER AUSTRALIA PTY LTD. charges both ways is to be paid by the 138 Silverwater Road owner.
