Summary of Contents for Riverlea Duratuf KIWI MK4B

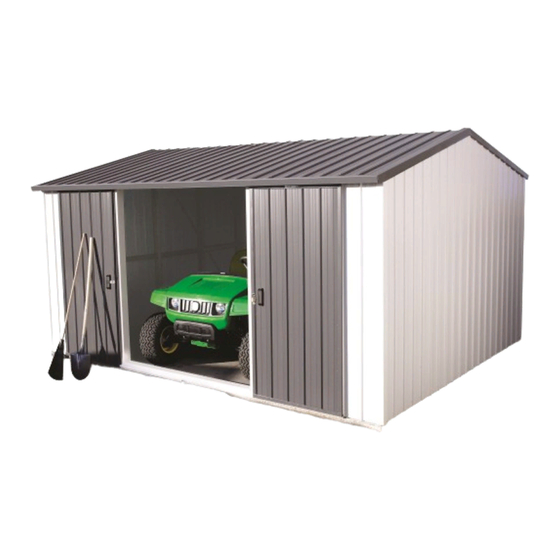

- Page 1 Quality – Built In ASSEMBLY INSTRUCTIONS MK4B BASE SIZE 4210mm x 3380mm...
- Page 2 ASSEMBLY INSTRUCTIONS • Tools Required: Drill • Drill Bit 3.5mm • Drill Bit 6mm (for clear roof panel only) • Hex Drive 5/16 • Riveter (free Duratuf riveter supplied in kit) • Hammer • Nail Punch • Tape Measure • Ladder or Saw stool •...
- Page 3 KIWI MK4B PARTS LIST 2.280m Gable End Wall Sheets 1.890m Wall Sheets 1.890m MK4 1/2 Wall Sheets Door - Standard Security Instruction Booklet 0.260m Jack Studs - 140 x 45mm 0.200m Jack Studs - 60 x 45mm Hardware Pack Centre Door Stop Touch-up Paint &...
- Page 5 MK4B TIMBER FRAME JACK STUDS Note: For sheds with the Raised Floor Modification option the studs will be 1.780m long to allow the Wall Sheets to pro- trude 20mm below the Bottom Plate. Refer to Raised Floor Modification section (Page 15). Step 1: Back Wall: Select one 4.210m Base Plate (Green), one 4.210m Top Plate (Red) and six Studs (Yellow).
- Page 6 MK4B TIMBER FRAME Step 4: Stand up Back Wall frame and one End frame and nail together, using two 75mm nails per join, top and bottom. Stand remaining Frames up and nail together. Nail in remaining .764m Nogs in End Walls. 88mm 756mm Step 5: Position middle Jack Stud, centrally on End Wall...
- Page 7 MK4B WALL CLADDING TO AVIOD CORROSION: • Where at all possible try not to trap metal filings between two sheets. Remove all metal filings before riveting. • Carbon in pencils reacts with the Zinc/Aluminium coating on steel. Use ink to mark steel. TERMS EXPLANATION •...
- Page 8 MK4B WALL CLADDING Step 1: Front Wall: Start at the left hand side. Position the Wall Sheet with the LIP on the left hand side. Ensuring the LIP is flush with side of the Stud and the top of the Top Plate, tack in place. Repeat with Wall Sheet on the right hand side of doorway.
- Page 9 MK4B LOUVRE WINDOW (Optional) 588mm Step 1: Lay out the two window studs (883mm) and Step 2: On the inside of the shed, position studs Nog (634mm) on a flat surface. Position and Nog centrally on window opening. Nog and nail in place using 2x 75mm nails Make sure the studs are parallel and nail at each end.
- Page 10 MK4B FIXED WINDOW (Optional) Step 1: Lay out the two window studs (883mm) and Nog (590mm) on a flat surface. Position 570mm Nog and nail in place using two 75mm nails at each end. Follow Steps 2 - 5 on page 8. Step 6: From the outside of the shed, place glass in Window Frame.
- Page 11 MK4B DOOR JAMB & CORNER FLASHINGS Step 3: Fit Corner Flashing (101) over corner Ribs with the top flush with the top of the Top Plate. Rivet in place with six rivets, three each side. Repeat with other three Corner Flashings. When fitting Corner Flashings on front wall, ensure they are parallel with Door Jambs.
- Page 12 MK4B CLEAR ROOF PANEL (Optional) Step 1: Leave a gap where the Clear Panel is to be fitted. Position the next Roof Sheet. Ensure it overlaps correctly, then rivet togeth- er, one rivet in the centre and one approximately 600 mm down from the centre on both sides. Fit remaining Roof Sheets, overlapping and riveting as you go.
- Page 13 MK4B DOORS Step 1: Top Door Tracks: Mark the centre of the doorway on Step 2: Position right hand Door Track (D107) on front wall the Overdoor Flashing. Position Centre Door Stop on up against underside of Roof, with left hand end the front face of the Overdoor Flashing and up against hard against the Centre Door Stop.
- Page 14 MK4B BARGE & SPOUTING Step 1: Attach left hand and right hand barges (C102 & Step 2: Centralise Barge Flashing on gable end D102) together with three rivets at top overlap. Posi- and rivet in place, one rivet into every tion Barge Flashings on gable ends.
- Page 15 MK4B HASP & STAPLE Using seven rivets, attach hasp to Left Hand Door and the staple to the Right Hand Door as shown. RAISED FLOOR MODIFICATION For sheds being placed on a purpose built floor, (concrete, cobbles, ply etc.), the Wall Sheets will pro- trude 20mm below the Base Plate.
-
Page 16: Maintenance
Minimum maintenance must be carried out in accordance with instructions below. Should the cladding fail to perform as specified above, the liability of Riverlea Group Ltd shall in all cases be limited to replacing or repairing the defective product. The balance of the original warranty will cover any repaired or replaced material. Riverlea Group Ltd will not be liable for any consequential loss or damage, labour or transport charges.
