Summary of Contents for Riverlea Duratuf SS2010

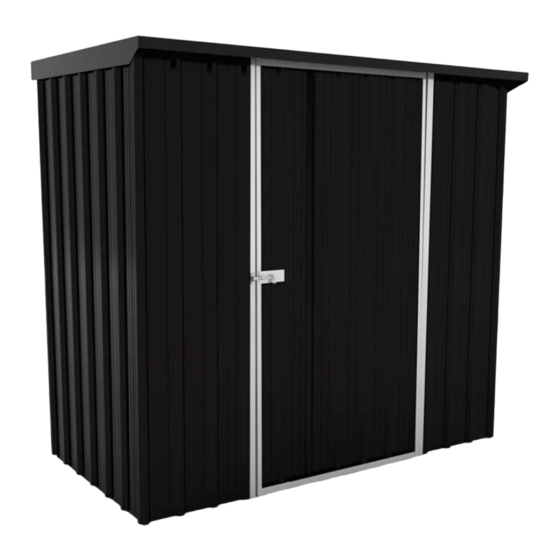

- Page 1 ASSEMBLY INSTRUCTIONS SS2010 BASE SIZE: 2.020m x 1.020m...
- Page 3 CONGRATULATIONS ON PURCHASING A DURATUF SENTRY SHED. BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS BEFORE YOU START: Read all instructions carefully Identify all parts and check quantities against parts list Select a level site ...
- Page 4 SS2010 PARTS LIST DESCRIPTION DIAGRAM DESCRIPTION DIAGRAM CLADDING FLASHINGS CHECKED CHECKED Front Wall Door Side 1.850 m 1.810 m Back Wall Door Jamb 1.890 m 1.850 m Side Wall Door Brace 1.850 m 1.160 m Roof Ridge Flashing 1.110 m 2.055m Door 3/4 Sheet Barge...
- Page 5 PARTS LOCATION Roof Sheets Ridge Flashing Barge Flashing Spouting Back Wall Sheets Top Plate Side Top Plate Back Top Plate Front Front Wall Sheets Hinge Door Brace Door Sheets Door Jambs Padbolt Support Side Wall Sheets Door Side Flashing Bottom Plate Side Bottom Plate Front Door Top/Bottom Front Wall Sheet...
- Page 6 FOUNDATION No doubt by now you will have decided what sort of base you are putting down. Please read the section that applies to your situation. If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed. This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
- Page 7 ASSEMBLE DOOR SELECT: 2 x 1.810 m Door Sheets (Narrow) 2 x 0.945 m Door Top/Bottom Flashings 2 x 1.810 m Door Side Flashings 3 x Hinges 1 x Padbolt Support Flashing 2 x 1.160 m Door Brace Flashings 54 x Rivets fig.1 STEP 1: ...
- Page 8 ASSEMBLE SIDE PANELS SELECT: IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER BASE PLATE –READ THE FOLLOWING; 4 x 1850 Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 2 x 1.020 Top Plates (Red) 30mm from measurement shown between Top and Bottom Plates on 2 x 1.020 Bottom Plates (Green) all wall panels, so cladding protrudes 20mm below bottom plate 48 x 30mm Galv Clouts...
- Page 9 ASSEMBLE BACK PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 4 x 1.890m Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 1 x 2.020 m Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.020 m Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate...
- Page 10 ASSEMBLE FRONT PANEL IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER SELECT: BASE PLATE –READ THE FOLLOWING; 2 x 1.850 Wall Sheets For sheds with Raised Base Plate option only (see page 5), deduct 1 x 2.020 Top Plate (Red) 30mm from measurement shown between Top and Bottom Plates on 1 x 2.020 Bottom Plate (Green) all wall panels, so cladding protrudes 20mm below bottom plate 2 x 1.850 Door Jamb Flashings...
- Page 11 WALL PANEL ASSEMBLY SELECT: 4 x Pre-made Wall Panels 12 x 40mm Screws 75mm X 2 SIDE 4 x 75mm Screws OVERLAPS BACK 16 x Rivets TOP PLATE BACK WALL STEP 1: Stand the Back Panel and the Side Panel BOTTOM PLATE up using someone to support the panels SIDE...
- Page 12 ROOF ASSEMBLY IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR SELECT: ROOF PANEL 4 x 1.110 Roof Sheets Assemble as below, making sure that the Clear Roof Sheets 1 x 2.055 Spouting overlap the standard roof sheets on both sides. 2 x 1.110 Barges The Clear Roof Panel must be secured to the front and back 1 x 2.055 Ridge Flashing Top Plates.
- Page 13 SECURING SHED Secure your shed using Treated Timber Pegs or a Bolt Down Kit TIMBER PEGS—WOODEN FLOOR The optional Duratuf Timber Peg Down Kit includes six H5 treated timber pegs that can be hammered into the ground and then attached to the Base Plate with stainless steel screws.
- Page 15 20 YEAR WARRANTY Riverlea Group Ltd warrant that the cladding used in the manufacture of the Sentry shed will not rust within 20 years from the date of purchase. Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for the benefit of the original purchaser.
