For those long range applications, the IR4 Non Contact Infrared
Thermometer is the perfect instrument. It has a distance to spot ratio of
20:1 and laser sighting to accurately measure within 1% of reading. The
adjustable emissivity allows this thermometer to measure the
temperature of virtually any surface. There is no guessing when the
battery is low as the IR4 has a battery indicator on its back lit display.
This useful hand held has programmable low and high audible alarms
built in. The IR4 accepts any K-type thermocouple to display both a IR
and a contact reading simultaneously. MAX, MIN, DIF, and AVG can be
displayed with a push of a button
OPERATING INSTRUCTIONS
Simply aim the thermometer at the target and press the "MEAS" key to
display the surface temperature.
Press "DOWN" key to switch between °F and ºC.
Hold down on the "MEAS" key and "DOWN" key for laser.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

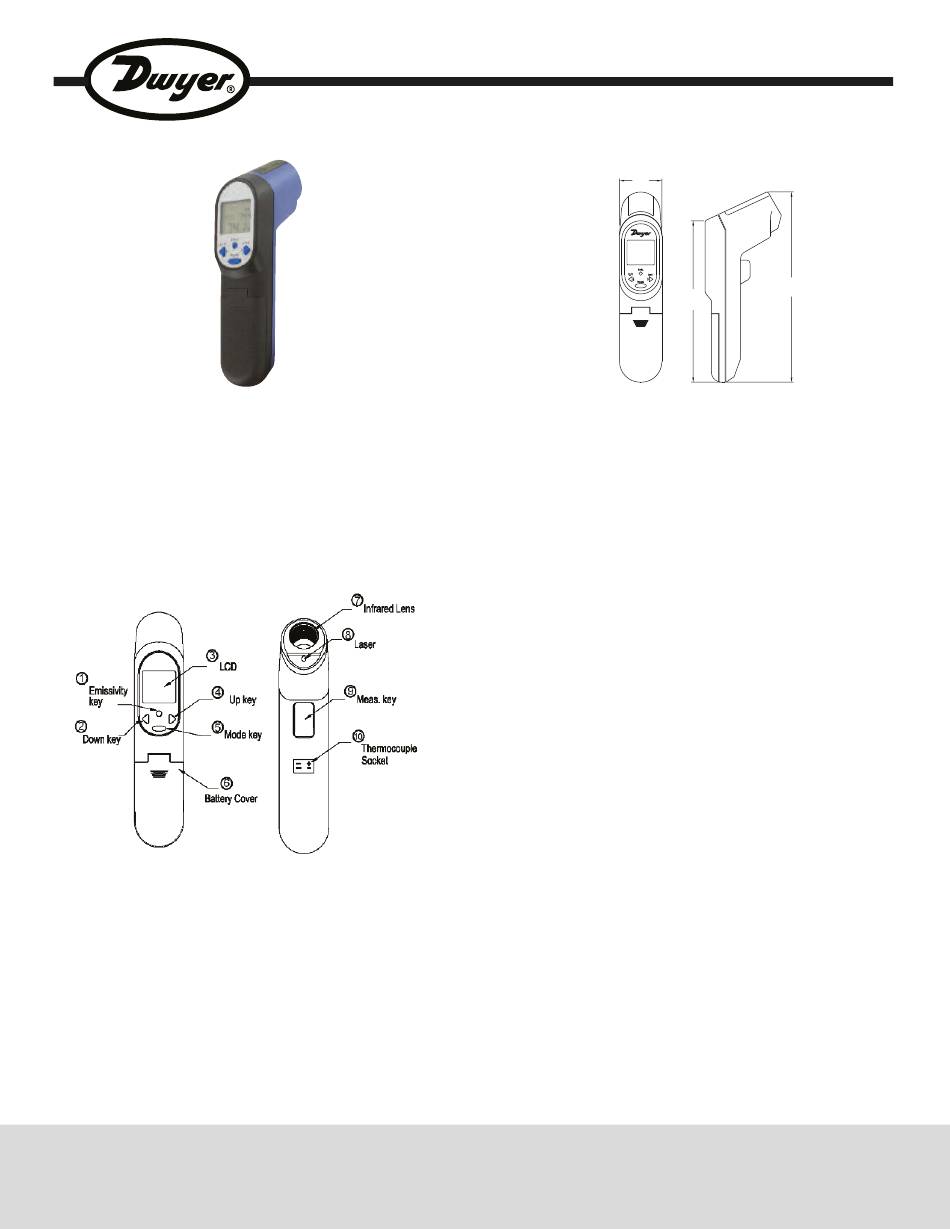

Series IR4 Infrared Non-Contact Thermometer
20:1 Distance-to-Target Ratio, Thermocouple Input, Laser Sighting
TestEquipmentDepot.com
1-35/64
(39.29)
SPECIFICATIONS
Measurement Range: -76 to 1400°F (-70 to 760°C).
Accuracy: 1% of reading or 1.8°F (1°C) whichever is greater.
Emissivity Range: 0.95 default - adjustable 0.05 to 1.00 Emissivity.
Distance Spot: 20:1 optics ratio.
Resolution: 0.1°F/0.1°C.
Response Time: 1 s.
Operating Range: 32 to 122°F (0 to 50°C).
Battery Life: Typical 180 hours continuous use (auto power off after
15 sec.). (2) AAA batteries included.
Weight: 3.61 oz (179 g).
Dimensions: 6.9 x 1.54 x 2.83 in (175.2 x 39.0 x 71.9 mm).
Additonal Input: K-type thermocouple.
For Continuous Measurement
Press the "UP" key to enter Lock Mode. The lock mode is particularly
useful for continuous monitoring of temperatures for up to 60 minutes.
EMISSIVITY: Press "Emissivity" key for setting the emissivity, then
press "UP" key or "DOWN" key to set the emissivity, then press "MODE"
key to confirm it. The emissivity can be changed from 0.10 (10E) to 1
(100E).
Bulletin T-10-IR4
6-15/16
(176.21)
5-7/8
(149.23)
