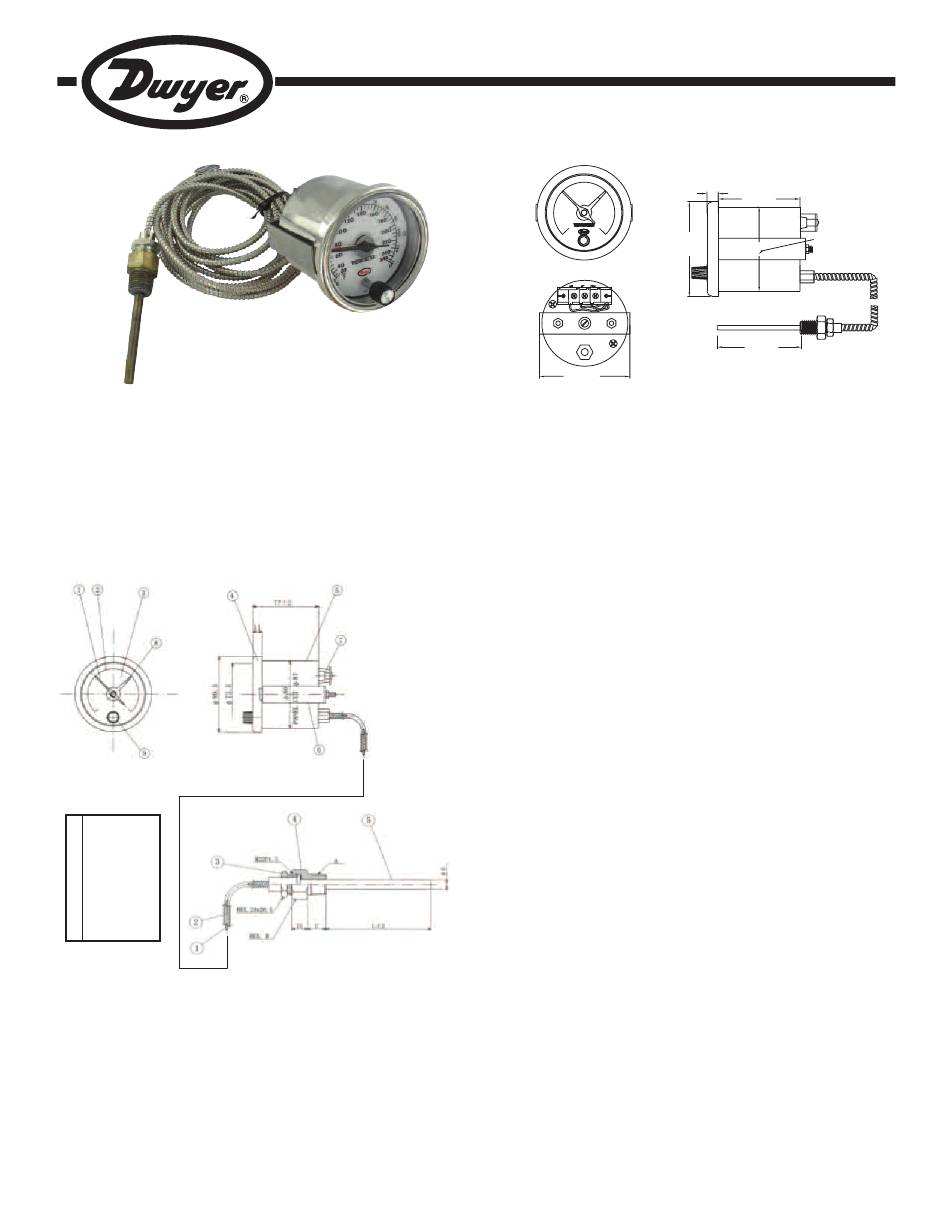

The Series RRT3 Remote Reading Thermometer with Switch combines an
easy to read 3-1/4˝ dual scale dial thermometer and a SPDT relay. Color
coordinated pointers display the current process temperature and set point. In
order to change the set point, a front adjustment knob controls the red set point
pointer. The design of the internal mechanical switch movement prevents the set
point pointer from sticking to the process indicating pointer. A 10.5 ft (3.2 m)
stainless steel flex hose capillary prevents kinking and leaking of the measuring
fluid when bending the capillary. For quick installation, electrical connections can
be made to male quick connects or to the finger-safe screw terminals.
Thermometer includes a u-clamp mounting bracket for panel mounting.
OPERATING INSTRUCTIONS
9
Setting Knob
8
Setting Pointer
7
Terminal
6
Bracket
5
Case
4
Cover
3
Glass Disk
2
Scale Plate
1
Pointer
Find Quality Products Online at:
Series RRT3 Remote Reading Thermometer with Switch
Specifications - Installation and Operating Instructions
GlobalTestSupply
www.
7/16
[11.00]
3-33/64
[89.50]
3-23/64
[85.51]
SPECIFICATIONS
Wetted Materials: Brass.
Accuracy: ±3% FS.
Housing Material: 304 SS.
Temperature Limit: -4 to 158°F (-20 to 70°C).
Switch Type: SPDT, 3 A @ 250 VAC, .2 A @ 250 VDC.
Electrical Connections: Normally open (NO), normally closed (NC), and
common (COM).
Process Connection: 1/2˝ (12.7 mm) male NPT.
Dial Size: 3-1/2˝ (90 mm).
Capillary Length: 10.5´ (3.2 m).
Bulb Length: 3-1/8˝ (79.24 mm).
Weight: 2 lb (900 g).
.com
Bulletin T-RRT3
3-1/32
[77.00]
3-5/32
[80.00]
3-1/8
[79.24]
