Dwyer Instruments Series IR4 Manual

For those long range applications,
Infrared Thermometer is the perfect instrument. It has a distance
to spot ratio of 20:1 and laser sighting to accurately measure with-
in 1% of reading. The adjustable emissivity allows this thermome-
ter to measure the temperature of virtually any surface. There is
no guessing when the battery is low as the IR4 has a battery indi-
cator on its back lit display. This useful hand held has program-
mable low and high audible alarms built in. The IR4 accepts any
K-type thermocouple to display both a IR and a contact reading
simultaneously. MAX, MIN, DIF, and AVG can be displayed with a
push of a button

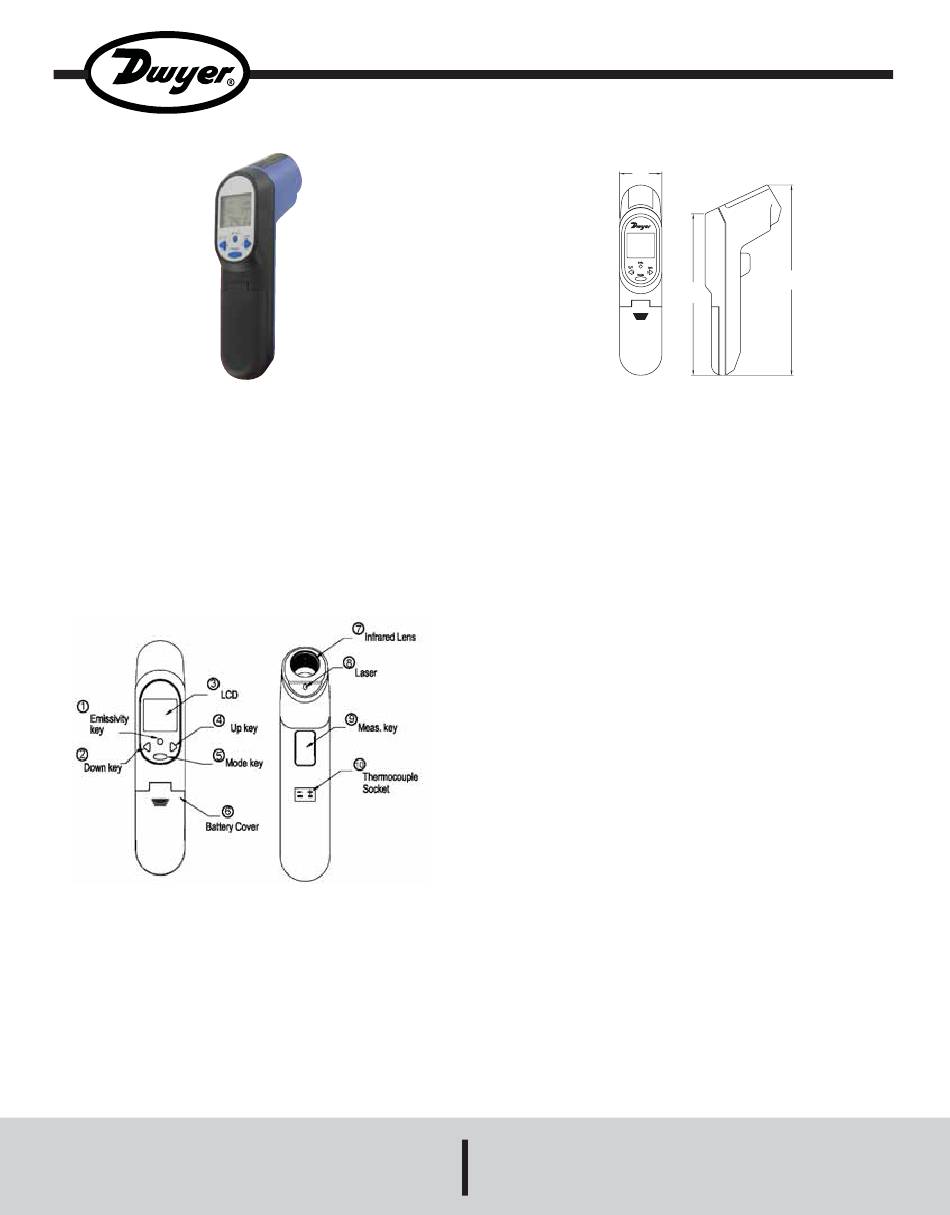

OPERATING INSTRUCTIONS
Simply aim the thermometer at the target and press the "MEAS"
key to display the surface temperature.
Press "DOWN" key to switch between °F and ºC.
Hold down on the "MEAS" key and "DOWN" key for laser.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A.
Series IR4 Infrared Non-Contact Thermometer
20:1 Distance-to-Target Ratio, Thermocouple Input, Laser Sighting
the IR4 Non Contact
1-35/64
(39.29)
SPECIFICATIONS
Measurement Range: -76 to 1400°F (-70 to 760°C).
Accuracy: 1% of reading or 1.8°F (1°C) whichever is greater.
Emissivity Range: 0.95 default - adjustable 0.05 to 1.00
Emissivity.
Distance Spot: 20:1 Optics Ratio.
Resolution: 0.1°F/0.1°C.
Response Time: 1 Second.
Operating Range: 32 to 122°F (0 to 50°C).
Battery Life: Typical 180 hours continuous use (auto power off
after 15 sec.). (2) AAA batteries included.
Weight: 3.61 oz (179 g).
Dimensions: 6.9 x 1.54 x 2.83 in (175.2 x 39.0 x 71.9 mm).
Additonal Input: K-Type Thermocouple.
For Continuous Measurement
Press the "UP" key to enter Lock Mode. The lock mode is partic-
ularly useful for continuous monitoring of temperatures for up to
60 minutes.
EMISSIVITY: Press "Emissivity" key for setting the emissivity, then
press "UP" key or "DOWN" key to set the emissivity, then press
"MODE" key to confirm it. The emissivity can be changed from
0.10 (10E) to 1 (100E).
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin T-10-IR4
6-15/16
(176.21)
5-7/8
(149.23)
