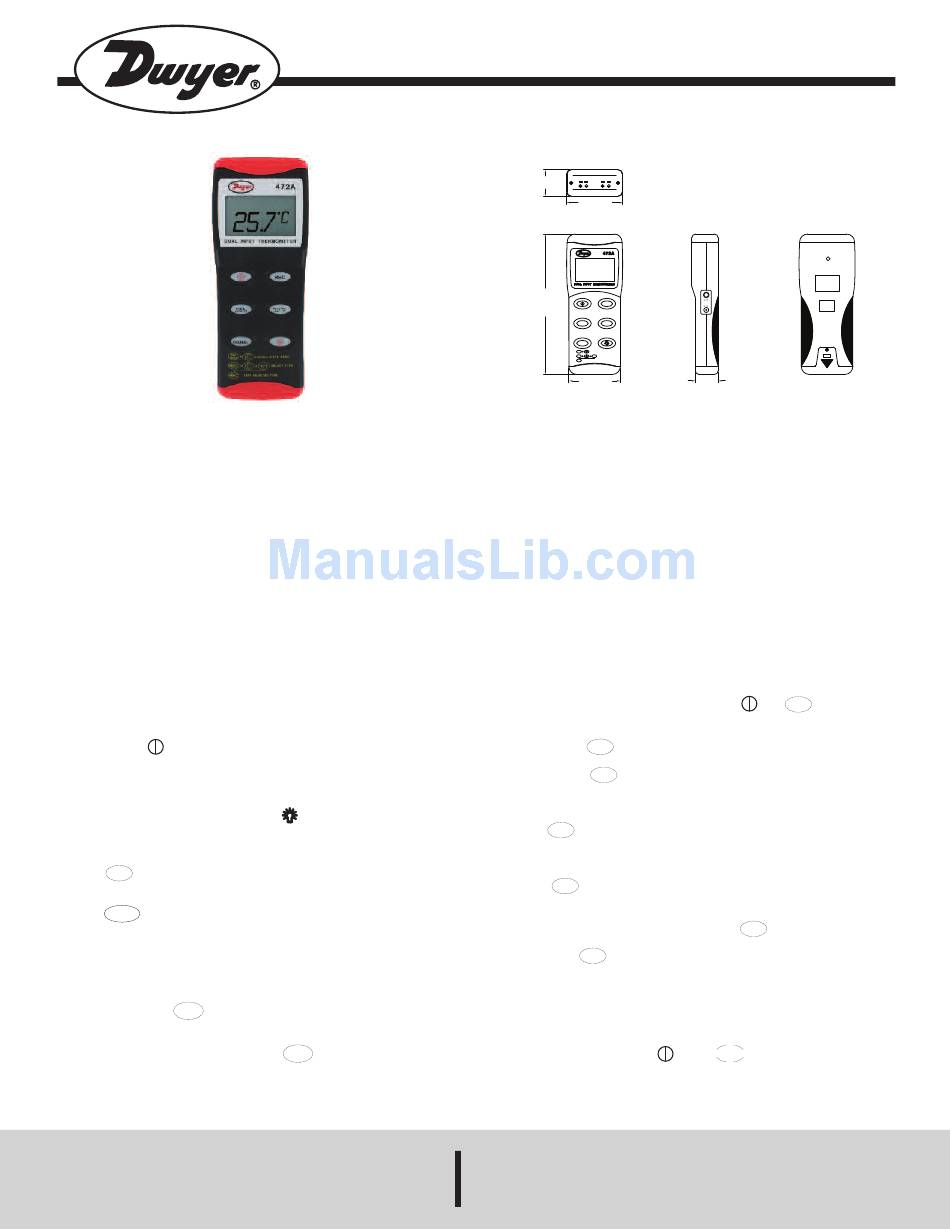

Dwyer Instruments 472A-1 Installation And Operating Instructions

The Model 472A-1 Dual Input Thermocouple Thermometer precisely measures
up to two temperature measurements simultaneously. The large LCD display
shows both temperature inputs or one temperature input and the differential
temperature. Any J, K, or T type thermocouple with a mini-jack connector can be
used as an input. For viewing in poorly lit environments, the built-in backlight
brightens the display. A hold button allows the user to freeze temperature data
displayed and minimum and maximum readings can be recorded over a set time
period. Model 472A-1 includes a hard carrying case, battery, and one K type
thermocouple.
OPERATING INSTRUCTIONS
Taking Measurements
Step 1: Before the meter is turned on, insert any J, K, or T type thermocouple(s)
that has a mini plug connection into the top of the meter.
Step 2: Press the button to turn the meter on.
Step 3: After three seconds, the primary larger display will show the value for Probe
1 and the secondary display will show the value for Probe 2.
Step 4: If viewing in a dark area, press the
backlight.
Changing Engineering Units
Press the button to toggle between degrees Celsius and degrees Fahrenheit.
°C/°F
Selection of Display Measurements
Press the button to switch the main display between Probe 1 measurement,
CHANNEL
Probe 2 measurement, and the Differential Temperature (Probe 1 – Probe 2). The
secondary display will show the opposite probe temperature from the main display.
While the main display shows the Differential Temperature, the secondary display
will toggle between the values of Probe 1 and Probe 2.
Data Hold
REL
Press and release the button to freeze the primary temperature display.
HOLD
"HOLD" will appear at the top of the screen.
In order to return to normal operation, press the
icon disappears from the display.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Model 472A-1 Dual Input Thermocouple Thermometer
Specifications - Installation and Operating Instructions
button momentarily to activate
REL
button again and the "HOLD"
HOLD
Phone: 219/879-8000
Fax: 219/872-9057
15/16
[33.52]
213/16
[71.56]
71/16
179.32 REC
REL
°C/°F
HOLD
CHANNEL
REL
HOLD =Disable SLEEP MODE
REC °C/°F SELECT TYPE
REC SAVE SELECTED TYPE.
219/32
[65.79]
SPECIFICATIONS
Inputs: Type J, K, T thermocouples.
Power Requirements: 9 V, alkaline battery, installed non-functional, user
replaceable.
Measurement Ranges:
J-type: -328° to 1400°F (-200° to 760°C);
K-type: -328° to 2498°F (-200° to 1370°C);
T-type: -328° to 734°F (-200° to 390°C);
Accuracy: ±0.1% reading + 1.4°F (0.7°C).
Operating Temperature: 32° to 122°F (0° to 50°C).
Operating Humidity (Non-Condensing): 0 to 85% relative humidity.
Display: Triple LCD display.
Resolution: 0.1°C up to 500°C.
Weight: 1.47 lb.
Agency Approval: CE.
Selecting Thermocouple Input Type
Step 1: While the meter is off, press and hold the
current thermocouple type shows on the left side of the display.
Step 2: Press the button to toggle between K, J and T thermocouple types.
°C/°F
Step 3: Press the button to save the selection. An "S" will appear on the
REC
display to show that the setting has been saved.
Max and Min Data Recording
Press the button momentarily and the "REC" icon will appear on the display.
REC
While the "REC" icon appears on the display, the minimum and maximum readings
are recorded for the duration of time the meter is in record mode.
Press the button in order to display the maximum temperature recorded.
REC
Press again in order to display the minimum temperature recorded.
To return to normal operation, press and hold the
Note: When the button is pressed, all other buttons are disabled except the
REC
power and backlight buttons.
Automatic Power Off (Sleep Mode)
The instrument will shut off automatically after 20 minutes of use to conserve
battery life if no button is pressed.
To disable the sleep mode, press
power on. An "n" icon will appear in the center of the display once disabled.
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
Bulletin TE-472A
OPEN
19/64
[29.08]
and buttons until the
REC
button for 3 seconds.
REC
REL
and the buttons simultaneously before
HOLD
