IMPORTANT: To access set-up mode or diagnostic mode, use a service
key to open the service access door. If a card reader is installed, a service
card is available for accessing diagnostics. If a service key is not available,
the AA1 connector must be removed for access. The console must not
be opened unless power is first disconnected from the dryer. To access
connector AA1:
Unplug dryer or disconnect power.
1.
2.
Open console, remove plug on AA1, close console.
3.
Plug in dryer or reconnect power.
The dryer is now in the set-up mode.
Before proceeding, it is worth noting that, despite all the options available,
an owner can simply choose to uncrate a new commercial dryer, hook
it up, plug it in, install a money acceptor, and have a dryer that operates.

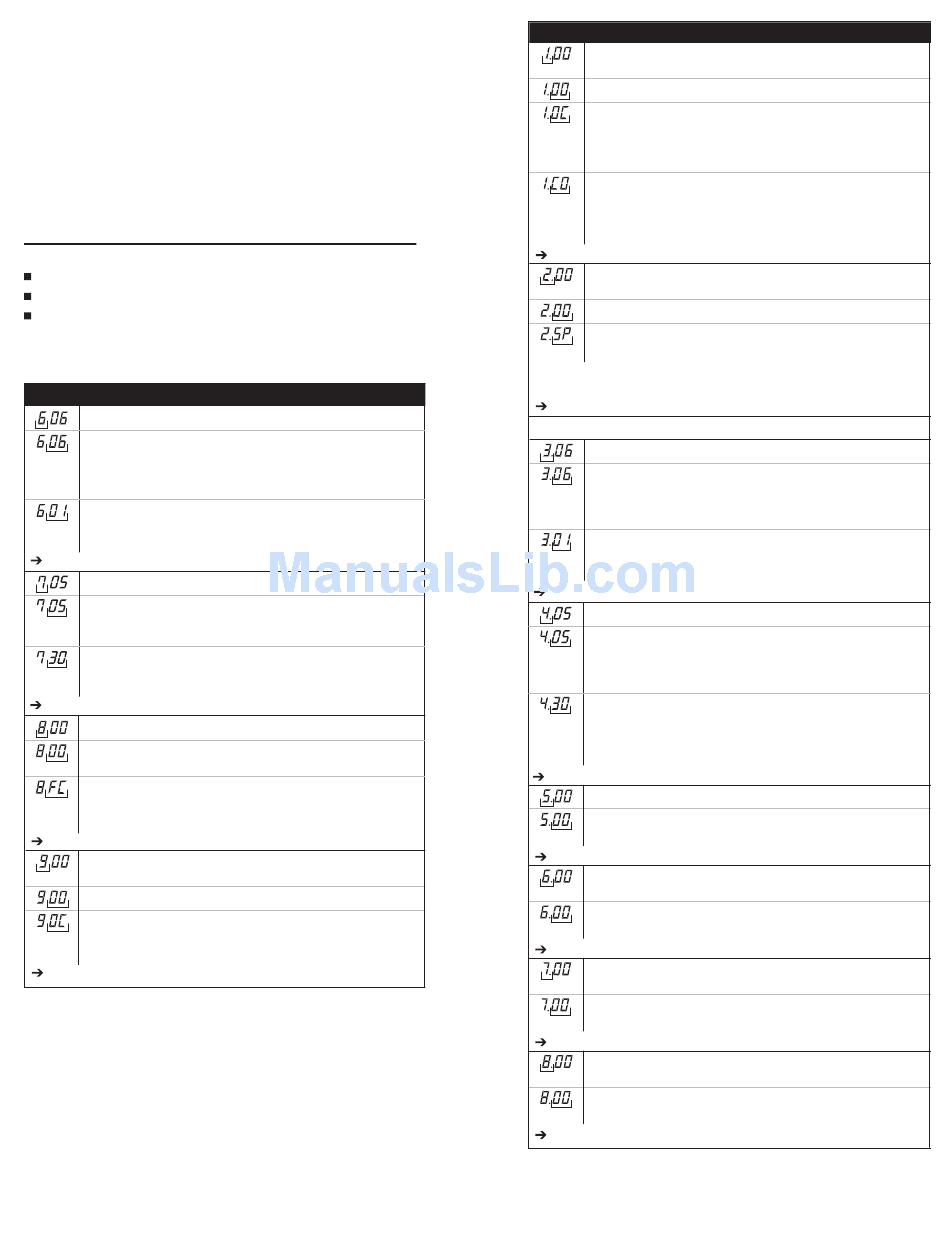

SET-UP CODES

The PERM PRESS button will advance from code to code.
The COTTON/WHITES button will change the code value.
The COLORS/DELICATES button will select or deselect options.
The set-up code is indicated by the one or two left hand characters. The
set-up code value is indicated by the two or three right hand characters.
NOTE: The first line of each code indicates the factory default.
CODE
REGULAR CYCLE PRICE
When the d.xx is set to d.00, this 6 xx value represents the number
of quarters (coin 1) needed to start the dryer; may adjust from 0–39.
Change this value by pressing the COTTON/WHITES button. 6 06 =
6 quarters = $1.50.
When the d.xx is set to d.CS, this 6 xx value represents the
number of push-in actuations of the coin slide to start the dryer.
6 01 would equal one coin slide activation.
Press PERM PRESS button once to advance to next code.
REGULAR DRY TIME
When set to Coin Drop or Card Reader operation, the dry time equals
the Regular Dry Time value multiplied by the Regular Cycle Price
value. Example: 6 06 and 7 05 = (06 x 05 = 30 minutes).
For coinslide or OPL operation, the value is the amount
of minutes of dry time. Factory default of 30 minutes.
Pressing COTTON/WHITES adjusts the value from 1–99 minutes.
Press PERM PRESS button once to advance to next code.
TYPE OF DRYER PRICING
Fixed Cycle with Top Off. Only available for use with coin drops or
card readers. For detailed description, see General User Information.
Fixed Cycle. For detailed description, see General User
Information.
Use COLORS/DELICATES button to make this selection.
Press PERM PRESS button once to advance to next code.
CYCLE COUNTER OPTION
This option is either Selected 'ON' or Not Selected 'OFF'.
Not Selected 'OFF'.
Selected 'ON' and not able to be deselected. Press COLORS/
DELICATES button 3 consecutive times to select 'ON'.
Once selected 'ON' it cannot be deselected.
Press PERM PRESS button once to advance to next code.
24
EXPLANATION
I
CODE
MONEY COUNTER OPTION
This option is either Selected 'ON' or Not Selected 'OFF'.
Not Selected 'OFF'.
1
Selected 'ON'.
Press COLORS/DELICATES button 3 consecutive times
to Select 'ON' and 3 consecutive times to deselect (Not Selected
'OFF'.) Counter resets by going from 'OFF' to 'ON'.
Selected 'ON' and not able to be deselected.
To Select 'ON' and not able to be deselected, first Select 'ON',
then within two seconds press COLORS/DELICATES twice,
COTTON/WHITES once, and exit the set-up mode.
C
Press PERM PRESS button once to advance to next code.
SPECIAL PRICING OPTIONS
This option is either Selected 'ON' or Not Selected 'OFF'.
Not Selected 'OFF'.
Selected 'ON'. Press COLORS/DELICATES button once
for this selection.
N
If SPECIAL PRICING OPTION is selected, there is access to codes
'3.' thru '9.'
Press PERM PRESS button once to advance to next code.
P
OPTIONS TO USE IF SPECIAL PRICING IS SELECTED:
L
SPECIAL CYCLE PRICE
When the d.xx is set to d.00, this 3.xx value represents the
number of quarters (coin 1) needed to start the dryer; may adjust
from 0–39. Change this value by pressing the COTTON/WHITES
L
button. 3.06 = 6 quarters = $1.50.
When the d.xx is set to d.CS, this 3.xx value represents the
number of push-in actuations of the coin slide to start the dryer.
A
3.01 would equal one coin slide actuation.
T
Press PERM PRESS button once to advance to next code.
SPECIAL DRY TIME
When set to Coin Drop or Card Reader operation, the dry time
equals the Special Dry Time value multiplied by the Special
P
Cycle Price value. Example: 3 06 and 4 05 = (06 x 05 =
30 minutes).
For coinslide or OPL operation, this value represents the number
A
of minutes for full vend price. Factory default of 30 minutes.
T
By pressing the COTTON/WHITES button, the value can be
P
adjusted from 1–99 minutes.
Press PERM PRESS button once to advance to next code.
P
TIME-OF-DAY CLOCK, MINUTES
This is the TIME-OF-DAY CLOCK, minute setting; select
0–59 minutes by pressing COTTON/WHITES button.
A
Press PERM PRESS button once to advance to next code.
O
TIME-OF-DAY CLOCK, HOURS
NOTE: Uses military time – 24 hr. clock.
P
This is the TIME-OF-DAY CLOCK, hour setting; select 0–23 hours
O
by pressing COTTON/WHITES button.
Press PERM PRESS button once to advance to next code.
SPECIAL PRICE START HOUR
A
NOTE: Uses military time – 24 hr. clock.
This is the start hour; 0–23 hours. Select START HOUR by
pressing COTTON/WHITES button.
Press PERM PRESS button once to advance to next code.
SPECIAL PRICE STOP HOUR
NOTE: Uses military time – 24 hr. clock.
This is the stop hour; 0–23 hours. Select STOP HOUR by
pressing COTTON/WHITES button.
Press PERM PRESS button once to advance to next code.
EXPLANATION
E
O
P
O
O
A
O
P
O
S
P
L
L
A
T
L
P
A
H
S
A
H
S
A
P
S
A
P
S
A
