INSTALLATION AND OPERATION MANUAL

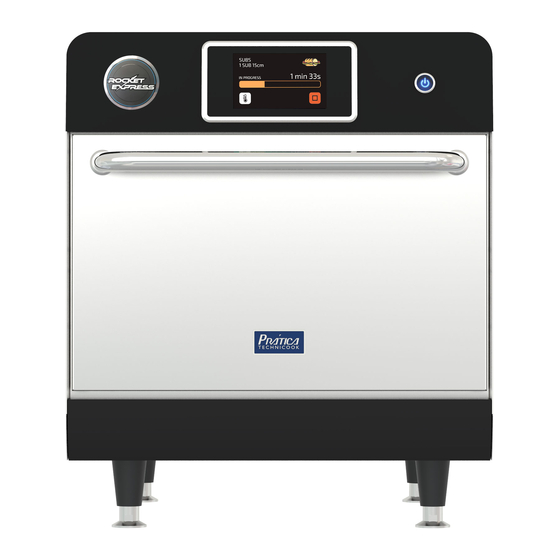

ROCKET EXPRESS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROCKET EXPRESS and is the answer not in the manual?

Questions and answers

Mohammed shahil
June 10, 2025

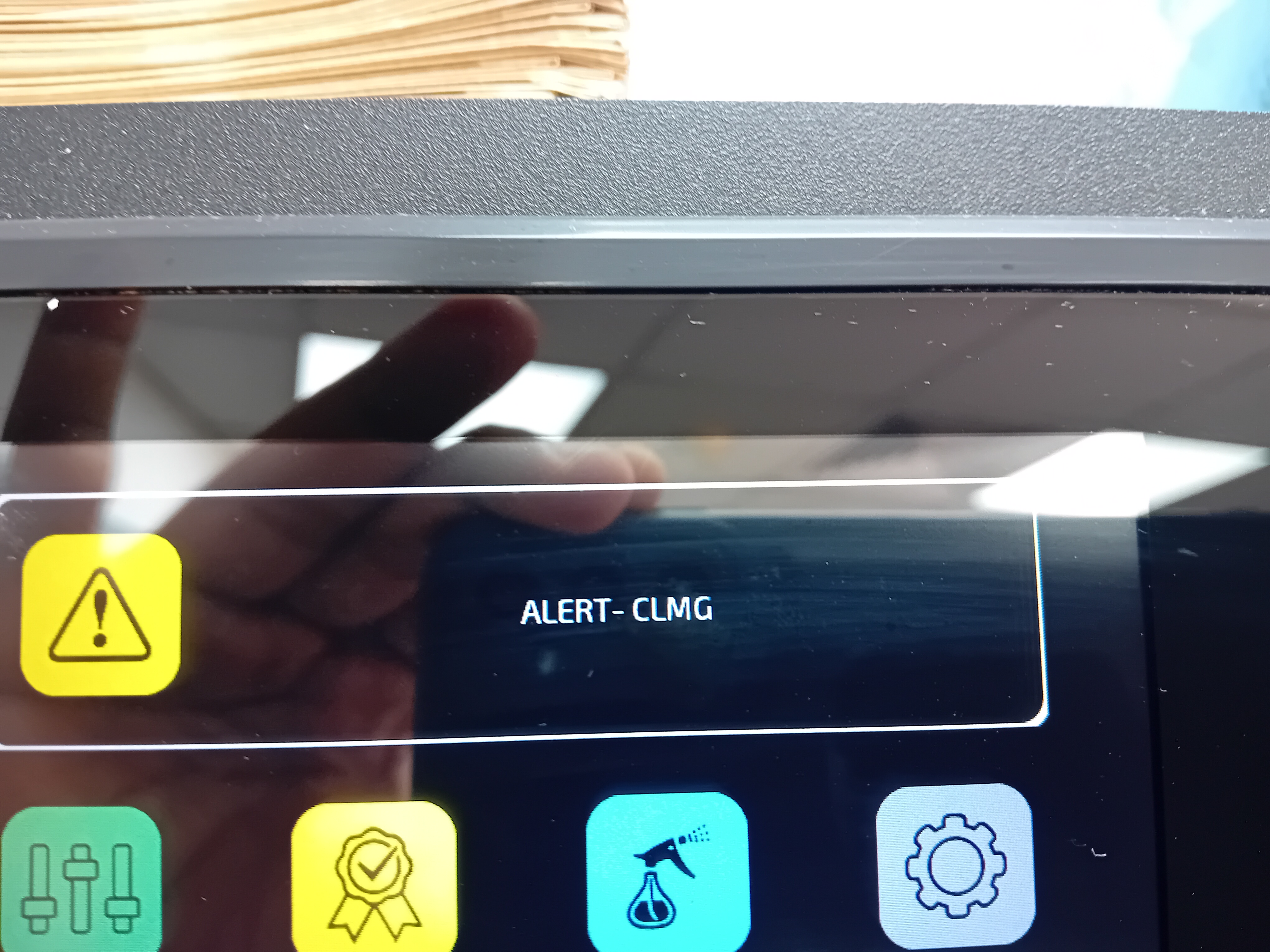

Alerts CLMG

User image 6847ea8b1f681
0

Related Manuals for Pratica ROCKET EXPRESS

Summary of Contents for Pratica ROCKET EXPRESS

  • Page 1 INSTALLATION AND OPERATION MANUAL ROCKET EXPRESS...

  • Page 3: Table Of Contents

    CONTENTS 1 WARRANTY TERM 2 SAFETY INSTRUCTIONS 3 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO MICROWAVE ENERGY 11 4 INSTALLATION 5 ROCKET EXPRESS TECHNOLOGY 6 OPERATION PRINCIPLES 7 RECIPES CREATION 8 OPERATION 8.1 PREHEATING 8.2 EXECUTING A RECIPE 8.3 ACCESSING THE OPTIONS USER'S SETTINGS 8.4.1...
  • Page 4 CONTENTS 8.5 FAVORITES 8.6 MANUAL MODE 8.7 DAILY CLEANING GUIDE 8.7.1 CATALYTIC CONVERTER CLEANING GUIDE AIR FILTER CLEANING GUIDE 8.7.2 9 ALERTS AND ERRORS: POSSIBLE SOLUTIONS...
  • Page 6 LETTER TO CUSTOMERS Prá ca Inc. are proud to become part of your day-to-day lives with our products. By purchasing Prá ca's appliances, you will have a partner that always will be a en ve to your needs and interested in keeping customers sa sfied. We are available to serve you at any me, whether it is to hear your ideas, cri cisms, sugges ons, or solve a problem.

  • Page 7: Warranty Term

    INSTALLATION AND OPERATION MANUAL 1 WARRANTY TERM 1.1 Terms and detailing Our products have a legal warranty of three months and contractual warranty of nine months (one year in total) from purchase invoice issuance date and applies only to the first purchaser. If for any reason the purchase invoice cannot be found, the equipment manufacture date contained in the indica ve label will be considered as the start date of enforceability of this warranty.
  • Page 8 1.2 Warranty Exclusions The customer should thoroughly inspect the equipment upon delivery and contact the carrier in case of shipping damage arising from transport. At the me of installa on, the technician should find the equipment in its original packaging (fully preserved). Irregulari es in building installa on systems.
  • Page 9 INSTALLATION AND OPERATION MANUAL Repair a empts by unauthorized third par es or use of non-OEM parts and components, regardless of the damage or defects. Wear and tear components are excluded from the warranty such as lights, seals, belts, bearings, chains, tarps, glass, plas cs, etc. 1.3 Notes and Recommenda ons The operator can use the Installa on and Opera on Manual as a guide.

  • Page 10: Safety Instructions

    2 SAFETY INSTRUCTIONS · Read the manual carefully before installing the appliance. When carrying out the daily cleaning, please use personal protec ve · equipment such as protec ve gloves, apron, mask and goggles. Apron Protec ve Gloves Protec ve Mask Goggles ·...
  • Page 11 INSTALLATION AND OPERATION MANUAL Do not use this product near water such as near the kitchen sink, in a wet · basement, or near a swimming pool. Do not use a water jet for cleaning. Please see cleaning instruc ons for proper ·...
  • Page 12 INSTALLATION AND OPERATION MANUAL CAUTION: To avoid burns, do not use containers with liquids or kitchen · products that become liquids by hea ng up to boiling point. This marking must be mounted a er installa on at 5.25in (1.6m) above floor level. Do not operate any hea ng or cooking appliance beneath this appliance.

  • Page 13: Precautions To Avoid Possible Exposure To Microwave Energy

    3 - PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a ) Do not a empt to operate this oven with the door open since open-door opera on can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
  • Page 14 EQUIPOTENTIAL BONDING SYMBOL: This symbol iden fies the terminals which, when connected together, bring the various parts of an equipment or of a system to the same poten al, not necesarily being the earth (ground) poten al, e.g. for local bonding. PROTECT EARTH (GROUND) SYMBOL: This symbol iden fies the terminal which is intended for connec ng an external conductor for protec on against electric shock in case of a fault, or the terminal of a protec ve earth (ground)

  • Page 15: Installation

    INSTALLATION AND OPERATION MANUAL 4 INSTALLATION The installa on of our products must be done with care to avoid problems or damage to the equipment and guarantee its op mal performance. This appliance must be installed by an authorized technician. WARNING This oven is not intended for built-in installa on (i.e., installing the oven in any ·...
  • Page 16 INSTALLATION AND OPERATION MANUAL 4.2 General Instruc ons · The oven must be installed on a surface or counter that supports its weight of approximately 194lb (88 Kg). · Do not block the air inlets or outlets of the unit. ·...
  • Page 17 4.3 Electric Power Note: The oven must be properly configured for op mum performance before using for the first me. Follow the steps listed below to set the oven opera ng system to either 208V or 240V supply voltage based on the voltage being supplied at the oven's receptacle.
  • Page 18 INSTALLATION AND OPERATION MANUAL Make sure that the electrical characteris cs of building electric network follow the technical specifica ons of the oven which can be found on the iden fica on plate located on the back panel and in the electrical table below.

  • Page 19: Rocket Express Technology

    5 ROCKET EXPRESS TECHNOLOGY The Rocket Express oven uses a combina on of hea ng for high-speed forced air convec on and microwave energy to heat forced food more quickly than the conven onal methods. The figure below illustrates the steps involving the technology: Internal hea ng elements transfer thermal energy to the circula ng air.

  • Page 20: Operation Principles

    The Rocket Express works through the associa on between microwaves and hot air directed towards the food. The variables in the opera on consist of: Opera on me.
  • Page 21 Microwaves: The microwave is adjustable between 0% and 100% for each 30 second frac on. For example, the microwaves in a one-minute recipe with microwave programmed at 50% will run for 15 and stop for 15 seconds. Then they will energize for another 15 seconds and stop for the remaining 15 seconds.

  • Page 22: Recipes Creation

    INSTALLATION AND OPERATION MANUAL 7 RECIPES CREATION When crea ng a recipe, all the variables men oned earlier should be considered. The microwaves and the air speed are the cri cal factors for a successful prepara on. To get faster results in the recipe crea on, we suggest beginning programming at 1/10 of the total me of prepara on used in a conven onal process.

  • Page 23: Operation

    OPERATION Prehea ng. WEDNESDAY To start the oven prehea ng process, a er turning on 10/06/2017 - 14H49 PREHEATING: the equipment, choose between Temperature 1 and Prehea ng Temperature 2. GROUP 1 GROUP 2 The following screen will present the CURRENT, PROGRAMMED temperature and the bar indica ng the remaining me to u lize the equipment.
  • Page 24 INSTALLATION AND OPERATION MANUAL It is possible to verify the temperature of the TOP SUBS HEATER and of the BOTTOM HEATER pressing the 1 SUB 15cm SPACEbu on. 1 min 33s IN PROGRESS In case you wish to cancel the execu on of a recipe, TOP HEATER: 250 °C BOTTOM HEATER: 250 °C push the...

  • Page 25: Accessing The Options

    GROUPS CURRENT 210°C Accessing the Op ons. BREAKFAST SUBS PIZZA BAKERY To access the se ngs, at any me, touch on the icon SANDWICH found in the fixed menu bar. MEAL TEX-MEX CHICKEN GRATIN FINISHING WINGS In the Op ons Screen, there will be informa on such as: Current temperature in the Chamber, Current temperature of Bo om Heater (IR), Favorites (see page 36), Manual Mode (see page 37), Daily Cleaning...

  • Page 26: Edit Groups

    INSTALLATION AND OPERATION MANUAL .1 User's Se ngs: EDIT GROUPS. SETTINGS - page 1 EDIT EDIT PREHEAT To edit the groups, touch on the icon, the groups GROUPS RECIPES screen will be presented. However, in the first posi on will be the icon in which it is possible to LANGUAGE CURRENT DATE/TIME...
  • Page 27 .1.2. Edit image. CHOOSE AN IMAGE FOR THE RECIPE FIRST BREAKFAST SUBS PIZZA Rocket Express has an image gallery that enables the CHARACTER OF SANDWICH RECIPE NAME user to change the images of the groups. Press the icon BAKERY MEAL FINISHING...
  • Page 28 INSTALLATION AND OPERATION MANUAL .1.4. Delete Group THE GROUP WILL BE ERASED ATTENTION: When choosing the op on of dele ng the group, all the informa on referring to the group will be lost: recipes, steps and other informa on. And DELETE BACK in case the user does not perform a Backup (see page...

  • Page 29: Edit Recipes

    .2 User's Se ngs: EDIT RECIPES. SELECT GROUP - pag. 1 BREAKFAST SUBS PIZZA BAKERY To edit the recipes, touch on the icon . The groups SANDWICH screen will be displayed. Choose in which group you wish to change the recipes. MEAL FINISHING TEX-MEX CHICKEN...
  • Page 30 INSTALLATION AND OPERATION MANUAL CHOOSE AN IMAGE FOR THE RECIPE .2.2. Edit Image. Rocket Express has an image gallery that enables the FIRST BREAKFAST SUBS PIZZA CHARACTER OF SANDWICH RECIPE NAME user to change the images of the recipes. Press the...
  • Page 31 Click on the bu on to access the op ons for STEP 1 edi on of the step parameters, which are: Add Informa on the step, which will be displayed at ACTIVATE/ SAVE INFORMATION DEACTIVATE the end of the step during the execu on of the recipe.
  • Page 32 INSTALLATION AND OPERATION MANUAL CHANGE ORDER .2.5 Order The Order func on , enables to change the sequence PLACE AT THE PLACE AT THE CHOOSE PLACE in which the groups will appear on the groups screen. LIST START LIST END IN THE LIST This screen is composed by three bu ons: Place at the list start: The recipe is moved to the...
  • Page 33 To define the me, just click on the icon or on EDIT COOK/BROWN the value loca on, as the indica ons on the screen COOK MORE show. BROWN MORE Use the number pad to inform the me and click on COOK/BROWN MORE EDIT COOK/BROWN The Cook/Brown More func on may be disabled in...

  • Page 34: Preheat

    INSTALLATION AND OPERATION MANUAL .3 User's Se ngs: PREHEAT. The editable parameters in Preheat are: PREHEATING Temperature Prehea ng 1. TEMPERATURE PREHEATING Temperature Prehea ng 2. PREHEATING 1 TIME Prehea ng Time: Define the me of the stopwatch TEMPERATURE of the Prehea ng screen. PREHEATING 2 T h e B U T T...

  • Page 35: Language

    .5 User's Se ngs: LANGUAGE. CHANGE LANGUAGE To change the language, just click on the icon and choose the desired language. ENGLISH SPANISH FRENCH PORTUGUESE English, Spanish, French or Portuguese. Use to return to the user edi ng op ons. .6 User's Se ngs: CURRENT TEMPERATURE.

  • Page 36: Celsius/Fahrenheit

    INSTALLATION AND OPERATION MANUAL .8 User's Se ngs: CELSIUS/FAHRENHEIT. CELSIUS/FAHRENHEIT ADJUSTMENT Change the temperature format displayed in the oven between Celsius and Fahrenheit, Click on the icon CELSIUS FAHRENHEIT among the User's Se ngs, and define the temperature format you wish. to return to the user edi ng op ons.

  • Page 37: Manufacturer's Information

    Manufacturing Date: 00/00/0000 Informa on on Firmware Version, Serial and Input Voltage: 208v - 0% - 0 Manufacturing Date of the Rocket Express are contained. to return to the user edi ng op ons. .12 User's Se ngs: TECH SUPPORT.

  • Page 38: Favorites

    INSTALLATION AND OPERATION MANUAL Favorites TEMPERATURE CHAMBER 250°C 250°C The Favorites func onality works as a shortcut, in which you may allocate the main and most DAILY CLEANING MANUAL FAVORITES SETTINGS u lized recipes. To access it, just press the MODE GUIDE Op ons bu on...

  • Page 39: Manual Mode

    Manual Mode TEMPERATURE CHAMBER 250°C 250°C In Manual Mode, it is possible to define the parameters of the step, execute it, and if the result of DAILY CLEANING MANUAL FAVORITES SETTINGS your test is approved, at the end of the opera on, MODE GUIDE transform it in Recipe.

  • Page 40: Daily Cleaning Guide

    INSTALLATION AND OPERATION MANUAL 8.7Daily Cleaning Guide TEMPERATURE CHAMBER 250°C 250°C To help in the sanita on of the Rocket Express, use the Daily Cleaning Guide, access it through the DAILY CLEANING MANUAL FAVORITES SETTINGS Op ons screen, click on the Op ons icon...
  • Page 41 5 : Use a non-abrasive scrub pad to clean the glass of the waves guide. Proceed clicking on the arrow: USE A NON-ABRASIVE SCRUB PAD TO CLEAN THE GLASS OF THE WAVES GUIDE 6 : Use a non-abrasive scrub pad to loosen any stubborn stains if necessary.
  • Page 42 INSTALLATION AND OPERATION MANUAL 10 : Check if cataly c converter is in original posi on. Proceed clicking on the arrow: CHECK THE CATALYTIC CONVERTER POSITION 11 : Rinse, dry and plate, re-install them into the oven cavity. Proceed clicking on the arrow: RINSE AND DRY RACK AND PLATE, RE-INSTALL THEM INTO THE...

  • Page 43: Catalytic Converter Cleaning Guide

    INSTALLATION AND OPERATION MANUAL .1 Cataly c Converter Cleaning Guide a) To have access to cataly c converter, remove the stone, the grid and removable lower tray from the oven. b) Then, remove the cataly c converter with an upward movement, as in the image.

  • Page 44: Alerts And Errors: Possible Solutions

    ALERTS AND ERRORS: POSSIBLE SOLUTIONS GROUPS CURRENT 210°C BREAKFAST SUBS PIZZA BAKERY The Rocket Express was programmed to signal any SANDWICH possible error and alerts that may occur during the opera on. MEAL TEX-MEX CHICKEN GRATIN FINISHING WINGS On the Op ons icon...
  • Page 45 INSTALLATION AND OPERATION MANUAL ALERTS AND ERRORS TABLE Becomes Error when: Component Becomes Alert when: more than ten Inverter reset a empts CLMG fi een seconds without Low Magnetron Current reaching the current cables disconnected Can Network or faulty Communica on only Chamber Sensor and IR both inac ve...
  • Page 48 PRATICA PRODUCTS, INC. 424 East Church Street Lewisville,TX 75057 Phone: +1 214 584-6269 www.praticausa.com info@praticausa.com PRÁTICA KLIMAQUIP IND. E COM. S.A. BRAZIL RODOVIA BR 459, Km 101 37.550-000, Pouso Alegre-MG Phone: +55 35 3449-1235 pratica@praticabr.com CODE 032576 ROCKET EXRESS INSTALLATION AND OPERATIONAL MANUAL...
