TYPHOON PRO GAMING HIGH BACK CHAIR
JBRAPTBK / JBRAPTBL / JBRAPTRD
This design and instruction booklet is subject to copyright.
www.officeworks.com.au
For spare parts or hardware call (03) 9310 3011 or email hardware@kyvas.com.au
ASSEMBLY INSTRUCTIONS
Weight capacity: 130kgs
<2019-Nov>
1 CTN

Advertisement

loading
Need help?

Need help?

Do you have a question about the TYPHOON PRO JBRAPTBK and is the answer not in the manual?

Questions and answers

Summary of Contents for J.Burrows TYPHOON PRO JBRAPTBK

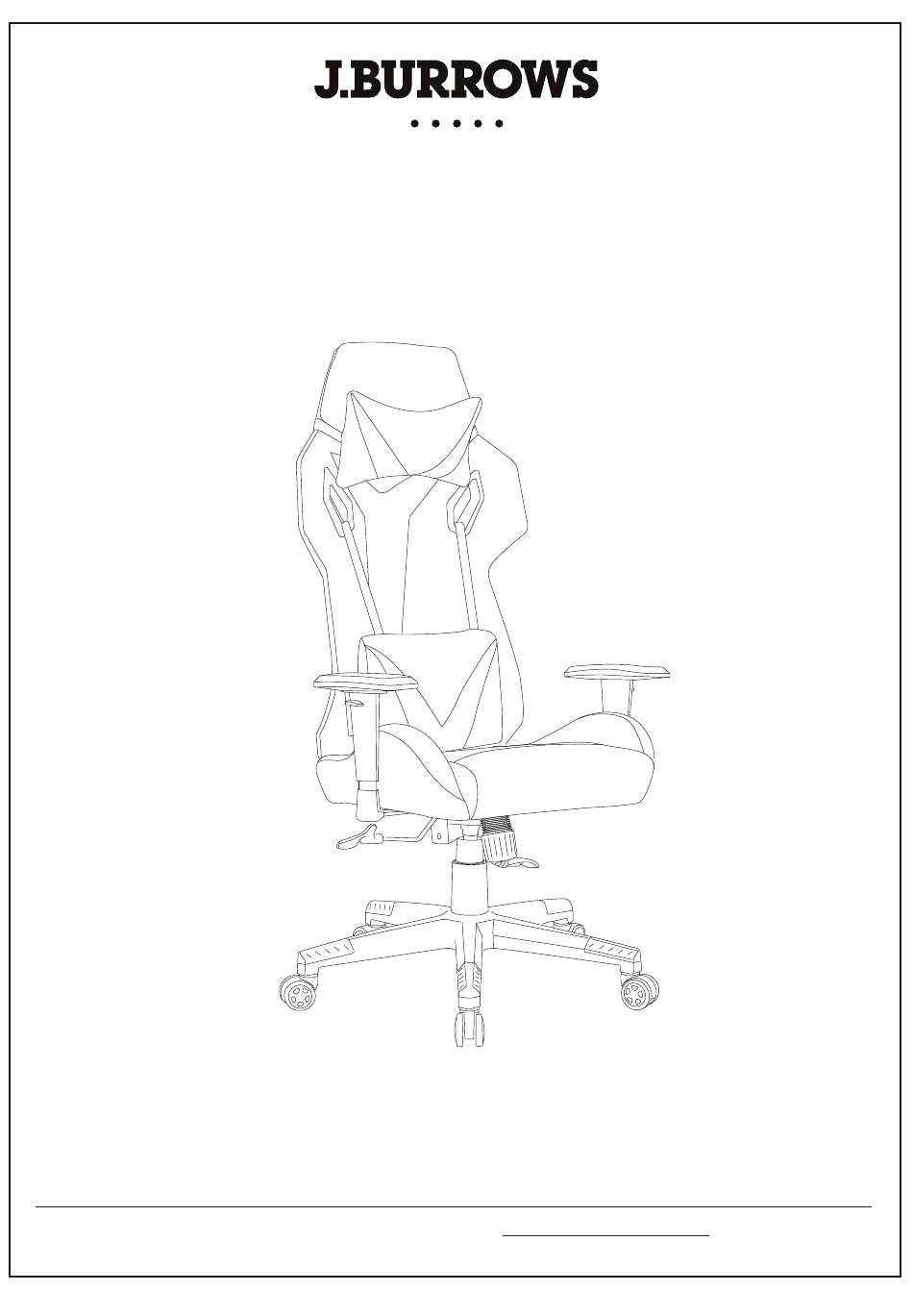

  • Page 1 <2019-Nov> ASSEMBLY INSTRUCTIONS TYPHOON PRO GAMING HIGH BACK CHAIR JBRAPTBK / JBRAPTBL / JBRAPTRD Weight capacity: 130kgs This design and instruction booklet is subject to copyright. 1 CTN www.officeworks.com.au For spare parts or hardware call (03) 9310 3011 or email hardware@kyvas.com.au...
  • Page 2 20min (03) 9310 3011 NOTE • Please check you have all hardware before assembly. • If you are missing any hardware, please contact Kyvas on (03) 9310 3011 or email hardware@kyvas.com.au • Please ensure you have the name of the item, required hardware part and quantity. •...
  • Page 3 6x25mm 8x30mm 8x20mm 6x20mm...
  • Page 4 Note: Turn the Star Base (G) upside down. Push the Castors (H) into holes at the end of each leg. Turn the Star Base (G) upright and insert Gas Lift (E) into the center hole of Star Base (G). Place cover (F) over the Gas Lift (E). 8 Pcs ø...
  • Page 5 FRONT 4 Pcs ø 6x20mm used to complete this step. Note: Align the Seat Plate (D) so the FRONT of the Seat Plate matches the FRONT label on the bottom of the Seat Cushion (B). Tighten the screws with Allen Key (Q). 4 Pcs ø...
  • Page 6 3 Pcs ø 8X20mm used to complete this step. Note:Attach BackBar (J) to the mechanism (D) on the assembled Seat Cushion (B) using 3x Screw (P) with Allen Key (Q).Tighten the screws. Note: Place assembled seat on the Gas Lift (E). Push down firmly until connection is secure.
  • Page 7 Note: Fasten the decorative buckle (I) by pushing until connect is secure. Attach headrest cushion Attach lumbar cushion...
  • Page 8: Care Instructions

    Your Typhoon Pro High Back Gaming Chair is now complete and ready for use. IMPORTANT NOTE: Periodically check and re-tighten screws. Care Instructions • Spot clean mesh/fabric with upholstery shampoo or dry cleaning powder only. • Do not saturate mesh/fabric. Apply proprietary cleaning products strictly according to instructions.
  • Page 9 Typhoon Pro High Back Gaming Chair Functionality - Push the button while moving the arm up or down. - Release button at desired height. - To increase chair height pull lever upward while lifting body weight slightly off the seat. - Release lever at desired height.

This manual is also suitable for:

Typhoon pro jbraptblTyphoon pro jbraptrd
