Spraying System eco-CONTROL SC1200
Commissioning and maintenance manual

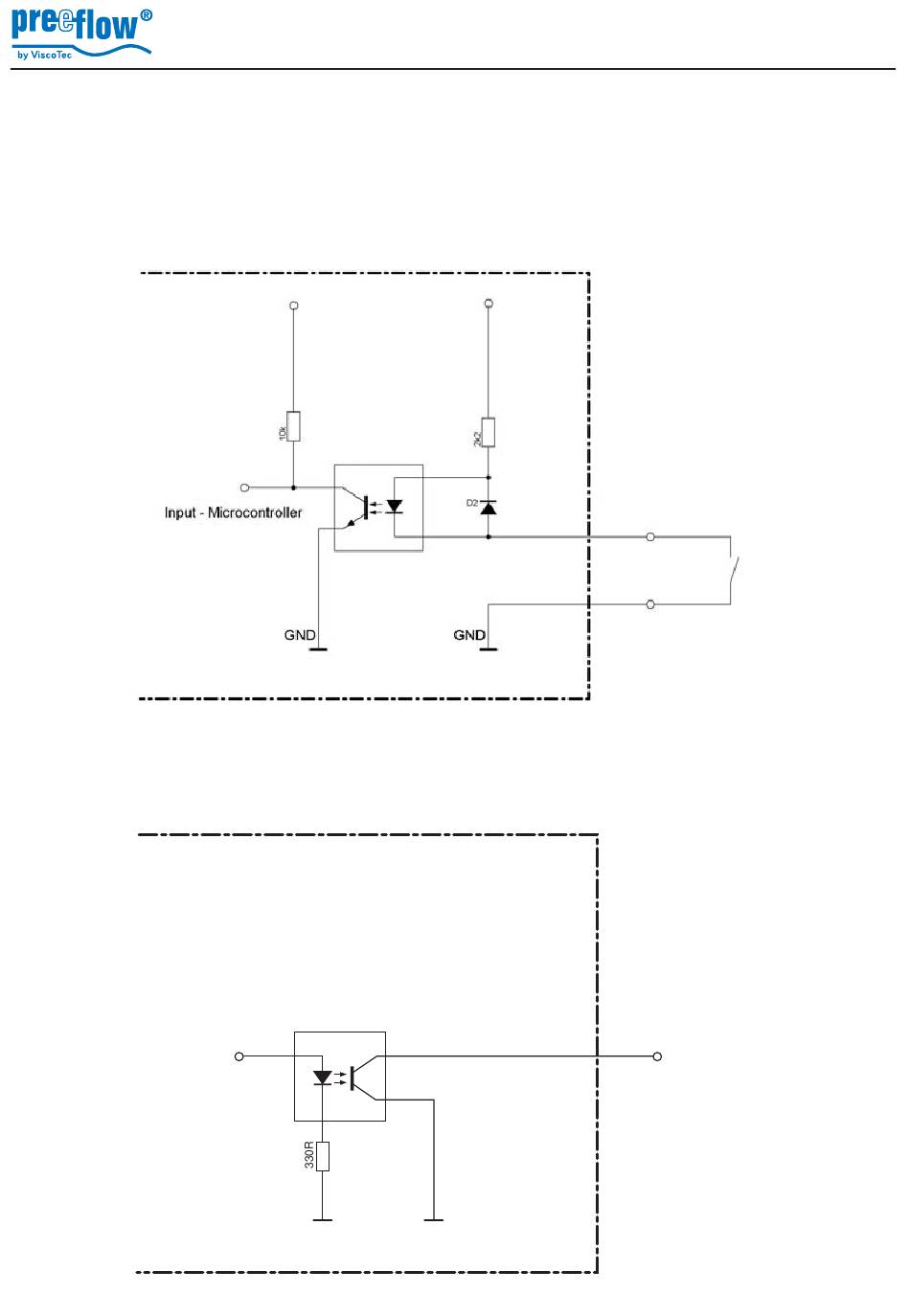

10.3 Wiring Diagrams:

Digital Inputs:
A digital input is active, if the opto coupler is ON. If the opto coupler is connected
to GND, the input is activated:
SC1200
Opto coupler
SC1200 I/O-Port Input
Digital Outputs:
If the digital output is active, the opto coupler is electro conductive.
SC1200
Opto coupler
SC1200 I/O-Port Output
Output - Microcontroller
GND GND
12 / 16 Copyright
©
