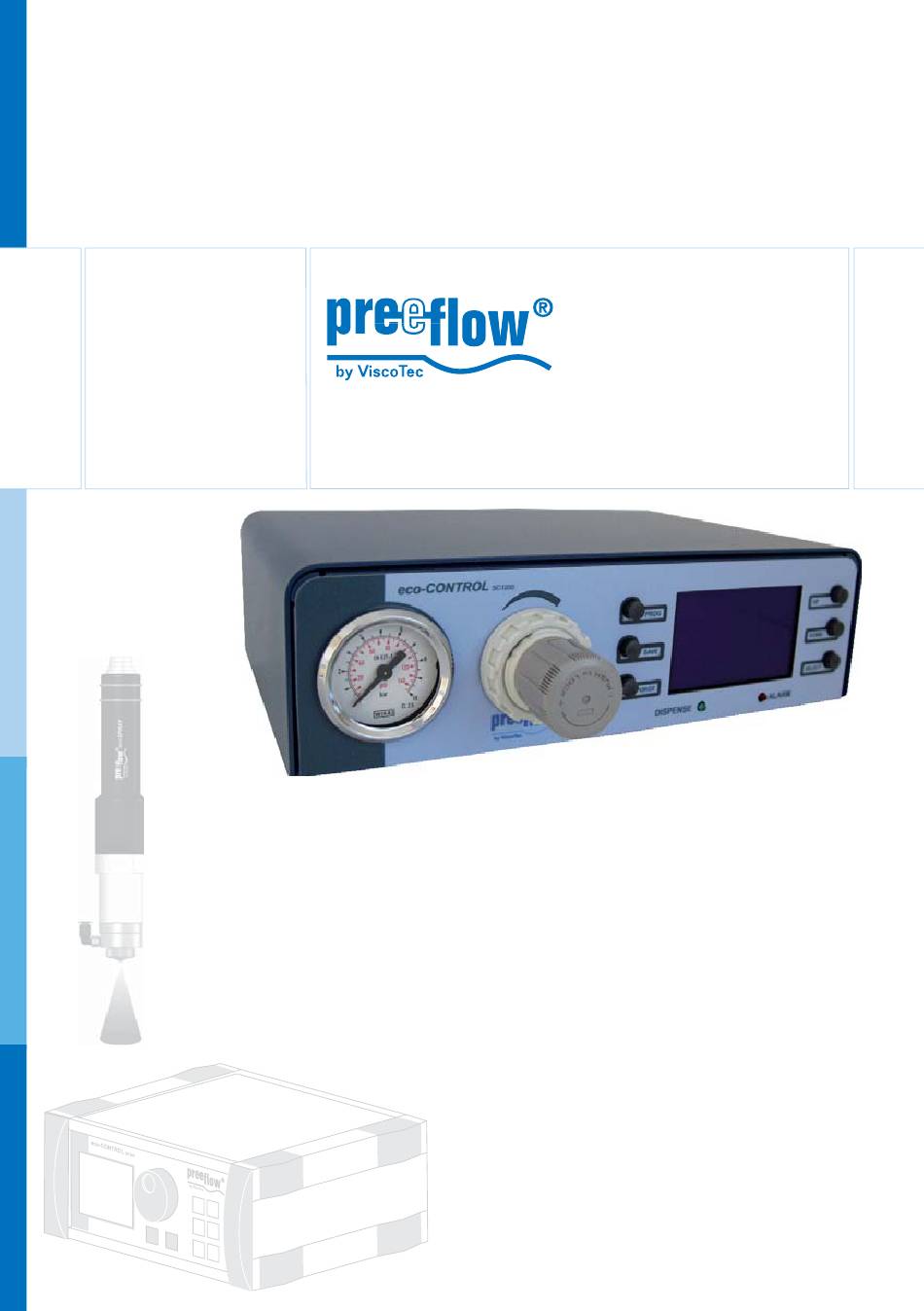

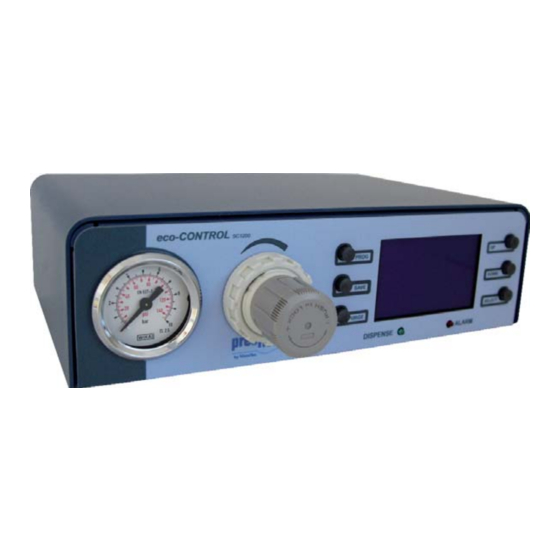

- Page 1 Spraying System Commissioning and maintenance manual eco-CONTROL SC1200 for preeflow ® eco-SPRAY...
-
Page 2: Table Of Contents
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual Table of contents 1. This manual 2. Designated use 3. For your safety. 4. Technical data . 4.1 Parts & description . 5. Parts of delivery . 6. Start operation 7. Operation . 7.1 Display . -
Page 3: This Manual
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 1. THIS MANUAL Dear customer, This manual forms part of the operating and maintenance manual for the dosing system eco-CONTROL EC200. The operating and maintenance manual must have been read and understood in full before commissioning or carrying out maintenance work on the eco-CONTROL SC1200. -
Page 4: Technical Data
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 4. TECHNICAL DATA Measurements 235 x 210 x 70mm Weight 1,65kg Power supply: 85 – 264V AC 50/60Hz Internal Voltage 24V DC Dispense time 0,01 ... 999 sec. Air Inlet 0 ... 7 bar (Display: digital) Air Outlet - spray air: 0 ... -
Page 5: Parts Of Delivery
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual [Backside] EC200 Foot switch Power switch Spray air pulsed connection I/O-Port Fuse 2A T Power inlet Air inlet 0 – 7 bar 5. PARTS OF DELIVERY: • SC1200 Controller • Power Inlet cable •... -
Page 6: Operation
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 7. OPERATION: 7.1 Display: (values can be different) Parameters Marking star Selected values Spraytime 002.55 s Prespray 000.30 s Postspray 000.50 s Teach-In Mode Prog: 1 C: 000027 P- IN 5.6 BAR Program Cyclecounter Display:... -
Page 7: Operation Keys
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 7.3 Operating keys: PROG => switches to the next program SAVE => saves the actual parameters. Press the SAVE key for 2 sec. and select the wanted program with the UP / DOWN keys and press SAVE again to store the parameters. -
Page 8: Parameter
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 8. PARAMETER: • Select mode Pressing the PROG key switches to the next program and to manual mode Manual: In this mode, the dispense time get not saved and the spray valve dispenses as long as the dispense signal is activated on one of the fol- lowing possibilities: foot switch / purge key / I/O-start. - Page 9 Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual • Set the Teach-In function: The Teach-In Function can be switched ON / OFF and is only in MANUAL mode useable. By activated function, the dispense time will be added to the actual dispense time with every new dispensing signal.
-
Page 10: Service Menu
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 9. SERVICE Menu: (UP + DOWN during Initialization) 9.1 Display: SERVICE Language Selected language Selected pressure unit P- Unit Selected pressure limit P- Alarm 5.6 BAR Service counter Service 000000239 9.2 Settings: •... -
Page 11: Electrical Connections
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 10. Electrical Connections 10.1 Footswitch: pins: connections between Pin 1 + 3 starts dispensing 10.2 I/O-Port: type: 15-pol. SubD female 2-doublerow pins: see following chart Pin no. Input / Output Description Comment: Reserved Reserved 24V DC... -
Page 12: Wiring Diagrams
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 10.3 Wiring Diagrams: Digital Inputs: A digital input is active, if the opto coupler is ON. If the opto coupler is connected to GND, the input is activated: SC1200 Opto coupler SC1200 I/O-Port Input Digital Outputs: If the digital output is active, the opto coupler is electro conductive. -
Page 13: Maintenance And Cleaning
Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 11. Maintenance and cleaning The SC1200 is maintenance free Repairs should only be done by the manufacturer. Clean the SC1200 controller only with a clean, smooth and dry cloth. Do not use disolvent material to clean the SC1200 controller. The foil at the front- or back plate or the housing paintings can be destroyed. - Page 14 Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual 14 / 16 Copyright ©...
- Page 15 Spraying System eco-CONTROL SC1200 Commissioning and maintenance manual Copyright 15 / 16 ©...
- Page 16 info@preeflow.com www.preeflow.com...
