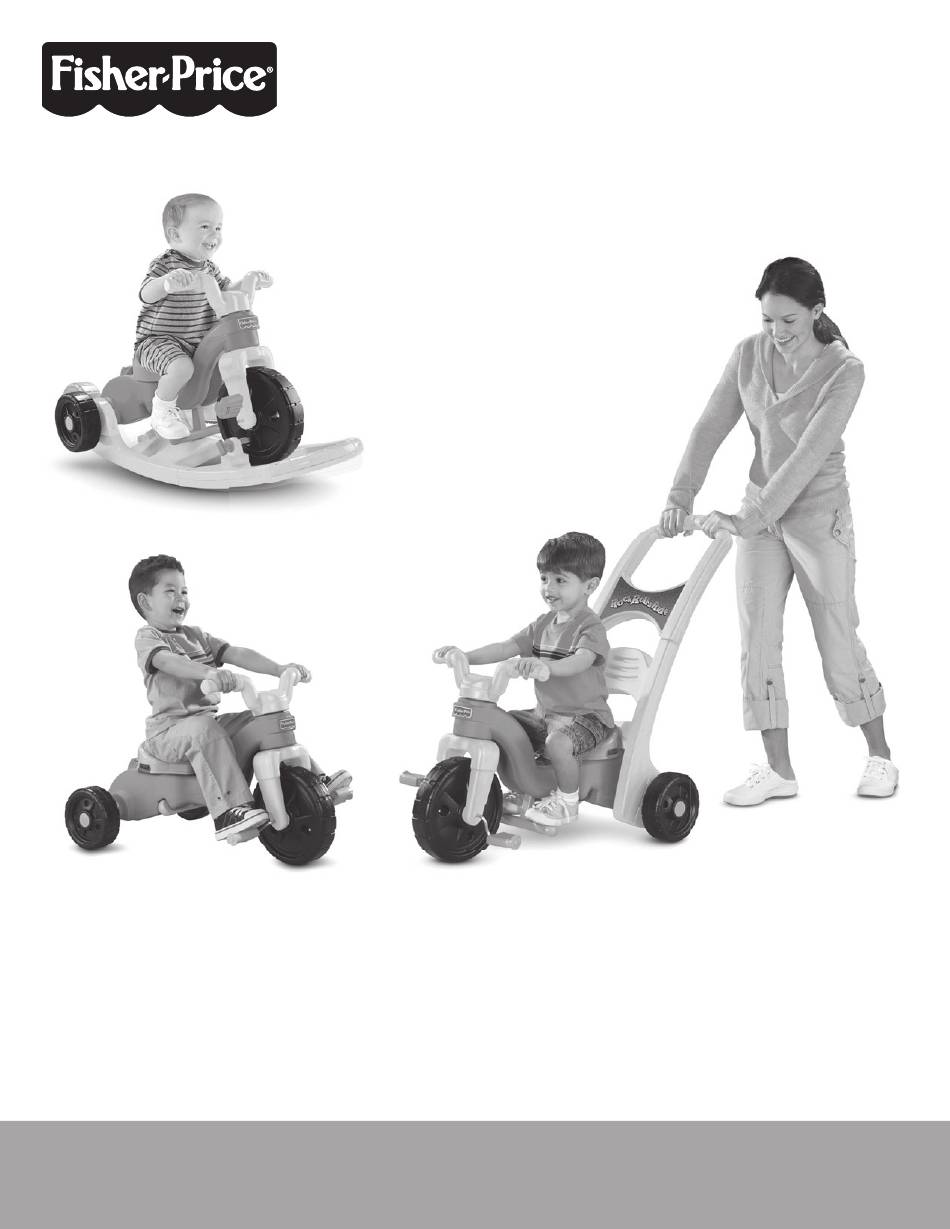

R6153
Please keep this instruction sheet for future reference,
as it contains important information.
Adult assembly is required.
Age: 1½ years - 5 years.
Weight Limit: 50 lbs. (23 kg).
Tools needed for assembly: Phillips Screwdriver,
Hammer and Scrap Block of Wood (all not included).
www.fisher-price.com
1

Advertisement

loading

Related Manuals for Fisher-Price R6153

Summary of Contents for Fisher-Price R6153

  • Page 1 R6153 Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Age: 1½ years - 5 years. Weight Limit: 50 lbs. (23 kg). Tools needed for assembly: Phillips Screwdriver, Hammer and Scrap Block of Wood (all not included).

  • Page 2: Consumer Information

    Consumer Information Fasteners WARNING To avoid serious injury: • Adult supervision is required. Cap Nut – 1* • Never use near cars and other motor vehicles, *Note: For your convenience, an extra cap nut is included. near streets, steps, sloped driveways, hills, roadways, alleys, swimming pools or other bodies of water.
  • Page 3 Parts Note: The base/handle assembly can be attached to the trike in either the Ride-on Rocker (page 8) or Learn to Pedal (page 9) mode. Parts not shown: Assembly Tool and Label. Seat Pin Seat Handlebar Frame Cover 2 Base/Handle Covers Frame Straight Axle 2 Rear Wheels...
  • Page 4 Assembly CAUTION This product contains small parts in its Assembly Tool Rear Wheel Spoke Side Up unassembled state. Adult assembly is required. Cap Nut • Please save all packaging material until assembly is complete to ensure that no parts are discarded. Straight Axle •...
  • Page 5 Assembly Pedal Axle Cover Handlebar Frame Neck Pedal Axle Fork Post FIRST, insert the screw Slot so that ¾ " is visible. THEN, tighten the screw. Pedal Axle Cover Metal Tab ¾ " Fork Covers • Fit two pedal axle covers onto the pedal axle metal tabs. Make sure the metal tabs fit into the slot in each pedal axle cover.
  • Page 6 • Fit the handle top and bottom to the end of the base, as shown. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052, U.S.A. ©2009 Mattel, Inc. All Rights Reserved. ® and designate U.S.
  • Page 7 Assembly Flared End Trike Handle Cover Base/Handle • Insert 13 - #8 x ¾" screws into the handle top and tighten. • Position the base/handle covers so that the flared end faces the front of the trike. • Fit the base/handle covers onto the trike rear frame near the rear wheels.

  • Page 8: Label Application

    Label Application Ride-on Rocker IMPORTANT! Be sure to adjust the seat in the most forward position for Ride-on Rocker mode. Handle Center of Label Place Center of Label Here • Before applying the label, wipe the surface of the handle with a clean, dry cloth to remove any dust or oils.
  • Page 9 Learn to Pedal Trike Base/Handle • Rotate the base/handle to the upright position. Base/Handle Handle Pin • Insert the handle pin through one side of the base/handle, through the holes in the back of the frame and out through the hole in the other side of the base/handle. Make sure the handle pin “snaps”...
  • Page 10 Pedal Trike Base/Handle • Rotate the base/handle down, under the trike, to the ride-on rocker position. Base/Handle Cover Base/Handle • Remove the screws from the base/handle covers. • Remove the base/handle covers. • Remove the base/handle. Base/Handle Handle Pin • If you are converting from the learn to pedal trike mode, remove the handle pin from the base/handle and the back of the frame.
  • Page 11 Pedal Trike Storage Flared End Handle Cover Handle Pin • Rotate the footrest up toward the rear wheels and snap it into the recess in the underside of the frame. IMPORTANT! It is a good practice to start training children very young regarding the importance of helmet use. When children are older and riding bicycles and faster vehicles, it is important that they use a helmet each and every time they ride.

  • Page 12: Maintenance

    Maintenance • Check plastic parts regularly and if broken or cracked, dispose of • To clean this product, use a mild soap and water solution and them properly. a clean cloth. Rinse clean with water to remove soap residue. • Check all fasteners regularly to be sure they are tight. If the fasteners are not tight, tighten them as necessary.
