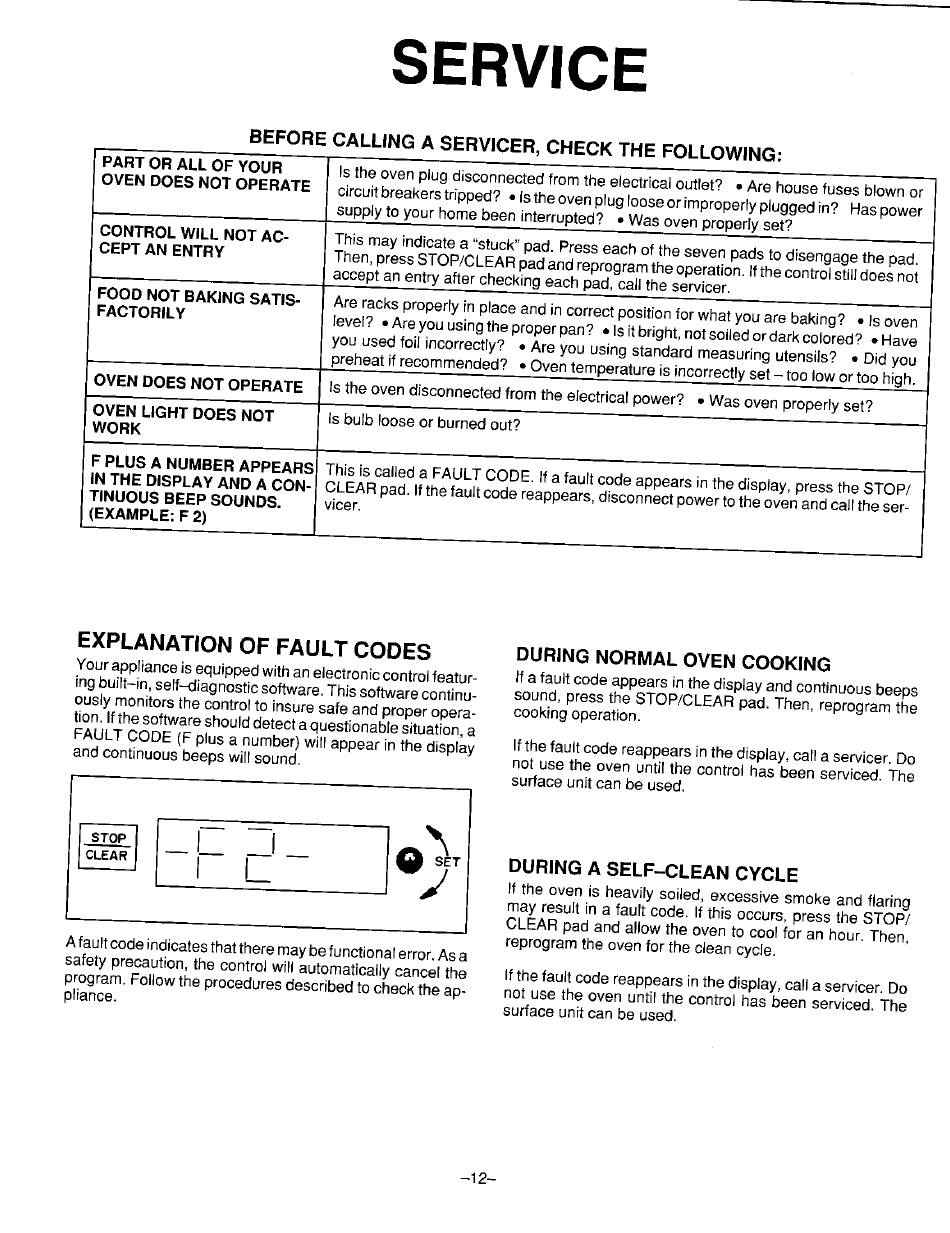

SERVICE
BEFORI CALLING A SERVICER, CHECK THE FOLLOWING:
PART OR ALL OF YOUR _sthe oven plug disconnected from the electrical outlet? ° Are house fuses blown or
OVEN DOES NOT OPERATE circuit breakers tripped? • Is the oven plug 1Dose or improperly plugged in? Has power
supply to your home been interrupted? ° Was oven properly set?
CONTROL WILL NOT AC- This may indicate a "stuck" pad. Press each of the seven pads to disengage the pad.
CEPT AN ENTRY Then, press STOP/CLEAR pad and reprogram the operation. If the control stiltdoes not
accept an entry after checking each pad, call the servicer.
FOOD NOT BAKING SATIS- Are racks properly in place and in correct positionfor what you are baking? • Is oven
FACTORILY level? • Are you using the properpan? • ts it bright, not soiled or dark colored? • Have
you used foil incorrectly? ,, Are you using standard measuring utensils? = Did you
preheat if recommended? °Oventemperatureisincorrectlyset-toolowortoohigh.
OVEN DOES NOT OPERATE Is the oven disconnected from the electrical power? • Was oven properly set?
OVEN LIGHT DOES NOT is bulb loose or burned out?
WORK
F PLUS A NUMBER APPEARS This is called a FAULT CODE. If a fault code appears in the display, press the STOP/
IN THE DISPLAY AND A CON- CLEAR pad. Ifthe fault code reappears, disconnect power to the oven and call the ser-
TINUOUS BEEP SOUNDS. vicer.
(EXAMPLE: F 2)
EXPLANATION OF FAULT CODES DURINGNORMALOVENCOOKING
Your appliance isequipped with an electronic controlfeatur- If a fau{t code appears in the display and continuous beeps
ing built-in, self-diagnostic software. This software continu- sound, press the STOP/CLEAR pad. Then, reprogram the
ously monitors the control to insure safe and proper opera- cooking operation.
tion. If the software should detect a questionable situation, a
FAULT CODE (F plus a number) will appear in the display If the fault code reappears in the display, carl a servicer. Do
and continuous beeps wilt sound, not use the oven until the control has been serviced. The
surface unit can be used.
_ __ ! I I I J_ T DURINGASELF-cLEANCYCLE
-- If the oven is heavily soiled, excessive smoke and flaring
may result in a faurt code, If this occurs, press the STOP/
CLEAR pad and allow the oven to cool for an hour. Then,
reprogram the oven for the clean cycle.
Afault code indicates that there may be functional error. As a
safety precaution, the control will automatically cancel the if the fault code reappears in the display, ca_l a servicer. Do
program. Follow the procedures described to check the ap- not use the oven until the control has been serviced. The
pliance, surface unit can be used.
-12-
