Sigma BMR 20 Instruction, Use And Maintenance Manual

Planetary mixer with mechanical speed variation
Hide thumbs Also See for BMR 20:
Table of Contents

Advertisement

Quick Links

Via Artigianato 85 – 25030 Torbole Casaglia.
(BRESCIA) – ITALY – Tel 030 265 04 88 –Fax 030 265 01 43

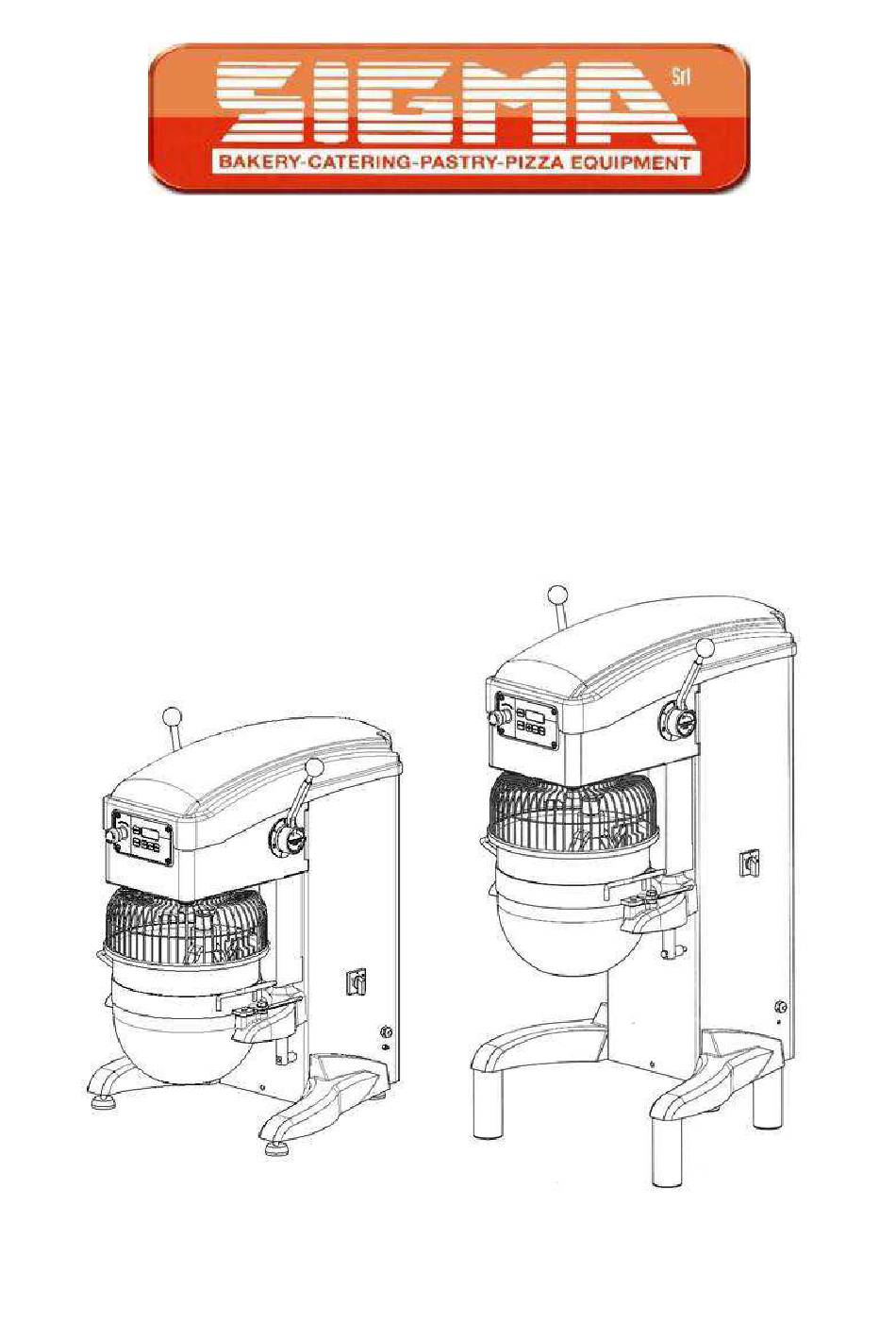

INSTRUCTIONS, USE AND MAINTENANCE MANUAL
BMR 20 - 20H - 30 PLANETARY MIXER WITH
MECHANICAL SPEED VARIATION
Translation of the original instruction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BMR 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sigma BMR 20

Summary of Contents for Sigma BMR 20

  • Page 1 Via Artigianato 85 – 25030 Torbole Casaglia. (BRESCIA) – ITALY – Tel 030 265 04 88 –Fax 030 265 01 43 INSTRUCTIONS, USE AND MAINTENANCE MANUAL BMR 20 - 20H - 30 PLANETARY MIXER WITH MECHANICAL SPEED VARIATION Translation of the original instruction...

  • Page 2: Table Of Contents

    14.2. Master switch ..........................26 14.3. Stop circuit and grid safety micro-switch ..................26 14.4. System checks ..........................27 14.5. Routine maintenance ........................27 14.6. Special Maintenance ........................28 Instruction, use and maintenance manual Pag. 2/39 BMR 20-20H-30 Planetary Mixer...
  • Page 3 17. Recommended spare parts ......................37 17.1. Recommended spare electrical parts ....................37 18. Wiring diagram ..........................38 19. Demolition and disposal ........................39 19.1. Obligations of informing users ......................39 Instruction, use and maintenance manual Pag. 3/39 BMR 20-20H-30 Planetary Mixer...

  • Page 4: General Information

    PERSONNEL QUALIFICATIONS: symbols used to indicate the specific competence required for the operation (they will be discussed further in the GLOSSARY chapter). ATTENTION: indicates hazardous situations for which particular caution is required. Instruction, use and maintenance manual Pag. 4/39 BMR 20-20H-30 Planetary Mixer...

  • Page 5: Declaration Of Conformity

    25030 TORBOLE CASAGLIA (BRESCIA) ITALY Dichiara che il materiale nuovo specificato come segue / declares that the new equipment: MACHINE NAME: BMR 20 - 20H - 30 PLANETARY MIXER WITH MECHANICAL SPEED VARIATION SERIAL NUMBER: CERTIFICATO DI CONFORMITÁ / CONFORMITY CERTIFICATE Relativo ai Materiali sottoposti ad Autocertificazione / for equipment subjected to self certification 2006/42/EC –...

  • Page 6: Warranty Conditions

    Wear parts are: drive belts, bearings. Instruction, use and maintenance manual Pag. 6/39 BMR 20-20H-30 Planetary Mixer...

  • Page 7: General Safety Standards

    Once the work is completed, they must be immediately reassembled. • Mobile guards: properly closed mobile guards allow the machine to be used. A lack of these conditions prevents operation. Instruction, use and maintenance manual Pag. 7/39 BMR 20-20H-30 Planetary Mixer...

  • Page 8: Customer Set-Ups

    5.1. Instructions for ordering spare parts SIGMA S.r.l., reserves to make all changes it deems necessary to its machine models. It is, therefore, always necessary to specify: •...

  • Page 9: Safe Work Methods And Procedures

    Electrocution hazard: the machine must not be used without adequate earthing, and it must be connected to a system built according to building regulations in force in the country of installation. Instruction, use and maintenance manual Pag. 9/39 BMR 20-20H-30 Planetary Mixer...
  • Page 10 Do not remove the safety devices and protection casings. Do not put any object through the chute with parts in motion. Wait for the machine to completely stop before performing any manoeuvres on the chute. Instruction, use and maintenance manual Pag. 10/39 BMR 20-20H-30 Planetary Mixer...

  • Page 11: Hazardous Area

    6.2. Hazardous area Hazardous area A that must be clear of people for a distance of 250 mm. Instruction, use and maintenance manual Pag. 11/39 BMR 20-20H-30 Planetary Mixer...

  • Page 12: Organisation Of The Manual And How To Consult It

    This type of signal urges to pay particular attention in the indicated operations. Failure to comply may ATTENTION cause injury to people in charge or damage the machine. Instruction, use and maintenance manual Pag. 12/39 BMR 20-20H-30 Planetary Mixer...

  • Page 13: Machine Description

    MACHINE DESCRIPTION AND USE: BMR 20 - 20H - 30 series planetary mixers are mixers that are particularly suited to use in the hotel management sector. Driven by a high-power motor, they use a belt regulator with a high transmission ratio that allows for optimal range between minimum and maximum planetary speed and proportional tool speed.

  • Page 14: Machine Identification

    • The Sigma packages fully meet the requirements of Directive 94/62/EC and Legislative Decree 05/02/97 no. 22 (and subsequent amendments and additions) and so become waste similar to urban, that can be easily inserted in any separate collection program.

  • Page 15: Technical Data And Features

    BOWL BOWL diameter x H POWER SUPPLY WEIGHT [kW] [litres] [mm] [kg] BMR 20 Φ 315x290 400/50/1 BMR 20H Φ 315x290 400/50/1 Φ 350x365 BMR 30 400/50/1 10.1.2. Dimensions Instruction, use and maintenance manual Pag. 15/39 BMR 20-20H-30 Planetary Mixer...
  • Page 16 MODEL BMR 20 BMR 20H 1180 BMR 30 1180 Instruction, use and maintenance manual Pag. 16/39 BMR 20-20H-30 Planetary Mixer...

  • Page 17: Packaging

    (4 anchoring devices with 300 kg resistance, M12 screws). MODEL A [mm] B [mm] C [mm] BMR 20 - 20H - 30 Instruction, use and maintenance manual Pag. 17/39 BMR 20-20H-30 Planetary Mixer...

  • Page 18: Control Panel

    The current time begins flashing on the minute digits. Pressing the "+" and "-" keys, you can increase or decrease the digits until you reach the desired time. Pressing the "MODE" key once again makes the seconds digits flash. Instruction, use and maintenance manual Pag. 18/39 BMR 20-20H-30 Planetary Mixer...

  • Page 19: Storage And Conservation Of The Machine

    Storage before a long period of inactivity: • Clean the machine thoroughly. • Disconnect it from the electrical system. • If possible, put it back in its original packaging. Instruction, use and maintenance manual Pag. 19/39 BMR 20-20H-30 Planetary Mixer...

  • Page 20: Type Of Drive, Motors

    Vibrations: in proper operating conditions, the vibrations are not such to give rise to hazardous situations. • Sound emissions: 70 dBA under normal use. • Electromagnetic environment: the machine in question is built to work correctly in an industrial electromagnetic environment. Instruction, use and maintenance manual Pag. 20/39 BMR 20-20H-30 Planetary Mixer...

  • Page 21: Transport And Installation

    Use the necessary PPE. When lifted, the machine assumes a position that is slightly inclined by 10-15 degrees. Forklift lifting standards: to handle the machine, always use a pallet. Instruction, use and maintenance manual Pag. 21/39 BMR 20-20H-30 Planetary Mixer...

  • Page 22: Description Of The Adjustment And Commissioning Operations

    The electrical connection must be done by a qualified electrician, according to the methods and regulations in force in the country of installation. Make sure that the system voltage and frequency match those on the machine identification plate, incorrect connection voids the warranty. Instruction, use and maintenance manual Pag. 22/39 BMR 20-20H-30 Planetary Mixer...

  • Page 23: Adopted Safety Devices

    The alarm and signal devices on the machine in question are: • MVK11D15 PIZZATO MICRO-SWITCH • MAGNETIC SENSOR (PROXIMITY) BMR20-30 grid proximity sensor BMR20 bowl lifting micro-switch BMR30 bowl lifting micro-switch BMR30 lifting micro-switch Instruction, use and maintenance manual Pag. 23/39 BMR 20-20H-30 Planetary Mixer...

  • Page 24: Work Load And Operating Instructions

    (1). Lower and insert the tool locking ring. At this point, you can start the work cycle. Instruction, use and maintenance manual Pag. 24/39 BMR 20-20H-30 Planetary Mixer...

  • Page 25: Work Load

    Blade 1 - 2 scraper Whipped whites Number of eggs 10/30 15/40 15/50 Whisk (medium eggs of 60[g]) Whipped cream (total litres Liters 1.0/2.5 2.0/5.0 3.0/6.0 Whisk of liquid) Instruction, use and maintenance manual Pag. 25/39 BMR 20-20H-30 Planetary Mixer...

  • Page 26: Scheduled Maintenance And/Or Replacement Interventions

    To restore machine operation, the operator must restart the cycle by pressing the START button. VERIFICATION: INTERVAL METHOD Instruction, use and maintenance manual Pag. 26/39 BMR 20-20H-30 Planetary Mixer...

  • Page 27: System Checks

    Should the power cable be damaged, replace it with a H07RN/F cable with a 3x1.5 mm cross-section Cleaning: the machine is not spray-proof; it must not be cleaned with running water. Clean with a damp rag and mild cleaning solutions, for example castile soap degreasers. Instruction, use and maintenance manual Pag. 27/39 BMR 20-20H-30 Planetary Mixer...

  • Page 28: Special Maintenance

    For operations that are not specifically mentioned in the manual, you must refer to personnel authorised by SIGMA Srl. To replace the motor and electronic boards or following a machine fall, contact our customer service for on-site assistance or an in-factory inspection.

  • Page 29: Troubleshooting

    2) Replace the belt. 3) Drive sprocket worn 3) Replace the sprocket. The tool does not revolve normally Drive pin broken Replace the pin. on the tool carrier shaft. Instruction, use and maintenance manual Pag. 29/39 BMR 20-20H-30 Planetary Mixer...

  • Page 30: Machine Exploded View

    16. Machine exploded view Instruction, use and maintenance manual Pag. 30/39 BMR 20-20H-30 Planetary Mixer...
  • Page 31 Instruction, use and maintenance manual Pag. 31/39 BMR 20-20H-30 Planetary Mixer...
  • Page 32 Instruction, use and maintenance manual Pag. 32/39 BMR 20-20H-30 Planetary Mixer...
  • Page 33 Instruction, use and maintenance manual Pag. 33/39 BMR 20-20H-30 Planetary Mixer...
  • Page 34 6204 2RS 20-47-14 BEARING 13000315 PA66 REDUCER CROWN 01199069-3 Ø25 HUB 01184016 BM20 CONDUIT PULLEY 85200047-1 6205 2RS 25-52-15 BEARING 13000016 TDK 06/8 GREASER 21000200 REDUCER SUPPORT SHEET METAL 85185020 Instruction, use and maintenance manual Pag. 34/39 BMR 20-20H-30 Planetary Mixer...
  • Page 35 11000707 T80 4P KW 0.75 Single phase MOTOR for BM 20 11000610 T80 4P KW 1.1 230/400V/3/5 (50 / 60Hz) MOTOR for BM 30 11000701 M8x50 EYE BOLTS 23010113 Instruction, use and maintenance manual Pag. 35/39 BMR 20-20H-30 Planetary Mixer...
  • Page 36 BOWL LIFTING TIE-ROD FOR BM 30 85161004-4 M8x42 FORK 23010201 BOWL LIFTING GUIDE POLE 85097024-3 FUSED HANDLE 01098108-1 GUIDE POLE SPACERS 85098057 LIFTING PIN 85098080 STRAINER SHEET METAL 02098101 Instruction, use and maintenance manual Pag. 36/39 BMR 20-20H-30 Planetary Mixer...

  • Page 37: Recommended Spare Parts

    01200050 6204 BEARING 13000315 6205 BEARING 13000016 6206 BEARING 13000017 17.1. Recommended spare electrical parts Description Q.ty Drawing PANEL + ELECTRICAL BOARD 25001505 PIZZATO MICRO-SWITCH 25001308 MASTER SWITCH 25003009 Instruction, use and maintenance manual Pag. 37/39 BMR 20-20H-30 Planetary Mixer...

  • Page 38: Wiring Diagram

    18. Wiring diagram Instruction, use and maintenance manual Pag. 38/39 BMR 20-20H-30 Planetary Mixer...

  • Page 39: Demolition And Disposal

    Illegal product disposal by the owner results in the application of the administrative sanctions required by the standard in force. Instruction, use and maintenance manual Pag. 39/39 BMR 20-20H-30 Planetary Mixer...
