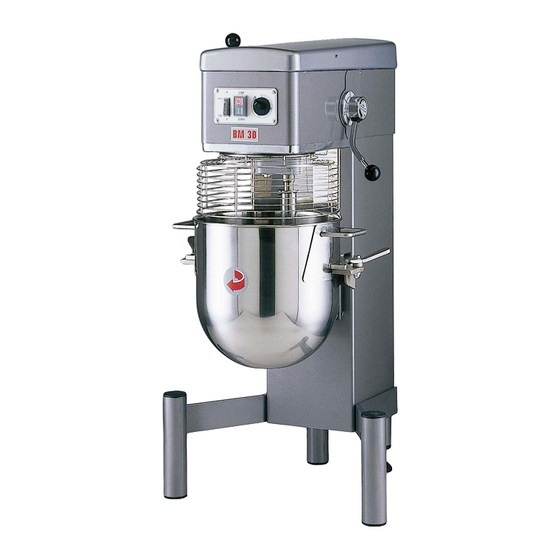

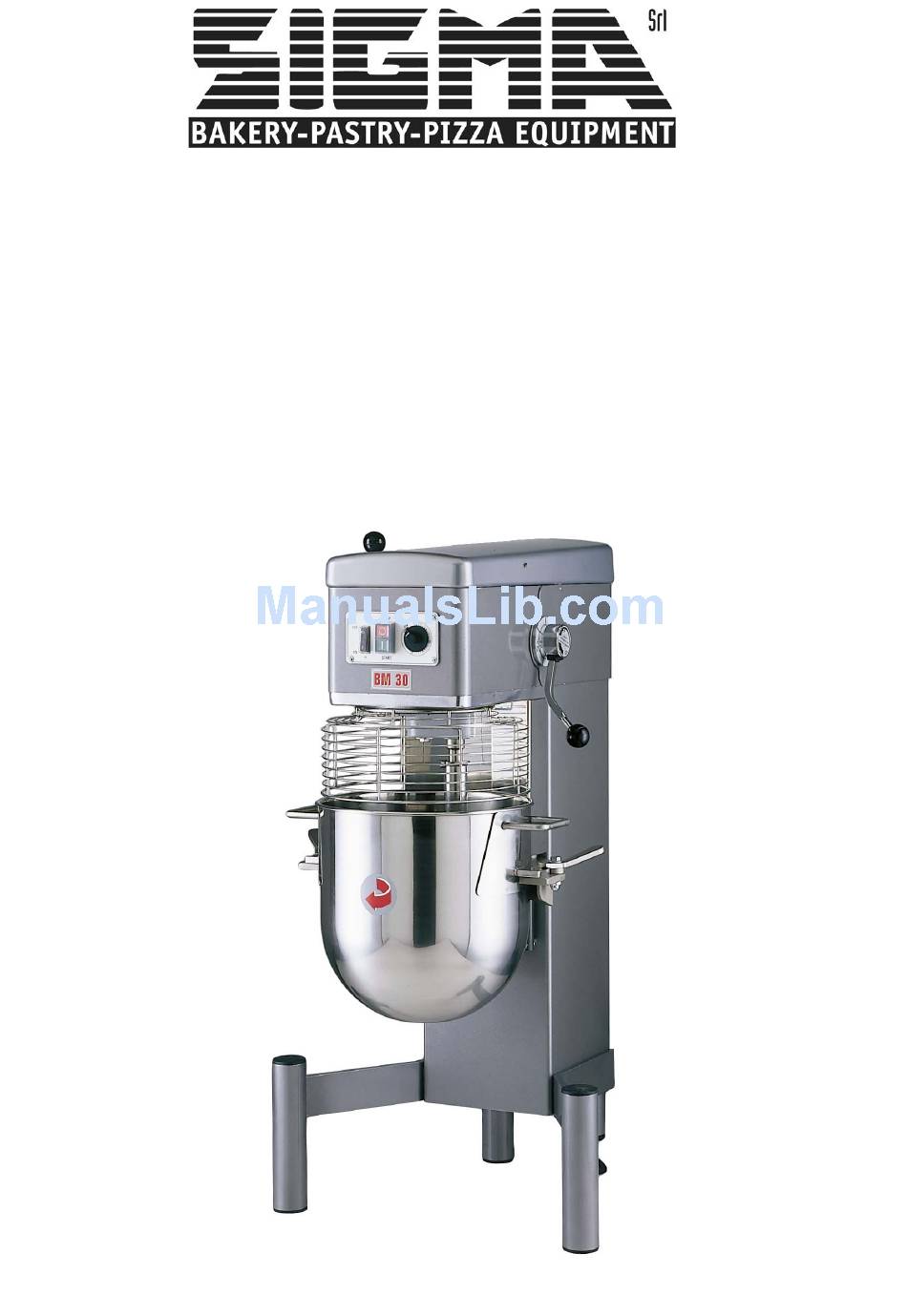

- Page 1 Via Artigianato 85 – 25030 Torbole Casaglia (BRESCIA) ITALY – Tel. 0302650479 – Fax 0302650143 INSTRUCTION BOOK PLANETARY MIXER BM30...
-
Page 2: Table Of Contents
POSSIBLE FAULTS AND REPAIRS ……………………………………….. 2-4 CHAPTER 3 EXPLODED DIAGRAMS EXPLODED VIEW – TABLE 1……………….…………………….…….…... 3-1 EXPLODED VIEW – TABLE 2 ………..…….……………….……….….….. 3-2 CHAPTER 4 SPARE PARTS LIST LIST OF MACHINE PARTS…………….……………………….…….…... LIST OF RECOMMENDED SPARE PARTS……….……………………….…4-2 TECHNICAL SPECIFICATIONS BM30... -
Page 3: Machine Description
Net weight: Kg 130 Bowl capacity: Lt. 30 Power: Kw 1 Tool speed: rpm max 160 rpm min 40 RATING PLATE Mod. N° Volt ITALY Manufactured in: Via Artigianato, 85 - 25030 Torbole Casaglia - BRESCIA - ITALY Tel. 030/2650479-488 - Fax 030/2650143 MACHINE DESCRIPTION... -
Page 4: Machine Commands
The planetary mixers BM30 are designed for medium confectioneries, delicatessen and ice cream shop or they can also be used as auxiliary mixers. They are driven by a high-capacity motor and the special belt speed change variator features a great velocity ratio that provides a wide spread between the maximum and minimum speed of the planetary with consequent tool speed. -
Page 5: Operating Instructions
The machine must be placed on the floor regulating its steadiness by means of the little foot that can be regulated in its highness.. Next to the machine, a lead must be installed; wires section of 1,5 mm at least and tap with blocked plug. -
Page 6: Maintenance
movement of the mixer or set the timer for the appropriate time, then press the start/stop button (pos.2). ATTENTION: when lifting the safety grid the machine immediately stops working, but the timer does not return to zero and goes on counting the elapsing time. It is therefore always advisable to wait for the end of the set time. -
Page 7: Wiring Diagram
ANY CHECK OR MAINTENANCE OPERATION SHOULD BE CARRIED OUT ONLY WHEN THE MIXER IS UNPLUGGED AND POWER IS DISCONNECTED. The machine does not need particular maintenance operations. Check worn-out level of the belt after the first three months. Periodically grease every 4 ÷ 6 months the points shown in the following sketch (use MOLYKOTE 165 LT ). - Page 8 FUNCTIONING POSSIBLE CAUSES REPAIRS ANOMALIES When turning switch into position 1 1) The plug or the wires are not 1) Check right connection. the warning lamp does not light. correctly connected. 2) Replace the light. 2) The warning light is burnt. When pressing start button the 1) Timer is not set or it’s damaged.
- Page 9 ESPLODED VIEW BM30 - ITA Table 1...
- Page 10 ESPLODED VIEW BM30 - ITA Table 2 32 33...
- Page 11 SPARE PARTS LIST FOR PLANETARY MIXER BM30 N° RIF. N° CODE DESCRIPTION QUANTITY 25003045 Three phase switch + protection 25003047 25003046 Single phase switch + protection 25003047 25009058 Square button QT011 25007039 Timer + Knob 25007038 13000017 Ball bearing 6206 2RS 30-62-16...
- Page 12 SPARE PARTS LIST FOR PLANETARY MIXER BM30 N° RIF. N° CODE DESCRIPTION QUANTITY 01095073 Bowl blocking tube 14002822 Small foot M16 98/6364 25008001 Transformer 10VA 0/230/440 – 0/24 01097024 Bowl lifting drive bar 23010201 Fork M8 + 23001301 clip for fork M8...
