Summary of Contents for Sigma SL-50

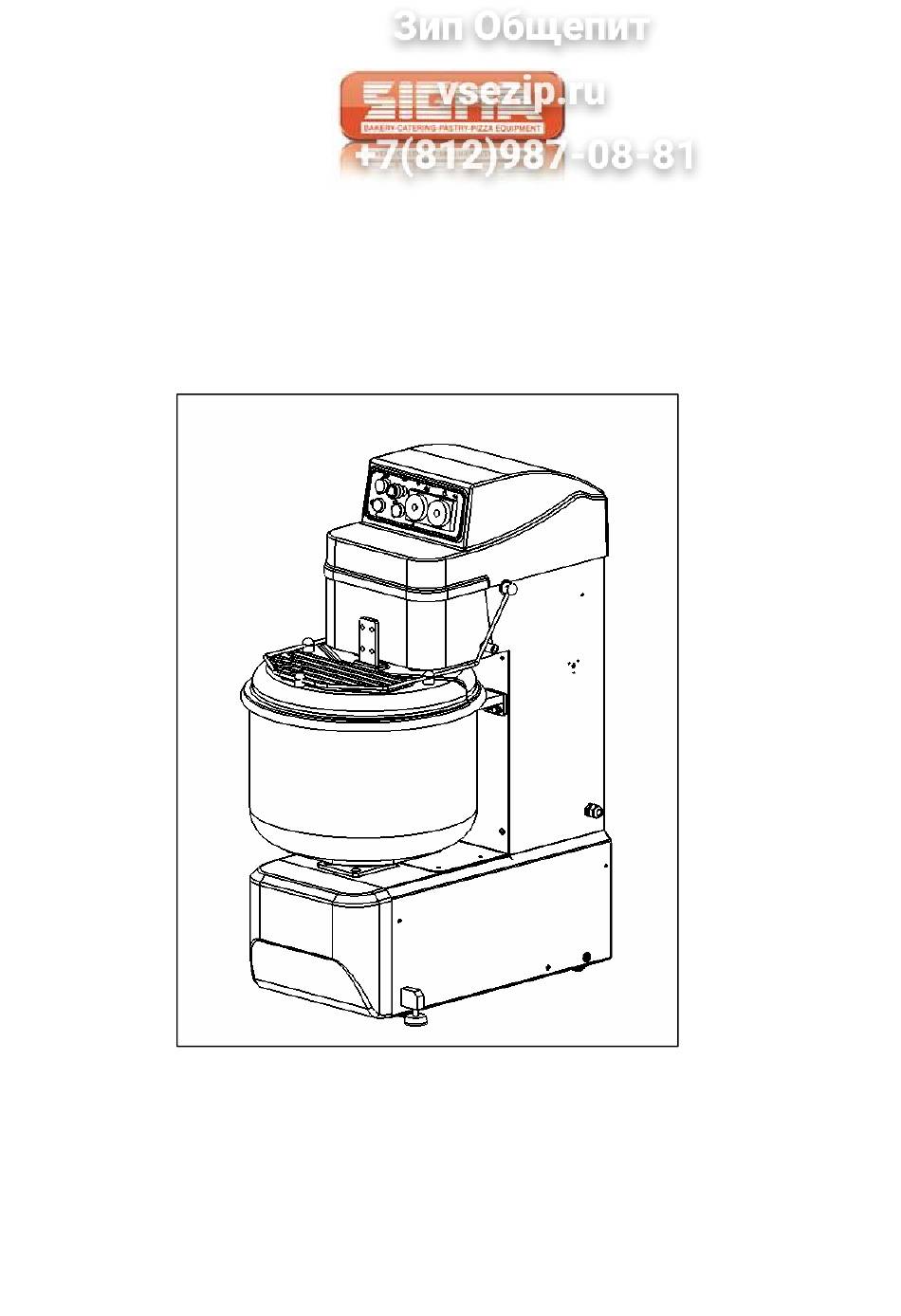

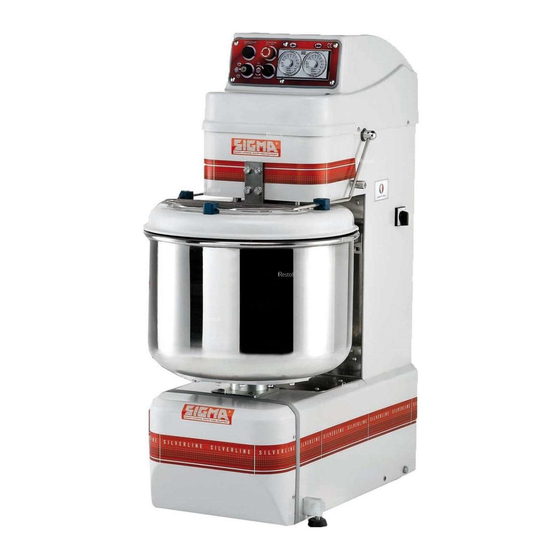

- Page 1 USE AND MAINTENANCE INSTRUCTION MANUAL FOR 50/60 SILVER AND GREENLINE MIXER MACHINE SL-50 SL-60 MIXERS 1 of 23...
-
Page 2: Table Of Contents
EXTRAORDINARY MAINTENANCE................................14 PERIODICAL MAINTENANCE .................................. 15 SPARE PARTS ......................................15 MAIN COMPONENTS ....................................15 DISMANTLING AND WASTE DISPOSAL ..............................15 SPARE PARTS ......................................16 ELECTRICAL LAYOUT ..................................... 21 BLOCKAGE OF MACHINERY AND NECESSARY REMEDIES........................ 23 SL-50 SL-60 MIXERS 2 of 23... -
Page 3: Safety Instructions
Automatic cycle: after starting up the mixer, it follows an automatic operating cycle. Never go past the safety barriers with your limbs or other objects while it is running. SL-50 SL-60 MIXERS 3 of 23... -
Page 4: Residual Risks, Prohibitions, Obligations: Summarised Table
Requesting spare parts, repairs, system overhauls, interventions on site. Training courses This sign requests you to pay particular attention to the operations indicated. ATTENTION. Lack of compliance can cause harm to personnel or damage to the mixer. SL-50 SL-60 MIXERS 4 of 23... -
Page 5: Use And Description Of The Mixer
The figure at the side shows the position of the plate, that of the operator respect to the mixer and the AS danger area which must be free from people for a distance A = 400 mm. SL-50 SL-60 MIXERS 5 of 23... -
Page 6: Technical Data, Packaging, Dimensions And Weight
Widen the lifting forks as much as possible, make sure they come out from the pallet and the grip is barycentric. Work in an area free from persons and animals. During movement, always keep the load as close to the ground as possible. SL-50 SL-60 MIXERS 6 of 23... - Page 7 Once the wanted location is reached, tighten the two supports "A" until the front wheels are lifted from the ground. ATTENTION. always tighten the two supports “A” until the wheels are fully Do not make the mixer function only on wheels, lifted. SL-50 SL-60 MIXERS 7 of 23...
-
Page 8: Storage
Loading more than what is allowed or use of unsuitable ingredients. • Cleaning with unsuitable tools or instruments that can scratch the bowl or damage the mixer or paint. • Use of the mixer in unsuitable places. SL-50 SL-60 MIXERS 8 of 23... -
Page 9: Instructions For Use
ATTENTION: The grid must be down for the mixer to work. Otherwise the safety system will block its functioning. Check the correct rotation direction of the bowl (clockwise, according to the arrow). If incorrect, contact a qualified electrician. SL-50 SL-60 MIXERS 9 of 23... - Page 10 SECOND SPEED SELECTOR (EXCLUDE MAINS TIMER TIMER TIMER) STOP KEY SELECT KEY TO SET LEDS FOR GRID BOWL FIRST AND SECOND ALARM OR CIRCUIT INVERSION KEYS TO CHANGE SPEED TIMES BREAKER ALARM WORK TIME SL-50 SL-60 MIXERS 10 of 23...
-
Page 11: Processing With The Mixer
The use of flours rich in gluten creates very doughy mixes which absorb a lot of power. In this case, as well as in the case of mix with percentages of water below those indicated in the table, it is necessary to reduce the maximum mix capacity of the mixer. SL-50 SL-60 MIXERS 11 of 23... - Page 12 Periodically the mixer's automation functioning and earthing must be checked. Interval Method The operating modes, safety functions, terminal board contacts need to be F, M controlled as well as the integrity of the cables, luminous LEDs and earthing system. SL-50 SL-60 MIXERS 12 of 23...
-
Page 13: Cleaning And Maintenance Operations
To carry out interventions not specially mentioned in the manual, refer Cleaning: the mixer is not jet- to personnel authorised by SIGMA SrL. To replace the motor or the proof. Do not wash it with circuit boards, or else if the mixer falls, contact our assistance service running water. - Page 14 The tensioning of the primary transmission causes tension variations of the chain, that must be registered again. • Tensioning of the belt (secondary transmission of the bowl): loosen the tightening bolts of plate "D" and act on the appropriate register until the correct tension is reached. SL-50 SL-60 MIXERS 14 of 23...
-
Page 15: Periodical Maintenance
Stop rod screws (10.9) [Nn] 13.6 Installed safety systems check. SPARE PARTS SIGMA S.r.l. reserves the right to carry out all the modifications that it deems necessary for its mixer models. It is therefore always necessary to specify: • Type of mixer •... - Page 16 SL-50 STANDARD VERSION SPARE PARTS LIST SL-50 SL-60 MIXERS 16 of 23...
- Page 17 Chain tensioning threaded bar 11000501 Silver 50 4 poles motor 0.55 Kw gr 71 B14 02173022 Bowl motor plate 23010151 Silver 50 Tie-rod M6 02173010 Silver 50 Rear casing. 01173079 Silver 50 Bowl stop block. SL-50 SL-60 MIXERS 17 of 23...
- Page 18 SL-50 GREEN-LINE VERSION SPARE PARTS LIST SL-50 SL-60 MIXERS 18 of 23...
- Page 19 GREEN-LINE transmission shaft pulley 12003103 Silver 50 Belt SPA 857 GREEN-LINE transmission. 01173034-1 Silver 50 GREEN-LINE version transmission shaft 13006506 Silver 50 Support UCFL 206 02173010 Silver 50 Rear casing. 01173079 Silver 50 Bowl stop block. SL-50 SL-60 MIXERS 19 of 23...
-
Page 20: Electrical Layout
ELECTRICAL LAYOUT: STANDARD VERSION SL-50 SL-60 MIXERS 20 of 23... - Page 21 ELECTRICAL LAYOUT: GREEN-LINE VERSION SL-50 SL-60 MIXERS 21 of 23...
-
Page 22: Blockage Of Machinery And Necessary Remedies
1) Check the efficiency of the 1) Replace the bearings. bearings. The tool does not perform its 1) Loose belt. 1) Tighten the belt. normal revolution on the tool 2) Worn belt. 2) Replace the belt. holder shaft. SL-50 SL-60 MIXERS 22 of 23... - Page 23 Illicit disposal of the product by the user entails the application of administrative sanctions foreseen by Standards in force. SL-50 SL-60 MIXERS 23 of 23...
