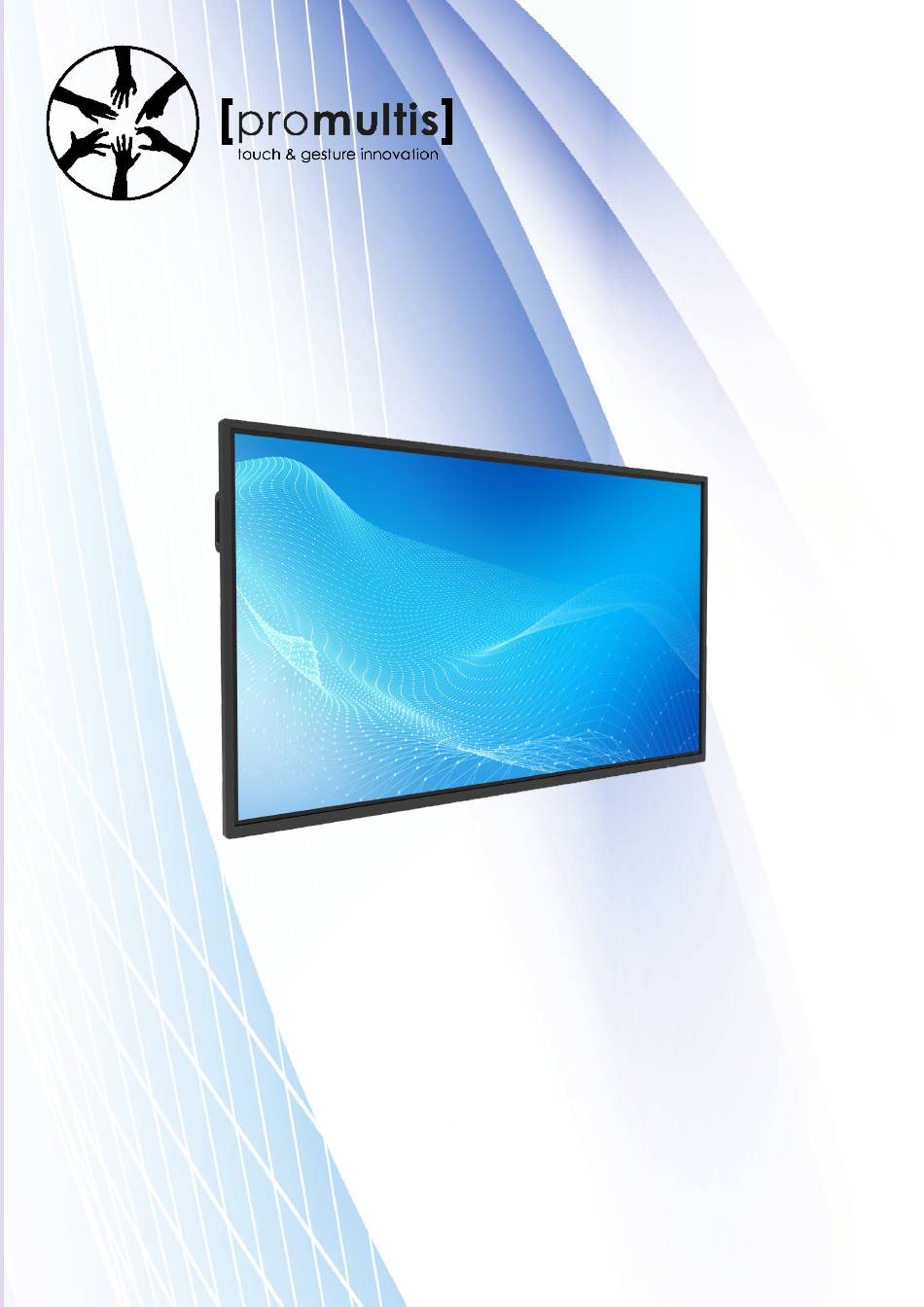

- Page 1 55" HD 32 TOUCH LED SCREEN INSTRUCTION MANUAL Before connecting, operating or adjusting this product, please read the manual completely. Please keep this manual for future reference.
-
Page 2: Table Of Contents
CONTENTS Important Information Important Safety Precautions Identification of Controls Remote Control Connections Basic Operations Operating the Side Menu User Menu List UBoard Annotation WhiteBoard USB multi media player Troubleshooting Specifications... -
Page 3: Important Information
IMPORTANT INFORMATION If the screen is not positioned in a stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: ● Use cabinets or stands recommended by the manufacturer of the screen. ●... -
Page 4: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS 10.Servicing---Refer all servicing to qualified service CAUTION personnel. Servicing is required when the device has RISK OF ELECTRIC SHOCK been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled, DO NOT OPEN! objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally... - Page 5 IMPORTANT SAFETY PRECAUTIONS About Location/Environment The apparatus should not be exposed to dripping or splashing liquids and that no objects filled with liquids, Do not use in hot and cold rooms (locations) such as vases, shall be placed on the apparatus. ●...
-
Page 6: Identification Of Controls
IDENTIFICATION OF CONTROLS Power Indicator & Remote Sensor Connect USB devices to this port for OPS or Android. USB(3.0)(for camera) Notes: Please open the dust cover before being used. Fuse 10A 250V Plug the AC cord into this jack and into a power outlet. AC IN (AC 100-240V 50/60Hz) Push ( I ) to connect the power, push (O) to cut off the power. - Page 7 IDENTIFICATION OF CONTROLS 9 10 1 HDMI OUT Connect a monitor to this port, output of the currently screen. Connect an HDMI or DVI device to this jack. 2 HDMI IN 1/2 HDMI IN 1(ARC): Connect an ARC-enabled home theater receiver to this jack. 3 DP(DisplayPort) INPUT Connect an external device to DP out jack.
-
Page 8: Remote Control
REMOTE CONTROL Switch the screen power on or off Mute the sound Return to OPS PC desktop Control buttons for OPS PC 0-9 number buttons Takes a screenshot and stores the data onto your connected USB storage device.If there is no USB storage, the screenshot will be stored Freeze the content displayed on the screen on the built-in storage. -
Page 9: Connections
CONNECTIONS Cautions Before Connecting ● When connecting an external device to the screen, make sure that the screen and the external device are turned off. ● Check the plugs at the ends of the cables to make sure that they are the correct type before plugging them into the jacks on the screen. - Page 10 CONNECTIONS HDMI cable HDMI devices USB Type C Type C cable devices USB cable PC, etc. USB cable USB cable USB devices Connect TOUCH OUT with USB cable to PC USB port. Connect PC with VGA cable, HDMI cable or DP cable. Please choose the proper method of connection based on your device.
-
Page 11: Basic Operations
BASIC OPERATIONS Turning the screen on or off 1. Plug the power cord into an AC power outlet. 2. Press Power Switch on the screen. 3. Now the screen is in standby mode. Wait a moment until the power indicator lights up, then press button to turn on the screen. -
Page 12: Operating The Side Menu
OPERATING THE SIDE MENU Side menu Swipe up from the left-bottom or the right-bottom of the screen and pause. Go back Swipe up from the left-bottom or the right-bottom of the screen. Go to Home screen Swipe up from the bottom centre of the screen. -
Page 13: User Menu List
USER MENU LIST 1. NETWORK & CONNECTED DEVICES Ethernet: Plug the LAN-cable into the LAN-port on the bottom of the monitor, the monitor will be get an IP address automatically and connect to the internet. WiFi: Turn the WiFi on. Select the network from WLAN network list to connect it Once the device is connected to the WLAN network... - Page 14 USER MENU LIST 2.2 Sound: Adjusting sound. Media out device Selection of Media out device. Select sound mode. Sound mode If you select “User”, you can set the level of the frequency response as you desire. Select the digital audio output mode for SPDIF .
- Page 15 USER MENU LIST 3.3 Power Timing power on/off Timing off: To switch the monitor to standby at a specified time. Timing on: To turn on the monitor automatically to source at a certain time. Power on settings: Wake on lan: Turn on or off the wake on lan function.
- Page 16 USER MENU LIST Languages: Select menu language. Keyboard & inputs: Setting input method Individuation: Fullscreen gesture Turn on or off the function Setting wallpaper, no input wallpaper, source label. Note: When the fullscreen gesture is swipe up turned off, from the bottom of the screen to call only the side menu. 4.2 Device: It displays the following information: Device name...
-
Page 17: Uboard
UBoard Key features of UBoard: ● Mirror the screen of Android, iPhone, iPad, MacBook, Chrome or Windows device to the screen wirelessly. Touch feedback is supported while screen mirroring ( Only for MacBook and Windows). ● Mirror the screen to multiple mobile devices and touch on the mobile device screen to control the screen, just like you are touching on your screen. -
Page 18: Annotation
ANNOTATION Annotation Press and drag to any place of the screen. Pen: Click to choose a color of the pen. Eraser: Click to choose a size of the eraser. Screenshot: Click to capture the current screen. Eraser all: Click to eraser all the annotation on the screen. Exit: Click to exit the annotation. -
Page 19: Whiteboard
WHITEBOARD UBoardMate Options Help Click to exit the UBoardMate... -
Page 20: Usb Multi Media Player
USB Multi Media Player It is available to play the photo, music, movie, etc. Media Notes: ● Never remove the USB storage device or turn off the screen while using the USB storage device. ● It is recommended that you back-up your USB device data. ●... -
Page 21: Troubleshooting
TROUBLESHOOTING If, after reading these operating instructions, you have additional questions related to the use of your screen, please call the services center in your local area. Before calling service, please check the symptoms and follow suggested solutions. Remote Control Problem Possible Solutions ●... -
Page 22: Specifications
SPECIFICATIONS Model No. PM-TS55A/32/HD Visible screen size 55inches(diagonal) Power Source 100-240V~50/60Hz Current (with PD) 2 .5A Power Consumption 250 W (with PD) Standby condition * ≤ 0.5 W Number of pixels 3840×2160 (Display panel ) Dimensions 1285.5×766.2×90 (W×H×D) (Unit: mm) Weight 34.3 kg Net...
