RJS Inspector D4000 Operator's Manual page 28

Inspector D4000™ Laser

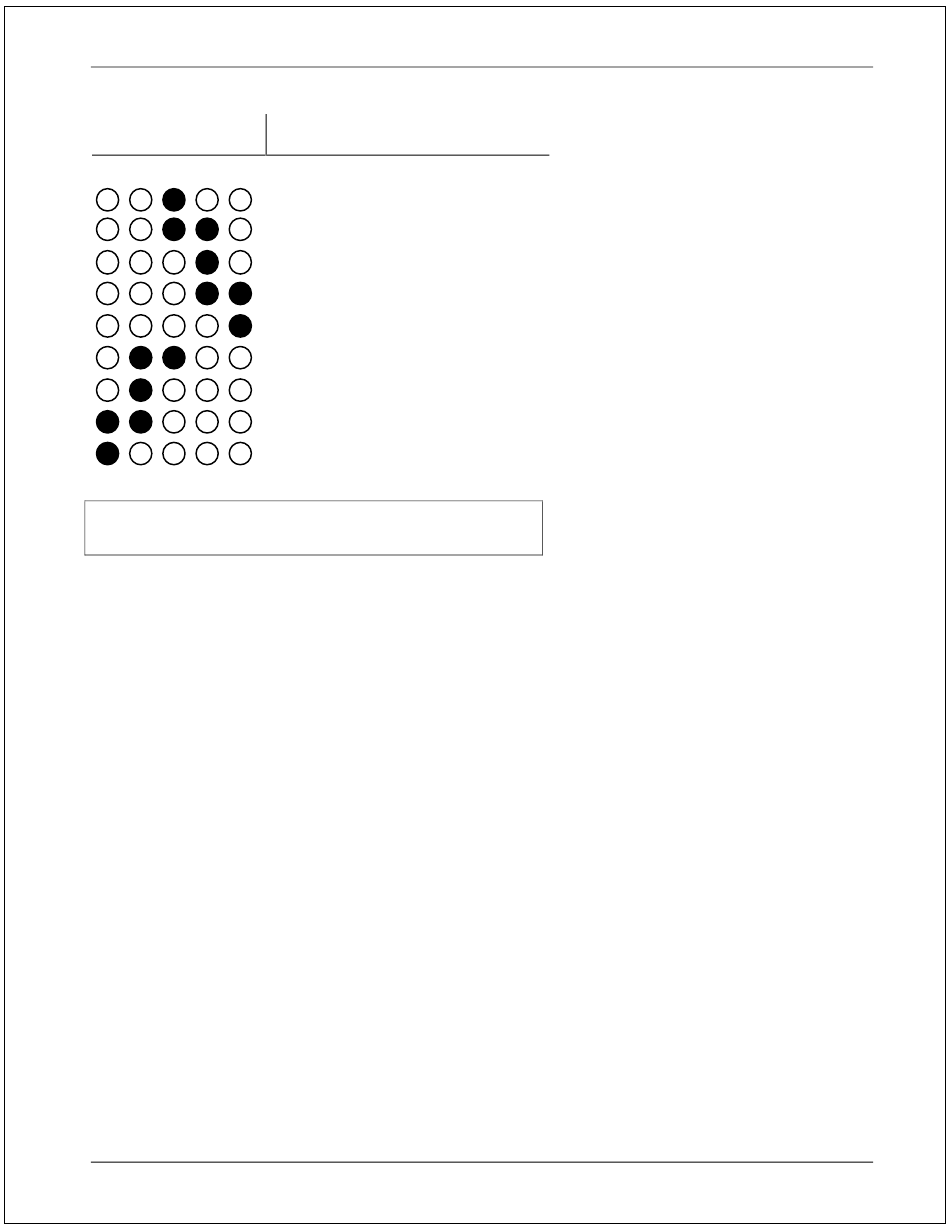

Table 8-A (LED, Bar code Width Deviations)
5 LED Display
Pattern
Within +21% to -21%
Within +22 to +49%
Within +50 to +78%
Within +79 to +99%
Out of tolerance (wide)
Within -22 to -49%
Within -50 to -78%
Within -79 to -99%
Out of tolerance (narrow)
Note:
Solid indicators represent LEDs turned on and the 9
possible patterns are displayed.
RJS, Minneapolis, MN
Operator's Guide
Average Bar width deviation as a
% of tolerance
002-7858
