Speed Sensor and Cadence Sensor
Instructions
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.

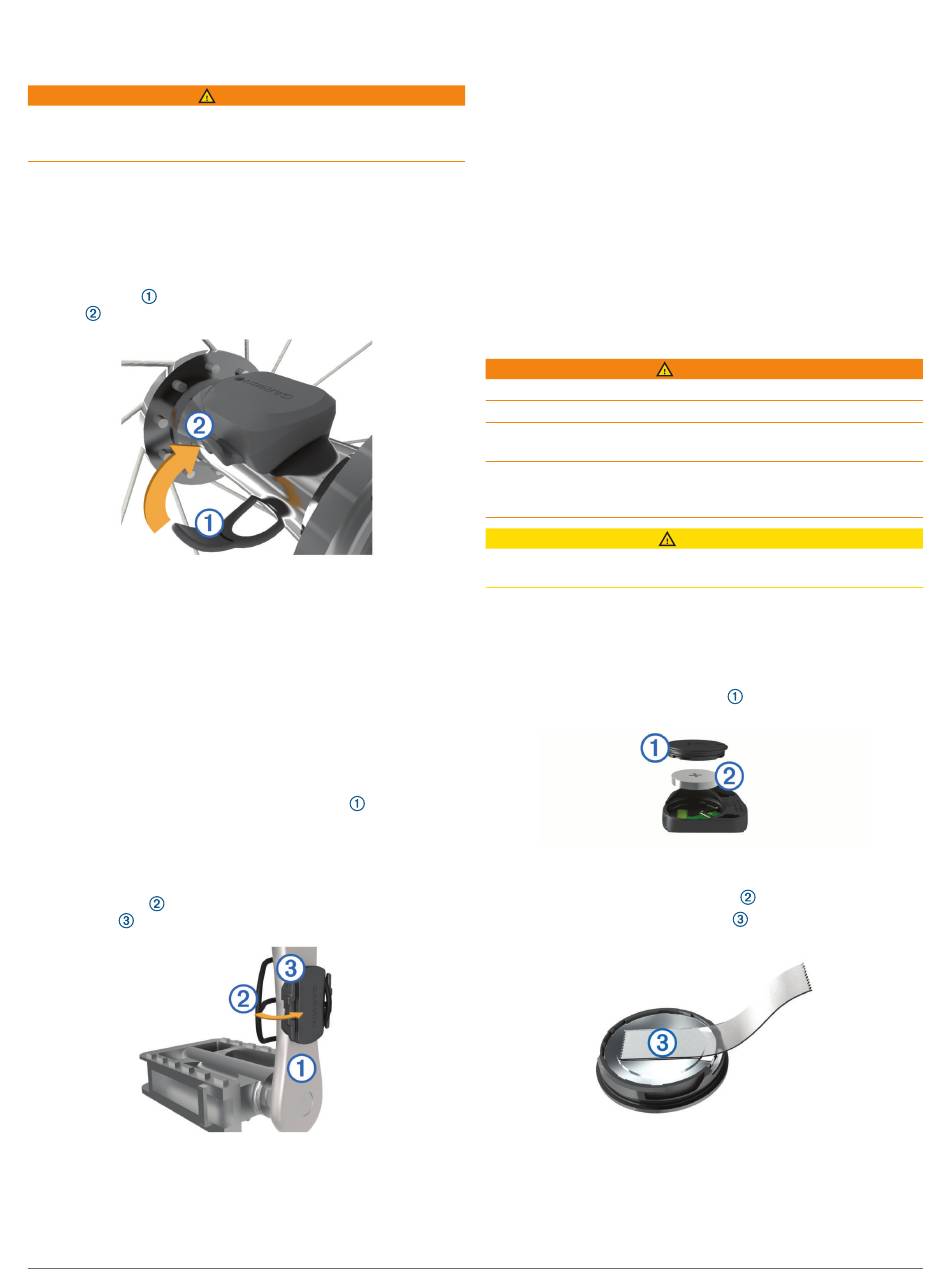

Installing the Speed Sensor
NOTE: If you do not have this sensor, you can skip this task.
TIP: Garmin recommends you secure your bike on a stand
®
while installing the sensor.
1
Place and hold the speed sensor on top of the wheel hub.
2
Pull the strap around the wheel hub, and attach it to the
hook on the sensor.
The sensor may be tilted when installed on an asymmetrical
hub. This does not affect operation.
3
Rotate the wheel to check for clearance.
The sensor should not contact other parts of your bike.
NOTE: The LED flashes green for five seconds to indicate
activity after two revolutions.
Installing the Cadence Sensor
NOTE: If you do not have this sensor, you can skip this task.
TIP: Garmin recommends you secure your bike on a stand while
installing the sensor.
1
Select the band size that fits your crank arm
The band you select should be the smallest one that
stretches across the crank arm.
2
On the non-drive side, place and hold the flat side of the
cadence sensor on the inside of the crank arm.
3
Pull the bands around the crank arm, and attach them to
the hooks on the sensor.
4
Rotate the crank arm to check for clearance.
The sensor and bands should not contact any part of your
bike or shoe.
NOTE: The LED flashes green for five seconds to indicate
activity after two revolutions.
Speed Sensor and Cadence Sensor Instructions
WARNING
securely.
5
Take a 15 minute test ride and inspect the sensor and bands
to ensure there is no evidence of damage.
Pairing the Sensors with Your Device
Pairing is the process of connecting an ANT+
like your speed sensor or cadence sensor, with a Garmin ANT+
compatible device.
NOTE: The pairing instructions differ for each Garmin
compatible device. See your owner's manual.
• Bring the Garmin compatible device within 3 m of the ANT+
sensor.
• Stay 10 m away from other ANT+ sensors while pairing.
After you pair the first time, your Garmin compatible device
automatically recognizes the ANT+ sensor each time it is
activated.
User Replaceable Batteries
Do not use a sharp object to remove batteries.
Keep the battery away from children.
Never put batteries in mouth. If swallowed, contact your
physician or local poison control center.
Replaceable coin cell batteries may contain perchlorate
material. Special handling may apply. See
/hazardouswaste/perchlorate.
Contact your local waste disposal department to properly
recycle the batteries.
Replacing the Speed Sensor or Cadence
Sensor Battery
The LED flashes red to indicate a low battery level after two
revolutions.
1
Locate the circular battery cover
sensor.
2
Twist the cover counter-clockwise until the marker points to
unlocked and the cover is loose enough to remove.
3
Remove the cover and the battery
TIP: You can use a piece of tape
the battery from the cover.
4
Wait 30 seconds.
5
Insert the new battery into the cover, observing polarity.
NOTE: Do not damage or lose the O-ring gasket.
6
Twist the cover clockwise until the marker points to locked.
NOTE: The LED flashes red and green for a few seconds
after battery replacement. When the LED flashes green and
wireless sensor,
®
WARNING
www.dtsc.ca.gov
CAUTION
on the back of the
.
or a magnet to remove
