Summary of Contents for Thermann TH32END5N

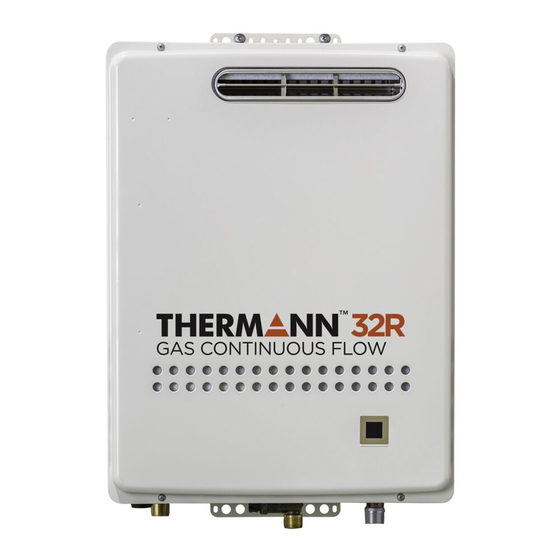

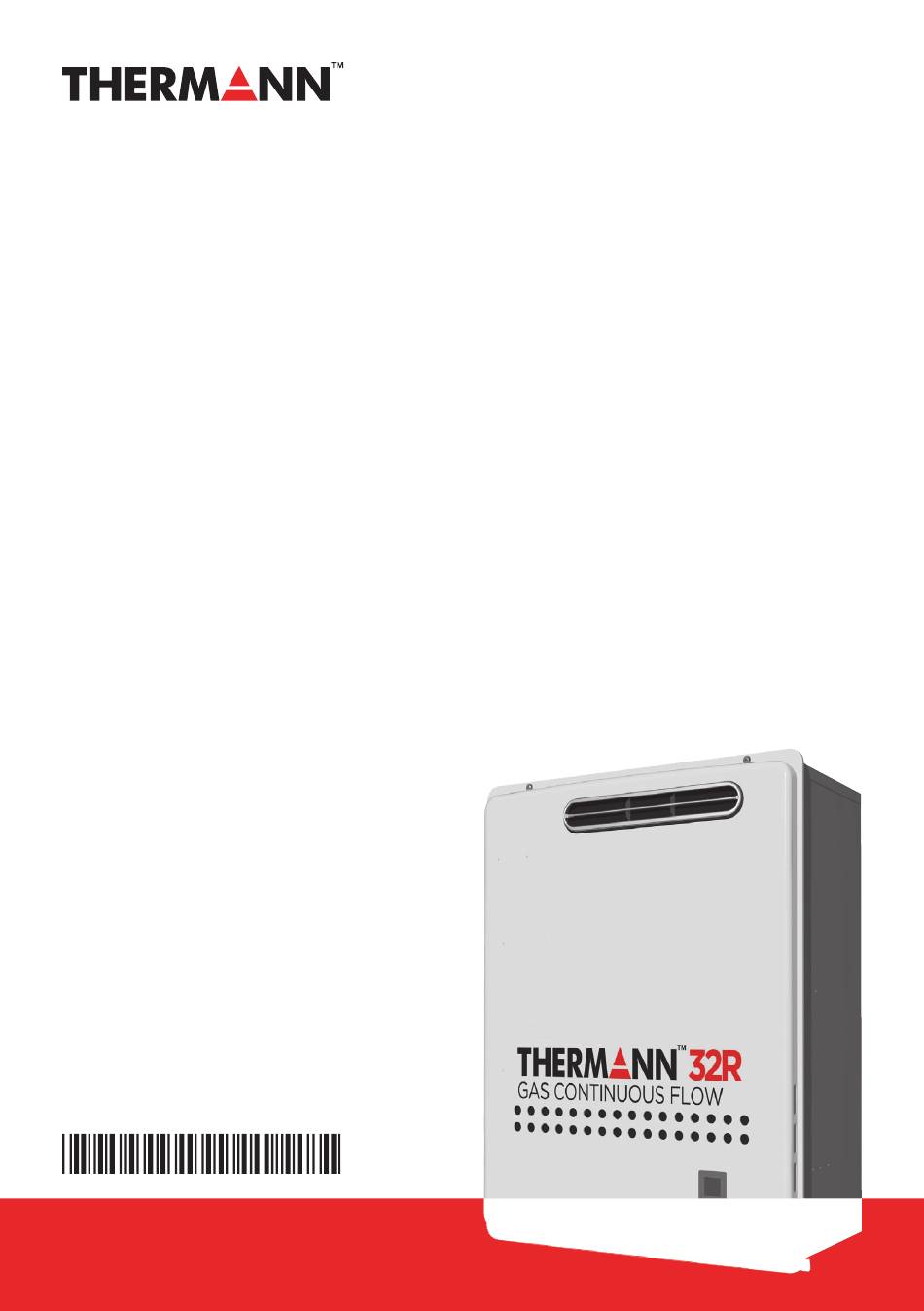

- Page 1 OWNER’S GUIDE Gas Continuous Flow Water Heaters Owner’s information Warranty Models TH32END5N TH32END5L TH32END6N TH32END6L SBB816S Rev. 05/19...
- Page 2 * Note: This appliance requires a minimum flow rate to operate of 2.4 litres/min., water fixtures with a flow rate of 7.5 litres/min. or higher are recommended. For optimum performance we recommend installation of THERMANN optional temperature controllers.
- Page 3 Important Safety Information WARNING If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. • Do not store or use petrol or other flammable vapours and liquids in the vicinity of this or any other appliance.
- Page 4 Thermann Owner’s Guide Gas Continuous Flow Water Heaters DANGER Vapours from flammable liquids will explode Keep flammable products: and catch fire causing death or severe burns. 1. Far away from the Water Heater. 2. In approved containers. Do not use or store flammable products such 3.
- Page 5 WARNING Check that the data plate. To prevent burns or scalding, turn off the Operation button and wait until the appliance cools before performing maintenance. (e.g. For Natural Gas) Do not install this Water Heater in a mobile home, recreational vehicle or on a boat as xxxxxxxx this may be a Carbon Monoxide Poisoning Hazard.
- Page 6 Thermann Owner’s Guide Gas Continuous Flow Water Heaters CAUTION Do not use a broken or modified power cord. Do not bind, bend or stretch power cords. Do not scratch, modify, or subject them Be sure to electrically earth the appliance.
- Page 7 NOTICE Preventing damage from freezing (See page • Damage can occur from frozen water within Power must be switched on at all times for the appliance and pipes even in warm antifrost protection to work. environments. Be sure to read below for If it is snowing, check the air inlet, exhaust appropriate measures.
-
Page 8: Table Of Contents
Thermann Owner’s Guide Gas Continuous Flow Water Heaters CONTENTS Important Safety Information CONTENTS General Initial Operation Frost Protection Regular Maintenance Troubleshooting Follow-up Service Specifications Maintenance Manufacturer’s Warranty... - Page 9 General 1. Flue Exhaust 2. Front Cover 3. Air Inlet 4. Inlet water filter Inside Water Inlet (See page 14) 5. Hot Water Pipe 6. Water Supply Valve 7. Gas Supply Valve 8. External Weatherproof Power Point 9. Status Display Indicate the status of Water Heater or error codes.
-
Page 10: Initial Operation
Thermann Owner’s Guide Gas Continuous Flow Water Heaters Initial Operation Before start using for the first time, do the following: 1. Open the water supply valve. 2. Open a hot water fixture to confirm that water is available, and then close the fixture again. -
Page 11: Frost Protection
Frost Protection Take the measures below for NOTICE extremely cold temperatures*. * Outside temperature including wind chill factor • Damage can occur from frozen water within less than -15°C. the appliance and pipes even in warm environments. Be sure to read below for appropriate measures. - Page 12 Thermann Owner’s Guide Gas Continuous Flow Water Heaters 5. Open all drain plugs and drain the water out of If the water heater will not be used for the unit. a long period of time, drain the water. 6. When the water is completely drained, replace all drain plugs and close the hot water fixtures.
-
Page 13: Regular Maintenance
Regular Maintenance Periodic Inspection Check : A For dust and soot in the flue exhaust. Check : B This Water Heater should be serviced by an authorised person at regular intervals not exceeding • For abnormal sounds during operation. 2 years. •... - Page 14 Thermann Owner’s Guide Gas Continuous Flow Water Heaters Inlet water filter If the inlet water filter is covered with debris, the hot water may not run smoothly, or the Water Heater may put out cold water. Check and clean the filter as explained below.
-
Page 15: Troubleshooting
Troubleshooting Initial Operation Water takes time to become hot when turning the hot water fixture. The Water Heater does not attempt to ignite • Have you allowed enough time for the cold when water is running. water in the pipes to drain out? •... - Page 16 Thermann Owner’s Guide Gas Continuous Flow Water Heaters The amount of hot water in the bath is less/more The hot water is turbid. than the set amount. • This is harmless. Small bubbles appear as the air • When hot water is used for other fixtures while in the water is heated and depressurized rapidly filling the bath, the bath will not fill as much.
- Page 17 Check for an Error Code Error Code : (On the Status Display) (On the Remote Controller) 90 When a failure occurs, information relating to the Cause : Abnormal combustion, low gas supply error flashes on the Status Display or optional pressure.
-
Page 18: Follow-Up Service
Thermann Owner’s Guide Gas Continuous Flow Water Heaters Follow-up Service Requesting Service Reinstallation First follow the instructions in the troubleshooting If you want to reinstall the appliance at a different section. (See page 15-17) location, confirm that the gas and power supply... -
Page 19: Specifications
Specifications • Specifications may be changed without prior notice. • The capacity may differ slightly, depending on the water pressure, water supply, piping conditions, and water temperature. Model Name TH32END5(6)N TH32END5(6)L Installation Outdoor, Wall mounted Type Air Supply / Exhaust Power Flue Operating Pressure 200 -1,000 kPa... -
Page 20: Maintenance
Thermann Owner’s Guide Gas Continuous Flow Water Heaters Maintenance When water hardness is high, following 3/4” Ball Valve Pressure Regulator maintenance (flushing the heat exchanger) is recommended. 3/4” Union Circulating Pump Check Valve Boiler Drain Valve 1. (For TH32END5 series) - Page 21 WATER QUALITY All Thermann water heating appliances are constructed from high quality materials and components and all are certified for compliance with relevant parts of Australian and New Zealand gas, electrical and water standards. Whilst Thermann water heaters are warranted against defects, the warranty is conditional upon correct installation and use, in accordance with detailed instructions provided with the heater.
-
Page 22: Manufacturer's Warranty
Gas Continuous Flow Water Heaters Dux Manufacturing Ltd (Dux) Manufacturer’s Warranty Thermann Continuous Flow Water Heater - Warranty Summary: Your water heater is specified with a warranty as set out in the table below. The fault must appear within the defined time period, which commences from the date of installation (or manufacturing date of the unit if proof of the date of installation is not available) in order to be covered. - Page 23 Commencement of Warranty: The warranty period commences from the date of installation of the water heater. Where proof of the date of installation is not available, the warranty period commences on the date of manufacture of the water heater. This is shown on the compliance plate on the outside of the water heater.
