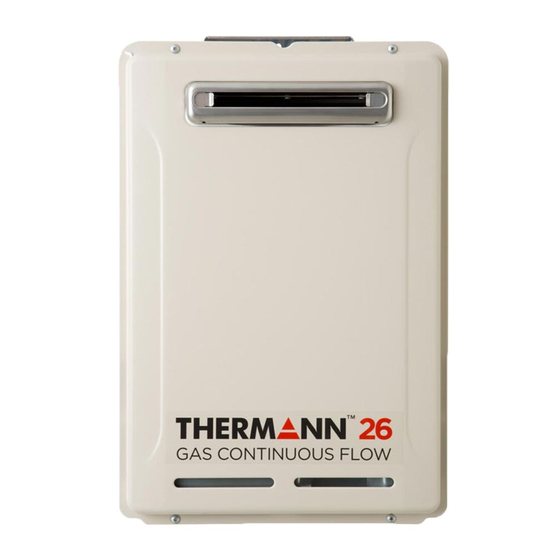

Thermann 16NG50/16LP50 Operating Instructions Manual

Thermann 16NG50/16LP50 Operating Instructions Manual

Gas continuous flow water heaters

Advertisement

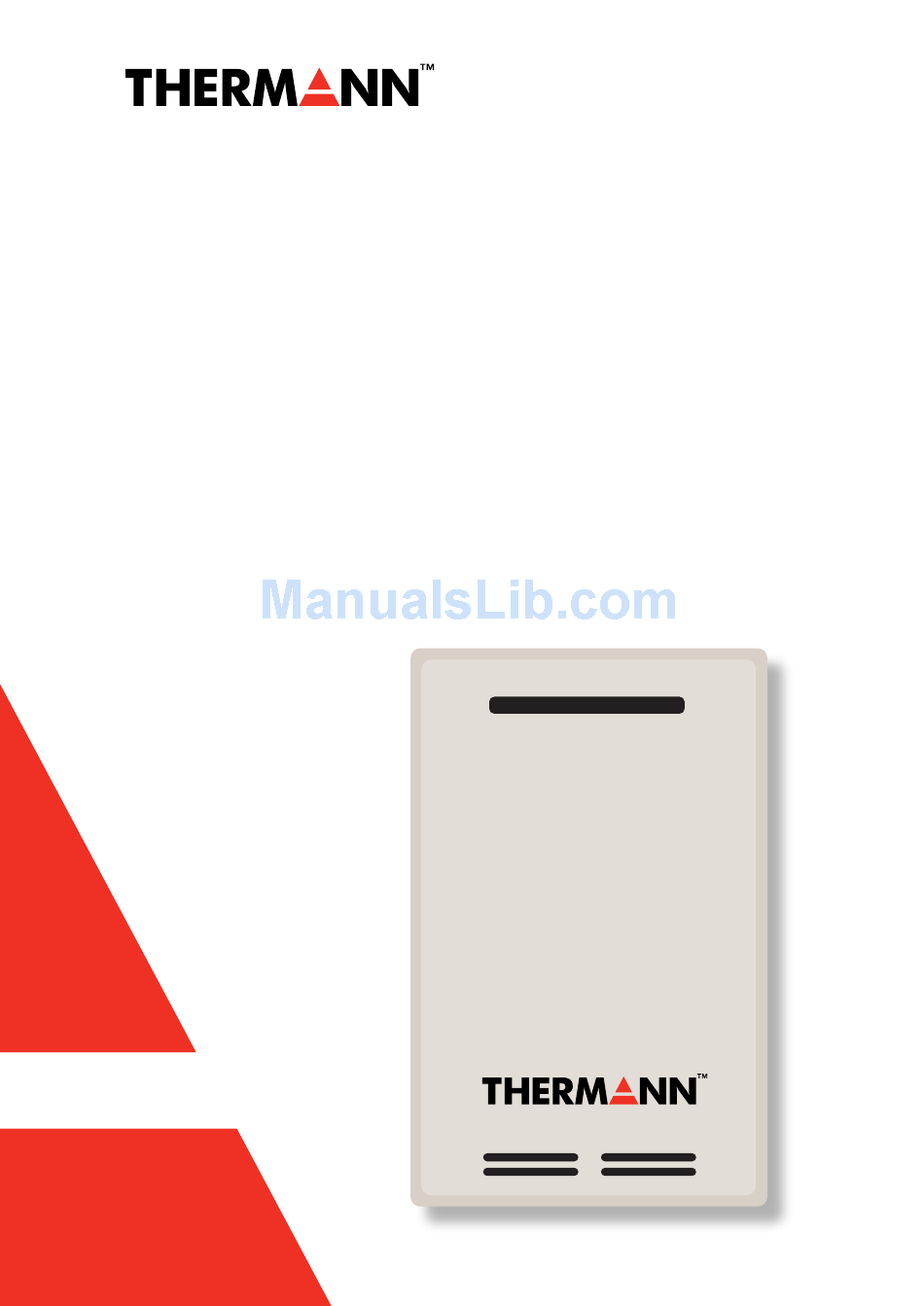

GAS CONTINUOUS FLOW
WATER HEATERS
OPERATING
INSTRUCTIONS
FOR MODELS
16NG50/16LP50, 16NG60/16LP60, 20NG50/20LP50,
20NG60/20LP60, 26NG50/26LP50, 26NG60/26LP60
GAS CONTINUOUS FLOW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 16NG50/16LP50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Thermann 16NG50/16LP50

  • Page 1 GAS CONTINUOUS FLOW WATER HEATERS OPERATING INSTRUCTIONS FOR MODELS 16NG50/16LP50, 16NG60/16LP60, 20NG50/20LP50, 20NG60/20LP60, 26NG50/26LP50, 26NG60/26LP60 GAS CONTINUOUS FLOW...
  • Page 2 OPERATING INSTRUCTIONS...
  • Page 3: Important Safety Instructions

    1800 080 055. CLOSE CLOSE CLOSE CLOSE CLOSE No Fire Prohibited 5. If a power failure occurs the remote controls will not function and the thermann unit will not supply hot water until power is restored. OPERATING INSTRUCTIONS...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS DO NOT INSTALL CLOSE TO ELECTRIC APPLIANCES If installed close to appliances such as TV or radio, it may cause picture or sound disturbance. Install away from the appliance. MEASURES TO BE TAKEN DURING ELECTRICAL STORMS Power surges caused by lightning can damage the electronic parts. Therefore, turn off the main power during electrical storms SECURE SERVICE SPACE Make sure there is enough space around the unit for...
  • Page 5: Flammable Items

    IMPORTANT SAFETY INSTRUCTIONS DO NOT INSTALL INDOORS Danger (May cause oxygen deficiency accident or incomplete combustion) This unit is designed for outdoor installation. Never install indoors. It will be extremely dangerous because it will cause oxygen deficiency and incomplete combustion. If the unit has been installed indoors turn off the gas supply and contact your plumber immediately.
  • Page 6: Electrical Connection

    Caution Caution IMPORTANT SAFETY INSTRUCTIONS MEASURES TO BE TAKEN IN CASE OF EMERGENCY The procedure to follow in an emergency such Close Close as earthquake, flood or fire is: 1. Close all hot water taps in the house. 2. Close the gas valve and the main water valve. 3.
  • Page 7: Remote Control

    REMOTE CONTROL Up to three remote controls are able to be installed with your Thermann unit for complete control of your hot water. Please note, units without remote control will be set at either 50°C or 60°C (the exception is if the unit is installed as a solar booster. Your plumber will have set the unit to 70°C)
  • Page 8 REMOTE CONTROL YST-2254 (Bathroom controller) YST-2254S (Ensuite controller) These remote controllers are intended for installation in a bathroom and ensuite. Flame Logo Indicator Indicates that a hot water faucet is open and that control of the temperature is by another controller. ON Indicator Indicates power is on to the...
  • Page 9 REMOTE CONTROL Operation of Main / Bathroom / Ensuite Controller Please read these instructions carefully before using this appliance. 1. Turn on the ON/OFF button 2. The temperature display will read 42°C. 3. The priority indicator will illuminate. 4. Select hot water temperature by pushing UP/DOWN button on the controller.
  • Page 10 REMOTE CONTROL Priority Control (Change) The temperature can only be controlled by the remote controller which has the priority indication. Priority button is only located on the bathroom / ensuite remote controllers. When the priority button is turned ON, that controller takes priority control over the temperature settings.
  • Page 11: Fault Monitor

    FAULT MONITOR When installed with remote controllers the THERMANN HOT WATER UNIT HAS A SELF DIAGNOSING FUNCTION FOR FAULTS. When the unit does not operate correctly an error code is displayed on the MAIN and BATHROOM or ENSUITE remote controls TEMPERATURE DISPLAY INDICATOR.
  • Page 12: Warranty

    WARRANTY Warranty Conditions • This warranty will apply only under all of the following conditions: • The item has been installed by a licensed plumber • Failure is due to a fault in the manufacture of the product • Proof of purchase (including the date of purchase) is provided • The installation of the product is in accordance with the instructions provided • This warranty does not cover products purchased as an ex-display...
  • Page 13 Up to 200 mg/litre or ppm Warranty Terms Thermann Gas Continuous Flow Hot Water Units are covered by Reece for any cost of labour and parts in the event of a component failure due to any defects that may arise either from workmanship and/or faulty material.
  • Page 14 OPERATING INSTRUCTIONS...
  • Page 15 OPERATING INSTRUCTIONS...
  • Page 16 Works for you. ™ 20732910...
