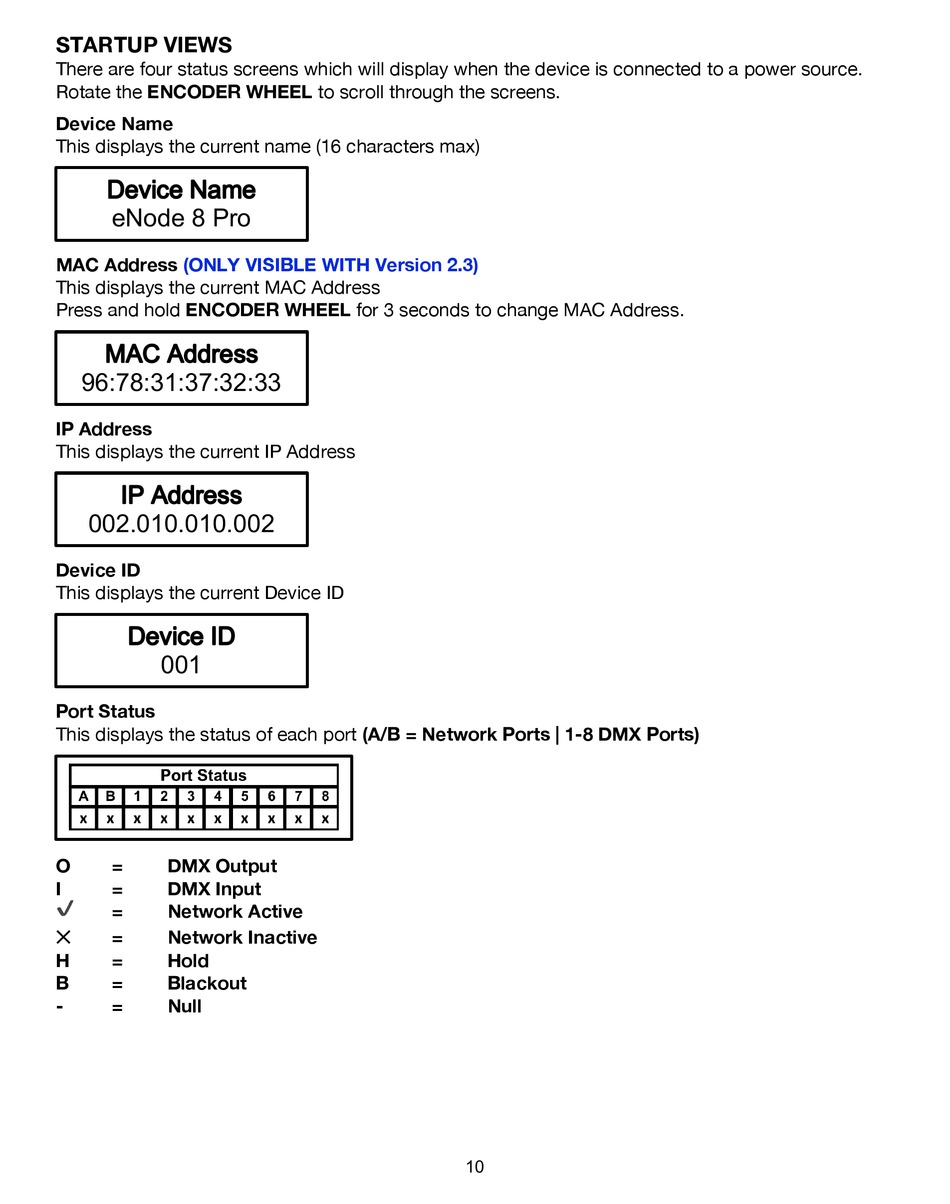

STARTUP VIEWS
There are four status screens which will display when the device is connected to a power source.
Rotate the ENCODER WHEEL to scroll through the screens.
Device Name
This displays the current name (16 characters max)
eNode 8 Pro
MAC Address
(ONLY VISIBLE WITH Version 2.3)
This displays the current MAC Address
Press and hold ENCODER WHEEL for 3 seconds to change MAC Address.
96:78:31:37:32:33
IP Address
This displays the current IP Address
002.010.010.002
Device ID
This displays the current Device ID
001
Port Status
This displays the status of each port (A/B = Network Ports | 1-8 DMX Ports)
O
=
DMX Output
I
=
DMX Input
✔
=
Network Active
✕
=
Network Inactive
H
=
Hold
B
=
Blackout
-
=
Null
10
