Weight Distribution

Each actuator has an individual maximal payload as previously mentioned. When integrating the Motion System on a
platform, D-BOX recommends balancing the center of gravity (CG) of the platform to ensure each actuator supports

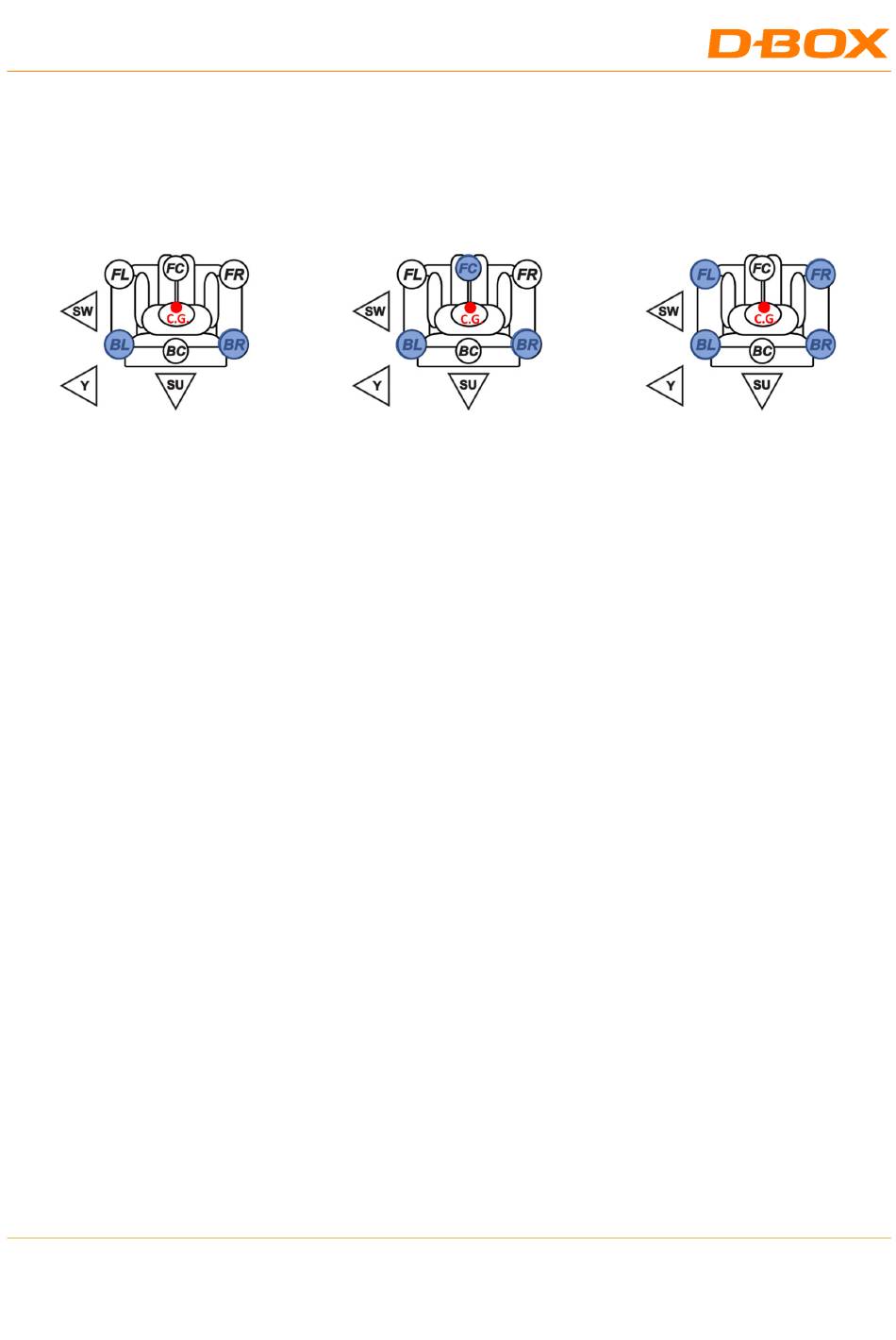

an equal load . The following figures show equal distribution of weight with 2, 3 or 4 actuators.
2 actuators 3 actuators 4 actuators
