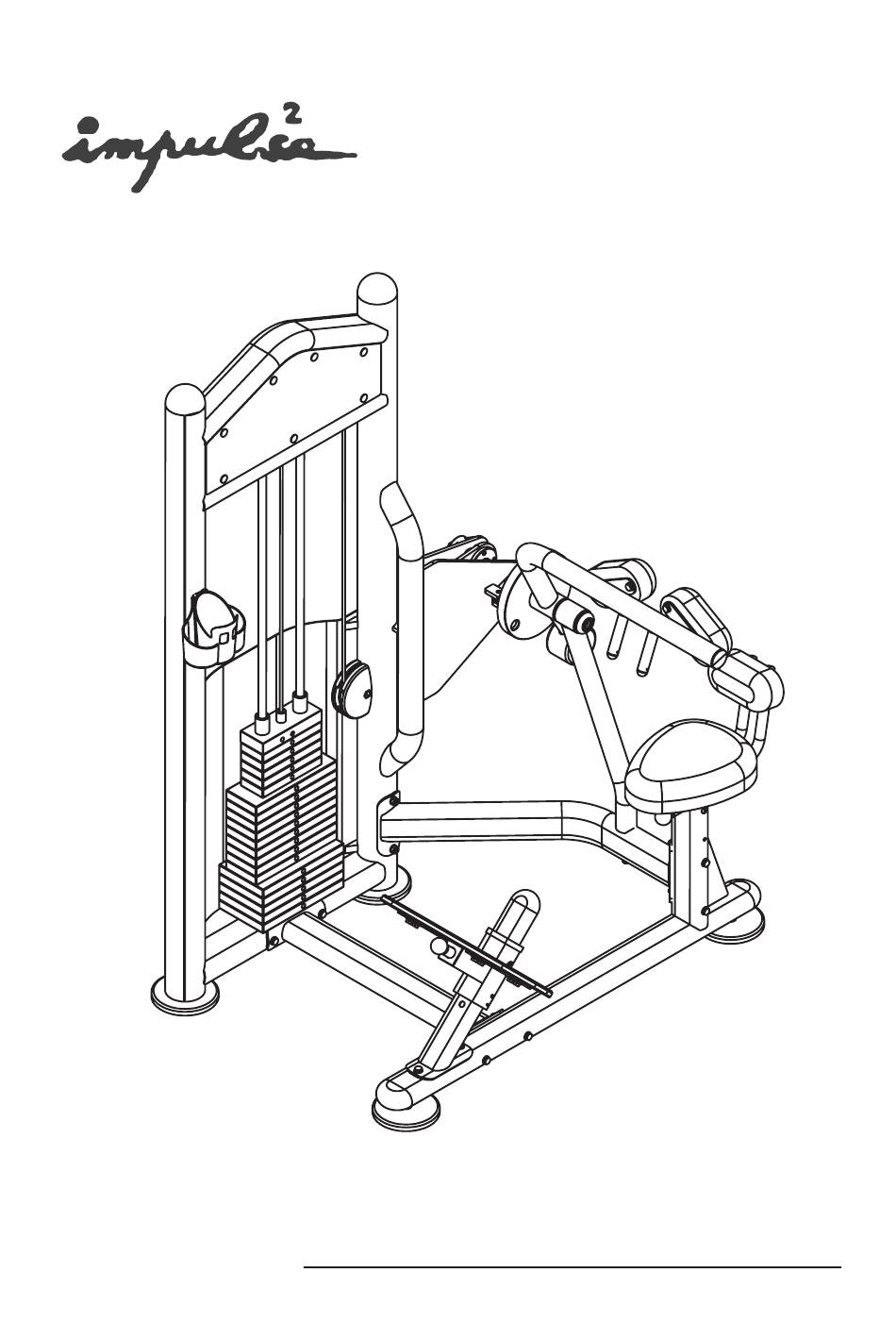

- Page 1 T8014 Assembly Instructions...
-
Page 2: Table Of Contents
Table of contents Important Safety Instructions--------------------------------- 1 Exploded View Diagram------------------------------------------ 2 Hardware List-------------------------------------------------- ------ Parts List----------------------------------------------------- ---------- Assembly instructions------------------------------------------... -
Page 3: Important Safety Instructions
Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equip- ment, basic precautions should always be taken, including the following: * Read all instructions before using the AB These instructions are wri- tten to ensure your safety and to protect the unit. -
Page 4: Exploded View Diagram
T8014 Exploded View Diagram... -
Page 5: Hardware List
Hardware List 1 10 14 0 Millimeters Inches... -
Page 6: Parts List
Parts List Item No. Description QTY Item No. Description Plug Main Upright Low Cross Rubber Cap Longer Pop Pin Cross Seat Pop Pin Seat Frame Pivot Arm Angle Support Allen Bolt M12×40 Adj.Shaft Spacer Allen Bolt M10×120 Seat Support Allen Bolt M10×115 Allen Bolt M10×75 Adj.Foot Plate Allen Bolt M10×70... -
Page 7: Assembly Instructions
Assembly instructions Assembly of the takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recom mended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. - Page 8 Step1 Install the Adj. Foot Plates Align the Adj. Foot Plates(#9) to the Main Upright(#1), the Seat Frame(#4) then secure them by hands .
- Page 9 Step2 Assemble The Frame 1)Attach the Cross (#3) and the Low Cross (#2)to the Main Upright(#1)using: Four Allen Bolts(#56) M10×115 Four Nylon Locknuts(#71) M10 Eight Washers(#68) 11× 20×2 Φ Φ Four Nylon Locknuts(#71) M10 2)Attach the Seat Frame(#4) to the Low Cross (#2)and the Cross (#3) and secure it using: Four Allen Bolts(#55) M10×120 Eight Washers(#68)
- Page 10 Step3 Assemble The Slide Frame 1)Attach the Guide Tude(#28) to the Seat Frame(#4) and secure it using: Two Allen Bolts(#58) M10×70 Four Washers(#68) Φ 11× 20×2 Φ Two Nylon Locknuts(#71) M10 2) Make it sure that the Slide Frame(#29) slides over the Guide Tube(#28) smoothly, and lock it into place by the Longer Pop Pin(#51),then secure it using: One Shoulder Bolt(#82) M8 20...
- Page 11 Step4 Assemble Pedals Attach the Pedal(#30) to the Slide Frame(#29) using: Eight Allen Bolts(#87) M8×20 Eight Washers(#69) Φ 9× 22×2 Φ Eight Spring Washers(#73) Φ...
- Page 12 Step5 Assemble The Pivot Arm 1)Attach the Pillow Block(#15) to the Main Upright(#1) using: Two Allen Bolts(#54) M12×40 Four Washers(#67) Φ 13× 26×1.5 Φ Two Nylon Locknuts(#70) M12 2)The Adj. Shaft (#6) and the Pivot Arm (#5) have been pre-Assembled. 3)Insert Adj.
- Page 13 Step6 Assemble The Cam Insert the Adj. Shaft(#6) through the Main Upright(#1), the Spacer (#13) and the Cam (#10) as shown below, and secure the Cam(#10) to the Adj. Shaft (#6) using: One Key (#88)
- Page 14 Step7 Assemble The Pillow Block 1)Insert the Spacer(#14) onto the Adj. Shaft (#6) as sh- own below. 2)Attach the Pillow Block(#15) to the Main Upright(#1) using: Two Allen Bolts(#54) M12×40 Two Nylon Locknuts(#70) M12 Four Washers(#67) Φ 13× 26×1.5 Φ 3)Secure the Adj.
- Page 15 Step8 Assemble The Angle Support 1)Attach the Angle Support (#53) to the Adj. Shaft (#6) using: One Allen Bolt(#63) M10×25 ne Washers(#68) Φ 11× 20×2 Φ ne Spring Washers(#72) Φ ne Out-end Cap(#37) ne Spacer(#7) 2)Align the Angle Support(#53) to the Low Cross(#2), secure it using ne Allen Bolt(#92) M12×120 ne Spring Washer(#91)
- Page 16 Step9 Assemble The Weight Plates 1)Insert both the Guide Rods(#23) into the Main Upright (#1). 2)Slide the Weight Rubber Bumper(#32)down onto each Guide Rod(#23). as shown below. 3)Carefully begin sliding the Weight Plate one by one in sequence:#33,#34,#35,#44. 4)Align both top ends of the Guide Rods(#23) to the Main Upright(#1) and secure them using: Two Allen Bolts(#57) M10×45 wo Washers(#68)
- Page 17 Step10 Route The Cable 1)Put the clip tied on the weight pin leash onto the Top Plate(#44) as shown, next connect the Cable(#45) to the Top Plate(#44). 2)Route the Cable(#45) up and over the two Pulleies A (#22).then secure them to the Main Upright(#1) using Two Allen Bolts(#60) M10×45 Four Washers(#68) Φ...
- Page 18 Step11 Assemble The Decal Plates 1)Attach the two Decal Plates(#20,21) to the Main Upr ight(#1) using Fourteen Butttons(#43) 2)Attach the Weight Shroud (#24)to the Main Upright (#1) using our Bolt Covers(#66) our Plastic Washers(#65) our Chamfer Bolts(#64) The Front Decal Plate(#20) with the exercise instru ctions printed on it should be attached in the front Note of the Main Upright(#1).
- Page 19 Step12 Assemble The Pads 1)Attach the Seat Pad(#18) and the Chest Pad(#19) to the Seat Support(#8) using our Washers(#68) Φ 11× 20×2 Φ our Allen Bolts(#61) M10×30 2)Slide the Seat Support(#8) into the Seat Frame(#4) , lock it into place with the Seat Pop Pin(#52) and the Shoulder Bolt(#82) .
