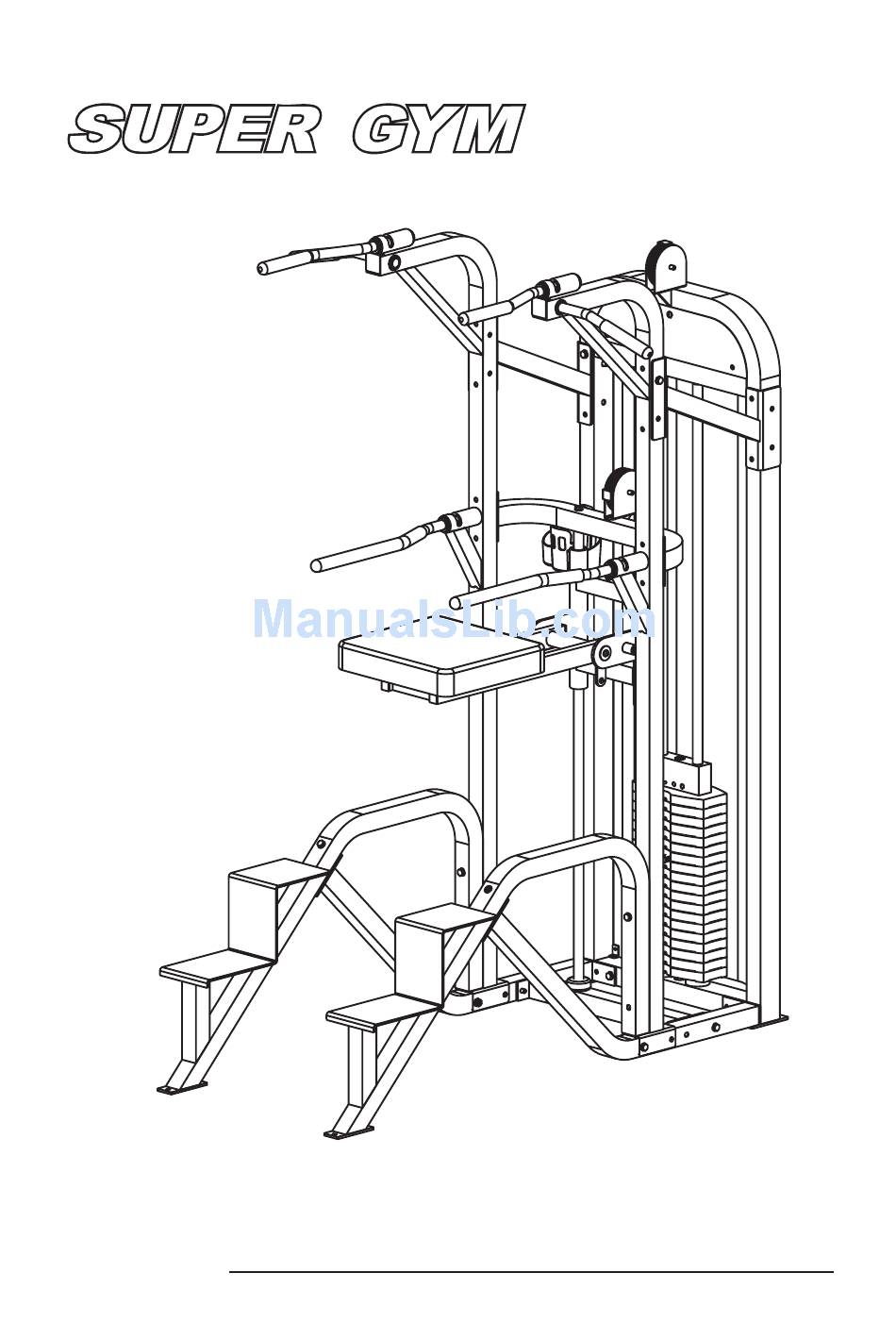

BM FITNESS SG8020MT Assembly Instructions Manual

Super gym. assist chin/dip combo
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SG8020MT Wt. Assist Chin/Dip Combo
Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG8020MT and is the answer not in the manual?

Questions and answers

Related Manuals for BM FITNESS SG8020MT

Summary of Contents for BM FITNESS SG8020MT

  • Page 1 SG8020MT Wt. Assist Chin/Dip Combo Assembly Instructions...
  • Page 2 Table of contents Important Safety Instructions-------------------------------------------------------- 1 Exploded View Diagram---------------------------------------------------------------- 2 Hardware List----------------------------------------------------------------------------- 3 Parts List----------------------------------------------------------------------------------- 5 Assembly instructions----------------------------------------------------------------- 6...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equipment, basic precautions should always be taken, including the following: * Read all instructions before using the Wt. Assist Chin/Dip Combo. These instructions are written to ensure your safety and to protect the unit.

  • Page 4: Exploded View Diagram

    Wt. Assist Chin/Dip Combo Exploded View Diagram...

  • Page 5: Hardware List

    Hardware List Millimeters Inches...
  • Page 6 Hardware List Millimeters Inches...
  • Page 7 Parts List Item No. Description QTY Item No. Description Main Upright Rubber Plug Left Link Frame Weight Stack Bumper Right Link Frame Plug 50*50 Standing Frame Plug 25*50 Curve Cross Frame Long Grip Cross Frame Grip Left Upper Frame Bottle Holder Right Upper Frame Allen Bolt M10*115 Sliding Frame...

  • Page 8: Assembly Instructions

    Assembly Instructions Assembly of the Wt. Assist Chin/Dip Combo takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recommended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.

  • Page 9: Left Link Frame(

    Step 1 Install The Sub-support Components 1. Attach Left Link Frame(#2)and Right Link Frame(#3)to Main Upright(#1) using: four Allen Bolts(#41)M10*90 four Nylon Locknuts(#52)M10 eight dishing Washers(#50) 2. Attach Cross Frame(#6)to Left Link Frame(#2)and Right Link Frame(#3) using: four Allen Bolts(#43)M10*70 four Nylon Locknuts(#52)M10 eight Washers(#50)

  • Page 10: Right Link Frame 1

    Step 2 Install Standing Frame and Foot Support Frame 1. Attach two Standing Frames (#4) to Left Link Frame(#2)and Right Link Frame(#3)using: four Allen Bolts(#42)M10*75 four Nylon Locknuts(#52)M10 eight Washers(#50) 2. Attach Left Upper Frame(#7)to Standing Frames(#4)and Main Upright(#1). Attach Right Upper Frame(#8) to Standing Frames(#4) and Main Upright (#1)using: four Allen Bolts(#41)M10*90 twelwe Allen Bolts(#43)M10*70...

  • Page 11: Standing Frame 2

    Step 3 Install Curve Cross Frame, Sliding Frame and Seat Frame 1. Attach Curve Cross Frame(#5)to two Standing Frames(#4)using: four Allen Bolts(#43)M10*70 four Nylon Locknuts(#52)M10 eight Washers(#50) 2. Insert two Guide Rods(for Seat Frame) (#14)into Cross Frame(#6).Slide two Weight Stack Bumper (#34)and Sliding Frame (#9)down onto each Guide Rod(for Seat Frame) (#14), Align the both ends of Guide Rod(for Seat Frame) (#14) to the Curve Cross Frame(#5)and secure them using: two Allen Bolts (#43) M10*70...
  • Page 12 Step 4 Install Handle 1. Insert two Long Handles(#12)and two Handles(#13)into two Standing Frames(#4)and connect them using: four Should Bolt (#49)M10*10 2. Insert Left Handle(#16)and Right Handle(#17)into two Standing Frames (#4)and connect them using: four Should Bolt (#49)M10*10 Insert two Plugs 50*50(#35)into two Standing Frames(#4).

  • Page 13: Cros Frame(

    Step 5 Assemble Weight Stack and Route The Cable 1. Put Rubber Plug (#33) in the end of the Guide Rod (#18) then Insert both the Guide Rods(#18) into the Main Upright(#1). 2. Slide Weight Stack Bumper (#34) down onto each the Guide Rod(#18). 3.
  • Page 14 For Step 5...

  • Page 15: Upper Shroud 2

    Step 6 Assemble Shroud 1. Attach two Upper Shroud (#19) to Main Upright (#1) using: six Allen Bolts (#48) M8*15 six Washers (#51) φ8 2. Attach Weight Shroud (#20) to Main Upright (#1) using: four Allen Bolts(#48) M8*15 four Washers (#51)φ8 3.
