I

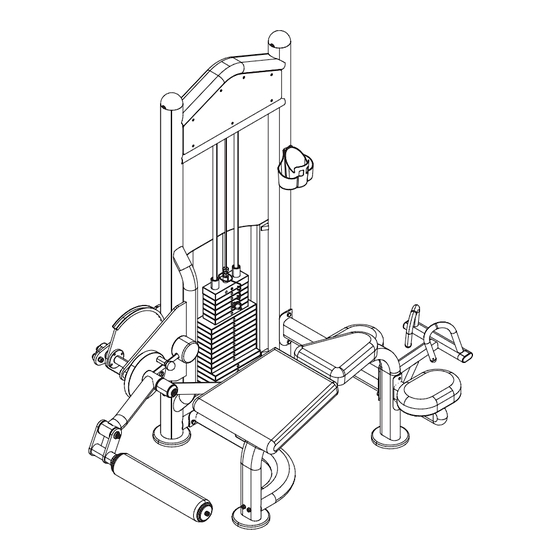

T8006 Leg Curl
Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMPULSE 2 and is the answer not in the manual?

Questions and answers

Related Manuals for BM FITNESS IMPULSE 2

Summary of Contents for BM FITNESS IMPULSE 2

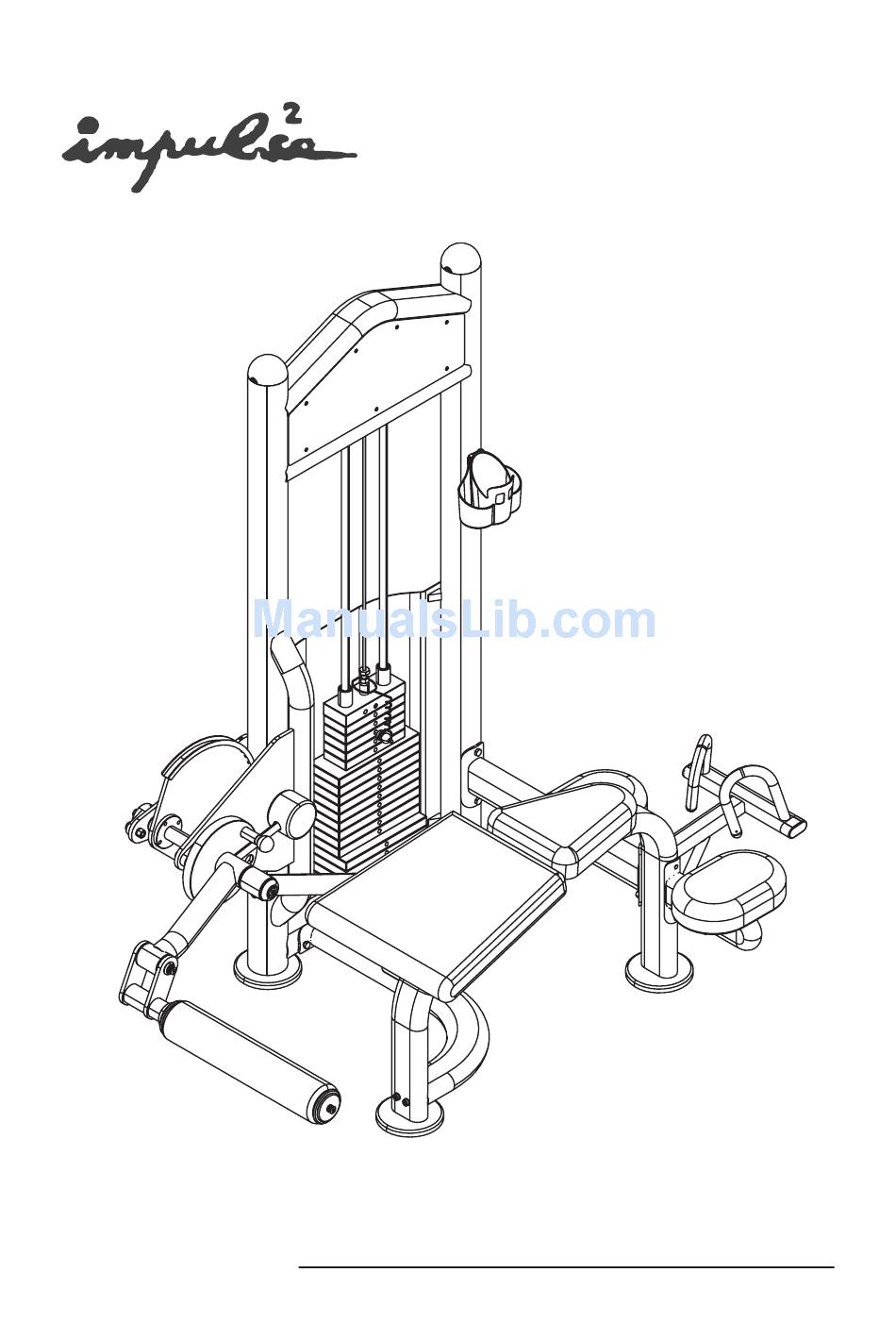

  • Page 1 T8006 Leg Curl Assembly Instructions...

  • Page 2: Table Of Contents

    Table of contents Important Safety Instructions--------------------------------- 1 Exploded View Diagram------------------------------------------ 2 Hardware List-------------------------------------------------- ------ Parts List----------------------------------------------------- ---------- Assembly instructions------------------------------------------...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equip- ment, basic precautions should always be taken, including the following: * Read all instructions before using the Leg Curl These instructions are written to ensure your safety and to protect the unit.

  • Page 4: Exploded View Diagram

    IT8006 Leg Curl Exploded View Diagram...

  • Page 5: Hardware List

    Hardware List 1 10 14 0 Millimeters Inches...

  • Page 6: Parts List

    Parts List Item No. Description QTY Item No. Description Main Upright Long Pin ide Upright Top Plate Low Cross Grip Upper Cross Weight Pin Pad Support Cable ngle Support Button Pivot Arm Half-pulley Cover Adj. Shaft Weight Rubber Bumper Swing Tube Rubber Cap Breast Pad Plastic Washer...

  • Page 7: Assembly Instructions

    Assembly instructions Assembly of the Leg Curl Raise takes professional install about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recom mended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone.
  • Page 8 Step1 Install The Adj.Foot Plates Align the Adj.Foot Plates(#14) to the Main Upright(#1) and the Side Upright(#2), then secure the mbyhands.
  • Page 9 Step2 Assemble The Frame 1)Attach the Low Cross (#5) and the Upper Cross (#4) to the Main Upright (#1) using: four Allen Bolts (#61) M10 115 × four Nylon Locknuts (#76) M10 eight Washers (#74) Φ 11× 20×1.5 Φ 2)Align the Side Upright(#2) to the Low Cross (#3) the Upper Cross...
  • Page 10 Step3 Assemble The Weight Plates 1)Insert both the Guide Rods(#27) into the Main Upright (#1). 2)Slide the Weight Rubber Bumper(#54) down onto each the Guide Rod(#27). 3)Carefully begin sliding the Weight Plate one by one in sequence:#44,#45,#43,#48. 4)Align both top ends of the Guide Rods(#27) to the Main Upright(#1) and secure them using: two Allen Bolts(#62) M10×75 two Washers(#74)
  • Page 11 Step4 Assemble the Adj.Shaf t and Cam 1)Attach the Pillow Block(#15) to the Main Upright(#1) using: Two Allen Bolts(#59) M12 40 × Four Washers(#73) 13 Φ × Φ 26 1.5 × Two Nylon Locknuts(#75) M12 Two Spacer(#92) 2)Insert the Adj.Shaft(#8) through the Pillow Block(#15), The Main Upright(#1),the Long Spacer(#20),and the Cam (#13),next,secure the Cam(#13) to the Adj.Shaft (#8) use the Key(#22).

  • Page 12: Spacer Washer 1

    Step5 Assemble the Pivot Arm and Angle Support 1)Insert the Spacer Washer(#16),the Pivot Arm(#7),the SePerated Spacer(#58) onto the Adj.Shaft(#8) in seq- uence. 2)Attach the Angle Support (#6) to the Adj. Shaft (#8) using: One Shaft End(#24) One Washer(#74) Φ 11× 20×1.5 Φ...

  • Page 13: Bearing Washer 2

    Step6 Assemble The Swing Tube 1)Attach the Swing Tube(#9) to the Pivot Arm(#7) using: One Short Shaft(#46) Two Bearing Washers(#18) Two Washers(#23) Φ × Φ 10.5 2 × Two Washers(#74) Φ 11× 20×1.5 Φ Two Spring Washers(#77) Φ Two Allen Bolts(#67) M10 25 ×...

  • Page 14: Washer(

    Step7 Route The Cable 1)Put the clip tied on the weight pin leash onto the Top Plate(#48) as shown, next connect the Cable(#51) to the Top Plate(#48). 2)Route the Cable(#51)up and over the two Pulleies(#28), then secure them to the Main Upright(#1) using: Two Allen Bolts(#64) M10 45 ×...

  • Page 15: Weight Shroud 1

    Step8 Assemble The Decal Plates 1)Attach the two Decal Plates(#30,#31)to the Main Up- right(#1) using: Fourteen Buttons(#52) 2)Attach the Weight Shroud(#29)to the Main Upright(#1) using: Four Bolt Covers(#57) Four Plastic Washers(#56) Four screws(#71) M5 10 × 3)Attach the two Leg Pads(#90),the Chest Pad(#10),the Seat Pad(#32) To the Side Upright(#2)using: Ten Allen Bolts(#66) M10 30 ×...
