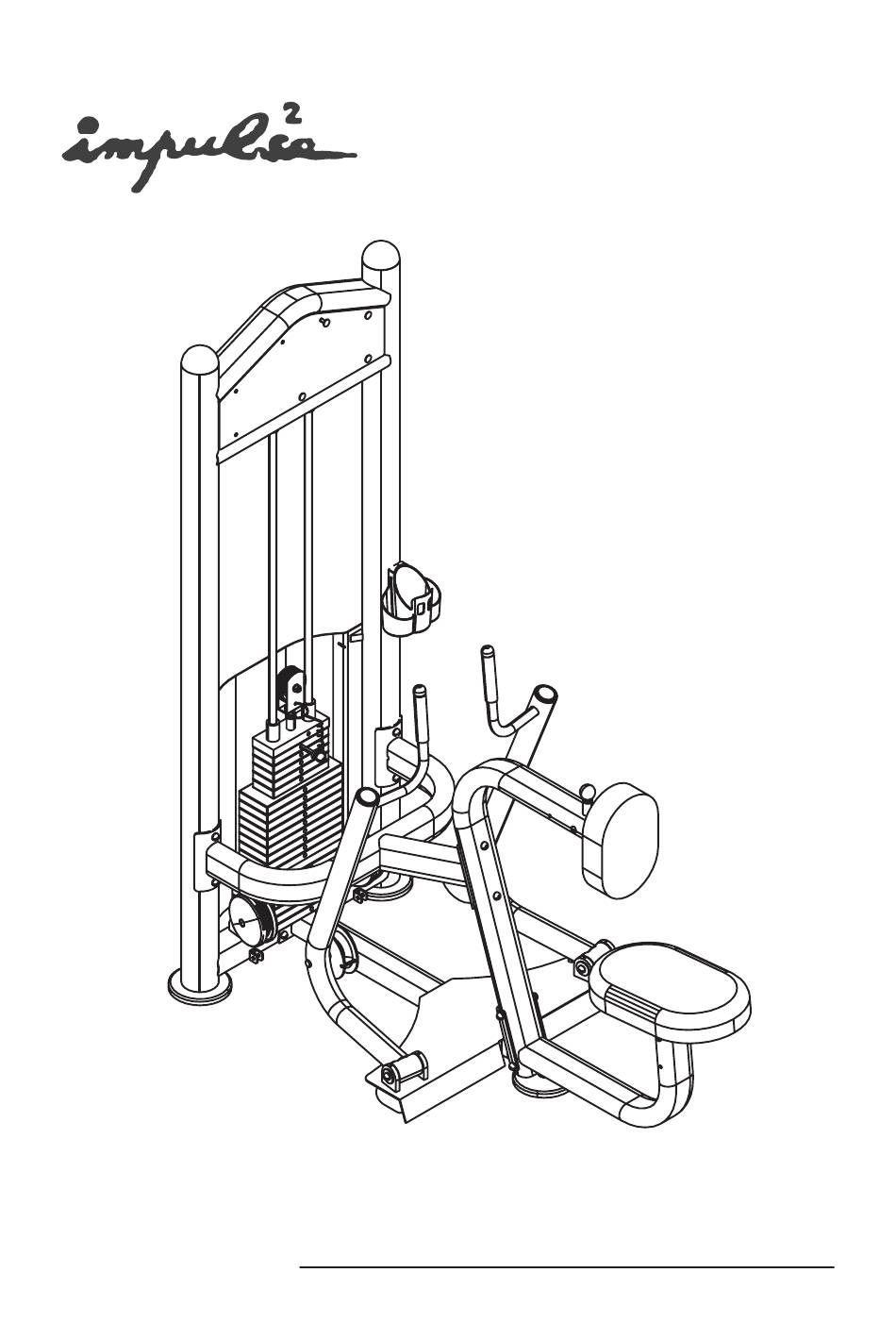

- Page 1 IT8019 Row Assembly Instructions...
-
Page 2: Table Of Contents
Table of contents Important Safety Instructions--------------------------------- 1 Exploded View Diagram------------------------------------------ 2 Hardware List-------------------------------------------------- ------ Parts List----------------------------------------------------- ---------- Assembly instructions------------------------------------------... -
Page 3: Important Safety Instructions
Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equip- ment, basic precautions should always be taken, including the following: * Read all instructions before using the Row These instructions are written to ensure your safety and to protect the unit. -
Page 4: Exploded View Diagram
I 8019 Row Exploded View Diagram... -
Page 5: Hardware List
Hardware List 1 10 14 0 Millimeters Inches... - Page 6 Hardware List 1 10 14 0 Millimeters Inches...
-
Page 7: Parts List
Parts List Item No. Description QTY Item No. Description Allen BoltM10×25 Main Upright Shoulder Bolt M10×55 Base Main Support houlder Bolt M8×20 Seat Frame ScrewM5×10 Guide Rod Spring Washer Φ Pad Support Washer 10× 23×2 Φ Φ Left Arm Nylon Locknut M10 Right Arm Shoulder Bolt M10×50 Adj. -
Page 8: Assembly Instructions
Assembly instructions Assembly of the takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recom men ded to asse- mble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. - Page 9 Step1 Install The Adj. Foot Plates Align the Adj. Foot Plates(#9) to the Main Upright(#1) and the Seat Frame (#4),then secure them by hands.
- Page 10 Step2 Assemble The Frame 1)Attach the Base(#2) to the Main Upright(#1) using: two Allen Bolts(#37) M10×115 four Washers(#46) 11× 23×2 Φ Φ two Nylon Locknuts(#47) M10 2)Attach the Main Support(#3) to the Main Upright(#1) using: four Allen Bolts(#37) M10×115 four Nylon Locknuts(#47) M10 eight Washers(#46) 11×...
- Page 11 Step3 Assemble The Arms 1)Attach the Left Arm(#7) to the Base(#2) using two Allen Bolts( 41) M10×25 two Spring Washers( 45) Φ two Bushings(#13) two Allen bolts(#62) one Shaft(#12) 2)Attach the Right Arm(#8) to the Base(#2) using two Allen Bolts( 41) M10×25 two Spring Washers( 45) Φ...
- Page 12 Step4 Assemble The Weight Plates 1)Insert both the Guide Rods(#5) into the Main Upright (#1). 2)Slide the Weight Rubber Bumper(#49) down onto each the Guide Rod(#5). 3)Carefully begin sliding the Weight Plate one by one in sequence:#20,#19,#18,#17 4)Align both top ends of the Guide Rods(#5) to the Main Upright(#1) and secure them using two Allen Bolts(#60) M10×75 two Washers(#46)
- Page 13 Step5 Route The Cable 1)Connect one end of the Cable(#50) to the Gimbal(#66) then secure the Gimbal(#66) to the Main Upright(#1) using one Allen Bolt(#63) M8×35 one Nylon Locknut(#65) M8 two Washers(#64) Φ 9× 22×1.6 Φ 2)Route the Cable (#50) over the Wide Pulley A (#59) , next, secure them to the Right Arm(#8) using one Allen Bolt(#41) M10×25 one Spring Washer(#45)
- Page 14 10)Connect the looped end of the Cable (#50) to the Gimbal(#66) then secure Gimbal(#66) to the Mian Up- right(#1) using one Allen Bolt(#63) M8×35 one Nylon Locknut(#65) M8 two Washers(#64) Φ 9× 22×1.6 Φ 11)Adjust the tension of the Cable(#50) using the Jam Nut.
- Page 15 Step6 Assemble The Decal Plates 1)Attach the two Decal Plates(#34, 35) to the Main Up right(#1) using fourteen Butttons(#31) 2)Attach the Weight Shroud (#29)to the Main Upright(#1) using four Bolt Covers(#55) Φ 21×5.7 four Plastic Washers(#54) Φ 13×3 four Screws(#44) M5×10 The Front Decal Plate(#35) with the exercise instru- ctions printed on it should be attached in the front Note...
- Page 16 Step7 Assemble The Pads 1)Attach the Seat Pad(#11) to the Pad Support(#6) using two Washers(#46) Φ 11× 23×2 Φ two Allen Bolts(# ) M10×30 2)Attach the Chest Pad(#10) to the Pad Support(#6) using two Washers(#46) Φ 11× 23×2 Φ two Allen Bolts(#40) M10×30 3)Slide the Pad Support (#6) with the Seat Pad (#11) into the Seat frame(#4),and secure it into place with...
