Summary of Contents for BM FITNESS IMPULSE 2 IT8026 Glute Master

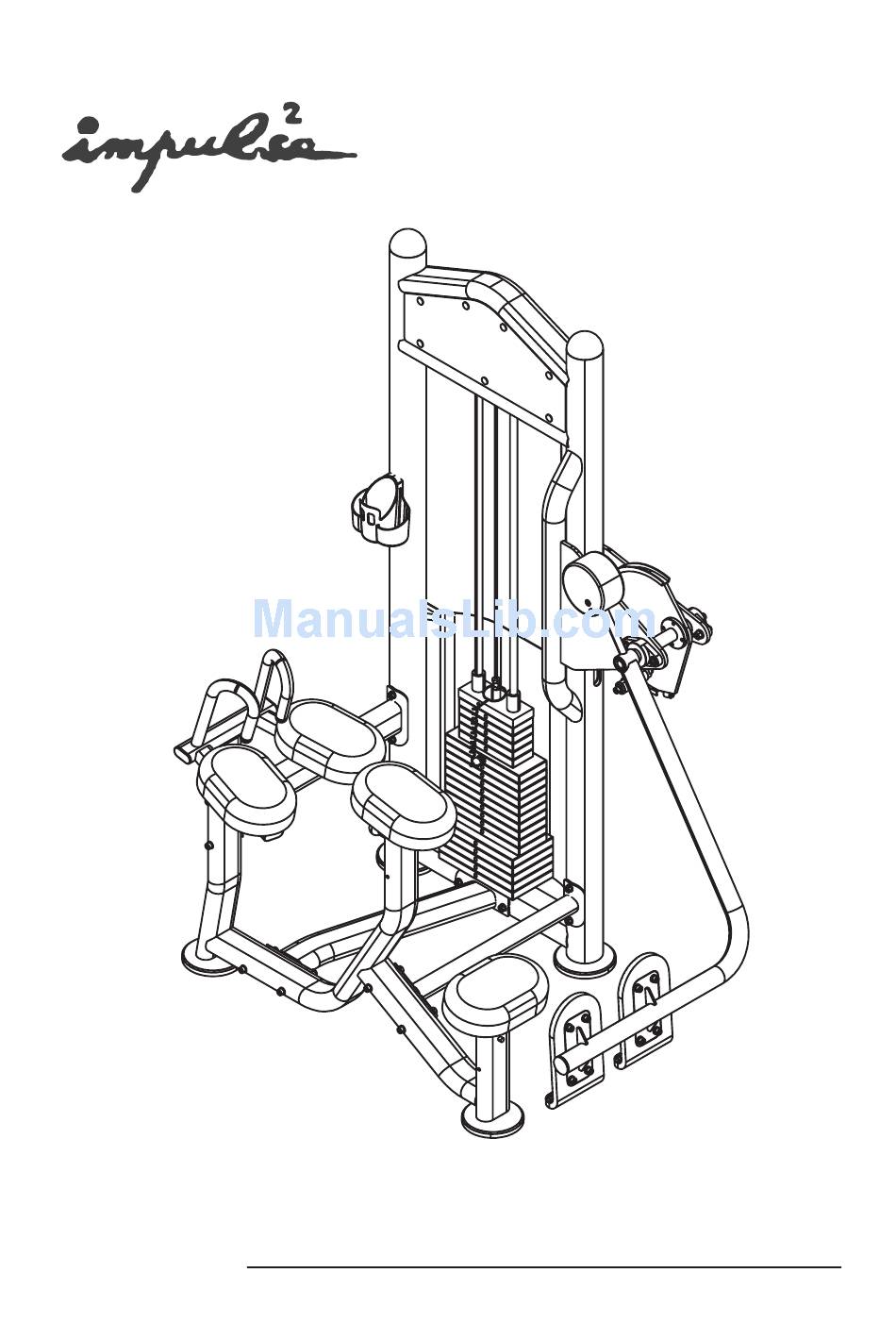

- Page 1 T8026 Glute Master Assembly Instructions...
-
Page 2: Table Of Contents
Table of contents Important Safety Instructions--------------------------------- 1 Exploded View Diagram------------------------------------------ 2 Hardware List-------------------------------------------------- ------ Parts List----------------------------------------------------- ---------- Assembly instructions------------------------------------------... -
Page 3: Important Safety Instructions
Important Safety Instructions Before beginning any fitness program, you should obtain a complete physical examination from your physician. When using exercise equip- ment, basic precautions should always be taken, including the following: * Read all instructions before using the Glute Master These instructions are written to ensure your safety and to protect the unit. -
Page 4: Exploded View Diagram
T8026 Glute Master Exploded View Diagram... -
Page 5: Hardware List
Hardware List 1 10 14 0 Millimeters Inches... -
Page 6: Parts List
Parts List Item No. Description QTY Item No. Description Main Upright 4.5"Pulley Cover Main Support Aluminium Plug Handle Slip Tension Pin Chest Pad Support Knee Pad Support Allen bolt M12×40 Low Cross Brace Allen boltM10×120 Upper Cross Brace Allen boltM10×115 Allen boltM10×75 Allen boltM10×55 Counter Poise Block... -
Page 7: Assembly Instructions
Assembly instructions Assembly of the Glute Master takes professional installers about 2 hours. If this is the first time you have assembled this type of equipment, plan to spend more time. It is strongly recom mended to assemble the equipment by professional installers. You may find it quicker, safer, easier to assemble this equipment with the help of a friend, as some of components may be large, heavy or awkward to handle alone. - Page 8 Step1 Install The Adj. Foot Plates Align the Adj. Foot Plates(#17) to the Main Upright(#1) and the Main Support(#2),then secure them by hands.
-
Page 9: Low Cros Brace(
Step2 Assemble The Frame 1)Attach the Upper Cross Brace(#7) and the Low Cross Brace(#6) Back Cross Brace(#83) to the Main Upright (#1) using: six Allen Bolts(#50) M10×115 six Nylon Locknuts(#66) M10 twelve Washers(#63) Φ 11× 20×2 Φ 2)Attach the Main Support(#2) to the Upper Cross Brace (#7) and the low Cross Brace(#6) Back Cross Brace (#83) using: six Allen Bolts(#49) M10×120... - Page 10 Step3 Assemble The Weight Plates 1)Insert both Guide Rods(#22) into the Main Upright(#1). 2)Slide the Weight Rubber Bumper(#32) down onto each Guide Rod(#22). 3)Carefully begin sliding the Weight Plate one by one in sequence:#36,#35,#34,#33 4)Align both top ends of the Guide Rods(#22) to the Main Upright(#1) and secure them using: two Allen Bolts(#51) M10×75 two Washers(#63)
- Page 11 Step4 Assemble The Pillow Block Attach the Pillow Block(#18) to the Main Upright(#1) using: two Allen Bolts(#48) M12×40 four Washers(#62) 13× 24×1.5 Φ Φ two Nylon Locknuts(#65) M12...
- Page 12 Step5 Assemble The Leg Insert the Leg(#9) through the Spacer Washer(#80) and the Pillow Block(#18) and into the Main Upright(#1) as shown .
- Page 13 Step6 Assemble The Cam Insert the Leg(#9) through the Main Upright(#1),the Sp- acer(#13) and the Cam(#10),next secure the Cam(#10) to the Leg(#9) using the Key (#47).
-
Page 14: Short Spacer 1
Step7 Assemble The Pillow Block 1)Insert the Short Spacer(#14) onto the Leg(#9) as sh- own below. 2)Attach the Pillow Block(#18) to the Main Upright(#1) using: two Allen Bolt(#48) M12×40 two Nylon Locknuts(#65) M12 four Washers(#62) Φ 13× 24×1.5 Φ 3)Secure the Leg(#9) to the Pillow Block(#18) using: one Allen Bolt(#55) M10×25 one Spring Washer(#67) Φ... -
Page 15: Foot Plate
Step8 Assemble The Poise Block and the Foot Plates 1)Attach the Counter Poise Block(#11) to the Leg(#9) using: two Shoulder Bolts(#58) M8×25 two Spring Washers(#68) Φ 2)Attach the two Foot Plates(#15) to the Leg(#9) using: eight Allen Bolts(#56) M8×15 eight Spring Washers(#68) Φ... - Page 16 Step9 Assemble the Pads 1)Attach two Pads(#19) to the Handle(#3) using: four Allen Bolts(#52) M10×55 four Washers(#63) Φ 11× 20×2 Φ 2)Secure the handle(#3) to the Main Support(#2) using two Allen Bolts(#55) M10×25 four Washers(#63) Φ 11× 20×2 Φ four Spring Washer Φ...
-
Page 17: Cable
Step10 Route The Cable 1)Put the clip tied on the weight pin leash onto the Top Plate(#33) as shown, next connect the Cable(#21) to the Top Plate(#33). 2)Route the Cable(#21) up and over the two Pulleies A (#27).then secure them to the Main Upright(#1) using two Allen Bolts(#53) M10×45 four Washers(#63) Φ... -
Page 18: Front Decal Plate 1
Step11 Assemble The Decal Plates 1)Attach the two Decal Plates(#24,#79) to the Main Up- right(#1) using: fourteen Butttons(#41) 2)Attach the Weight Shroud (#25) to the Main Upright (#1) using: four Bolt Covers(#43) four Plastic Washers(#42) four Chamfer Bolts(#60) M5×10 3)Attach the Plastic Cap(#81) to the Main Upright(#1) using: two Screws(#82) M6×15 The Front Decal Plate(#24) with the exercise instr...
