TRACER
POCKETESTER
TM
pH
CODE 1741

Advertisement

Table of Contents
loading

Related Manuals for LaMotte TRACER pH PockeTester 1741

Summary of Contents for LaMotte TRACER pH PockeTester 1741

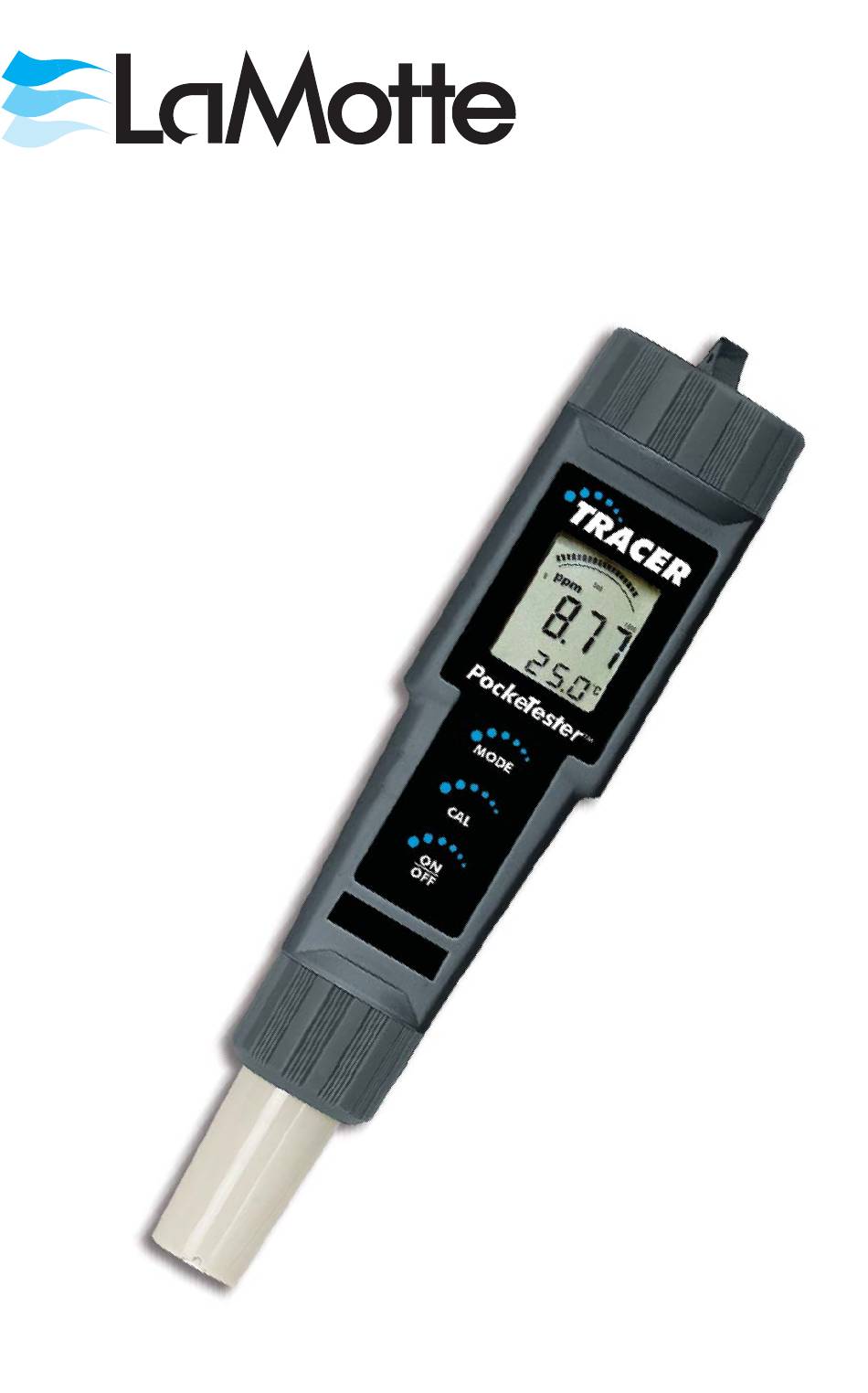

  • Page 1 TRACER POCKETESTER CODE 1741...
  • Page 2 WARNING! This set contains chemicals that may be harmful if misused. Read cautions on individual containers carefully. Not to be used by children except under adult supervision...

  • Page 3: Table Of Contents

    TRACER pH POCKETESTER CODE 1741 TABLE OF CONTENTS Introduction ......4 Specifications .

  • Page 4: Introduction

    INTRODUCTION Congratulations on your purchase of the TRACER pH PockeTester. The TRACER is a revolutionary, first of its kind measurement device that offers direct reading of pH from 0.01 to 14.00 pH. The advantages of the TRACER to the user include ease of use and maintenance, high accuracy, automatic calibration, and fast response.

  • Page 5: Contents

    CONTENTS pH TRACER PockeTester Kit, 0.00-14.00 pH Range Code 1741 Includes: Sample Cup w/cap Tablet Crusher Code 0175 Buffer Tablets, pH 4.0, 7.0, & 10.0 *Not sold in this quantity. See below. PARTS & ACCESSORIES pH Replacement Electrode Code 1733 Weighted Stand w/Sample Cups (5) Code 1746 Sample Cups w/caps (24)

  • Page 6: Meter Description Front Panel Description

    METER DESCRIPTION Front Panel Description 1. Battery compartment cap 2. LCD Display 3. MODE/HOLD button 4. CAL/RECALL button 5. ON/OFF button 6. Electrode Collar 7. Electrode (Note: The Electrode cap is not shown) TRACER Display 1. Bar graph reading 2. Measurement reading 3.

  • Page 7: Basic Operation Powering The Tracer

    BASIC OPERATION Powering the TRACER If the batteries are weak, the indicator will appear on the display. Press the ON/OFF button to turn the TRACER on or off. The auto power off feature will shut the TRACER off automatically after 10 minutes of inactivity.

  • Page 8: Renew

    RENEW A flashing “RENEW” warning indicates that the probe may be nearing the end of its useful life. If cleaning or recalibration does not cause the Renew icon to disappear, replace the electrode (see optional accessories). The Renew display appears when the output of the pH electrode fails a diagnostic test.

  • Page 9: Getting Started

    Add one buffer tablet: pH 4.0 Code 3983A pH 7.0 Code 3984A pH 10.0 Code 3985A 3. Use the tablet crusher (0175) to crush the tablet. Stir until the tablet has disintegrated. NOTE: Buffers should be prepared fresh daily. pH Calibration The TRACER can be calibrated at 1, 2 or 3 points.

  • Page 10: Ph Measurement

    pH Measurement 1. Place the electrode in the test sample. 2. Record the pH after the reading becomes stable and the display stops flashing. The main display will indicate the pH in numeric units from 0.00 to 14.00. The bar graph will also display the pH value. The center of the bar graph is 7.00.

  • Page 11: Maintenance Storage

    mode is accidentally accessed (display flashing), press the CAL/RECALL button again to exit. 2. The last stored reading taken will be displayed first. To advance through the stored readings, press the MODE/HOLD button. The location number is displayed first, followed by the reading stored in that location.

  • Page 12: Replacing The Electrode

    Replacing the Electrode The TRACER is shipped with an electrode attached. Electrode life is limited and is dependant on the frequency of use and care, among other factors. If the electrode needs to be replaced, follow these steps for removing and connecting electrodes. 1.

  • Page 13: Troubleshooting

    Troubleshooting Problem Cause Action Power on but Batteries Insert batteries no display Batteries Verify correct polarity Batteries Replace batteries Unstable Electrode Immerse electrode more deeply in sample readings Electrode Condition electrode before first use Electrode Remove air bubbles caught under electrode Electrode Clean electrode...

  • Page 14: Expand Your Tracer

    Expand Your TRACER Interchangeable electrodes are available to convert the pH TRACER to a Total Chlorine TRACER or an ORP TRACER. Remember to ask for instructions and appropriate reagents or buffer tablets when ordering the Total Chlorine or ORP electrodes. Total Chlorine TRACER Electrode, 0.0-10.0 ppm Code 1732 The Total Chlorine TRACER Electrode (Code 1732)

  • Page 15: Warranty

    Warranty LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 1 year from the date of shipment and this probe to be free of defects in parts and workmanship for 6 months from the date of shipment.
  • Page 16 LaMOTTE COMPANY Helping People Solve Analytical Challenges ® PO Box 329 • Chestertown • Maryland • 21620 • USA 800-344-3100 • 410-778-3100 (Outside U.S.A.) • Fax 410-778-6394 Visit us on the web at www.lamotte.com 1741-MN 4.09...
