Summary of Contents for LaMotte ORP PockeTester Tracer

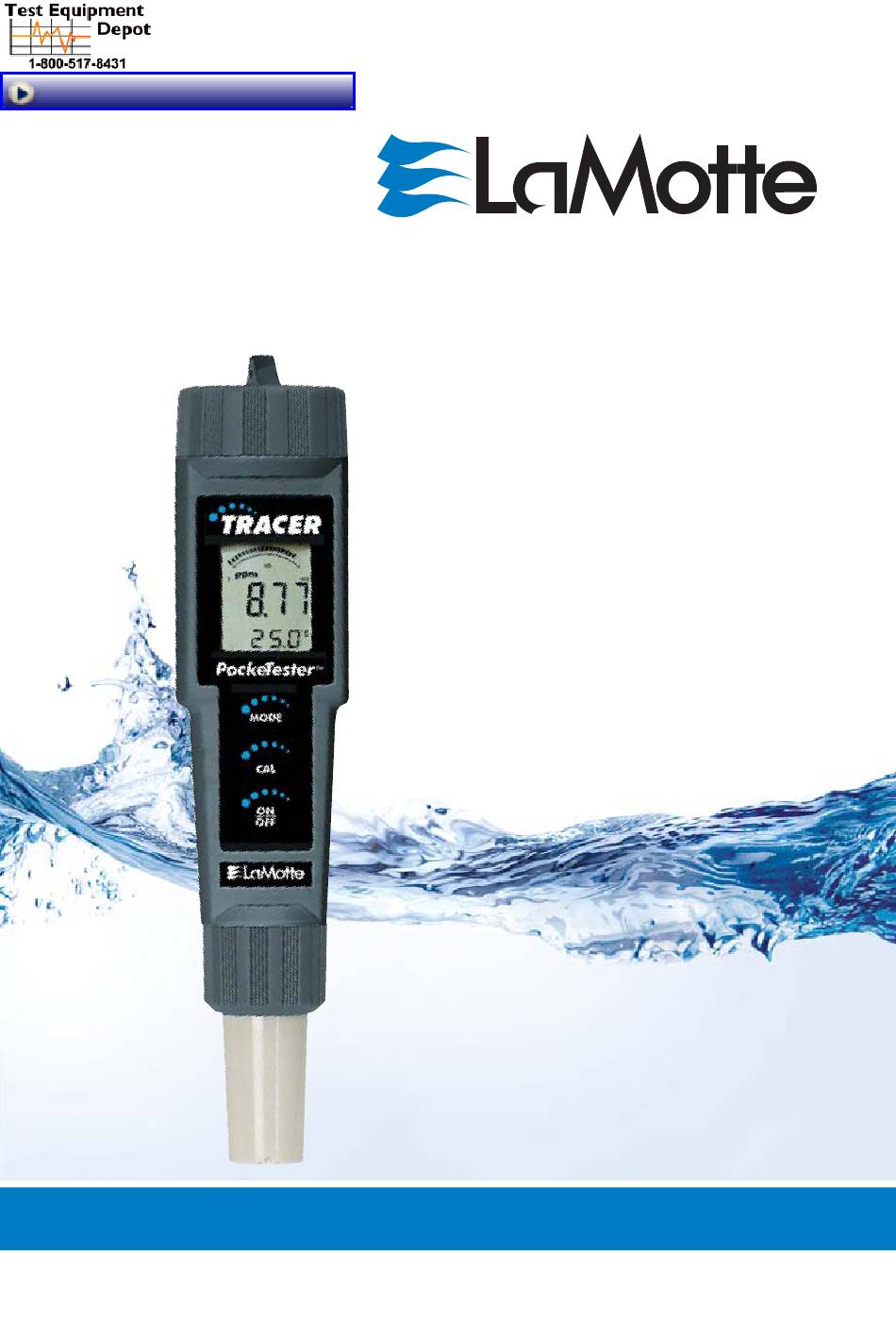

  • Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Tracer ORP PockeTester Code 1742 Water Testing Leader Since 1919!
  • Page 2: Table Of Contents

    TRACER ORP POCKETESTER • CODE 1742 Introduction ..................4 Specifi cations ................4 Contents ..................5 Parts & Accessories ..............6 Meter Description Front Panel Description ............5 TRACER Display ................ 5 Basic Operation Powering the TRACER ............... 6 Electrode Recognition ............... 6 Automatic Calibration ..............6 Data Hold ...................
  • Page 3: Introduction

    INTRODUCTION Congratulations on your purchase of the TRACER ORP PockeTester. The advantages of the TRACER to the user include: Easy to use and maintain, high accuracy, automatic calibration, and fast response. The TRACER has a 15-reading memory storage. Careful use and maintenance will provide years of reliable service. SPECIFICATIONS Display Multifunction display with bar graph...
  • Page 4: Contents

    METER DESCRIPTION Front Panel Description Battery compartment cover LCD Display MODE/HOLD button CAL/RECALL button ON/OFF button Electrode Collar Electrode Sensor (Note: The Electrode storage cap is not shown) LCD Display Reading Units Bargraph Data Hold Scale 1000 Low Battery HOLD...
  • Page 5: Parts & Accessories

    BASIC OPERATION Powering the TRACER If the batteries are weak, the BAT indicator will appear on the LCD. Press the ON/OFF key to turn the TRACER on or off. The auto power off feature will shut the TRACER off automatically after 10 minutes of inactivity. Electrode Recognition When the TRACER is turned on, it will recognize the type of electrode that is connected and will display the appropriate unit of measure.
  • Page 6: Orp Measurement

    ORP Measurement Press the ON/OFF button to turn the meter on. Place the electrode ½” to 1” into the test sample . Stir once and let the reading stabilize for 1 to 3 minutes. The main display will indicate the ORP in numeric units from 0 to 1000mV. The bar graph will also display the ORP value.
  • Page 7: Maintenance Storage

    MAINTENANCE Storage To preserve electrode life keep the sponge in the protective cap soaked with tap water. Dot not use deionized or distilled water.Cap TRACER when not in use. Store vertically. Battery Replacement Twist off the battery compartment cap. Hold the battery housing in place with one f nger. Remove the battery carrier by pulling on the small tabs.
  • Page 8: Troubleshooting

    TROUBLESHOOTING Problem Cause Action Power on but no display Batteries Insert batteries Batteries Verify correct polarity Batteries Replace batteries Unstable readings Electrode Immerse electrode more deeply in sample Electrode Condition electrode before f rst use. Soak in tap water for 10 minutes.
  • Page 9: Expand Your Tracer

    EXPAND YOUR TRACER Interchangeable electrodes are available to convert the ORP TRACER to a Total Chlorine TRACER or a pH TRACER. Remember to ask for instructions and appropriate reagent or buffer tablets when ordering Total Chlorine or pH electrodes. Total Chlorine TRACER Electrode, 0.00-10.00 ppm Code 1732 The Total Chlorine TRACER Electrode (Code 1732) requires the use of TRACER TCL Tablets.
  • Page 10: Warranty

    EXPAND YOUR TRACER LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 1 year from the date of shipment and this probe be free of defects in parts and workmanship for 6 months from the date of shipment. The...
