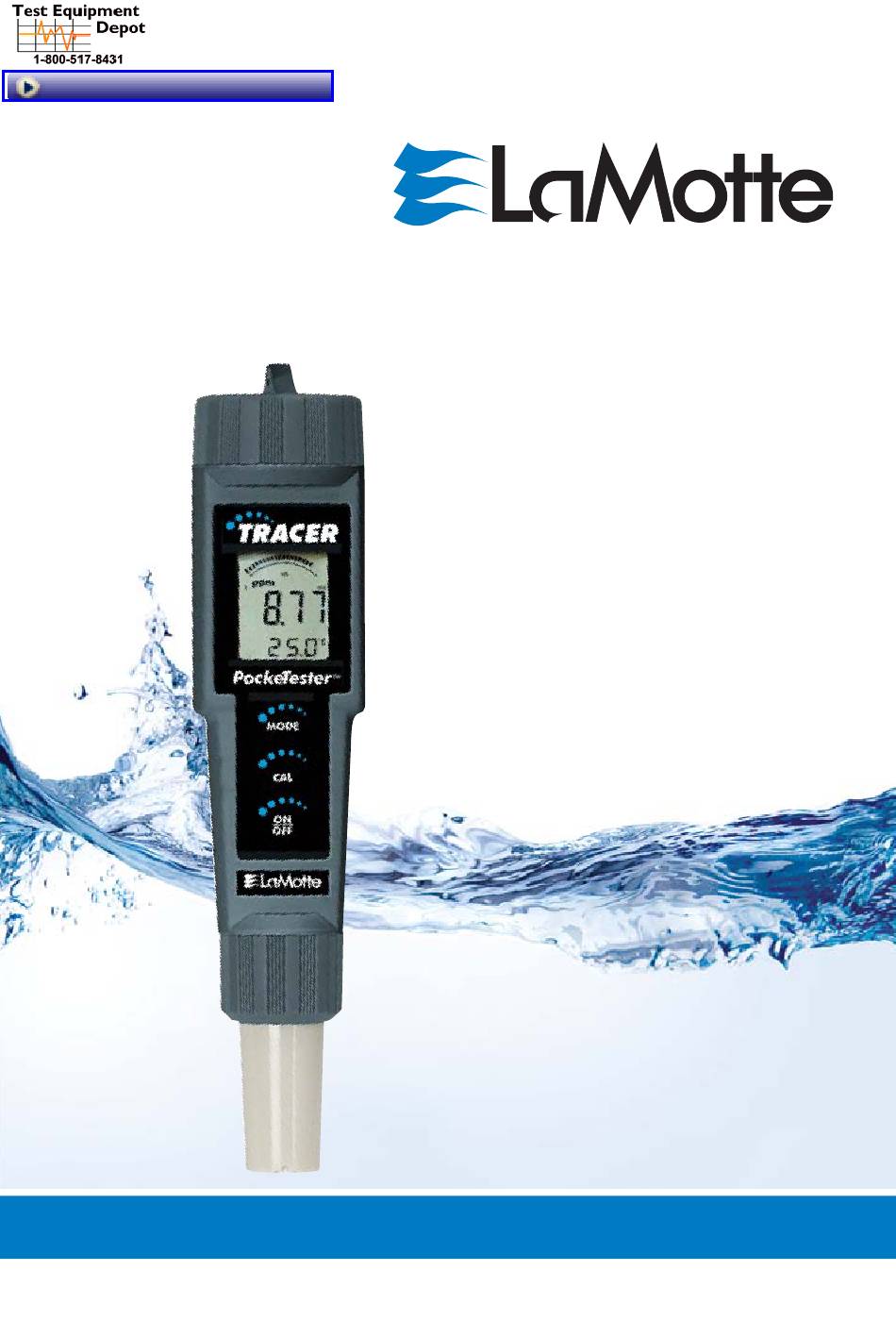

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Tracer Total Chlorine PockeTester Code 1740 Water Testing Leader Since 1919!
- Page 2 WARNING! This set contains chemicals that may be harmful if misued. Read cautions on individual containers carefully. Not to be used by children except under adult supervision.
-
Page 3: Table Of Contents
TRACER TOTAL CHLORINE POCKETESTER • CODE 1740 Introduction ..................4 Specifi cations ..................4 Contents ..................4 Parts & Accessories ................5 Meter Description Front Panel Description ............... 5 TRACER Display ................5 Basic Operation Powering the TRACER ..............6 Electrode Recognition ..............6 Automatic Calibration .............. -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the TRACER Total Chlorine PockeTester. The TRACER is a revolutionary, f rst of its kind measurement device that offers direct reading of Total Chlorine from 0.01 to 10.00 ppm. The TRACER is easy to use and maintain, and offers high accuracy, automatic calibration, with fast response and simultaneous Chlorine and Temperature displays and a 15-reading memory storage. -
Page 5: Parts & Accessories
PARTS & ACCESSORIES Total Chlorine Replacement Electrode Code 1732 Weighted Stand w/ Sample Cups (5) Code 1746 Sample Cups w/caps (24) Code 1745 METER DESCRIPTION Front Panel Description Battery compartment cover LCD Display MODE/HOLD button CAL/RECALL button ON/OFF button Electrode Retaining Collar (ring) Electrode Sensor (Note: The Electrode storage cap is not shown) -
Page 6: Basic Operation Powering The Tracer
BASIC OPERATION Powering the TRACER If the batteries are weak, the BAT indicator will appear on the display. Press the ON/OFF key to turn the TRACER on or off. The auto power off feature will shut the TRACER off automatically after 10 minutes of inactivity. Electrode Recognition When the TRACER is turned on, it will recognize the type of electrode that is connected and will display the appropriate unit of measure. -
Page 7: Testing
TESTING Conditioning the Electrode The TRACER electrode comes in a factory cleaned condition. If the meter is new or has been in storage for an extended period of time, at least two tests should be performed to condition the electrode. The electrode will perform best when in continuous use. -
Page 8: Recalling Stored Readings
Recalling Stored Readings NOTE: The HOLD symbol should not be displayed. If it is, exit the HOLD function by pressing the MODE button. Press the CAL/RECALL button and then press the MODE/HOLD button immediately after is displayed; the location number (1 through 15) will f ash. -
Page 9: Offset Adjustment Procedure
Total Chlorine Tracer Offset Adjustment Procedure Obtain a sample with a known concentration of total chlorine. Follow the Chlorine Measurement procedure on page 7. Wait for the display to read HOLD. This may take approximately 2 minutes. Press the MODE/HOLD button for approximately 5 seconds until “C_O” appears at the bottom of the display. -
Page 10: Validation Procedure
VALIDATION PROCEDURE Perform this procedure or an appropriate calibration procedure when TRACER is used for compliance monitoring or before the f rst use after replacing the Total Chlorine TRACER electrode. Required Materials and Chemicals Analytical Balance, Readability 0.0005g 5 g Chloramine-T trihydrate, Analytical grade, 98% Pipet, or Pipettor with disposable plastic tips, 1 mL Volumetric f asks, 100 mL Amber glass bottles, 100 mL... -
Page 11: Notes
The display will f ash while readings are changing rapidly. The result should be read when the display stabilizes. The reading will be held and the HOLD annunciator will come on after 120 seconds. Remove the TRACER from the standard. Rinse in deionized water and shake dry. -
Page 12: Maintenance Storage
MAINTENANCE Storage When not in use, the TRACER should be stored dry with the electrode cap in place. Cover the connector with the clear cover whenever the electrode is removed from the meter body. Battery Replacement Twist off the battery compartment cap. Hold the battery housing in place with one f nger. -
Page 13: Replacing The Electrode
Replacing the Electrode The TRACER is shipped with an electrode attached. If the electrode needs to be replaced or changed, follow these steps. Press the ON/OFF button to turn the meter off. To remove an electrode, unscrew and completely remove the electrode collar. -
Page 14: Expanding Your Tracer
TC1 Tablets (Code 7044A). Use with other reagent systems will void the warranty and may damage the meter. LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 1 year from the date of shipment and the probe to be free of defects in parts and workmanship for 6 months from the date of shipment.
